Videobar VB1

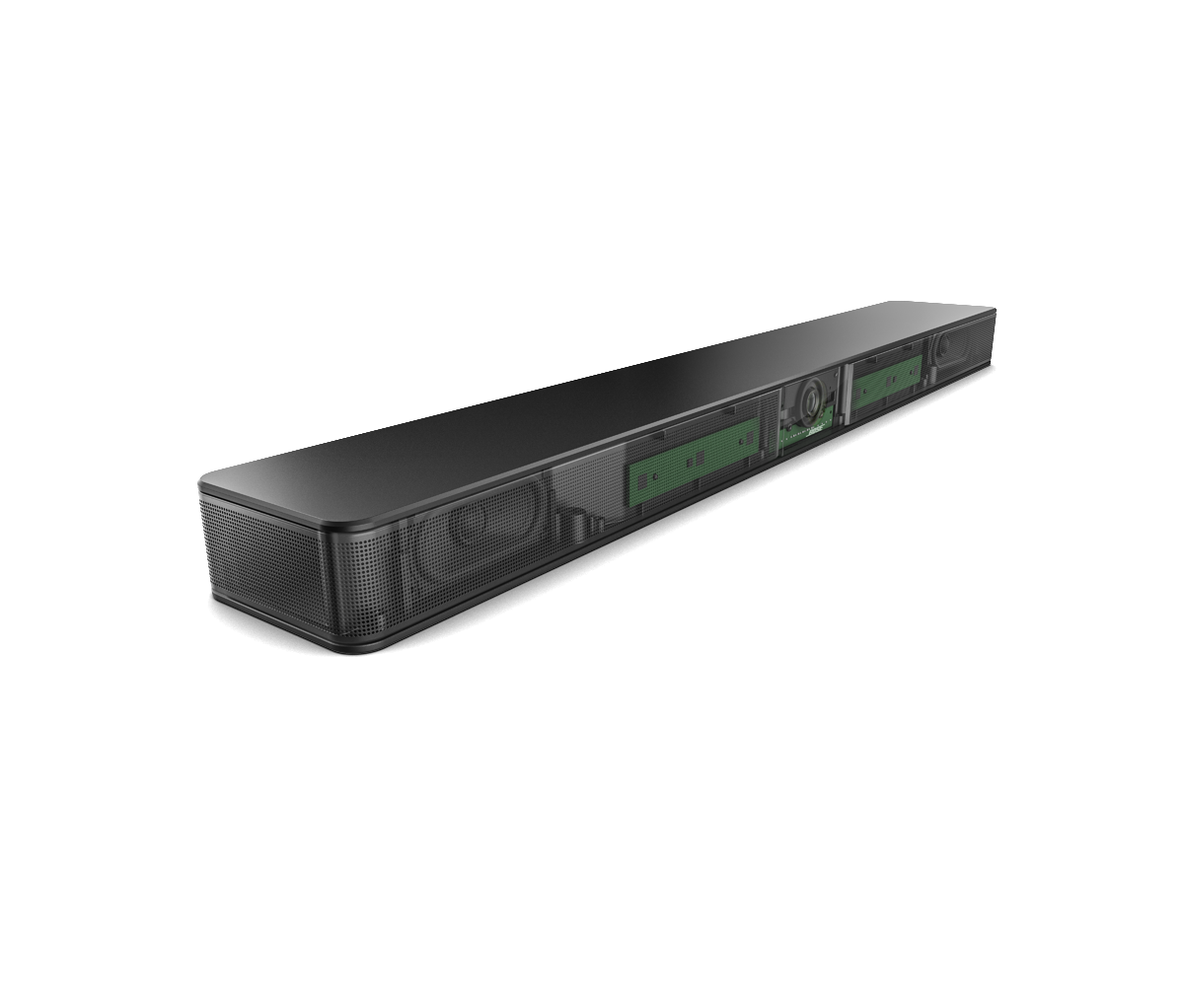

Bose Professional Videobar VB1 is an all-in-one USB conferencing device that brings premium audio and video to huddle spaces to medium-sized meeting rooms up to 6 × 6 meters (20 × 20 feet). With six automatic beam-steering microphones, a 4K ultra-HD camera, and signature sound, the Videobar VB1 helps you huddle up and get more done.
Features
Applications
Designed for a wide range of applications, including:
Specifications
AMPLIFICATION
- Maximum Peak Power, Symmetrical
- 20 W
- Rated Power, Symmetrical
- 20 W per channel, < 0.3% distortion over frequency range

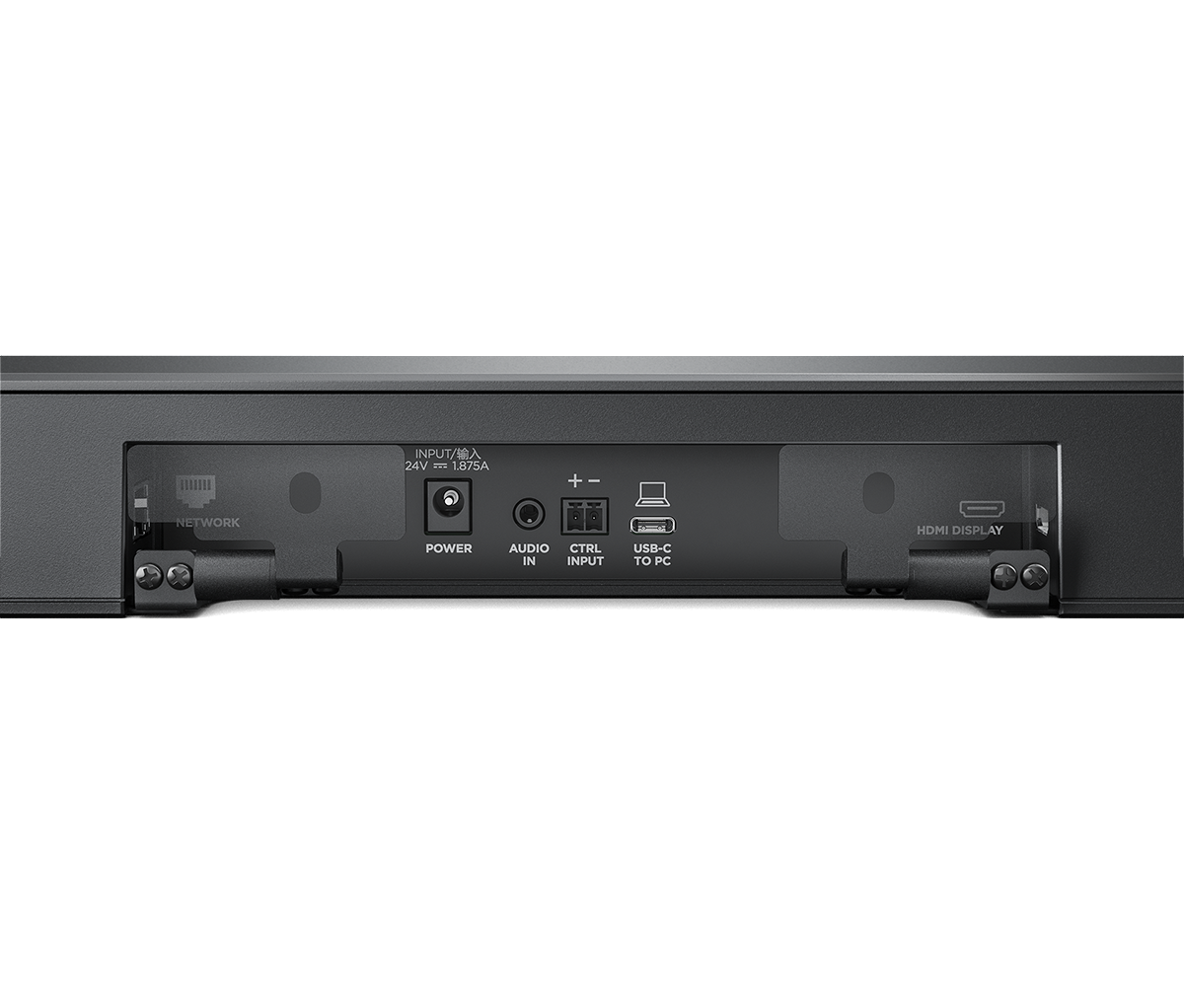

AUDIO INPUTS, ANALOG
- Connectors
- (1) stereo 1/8-in (3.5 mm)
COMPLIANCE
- Safety
- IEC/UL/EN 60065:2014/A11:2017, IEC/UL/EN 62368-1:2014/A11:2017
- Environmental
- RoHS
- EMC
- FCC Part 15B Class B, ICES-003 Class B, CISPR 13, EN55032 Class B, EN55035, EN61000-3-2, EN61000-3-3, BSMI CNS13439

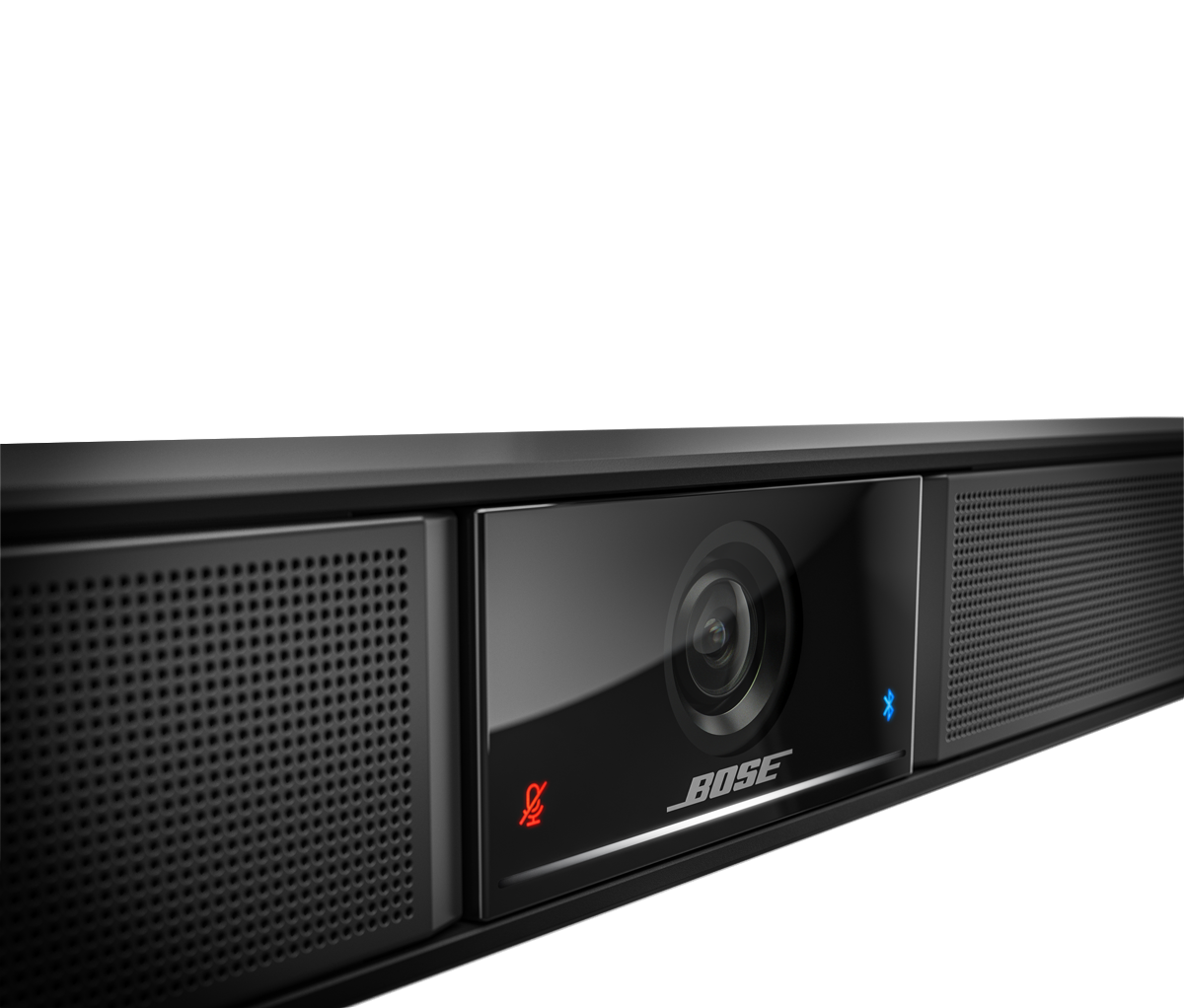

CAMERA AND VIDEO
- Focus Distance
- 0.5 m (1.6 ft) to ∞
- Field of View (FOV)
- 123° diagonal × 115° horizontal × 81° vertical
- Image Sensor
- 8 MP
- Lens
- Up to 5x digital zoom
- Positioning
- Autoframing mode, manual pan-tilt-zoom (PTZ) with configurable presets
- Processing
- Automatic white balance, automatic brightness, digital noise reduction
- Supported Video Resolutions
- UHD 2160p (4K), 1080p, 720p, 960×480, 848×480, 640×480, 640×360, 432×240 (30 fps)
- USB Device Video Class (UVC)
- v1.1
- Video Encoding
- H.264, M-JPEG
COMMUNICATION PORTS
- Bluetooth
- Bluetooth 4.2 HSP, A2DP, AVRCP, Bluetooth Low Energy
- Network
- RJ-45, 1 Gbps Ethernet, IEEE 802.3 (wired) / Wi-Fi 802.11ac (wireless)
CONTROL INPUTS
- Inputs (Control)
- (1) general purpose, 2-pin Euroblock
ELECTRICAL
- AC Power Connector
- External power supply with local power cord (included)
- AC Power Input
- 110–240 VAC, 50/60 Hz, 1.5 A maximum
GENERAL
- System Requirements
- Windows 7, 8.1, or 10 / macOS 10.10 or later / Chrome OS (Google Chromebook)
- Software Applications
- Videobar Configuration (Windows, macOS, web browser), Videobar Administration (Windows), Videobar Mobile (Android, iOS)
- Computer Interface Connection
- USB Type-C (USB 3.0 UAC, UVC, HID)
MICROPHONE
- Microphone Type, Quantity and Size
- 6 microphones
- Pickup Range
- 6.0 m (19.7 ft)
- Technology
- Static and adaptive dynamic beam-forming, 3 exclusion zones, stereo acoustic echo cancellation (AEC), digital noise suppression
INDICATORS AND CONTROLS
- LED Status Indicators
- (1) LED light bar, (1) mute LED, (1) Bluetooth LED
PHYSICAL
- Colors
- Black
- Suspension/Mounting

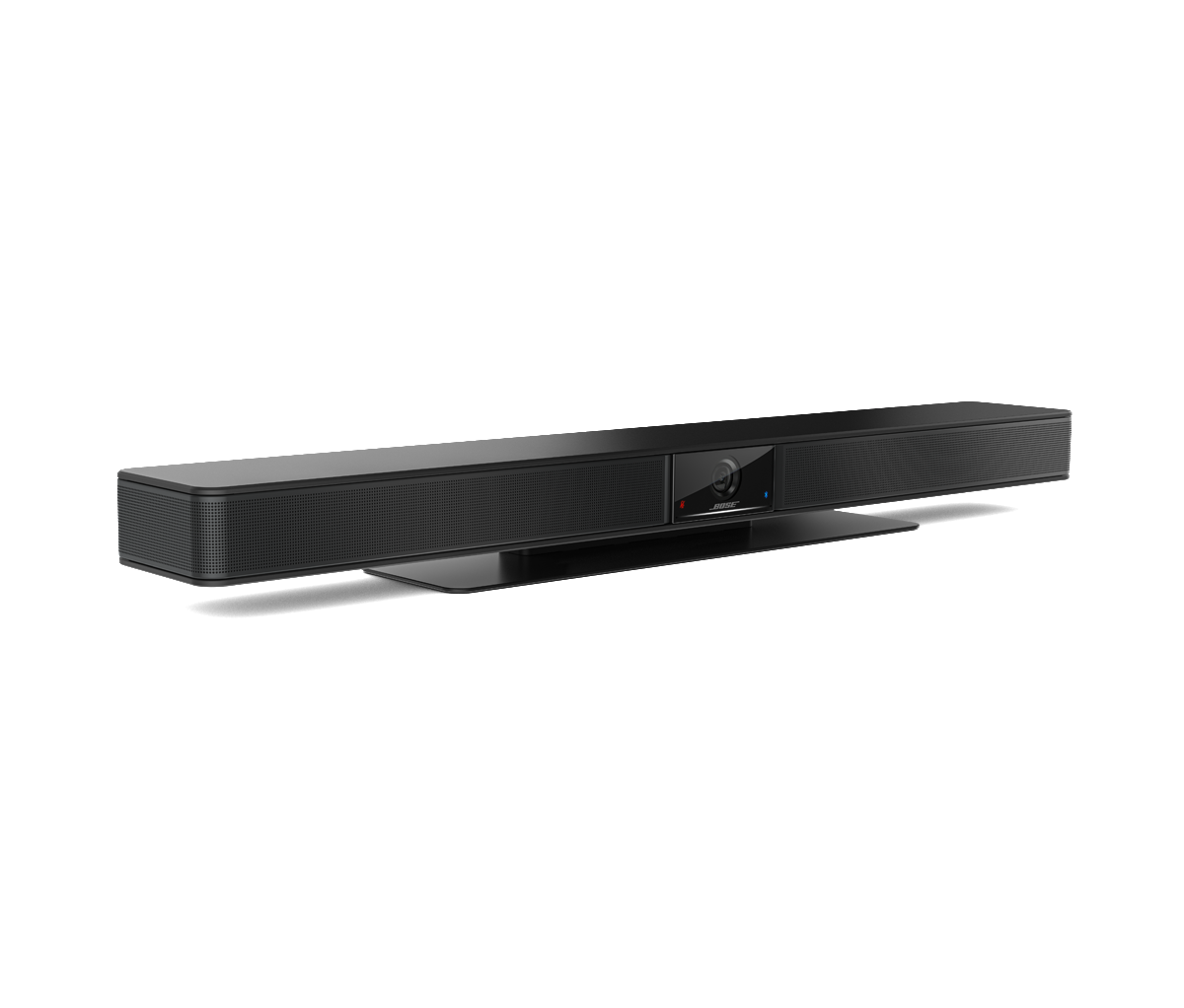

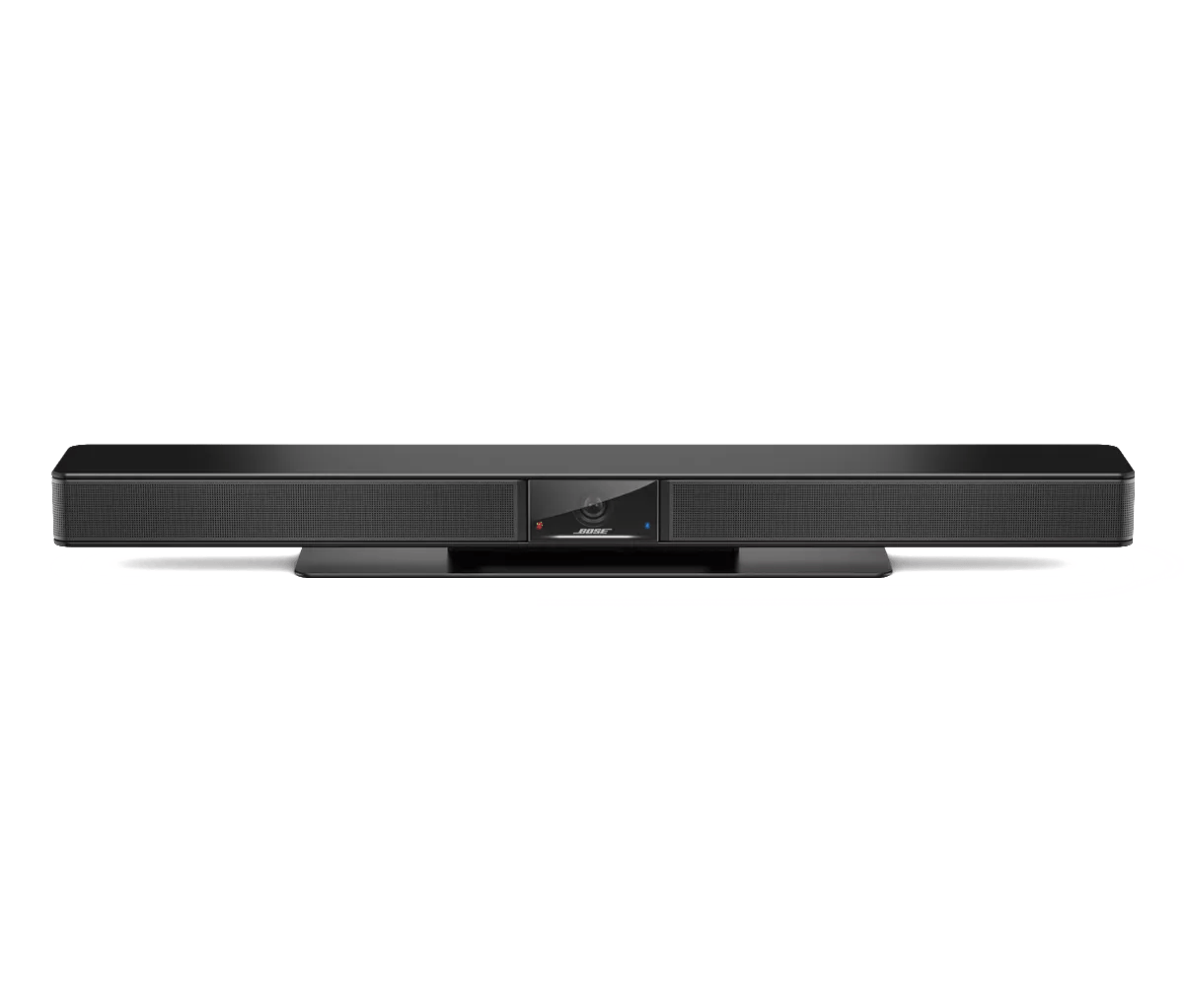

- Tabletop stand, wall-mount template, display mounting kit (optional), mud ring (optional)
- Operating Temperature Range
- 0 °C to 40 °C (32 °F to 104 °F), 90% non-condensing humidity
- Product Dimensions (H×W×D)
- 1.9 in × 27.0 in × 4.0 in (48 mm × 659 mm × 102 mm)
- Net Weight
- 5.6 lb (2.5 kg)
- Shipping Dimensions (H×W×D)
- 27.0 in × 1.9 in × 3.8 in (686 mm × 48 mm × 96 mm)
- Storage Temperature
- -40 °C to 70 °C (-40 °F to 158 °F), 93% relative humidity
- Shipping Weight
- 12.0 lb (5.4 kg)
PERFORMANCE
- Calculated Maximum SPL @ 1 m
- 89 dB (IEC 60268-5, mono input, wall-mounted)
Order Codes
| Order Code | Description | Availability |
|---|---|---|
| 842415-1110 | Videobar VB1 120V US | Buy Now |
| 842415-2110 | Videobar VB1 230V EU | Get Price |
| 842415-3110 | Videobar VB1 100V JP | Get Price |
| 842415-4110 | Videobar VB1 240V UK | Get Price |
| 842415-5110 | Videobar VB1 240V AUS | Get Price |
| 842888-0010 | Display Mounting Bracket | Get Price |
| 843944-0010 | 2 m USB 3.1 Cable | Buy Now |
| 861846-0010 | Mudring | Get Price |
