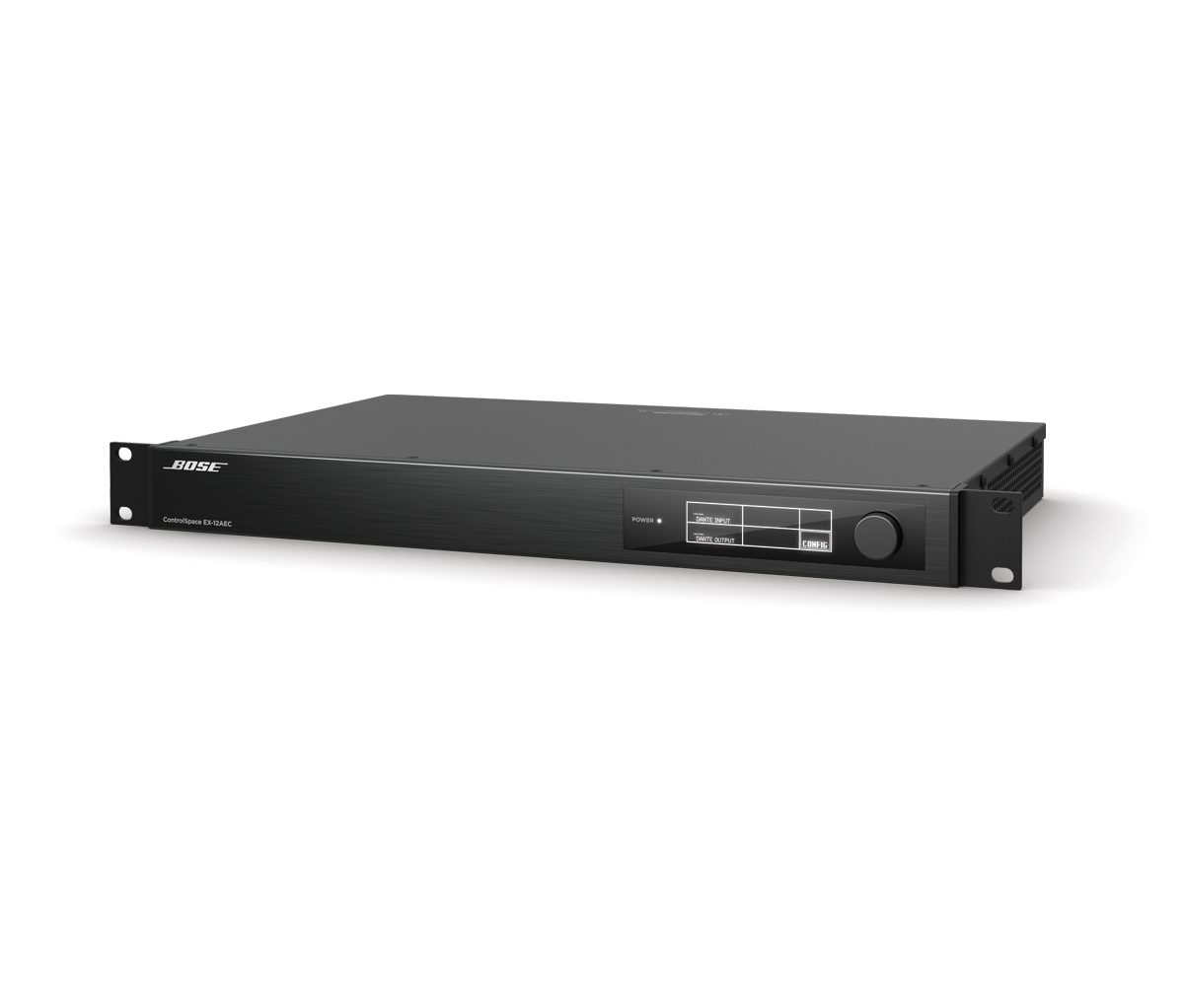

ControlSpace EX-12AEC conferencing signal processor
With an open-architecture design, twelve acoustic echo cancellers (AEC), and 16 × 16 Dante connectivity, the ControlSpace EX-12AEC conferencing processor provides cost-effective, robust AEC for conference rooms using ControlSpace EX conferencing processors.
Features
Applications
Designed for a wide range of applications, including:
Specifications
ACOUSTIC ECHO CANCELATION (AEC)
- AEC-Enabled
- Yes
- Channels
- 12
- Latency
- 50 ms
- Noise Reduction
- 32 dB
- References
- 4
- Tail Length
- 480 ms
AUDIO INPUTS/OUTPUTS, DIGITAL
- Channels
- 16 Dante in × 16 Dante out, primary/secondary

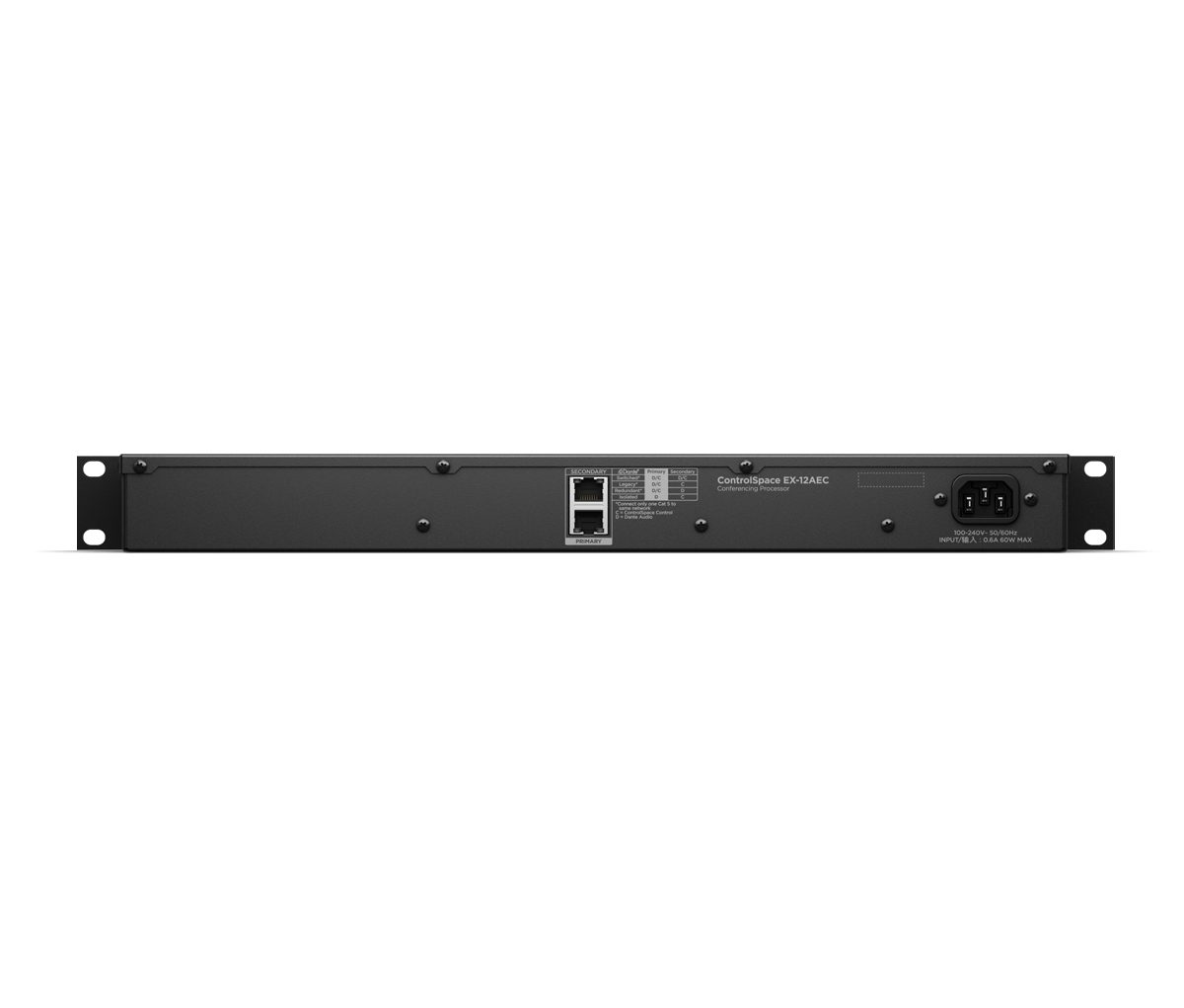

- Connectors
- (2) RJ-45 Dante in/out / (1) RJ-45 AmpLink out
- Type
- Dante (input/output)
ELECTRICAL
- Mains Connector
- IEC 60320-C14 inlet
- Mains Voltage
- 85–264 VAC, 50/60 Hz
- AC Power Consumption
- 35 W typical at 104 °F (40 °C) ambient
- Power Dissipation
- 60 W (205 BTU/hr, 52 kcal/hr)
GENERAL
- Software Applications
- ControlSpace Designer 5.5 or later (Windows)
- Computer Interface Connection
- RJ-45 (Dante), through network router or switch
INDICATORS AND CONTROLS

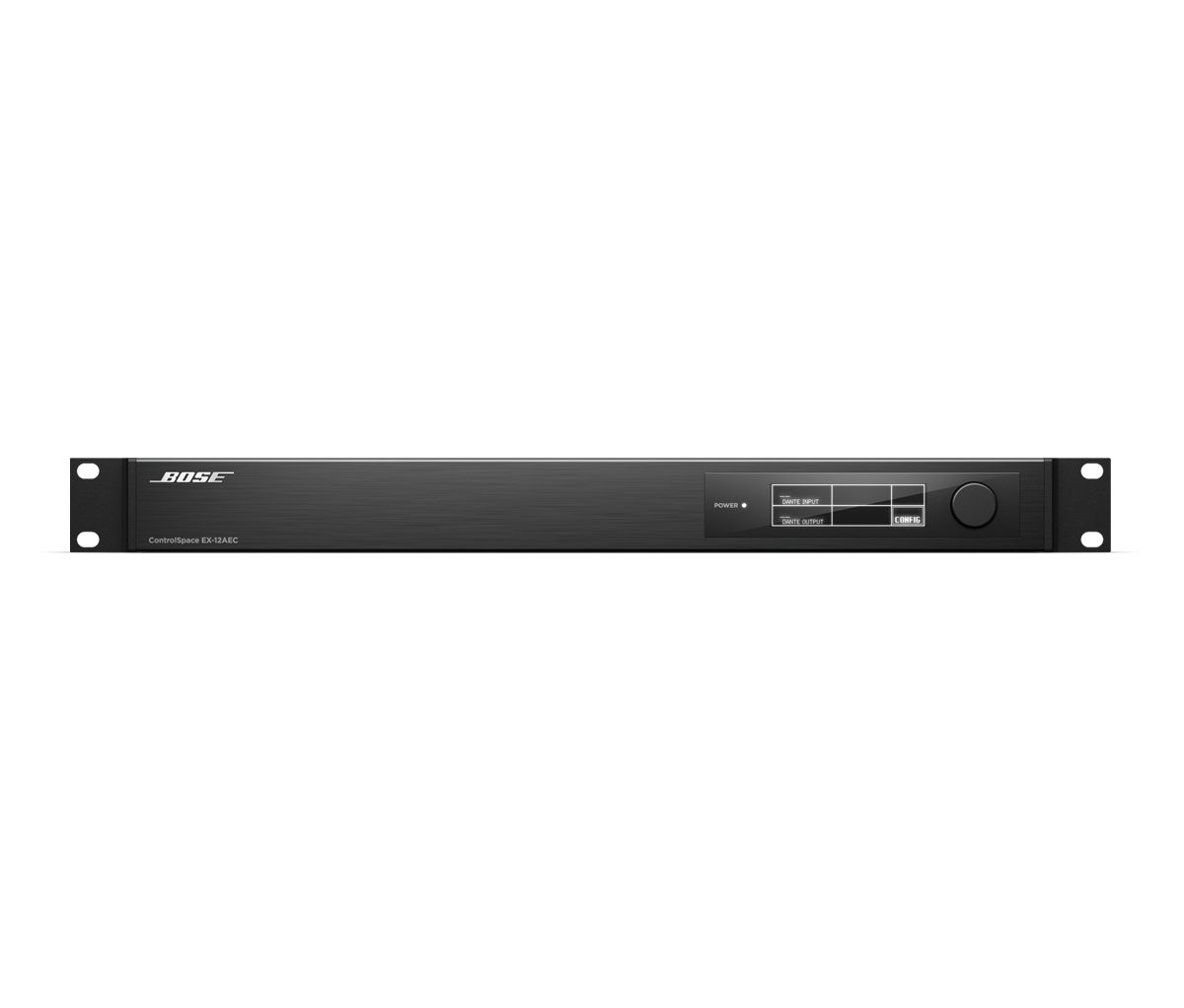

- Display
- 256 × 64 OLED
- LED Status Indicators
- (1) power/status LED
INTEGRATED DSP
- Delay
- 43 s
- DSP-Enabled
- Yes
- Maximum Calculation
- 3.6 GIPS / 2.7 GFLOPS
- Signal Processor/CPU
- 32-bit fixed/floating-point DSP 456 MHz/Arm Cortex-A8 600 MHz processor
PHYSICAL
- Colors
- Black
- Cooling System
- 2 variable-speed side-venting fans
- Suspension/Mounting
- Standard rack ears
- Operating Temperature Range
- 0 °C to 40 °C (32 °F to 104 °F)
- Product Dimensions (H×W×D)
- 1.7 in × 19.0 in × 11.1 in (44 mm × 483 mm × 282 mm)
- Net Weight
- 5.3 lb (2.4 kg)
- Rack Spaces
- 1RU
In the Box
