Veritas 2160BH
The award-winning Veritas series from Bose Professional delivers superior background/foreground music, paging and multimedia for commercial applications. Bluetooth ® 5.0 wireless input and user-intuitive OLED screen with quick-start QR code simplify setup—whether you’re a pro installer or a DIYer. With four models to choose from, Veritas amplifiers offer the perfect combination of power, performance and flexibility.
The ultimate choice for large-scale 70V/100V distributed audio systems, the 2160BH efficiently powers multiple zones with premium sound clarity and reliable, consistent coverage. Ideal for hotels, conference centers, and multi-room installations, the 2160BH offers high output with advanced features for integrators handling complex, high-demand applications.
Features
Applications
Designed for a wide range of applications, including:
Specifications
AMPLIFICATION
- Channel Separation (Crosstalk)
- ≤ -58 dBu below rated power, 1 kHz
- Dynamic Range
- 88 dB
- Frequency Response
- 20 Hz – 20 kHz (+0/-3 dB) at 1 W, 1 kHz reference
- Rated Power, Symmetrical
- 2 x 160 W at 70/100V
- THD+N
- ≤ 0.5% at rated power
AUDIO INPUTS, ANALOG
- Adjustment Range
- 0 dB to -30 dB (line), 0 dB to +50 dB (page)
- Input Channels
- (2) balanced line, (2) unbalanced line, (1) balanced mic/line
- Connectors
- (2) RCA stereo pairs, (2) 5-pin Euroblock, (1) 4-pin Euroblock
- Input Impedance
- 20 kΩ (line), 2 kΩ (page)
- Input Range
- -8 dBu to +22 dBu (line), -58 dBu to +12 dBu (page)
- Maximum Input Level
- 22 dBu (line), 12 dBu (page)
- Nominal Input Level
- 4 dBu (line), -38 dBu (page)
- Sensitivity
- -8 dBu (line), -58 dBV (page)
AUDIO OUTPUTS, ANALOG
- Channels
- (2) loudspeaker, (1) unbalanced line
- Connectors
- (2) 2-pin inverted Euroblock, (1) RCA stereo pair
- Nominal Output Level
- 2 × 160 W at 70V/100V (loudspeaker), 2 dBu (auxiliary)
ELECTRICAL
- Mains Connector
- IEC C14 inlet
- Mains Voltage
- 100–240 VAC (±10%), 50/60 Hz
- Protections
- High temperature, output short circuit, excessively low/high AC line voltage
- AC Power Consumption
- 13.6 W standby, 500 W maximum
INDICATORS AND CONTROLS
- Controls, Front Panel
- Power on/off switch, input select switch (A/Bluetooth/B), rotary encoder

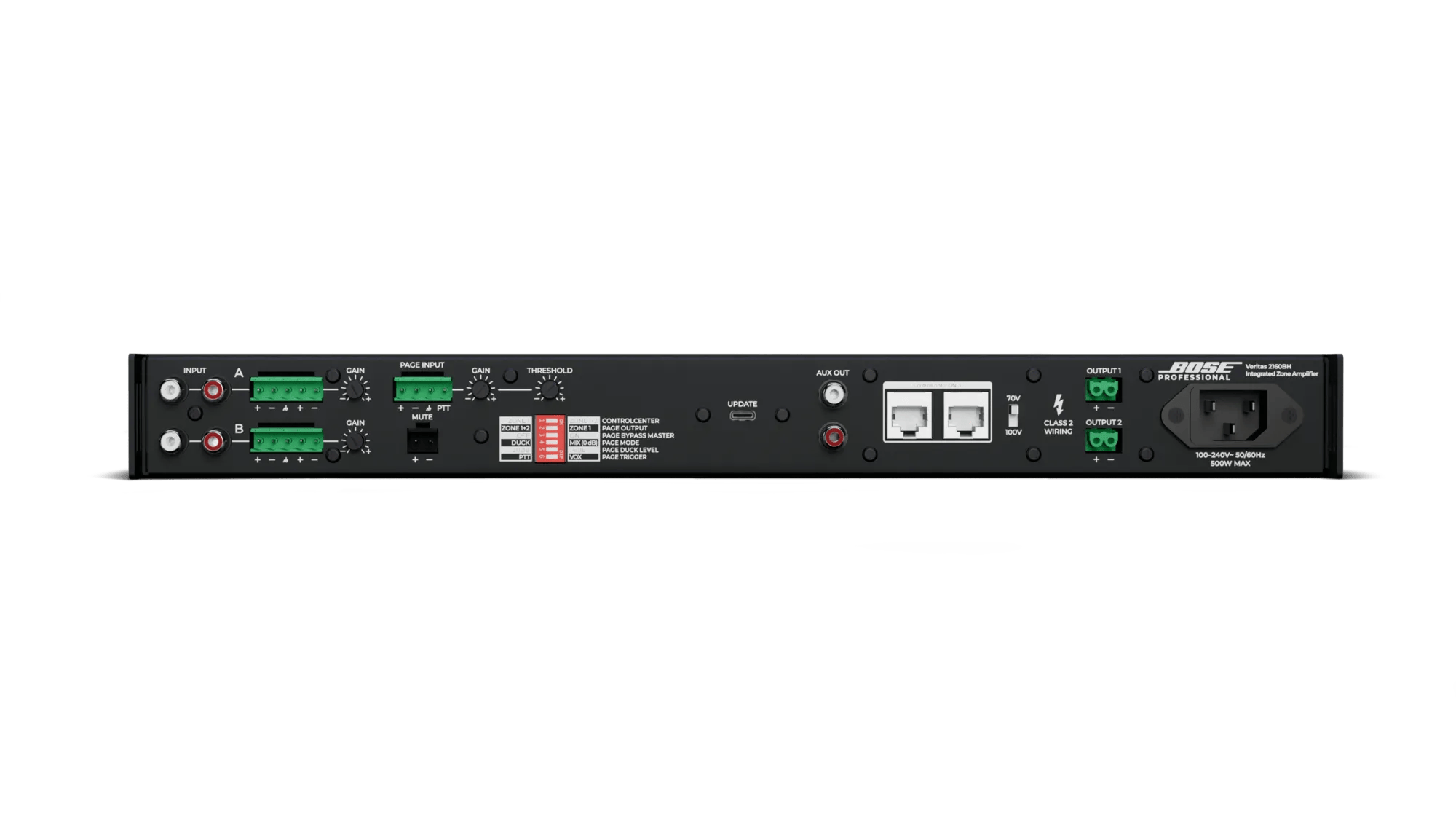

- Controls, Rear Panel
- Amplifier mode DIP switches, input gain knobs (A, B, page), page threshold knob, mute connector, ControlCenter ports
INTEGRATED DSP
- A/D and D/A Converters
- 48 kHz / 24-bit
- Audio Latency
- 10.4 ms (any input to speaker output or aux output)
- Presets
- 70 Hz high-pass filter, 80 Hz high-pass filter, AMU105, AMU108, DesignMax (all models), EdgeMax (all models), FreeSpace FS (all models), subwoofer
- Processing Functions
- Loudspeaker EQ, Opti-Voice paging, Dynamic EQ
PHYSICAL
- Cooling System
- Fan system, left-to-right airflow

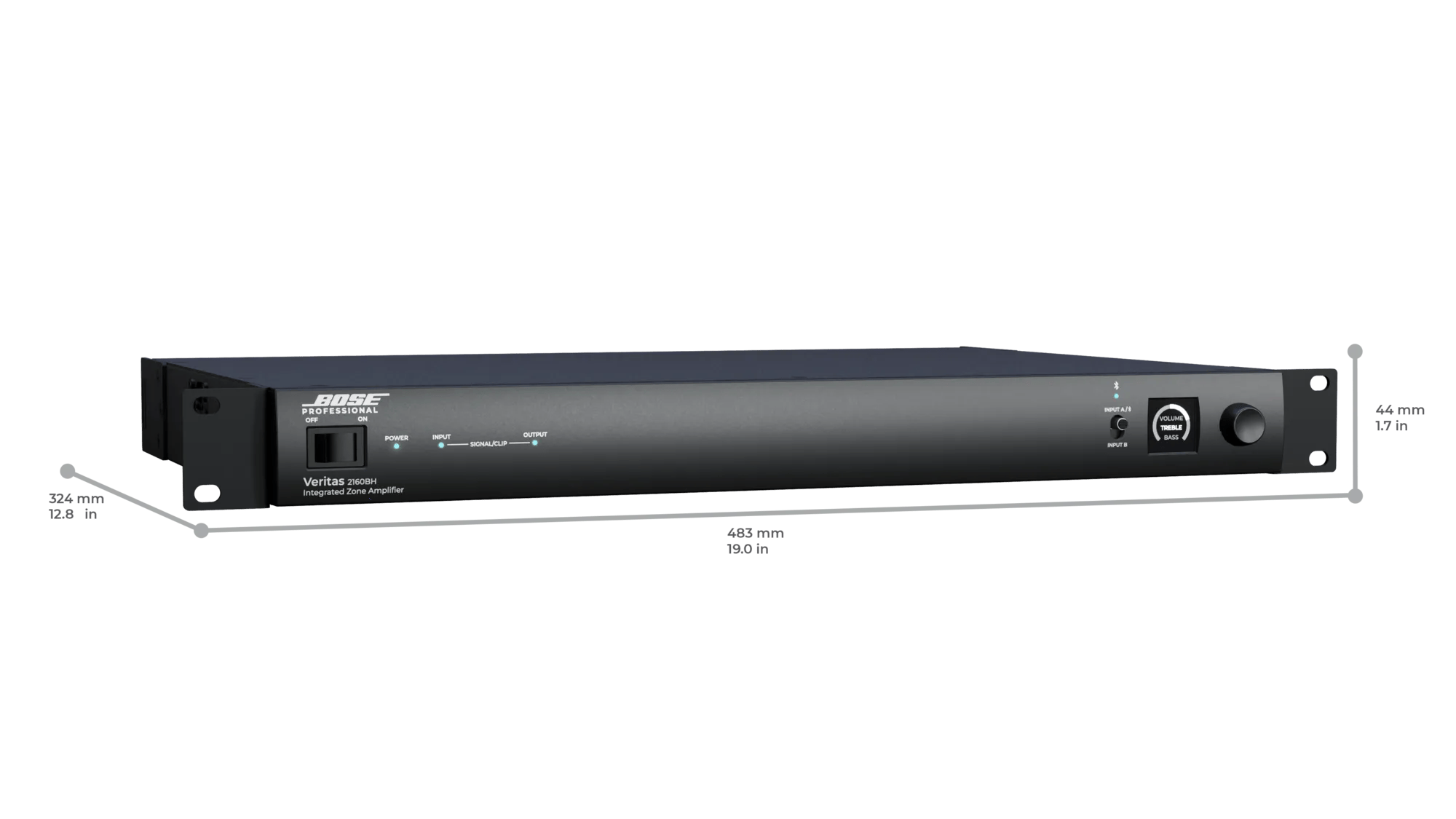

- Product Dimensions (H×W×D)
- 44 mm × 483 mm × 324 mm (1.7 in × 19.0 in × 12.8 in)
- Net Weight
- 4.4 kg (9.7 lb)
- Shipping Weight
- 5.8 kg (12.8 lb)
In the Box
