Veritas 1100BH

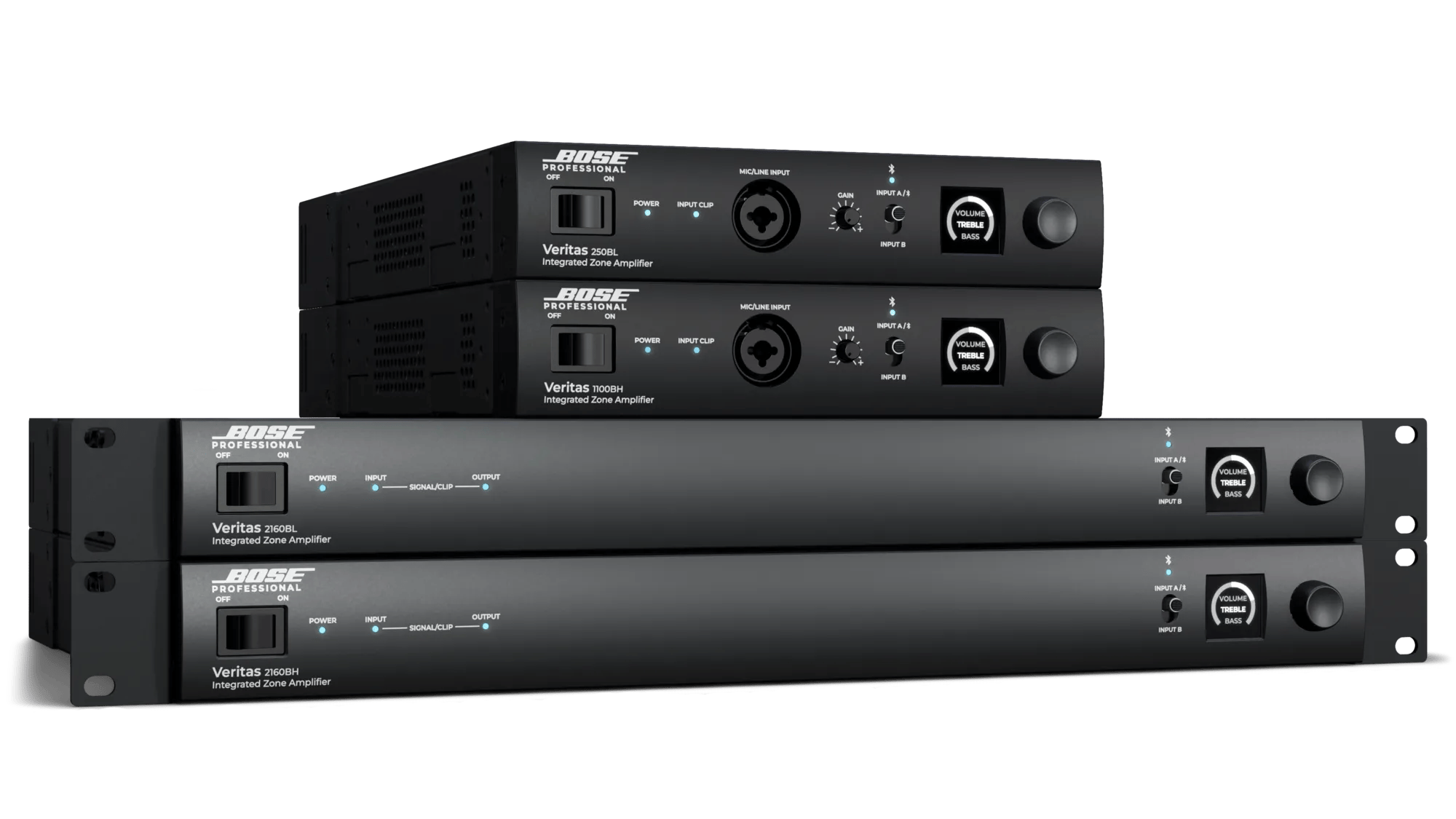

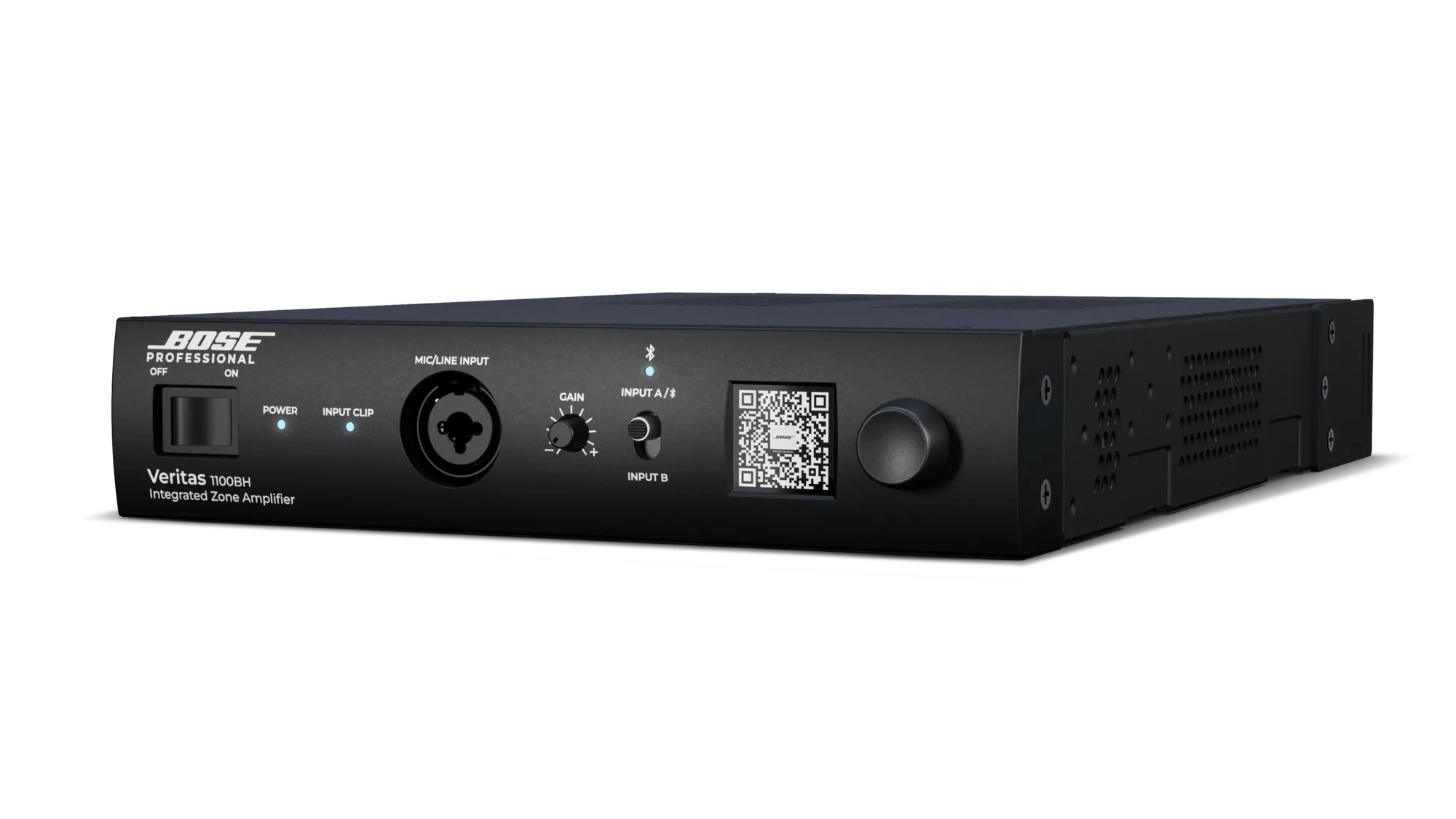

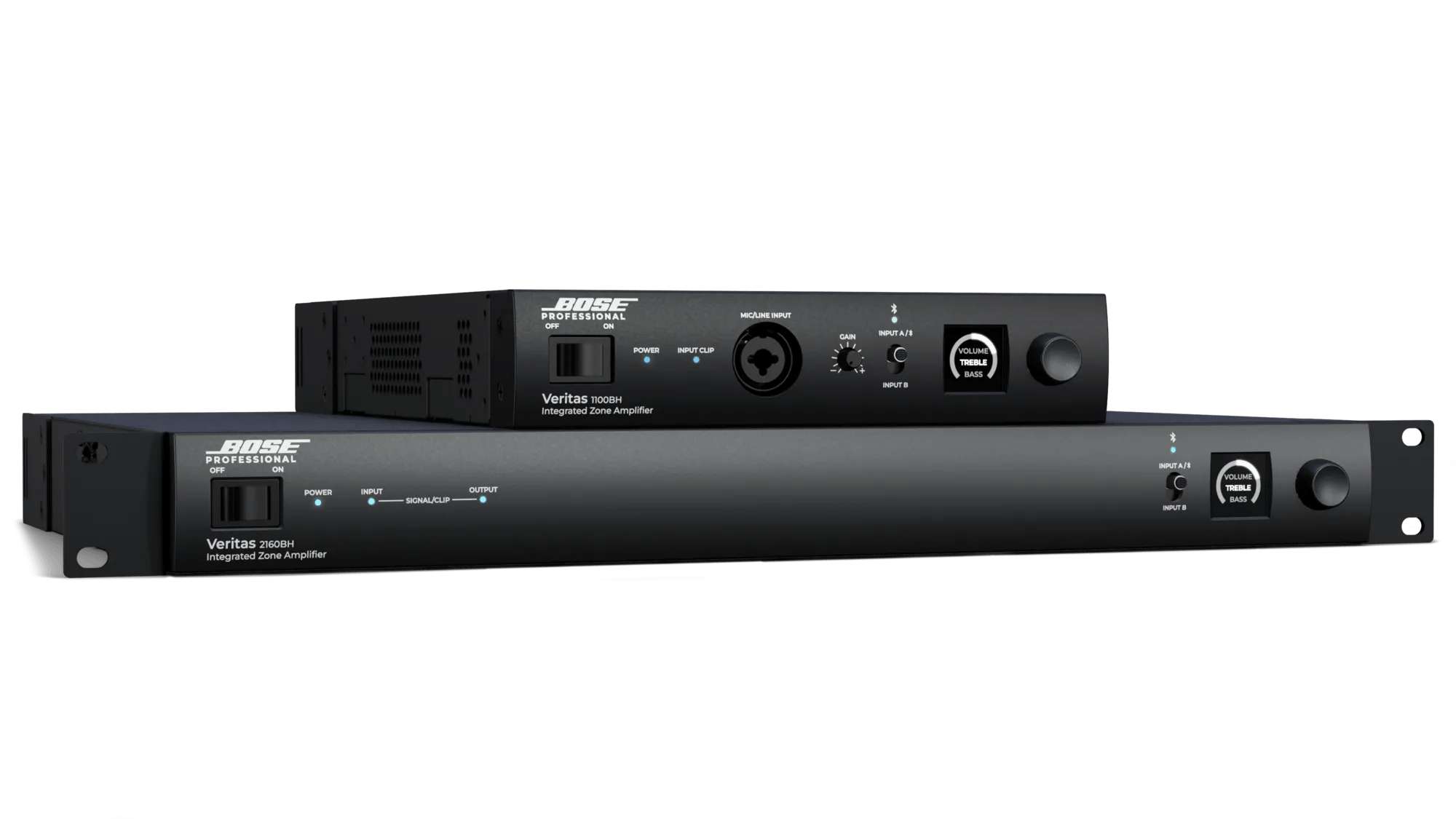

The award-winning Veritas series from Bose Professional delivers superior background/foreground music, paging and multimedia for commercial applications. Bluetooth ® 5.0 wireless input and user-intuitive OLED screen with quick-start QR code simplify setup—whether you’re a pro installer or a DIYer. With four models to choose from, Veritas amplifiers offer the perfect combination of power, performance and flexibility.

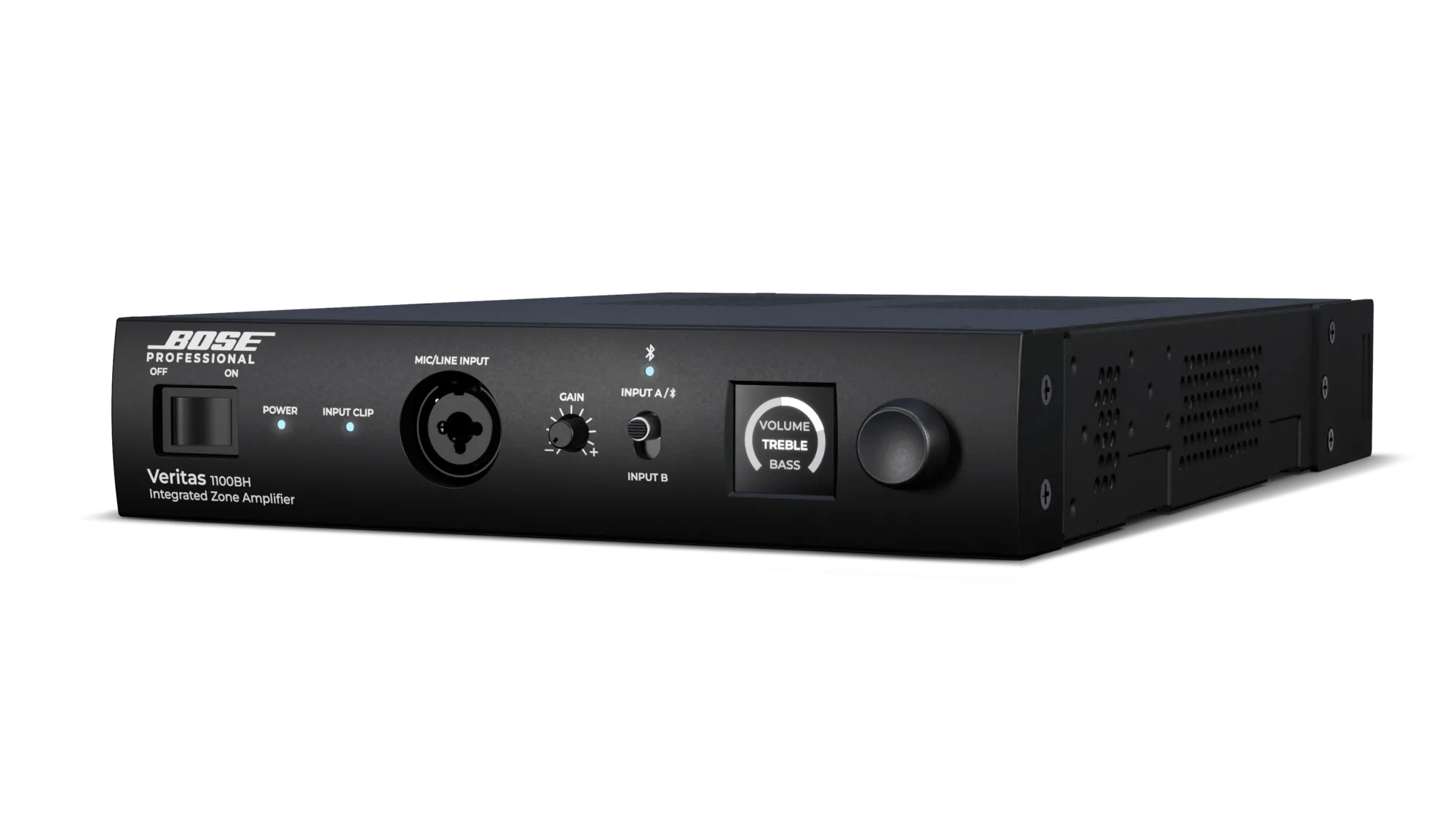

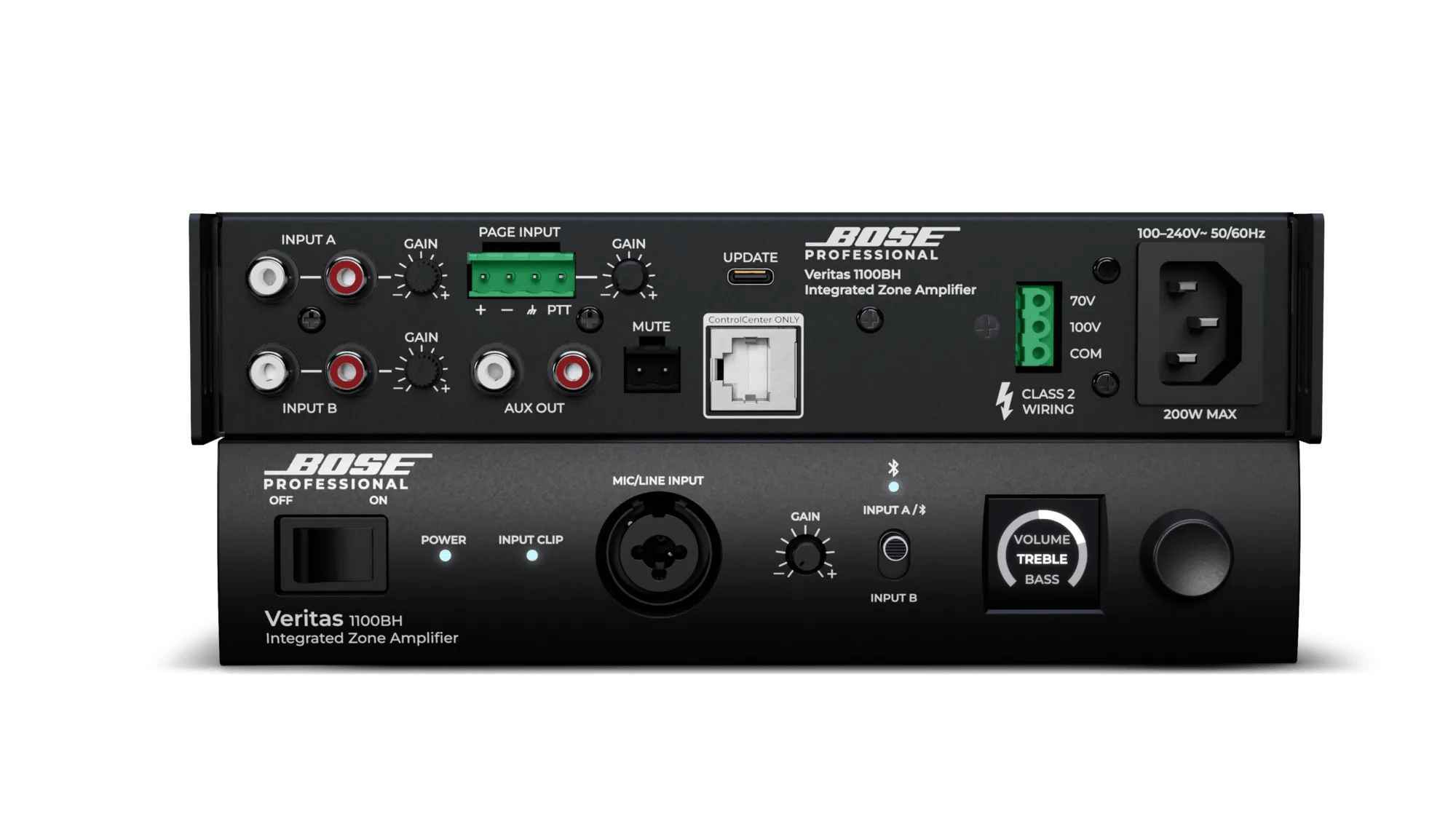

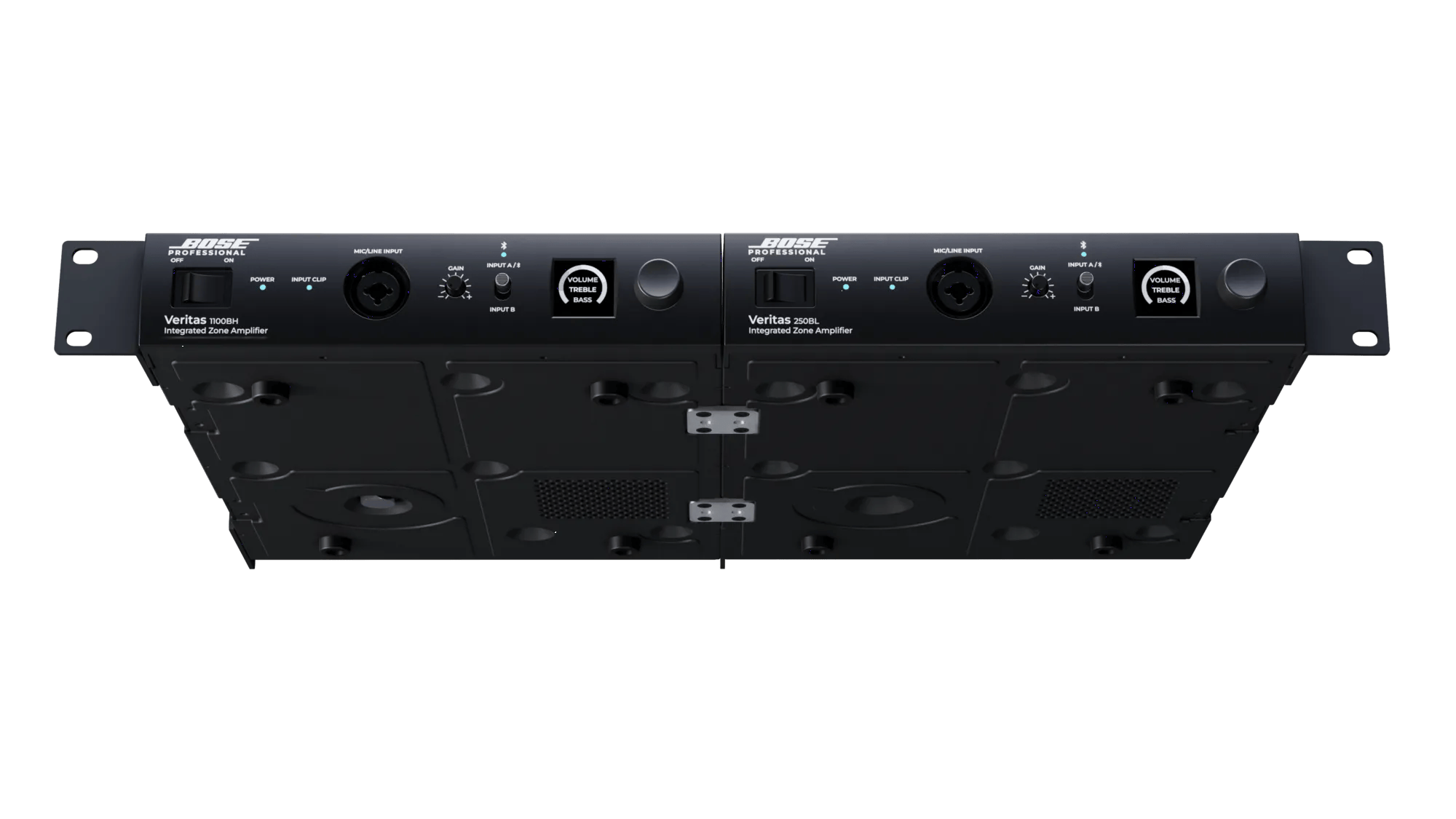

Compact and powerful, the 1100BH is suited for smaller distributed audio systems, background music, and paging applications. Designed for 70V/100V high-impedance systems, it efficiently powers multiple wall or ceiling loudspeakers to deliver broad coverage. Perfect for smaller venues, offices, and retail spaces, the 1100BH features a smaller half-rack size and front XLR/¼-inch input for convenient mic or audio source connection.
Features
Applications
Designed for a wide range of applications, including:
Specifications
AMPLIFICATION
- Dynamic Range
- 88 dB
- Frequency Response
- 70 Hz – 18 kHz (+0/-4 dB, @ 1 W reference 1 kHz)
- Rated Power, Symmetrical
- 1 x 100 W at 70V/100V
- THD+N
- ≤0.3 % (at full rated power)
AUDIO INPUTS, ANALOG
- Input Channels
- (2) unbalanced line, (2) balanced mic/line
- Connectors
- (2) RCA stereo pairs, (1) XLR/1/4-in, (1) 4-pin Euroblock
- Input Impedance
- 20 kΩ (line), 2.4 kΩ (page)
- Input Range
- -10 dBV to +10 dBV (line), -60 dBV to +10 dBV (page)
- Maximum Input Level
- +10 dBV (line), +10 dBV (page)
- Nominal Input Level
- 0 dBV (line), -40 dBV (page)
- Sensitivity
- -10 dBV (line), -58 dBV (page)
AUDIO OUTPUTS, ANALOG
- Channels
- (2) loudspeaker, (1) unbalanced line
- Connectors
- (1) 3-pin inverted Euroblock, (1) RCA stereo pair
- Nominal Output Level
- 1 × 100 W at 70V/100 V (loudspeaker), 0 dBV max (auxiliary)
ELECTRICAL
- Mains Connector
- IEC C14 inlet
- Mains Voltage
- 100–240 VAC (±10%), 50/60 Hz
- Protections
- High temperature, output short
- AC Power Consumption
- 15 W idle, 200 W maximum
INDICATORS AND CONTROLS

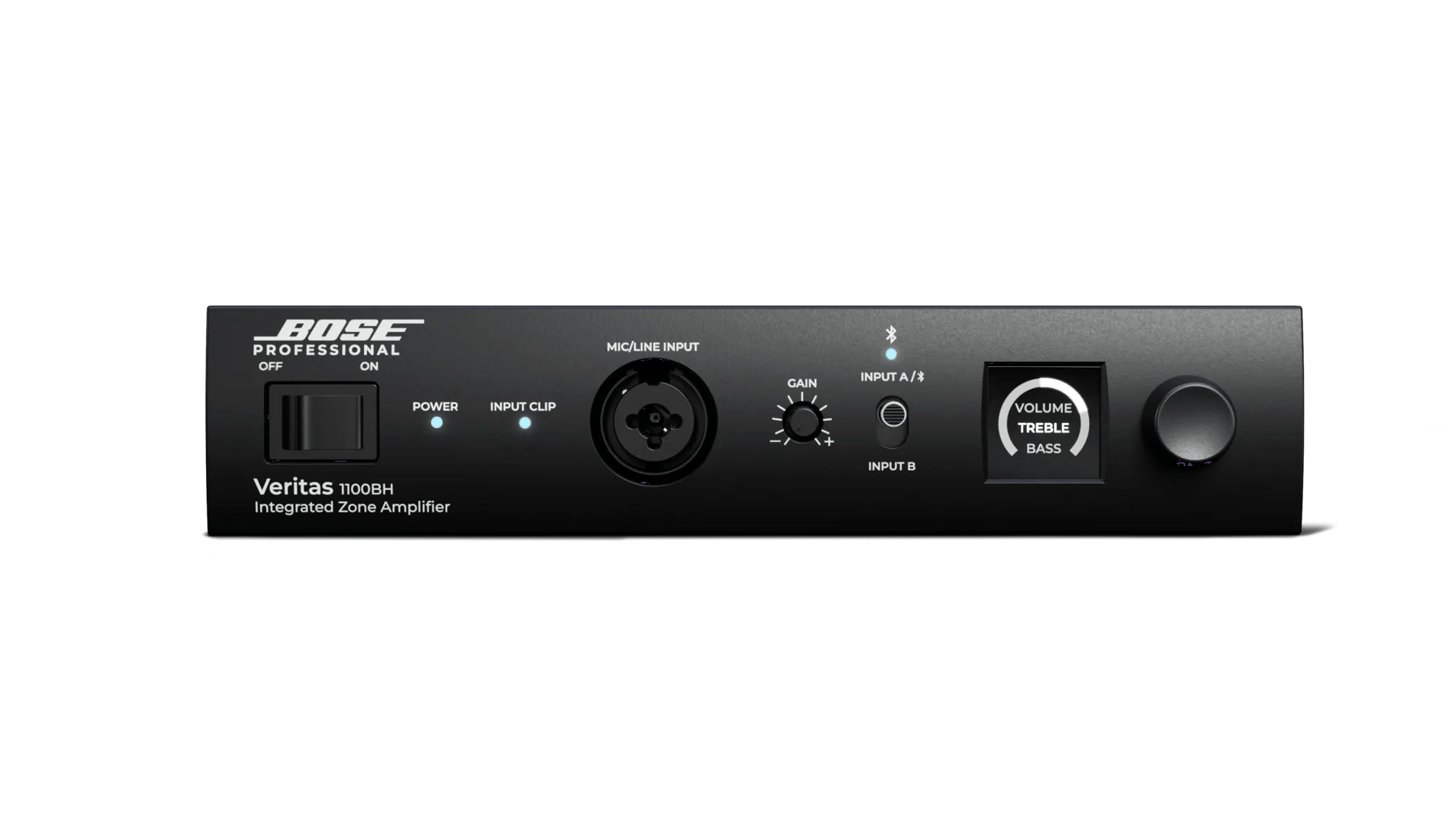

- Controls, Front Panel
- Power on/off switch, input select switch (A/Bluetooth/B), input gain knob (XLR/1/4-in), rotary encoder

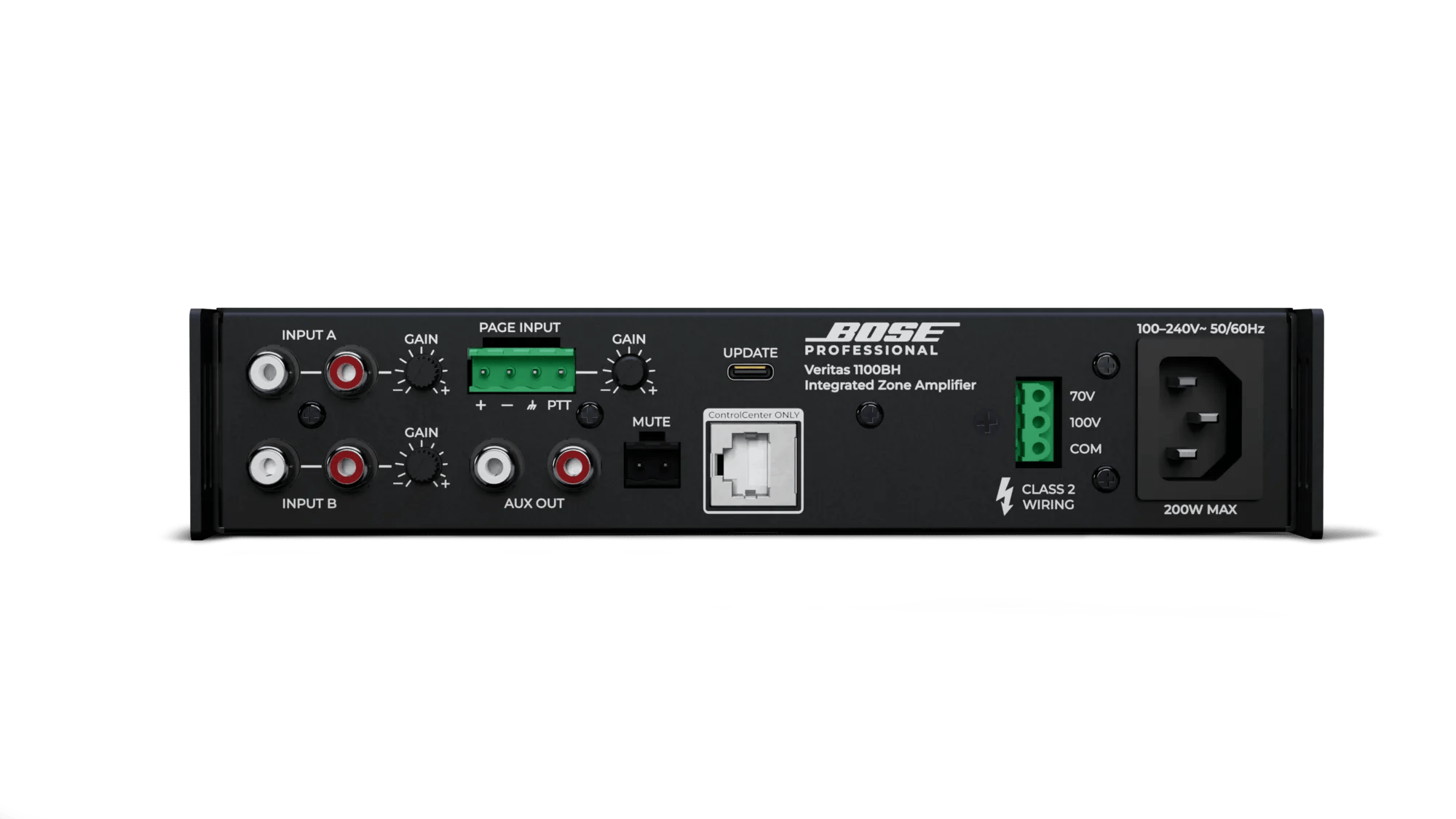

- Controls, Rear Panel
- Input gain knobs (A, B, page), mute connector, ControlCenter port
INTEGRATED DSP
- A/D and D/A Converters
- 48 kHz / 24-bit
- Audio Latency
- 10.4 ms (any input to speaker output or aux output)
- Presets
- 70 Hz high-pass filter, 80 Hz high-pass filter, AMU105, AMU108, DesignMax (all models), EdgeMax (all models), FreeSpace FS (all models), subwoofer
- Processing Functions
- Loudspeaker EQ, Opti-Voice paging, Dynamic EQ
PHYSICAL
- Cooling System
- Natural convection

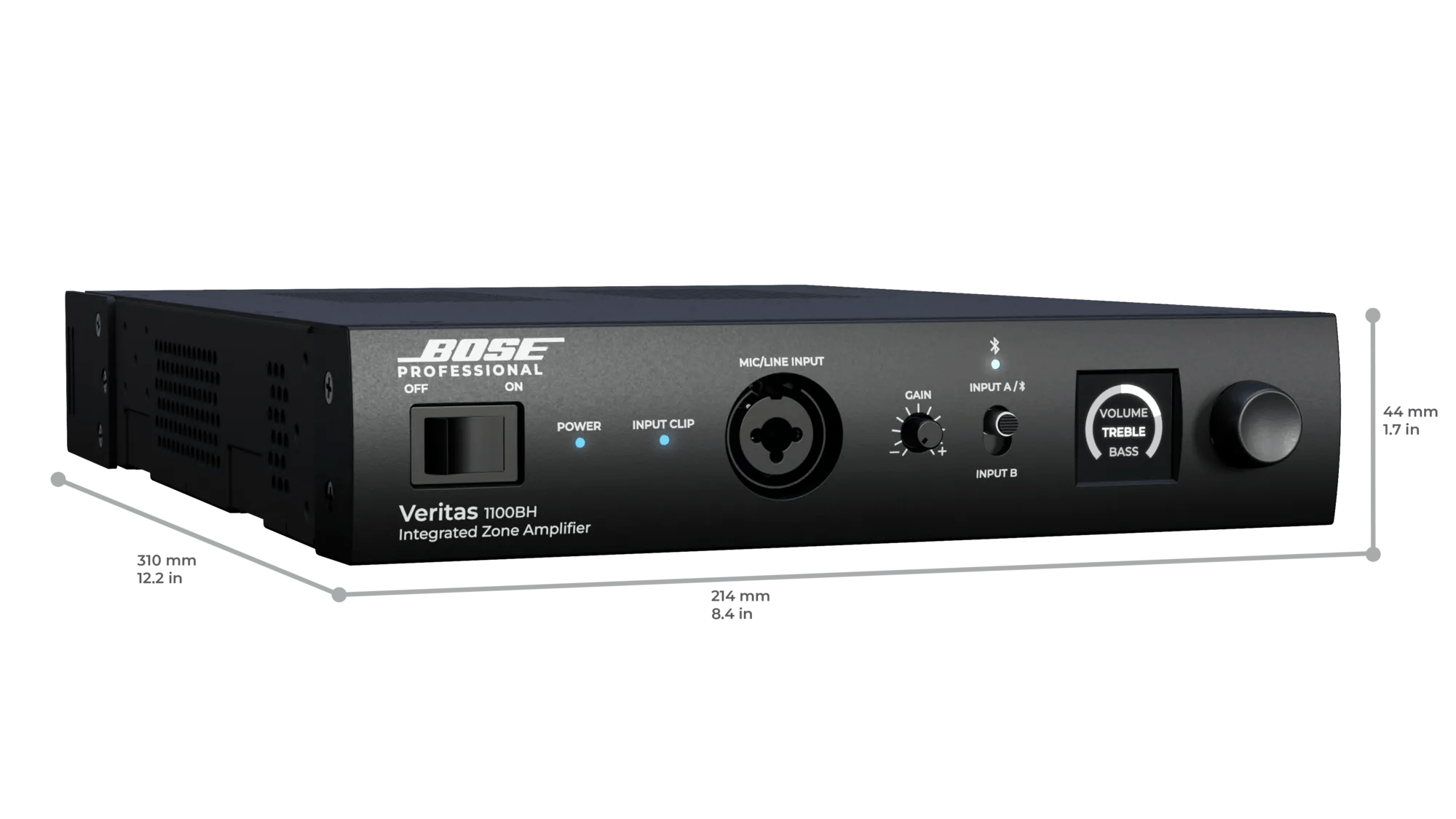

- Product Dimensions (H×W×D)
- 44 mm × 214 mm × 310 mm (1.7 in × 8.4 in × 12.2 in)
- Net Weight
- 3.2 kg (7.1 lb)
In the Box
