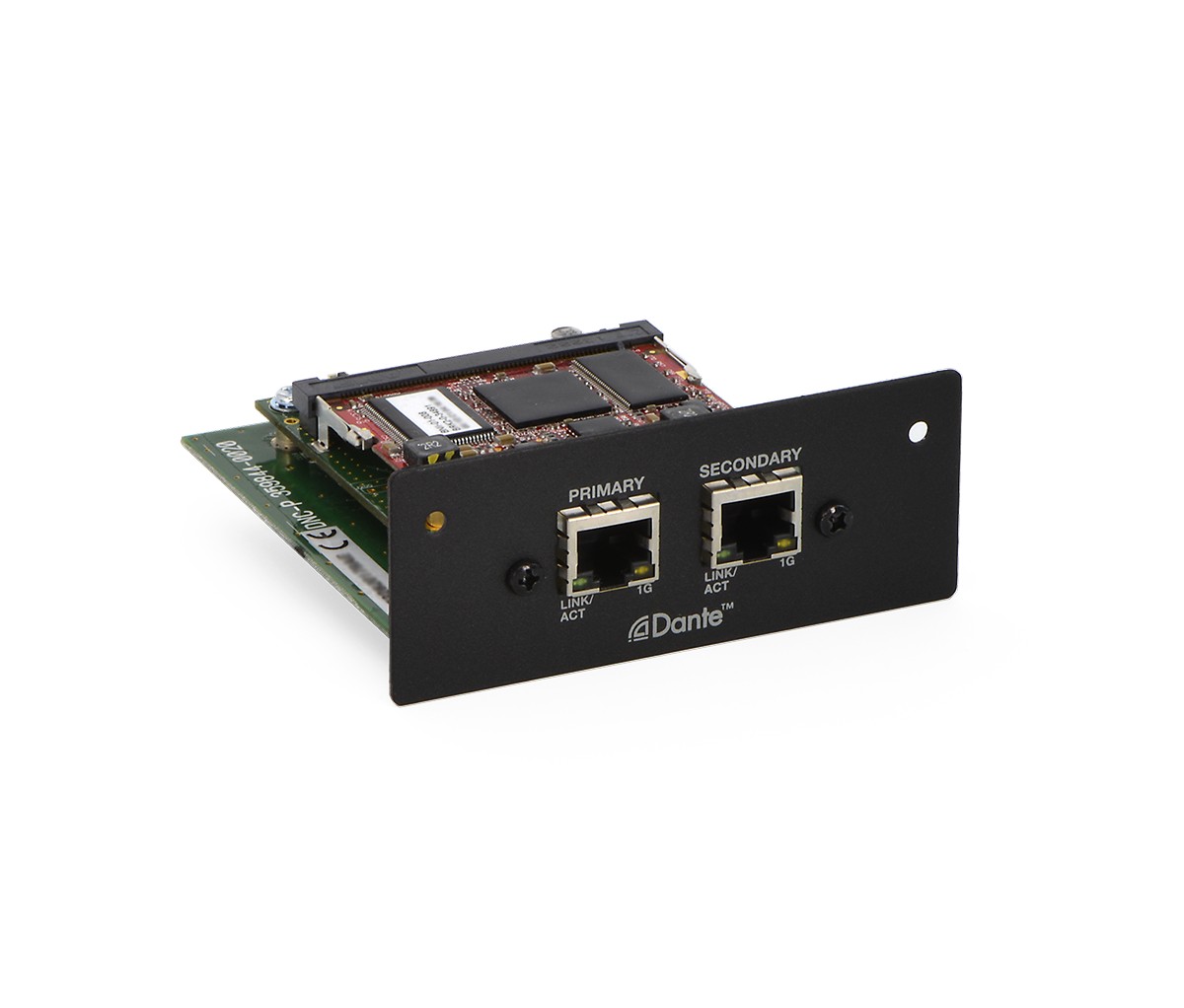

PowerMatch Dante network card
The Dante network card for PowerMatch configurable professional power amplifiers provides 8 input channels of low-latency digital audio using the Dante audio networking solution from Audinate®. Eight output channels are available for diagnostic monitoring from remote locations. The Dante network card is installed into the digital expansion slot of the amplifier and includes a primary and secondary Gigabit Ethernet port. The secondary port can be configured for switched (default), redundant, or filtered for legacy product network connections. Up to 10 devices can be daisy-chained using the switched port configuration.
Features
Applications
Designed for a wide range of applications, including:
Specifications
AUDIO INPUTS/OUTPUTS, DIGITAL
- Channels
- 8 Dante in × 8 Dante out
- Connectors
- (2) RJ-45 Dante in/thru
INDICATORS AND CONTROLS
- LED Status Indicators
- (2) network speed LEDs, (2) Link/Act LEDs
INTEGRATED DSP
- Sample Rate / Bit Depth
- 48 kHz / 24-bit
PHYSICAL
- Colors
- Black
In the Box
