PowerMatch AmpLink 24-channel input card
Power Amplifiers

PowerMatch AmpLink 24-channel input card

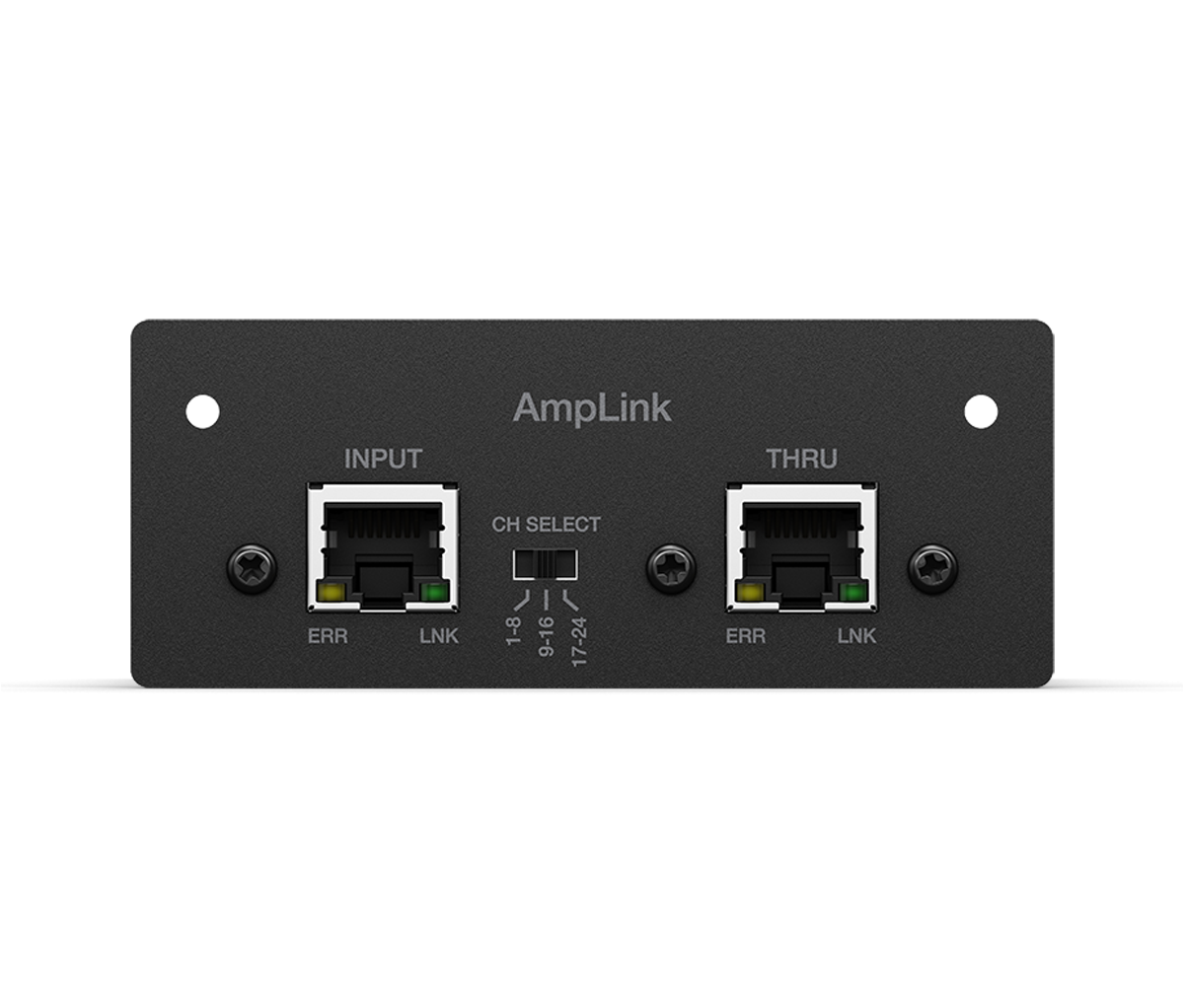

The Bose Professional AmpLink input card for PowerMatch configurable professional power amplifiers installs into the digital expansion slot to receive 24 digital audio channels from a Bose Professional DSP via a shielded Cat 5 cable. Each card includes a through connection for daisy-chaining multiple AmpLink amplifiers.

Order Code

  • 772238-0110

    PowerMatch AmpLink 24-channel input card

    Get Price
Request a Full System Quote
  • Authorized productFull manufacturer warranty
  • Ships from A5 ITCrystal Lake, Illinois
  • Design supportSpecify the whole system

Features

  • AmpLink 24-channel digital audio transport

  • Quick-connect RJ-45 connections on shielded CAT 5 cable

  • Thru connection to daisy-chain up to 10 m between products

  • 3-position bank select switch chooses 8 consecutive AmpLink channels the amplifier will amplify

  • Each daisy-chained amplifier can choose either the same, or a different, bank of channels

  • AmpLink can daisy-chain up to 8 amplifiers

  • Any combination of AmpLink amplifiers can be daisy-chained.

Applications

Designed for a wide range of applications, including:

  • Performing arts venues
  • Hotels and conferencing facilities
  • Religious and worship facilities
  • Health clubs
  • Retail and shopping centers
  • Sports venues
  • Schools and universities

Specifications

8 specifications

AUDIO INPUTS/OUTPUTS, DIGITAL

Channels
24 AmpLink in
Connectors
(1) RJ-45 AmpLink in / (1) RJ-45 AmpLink thru

ELECTRICAL

Cable Requirements
Cat 5, shielded TIA/EIA 568B straight cable or equivalent
Maximum Cable Length
32 ft (10 m)

INDICATORS AND CONTROLS

LED Status Indicators
(2) network speed LEDs, (2) Link/Act LEDs

INTEGRATED DSP

Audio Latency
24 ns, thru
Sample Rate / Bit Depth
48 kHz / 24-bit

PHYSICAL

Colors
Black

In the Box

  • (1) PowerMatch expansion card
  • (1) installation guide

Downloads

3 documents

Technical Information

User Documentation

Compliance Documents
