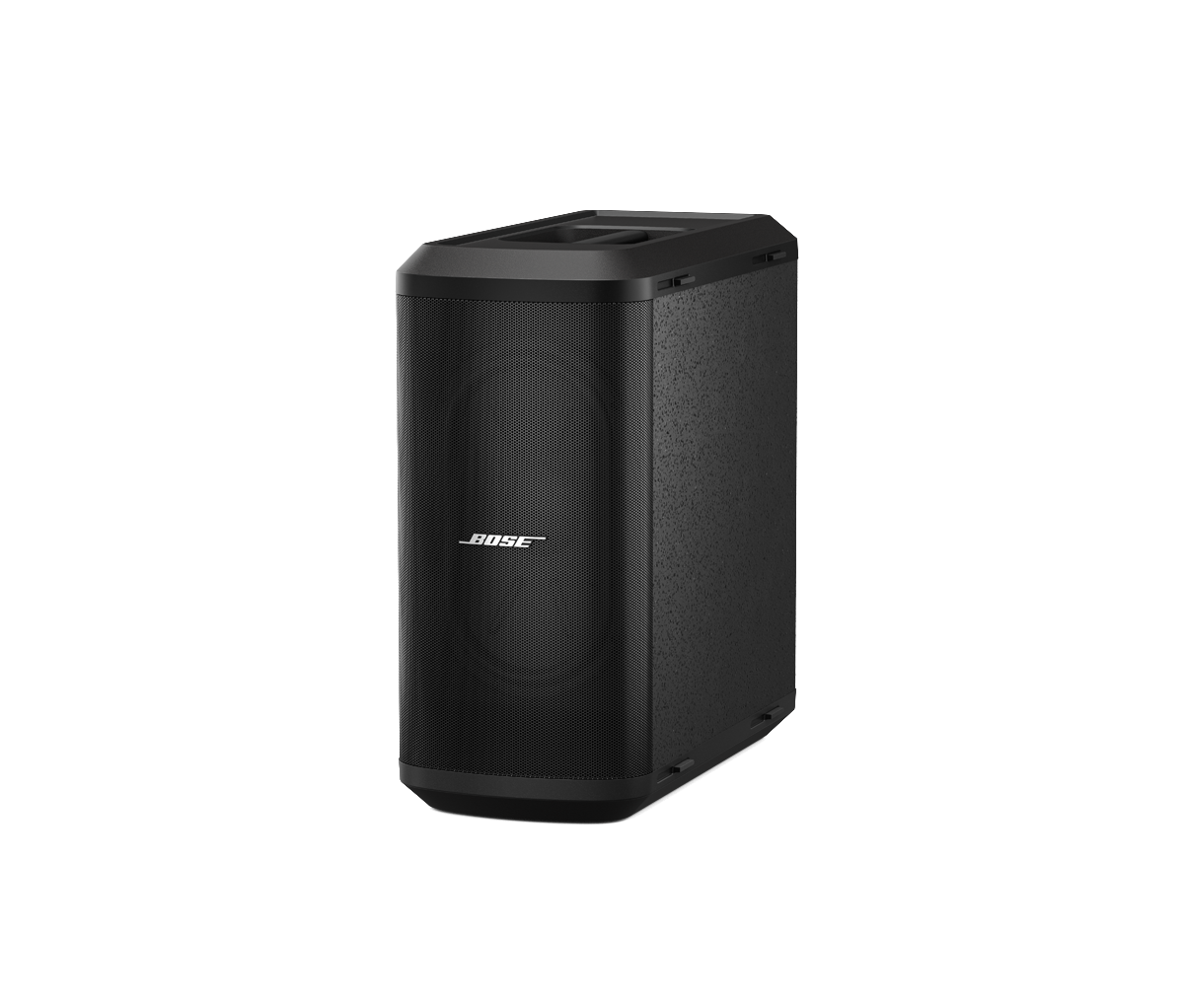

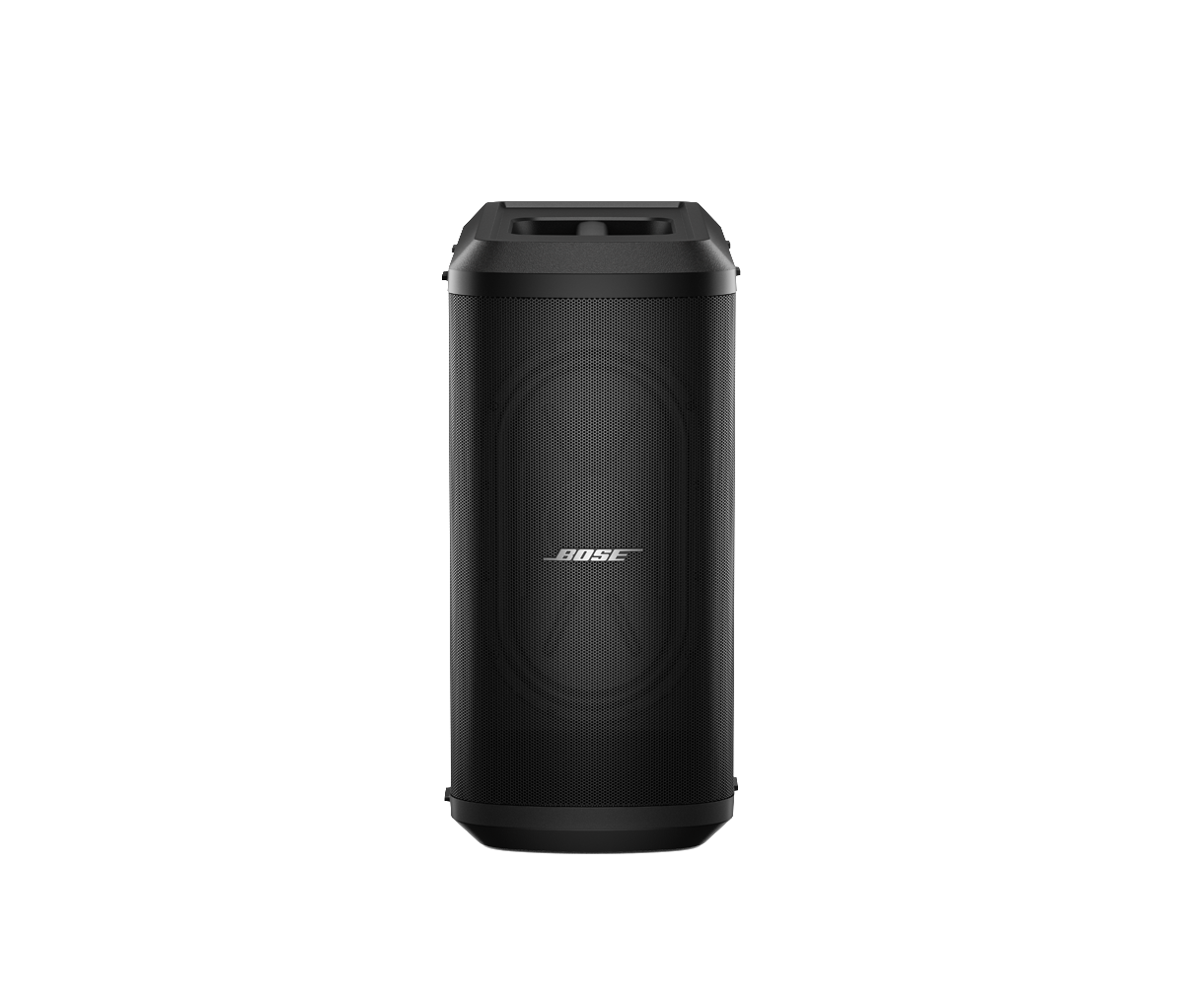

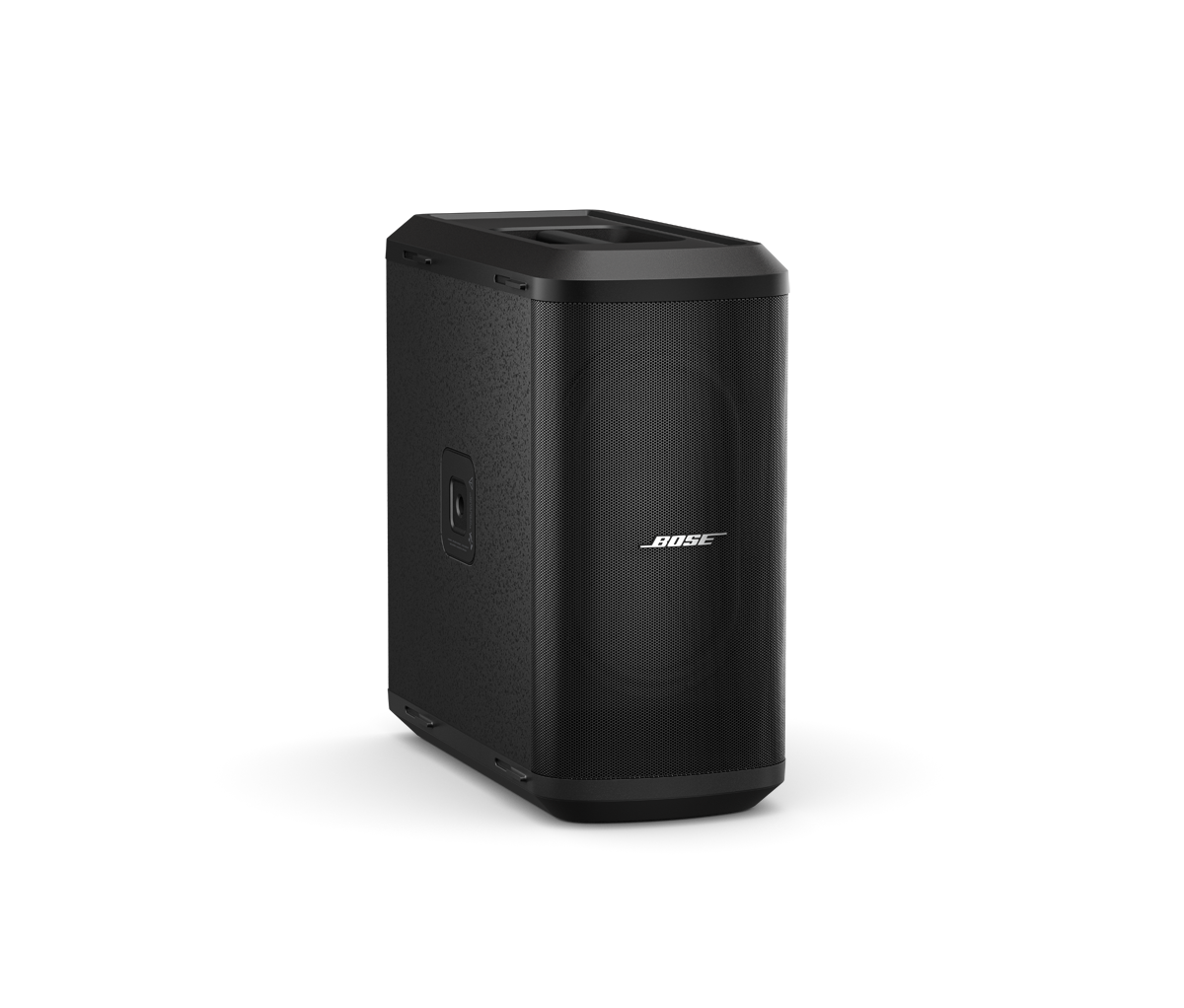

Sub1 powered bass module

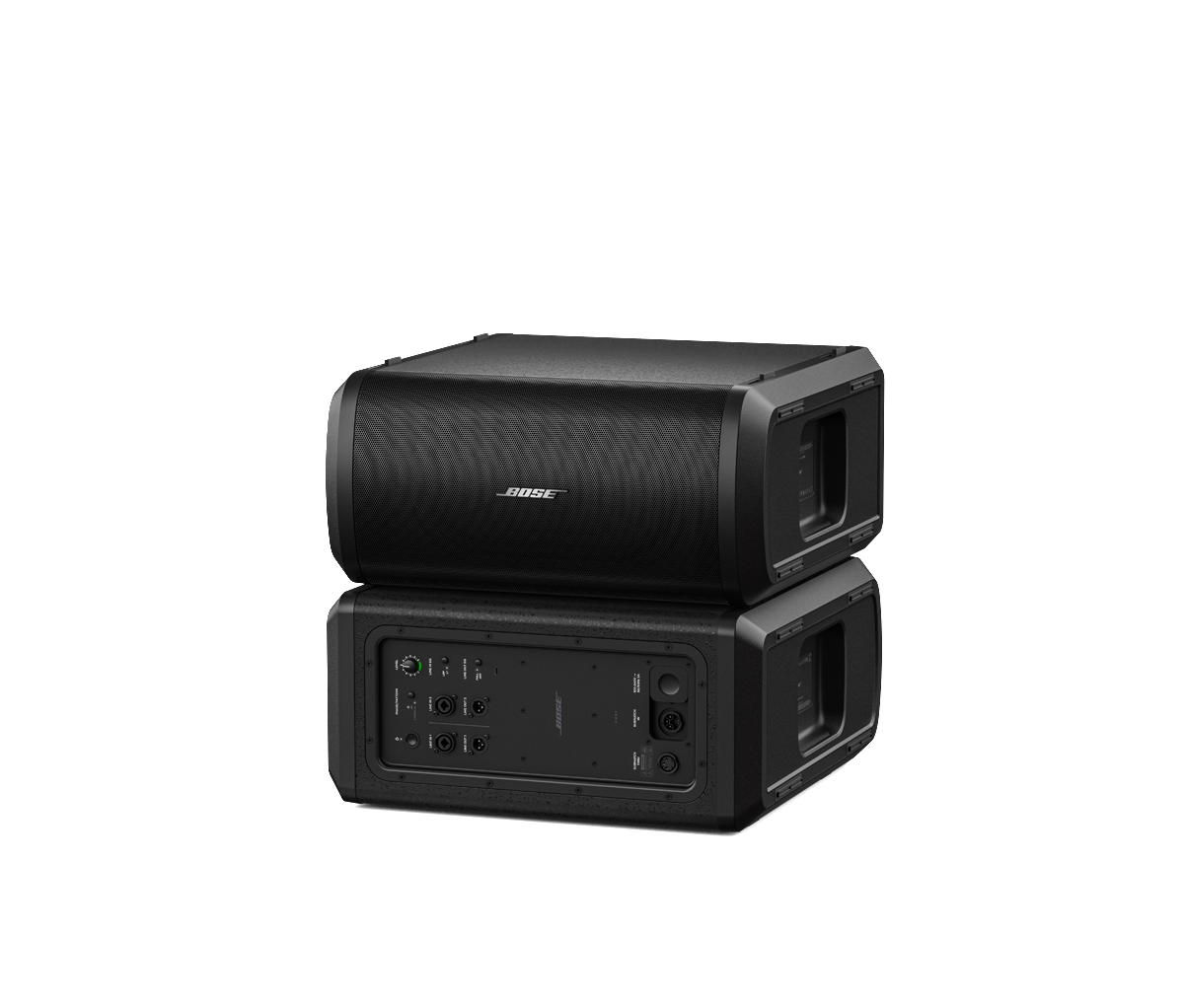

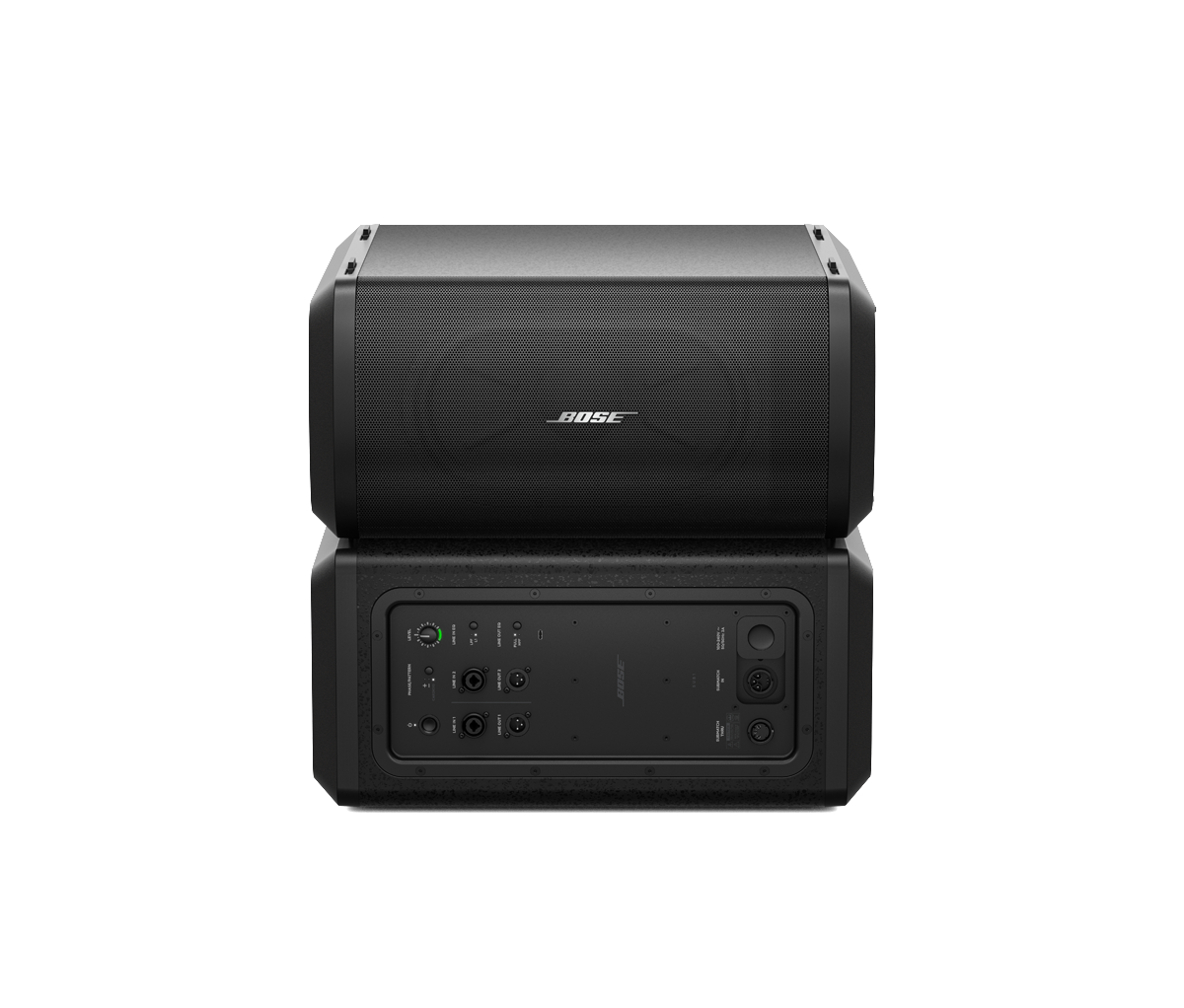

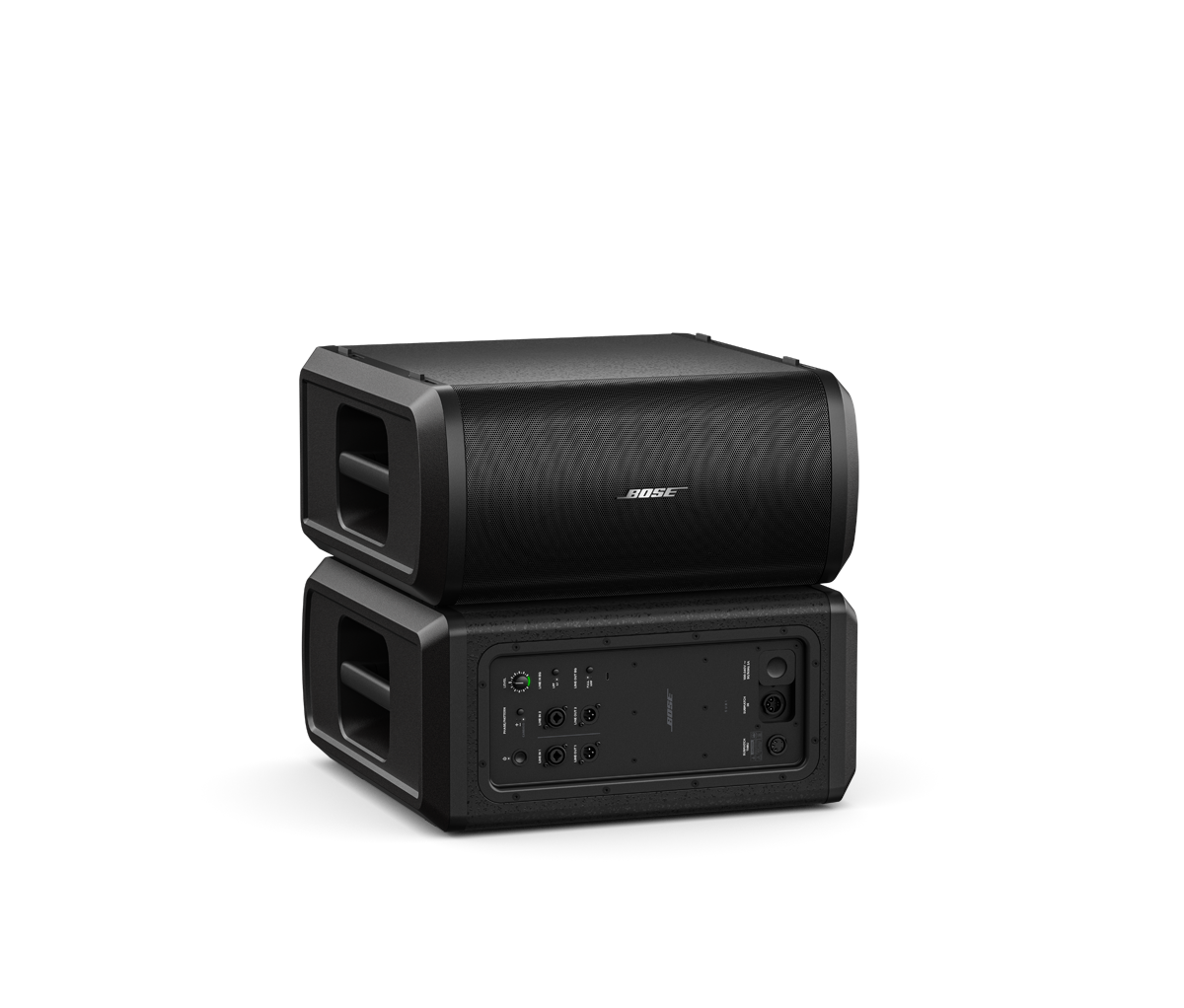

A powered, portable bass module, the Sub1 subwoofer combines with virtually any portable PA and delivers low-end performance down to 40 Hz. Its unique 7 × 13-inch high-excursion RaceTrack driver allows for an ultra-slim enclosure, delivering performance that rivals traditional round drivers without the cumbersome size, freeing up room in your vehicle and on the stage. Compared to the Sub2 subwoofer, Sub1 is the more compact subwoofer option for the Bose L1 Pro32 system, combining seamlessly via single-cable SubMatch connectivity. You can stack multiple Sub1 subwoofers for even more low end — or to unleash Cardioid Mode for directional bass. With a Sub1, you get a subwoofer that goes virtually anywhere and effortlessly fills out your sound.
Features
Applications
Designed for a wide range of applications, including:
Specifications
AMPLIFICATION
- Number of Channels
- 1
- Power Class
- Class D
AUDIO INPUTS, ANALOG
- Input Channels
- 2
- Connectors
- (1) XLR-1/4-in TRS combo, (1) SubMatch (proprietary multi-pin cable)
- Sensitivity Options
- +10 dB to +45 dB, input to driver
- Phantom Power
- No
COMPLIANCE
- Safety
- UL/IEC/EN62368-1 Audio/Video, Information and Communication Technology Equipment
ELECTRICAL
- AC Power Connector
- IEC, SubMatch
- AC Power Input
- 100–240 VAC (±20%, 50/60 Hz)
- Current Draw, Inrush
- 14.9 A at 120 VAC, 60 Hz / 29.3 A at 230 VAC, 50 Hz
GENERAL
- Software Applications
- Bose Music (Android, iOS)
- Computer Interface Connection
- USB Type-C
INDICATORS AND CONTROLS

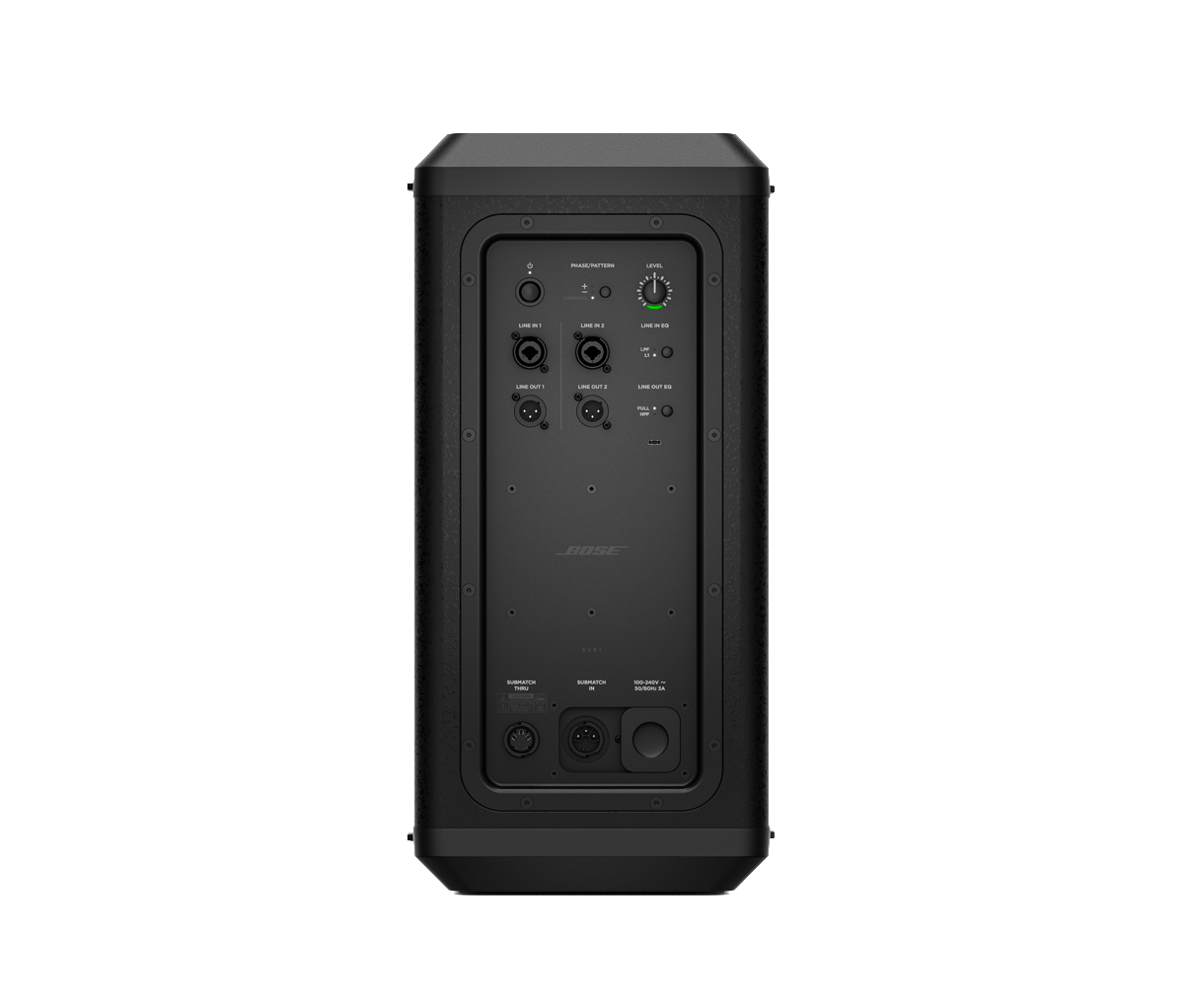

- Controls, Rear Panel
- Power, EQ, and Volume Control
- LED Status Indicators
- (1) standby LED, (1) signal/clip LED, (2) input EQ LEDs, (2) output EQ LEDs, (3) phase/pattern LEDs
INTEGRATED DSP
- DSP-Enabled
- Yes
- Processing Functions
- Input EQ, output EQ, phase/pattern polarity inversion
PHYSICAL
- Colors
- Black
- Enclosure Material
- High-impact polypropylene, birch plywood
- Grille
- Perforated steel, powder-coated finish
- Cooling System
- Convection cooling
- Product Dimensions (H×W×D)
- 21.0 in × 10.2 in × 20.8 in (533 mm × 260 mm × 529 mm)
- Net Weight
- 34.1 lb (15.5 kg)
- Shipping Dimensions (H×W×D)
- 24.4 in × 24.4 in × 13.0 in (620 mm × 620 mm × 330 mm)
- Shipping Weight
- 39.6 lb (18.0 kg)
PERFORMANCE
- Frequency Range (-10 dB)
- 32 Hz – 250 Hz
- Coverage, Horizontal
- 0°
- Calculated Maximum SPL @ 1 m
- 124.6 dB
- Power Handling, Peak
- 480 W
- Coverage, Vertical
- Omnidirectional (with -10 dB rear rejection in cardioid mode)
TRANSDUCERS
- Crossover
- 200 Hz
- Low-Frequency
- 1 × RaceTrack low-frequency 7 × 13 in (178 × 330 mm) driver
Order Codes
| Order Code | Description | Availability |
|---|---|---|
| 840918-1100 | SUB1 POWERED BASS MODULE,120V,US | Buy Now |
| 840918-2100 | SUB1 POWERED BASS MODULE,230V,EU | Get Price |
| 840918-3100 | SUB1 POWERED BASS MODULE,100V,JP | Get Price |
| 840918-4100 | SUB1 POWERED BASS MODULE,230V,UK | Get Price |
| 840918-5100 | SUB1 POWERED BASS MODULE,230V,AU | Get Price |
| 840918-5130 | SUB1 POWERED BASS MODULE,230V,INDIA | Get Price |
In the Box
