L1 Pro32 portable line array system
Portable PA

L1 Pro32 portable line array system

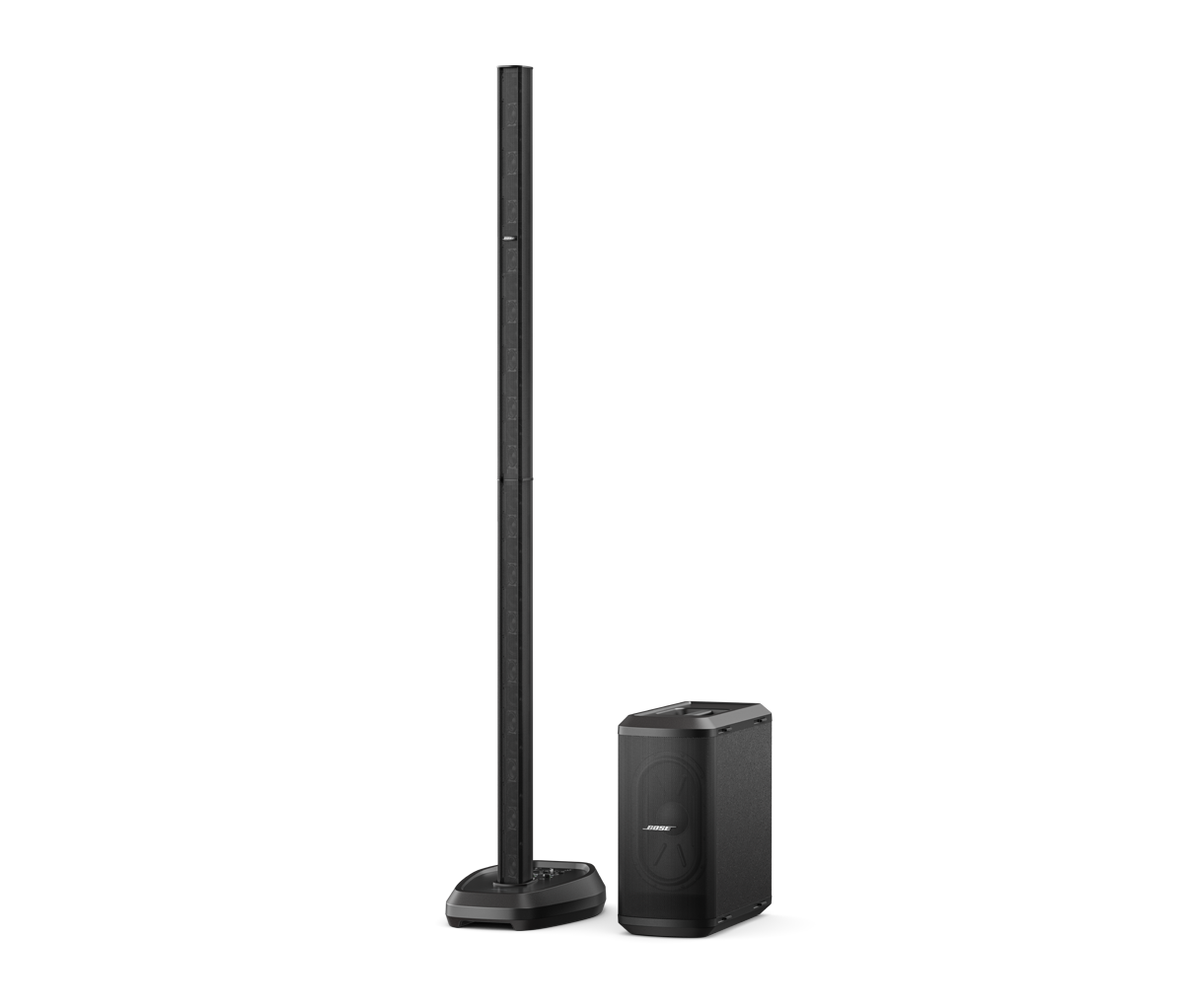

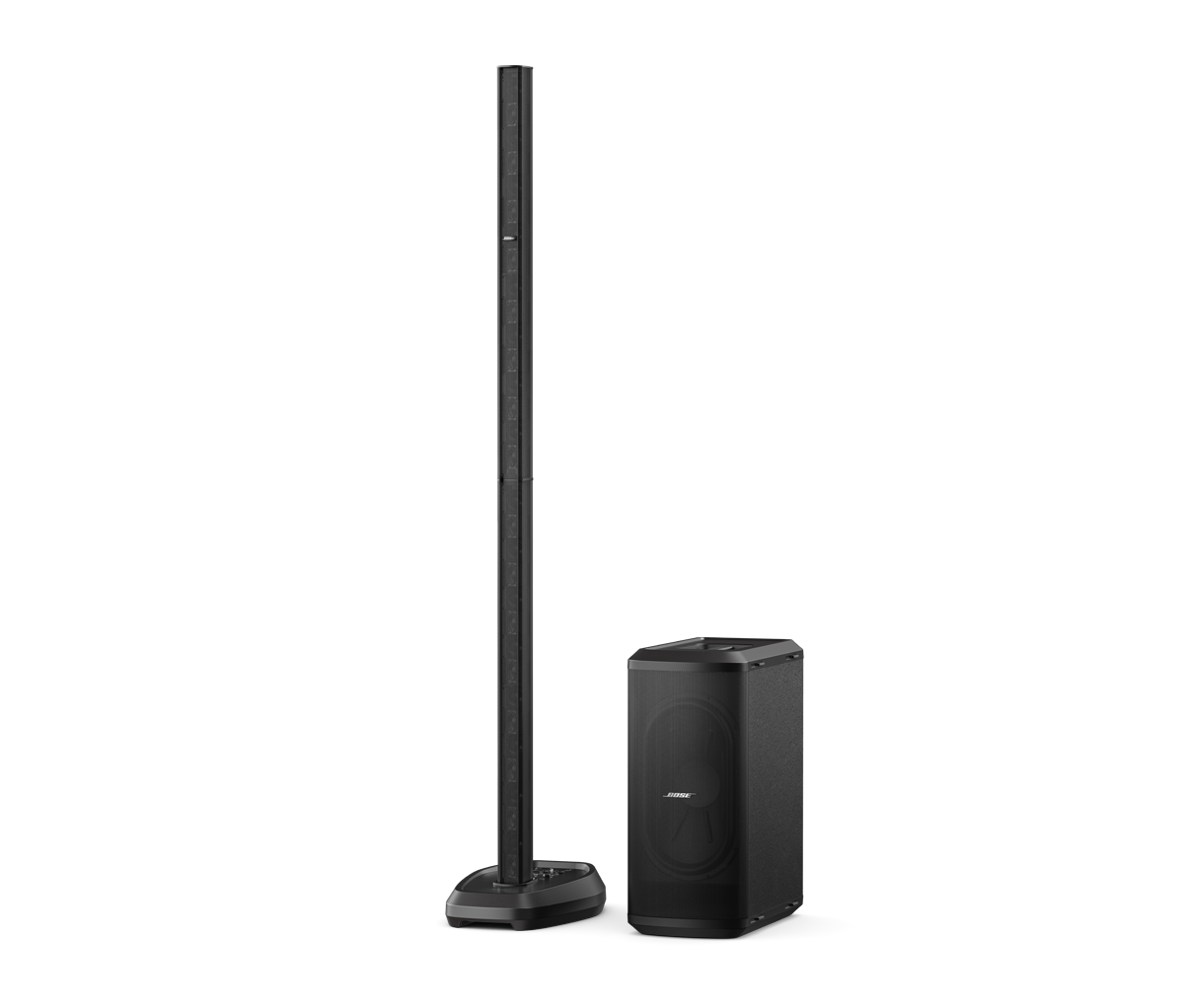

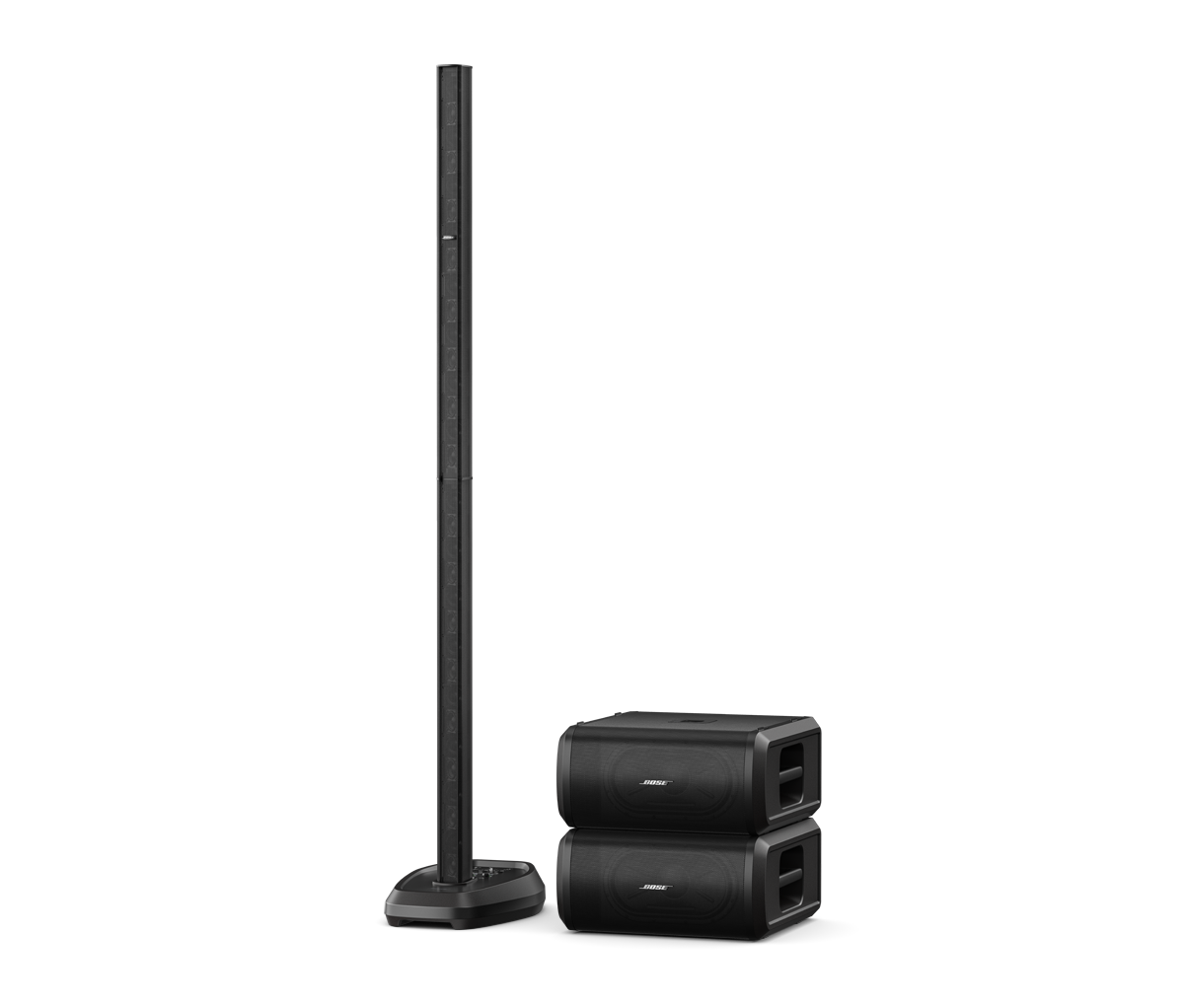

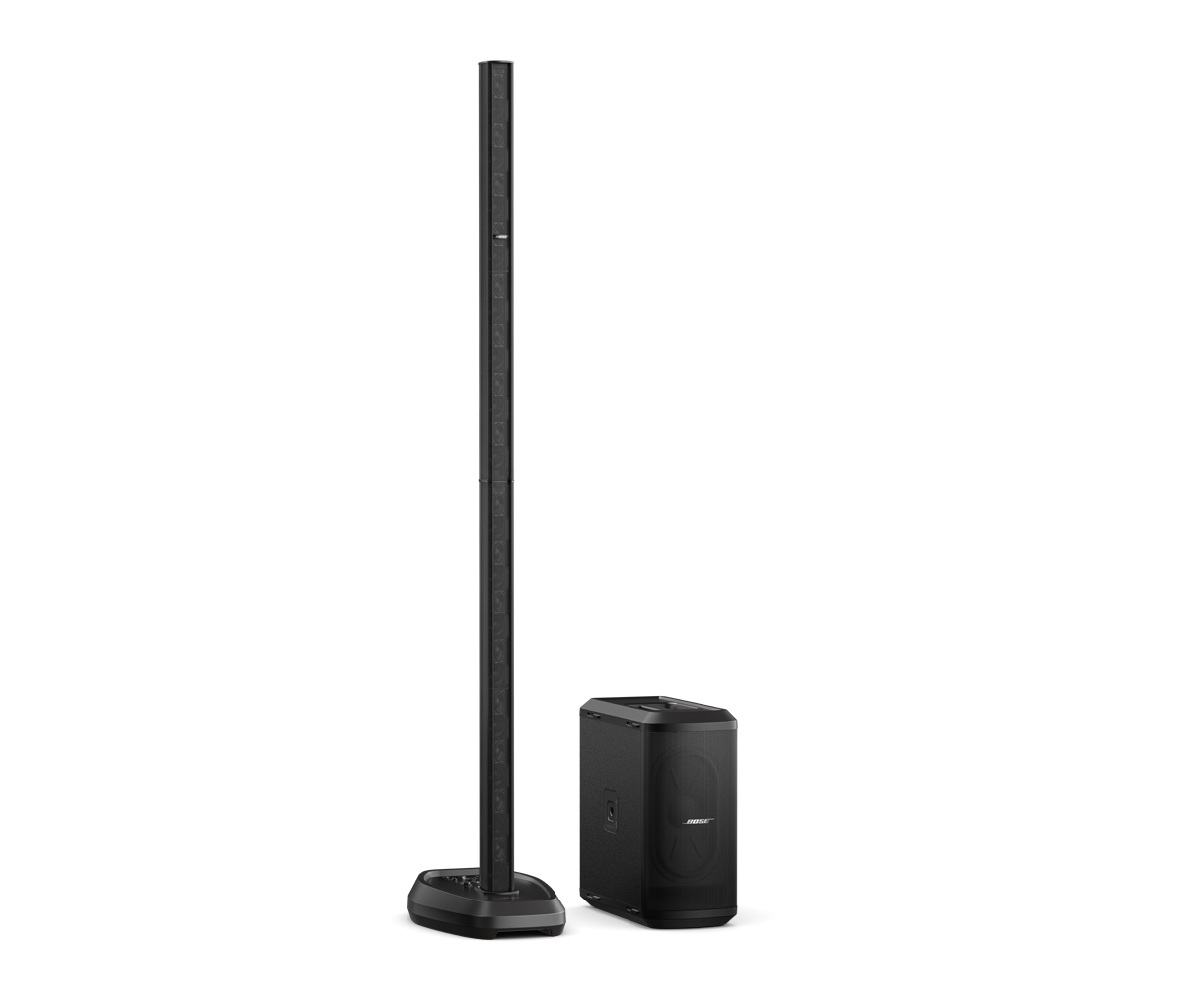

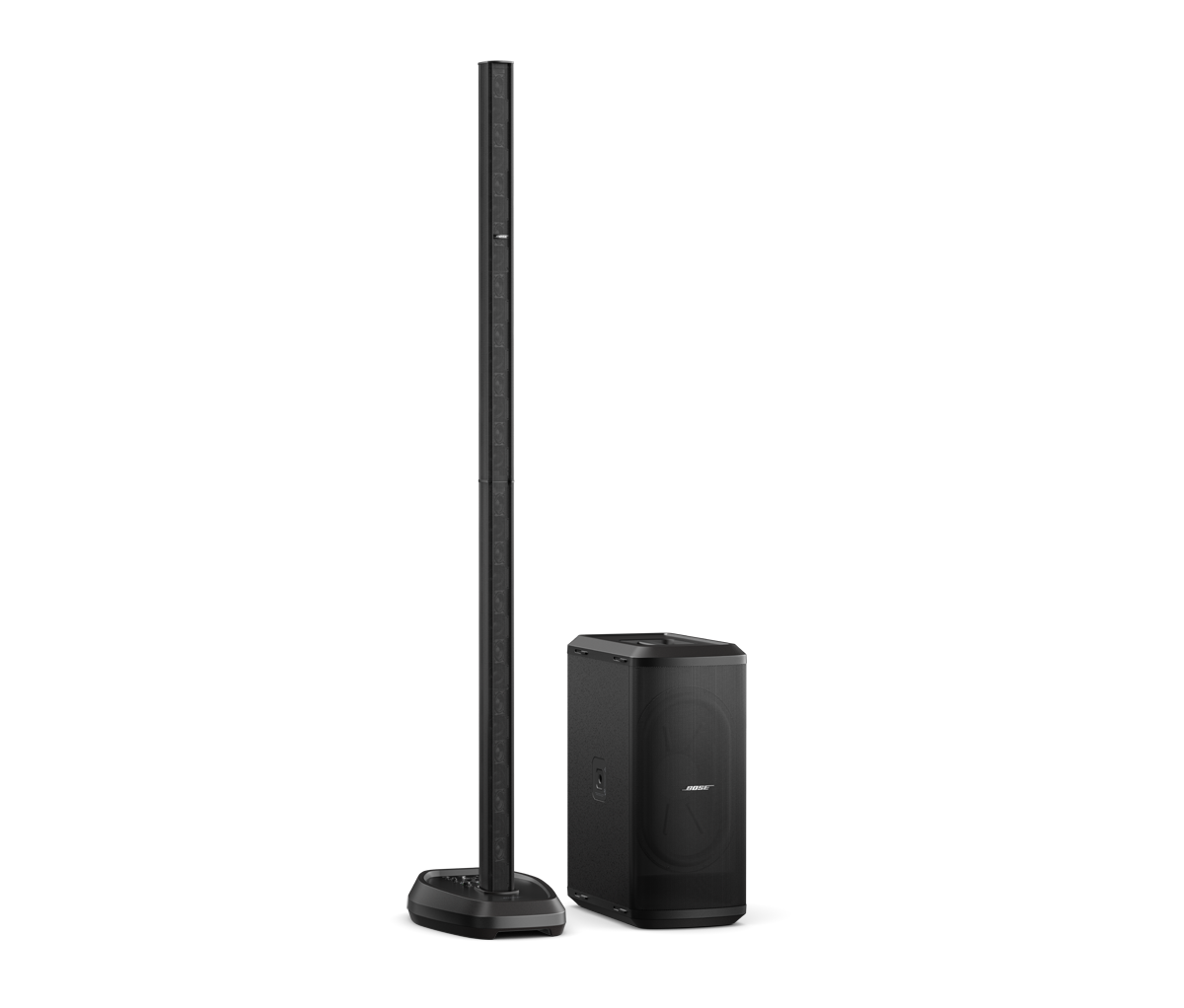

The L1 Pro32 is our most advanced Bose L1 portable line array ever. It delivers the supreme clarity and output of a 32-driver articulated line array and 180-degree horizontal sound coverage, giving you an unrivaled portable PA system for medium-to-large-sized venues and events like weddings, clubs, and festivals. The L1 Pro32 combines with either the Bose Sub1 or Sub2 subwoofer to create a powerful, modular solution that’s easy to pack, carry, and set up. A built-in multi-channel mixer offers EQ, reverb, and phantom power, plus

streaming and access to the full library of ToneMatch presets — and the intuitive Bose Music app, formerly known as the L1 Mix app, places wireless control in your hands from your smartphone. For DJs, singer-songwriters, bands — and your audience — the L1 Pro32 offers a truly superior experience. It gives you the power to sound your best and simply perform.

Order Codes · 6

See all →

  • 840921-1100

    L1 PRO32 PORTABLE LINE ARRAY,120V,US

    Get Price

  • 840921-2100

    L1 PRO32 PORTABLE LINE ARRAY,230V,EU

    Get Price

  • 840921-3100

    L1 PRO32 PORTABLE LINE ARRAY,100V,JP

    Get Price
Request a Full System Quote
  • Authorized productFull manufacturer warranty
  • Ships from A5 ITCrystal Lake, Illinois
  • Design supportSpecify the whole system

Features

  • Uniform coverage:Straight line array, featuring 32 articulated 2-inch neodymium drivers; 180-degree horizontal coverage with the most focused vertical coverage pattern and highest SPL over distance in an L1 ever — providing intricate sonic detail, clarity, and consistency, even off to the extreme sides in larger venues

  • Deliver premium full-range sound with consistent tonal balancefor singer-songwriters, mobile DJs, bands, and more

  • Maintain supreme vocal and instrument claritywith a straight-shape extended-frequency line array featuring 32 articulated 2-inch neodymium drivers and wide 180-degree horizontal coverage

  • Less dropoff over distance

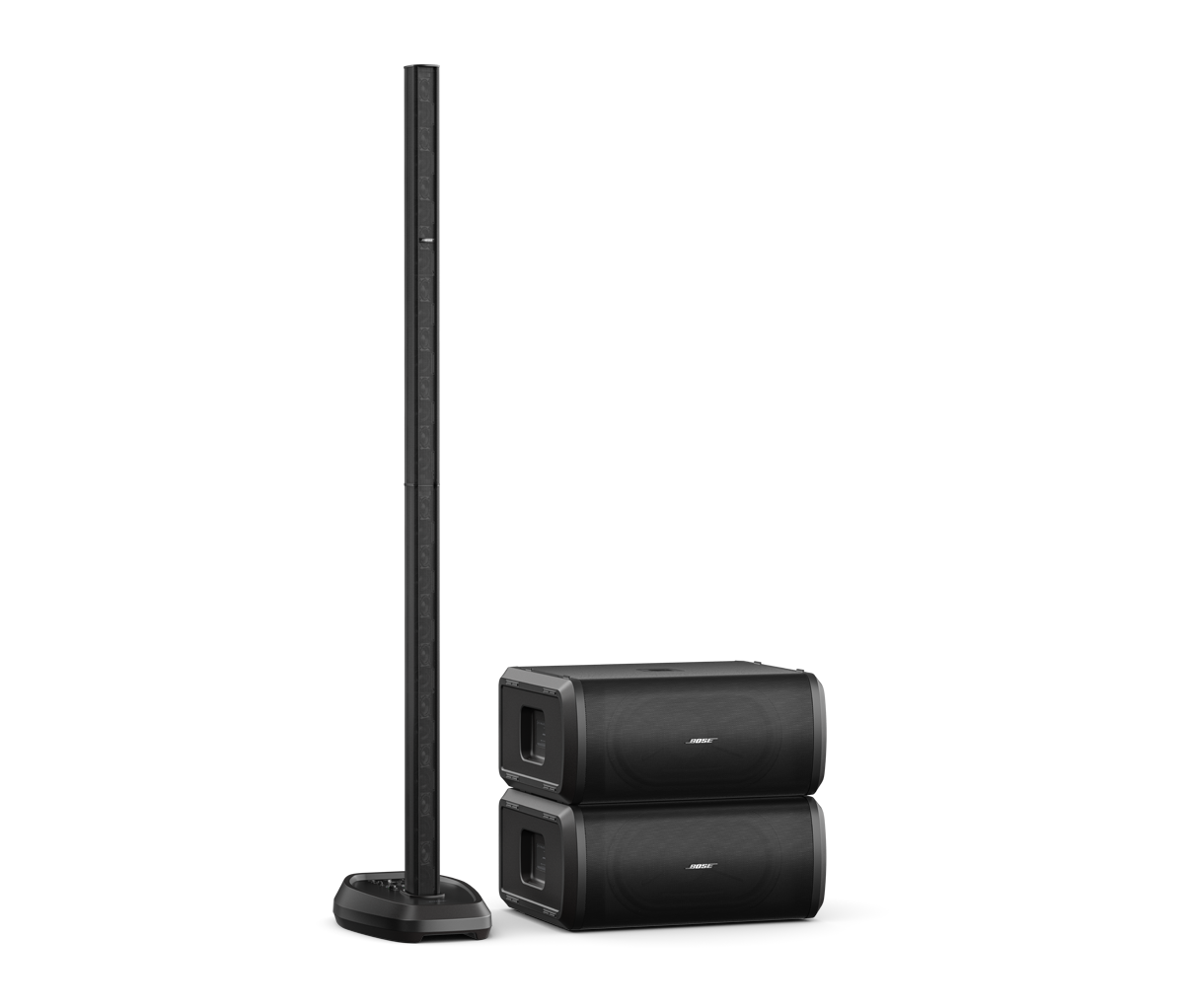

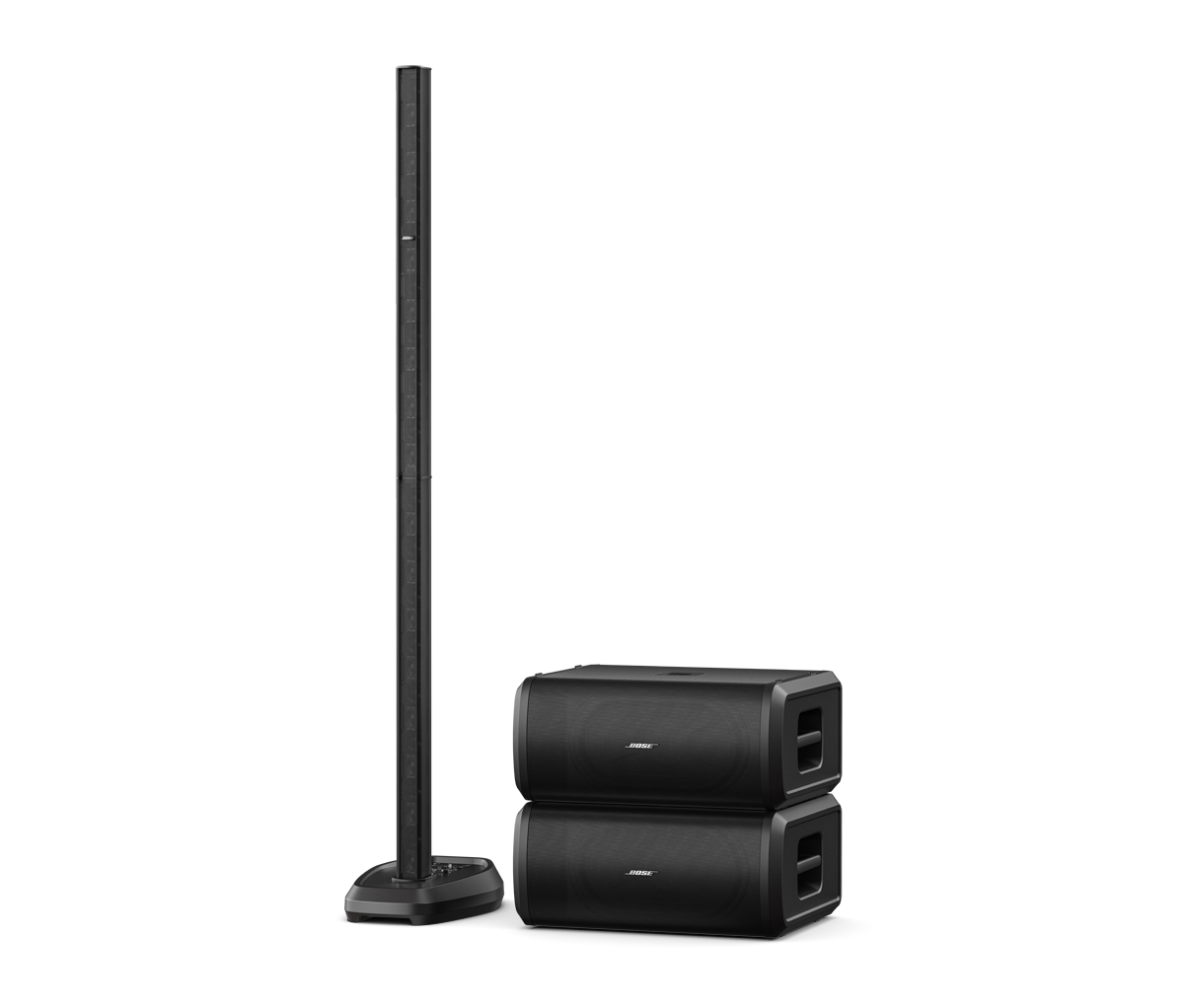

  • Bring bass without the bulkvia Bose Sub1 or Sub2 modular subwoofers, featuring RaceTrack drivers that take up less space, freeing up room in your vehicle and on the stage

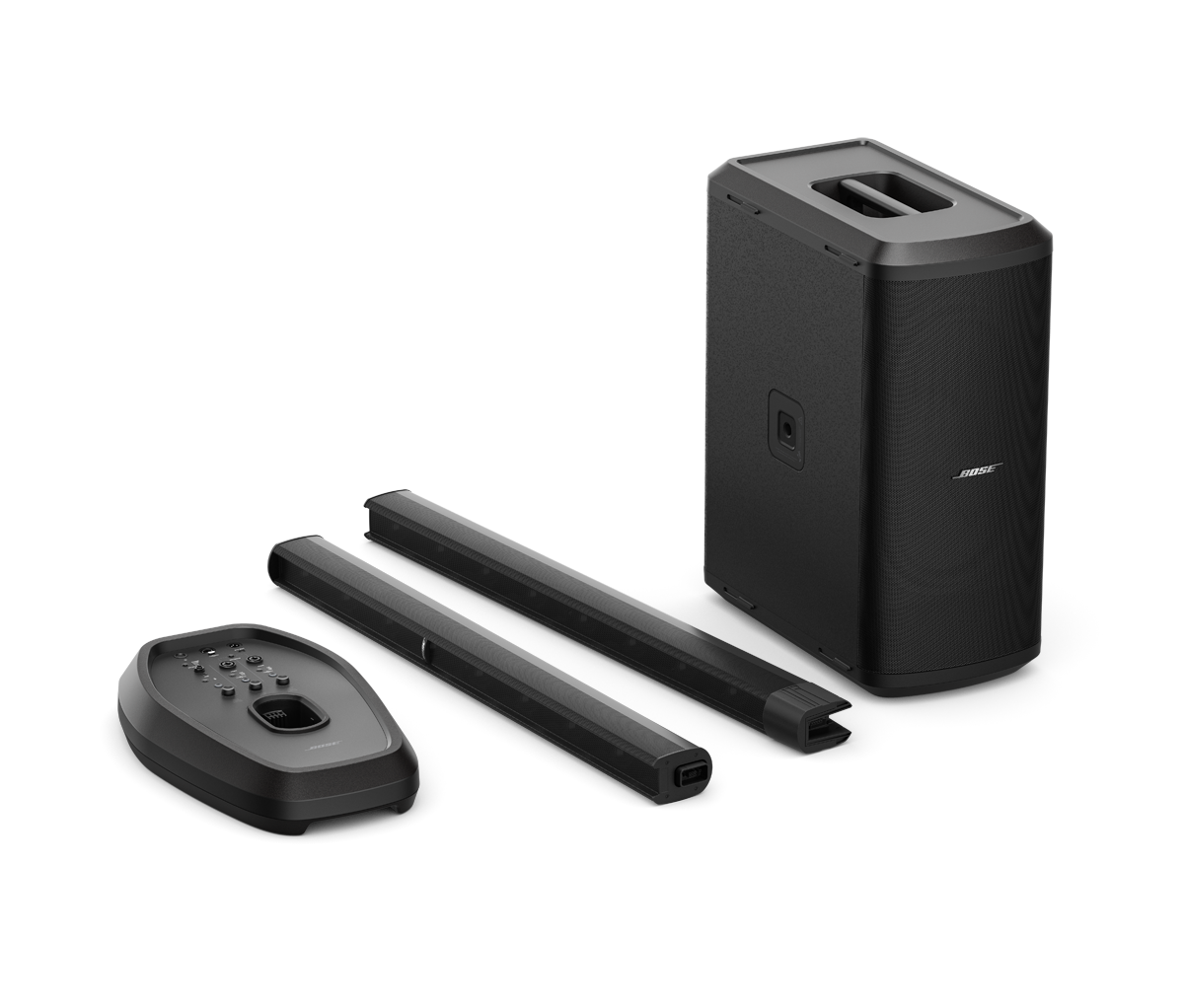

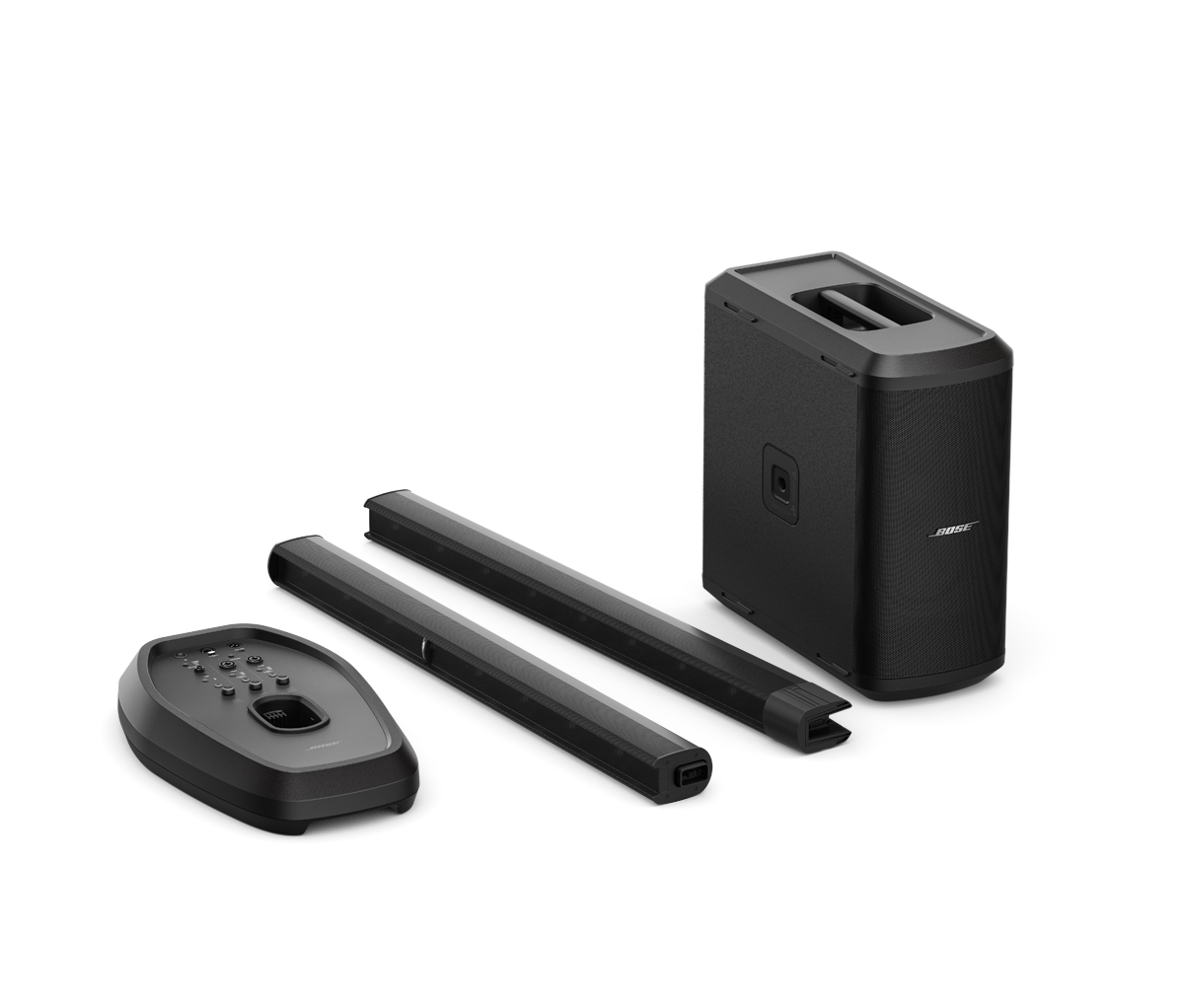

  • Go from vehicle to venue easilywith a modular high-output system that’s lighter and easier to pack, carry, and set up

  • Select between optimized system EQ presetsfor live music, recorded music, and more

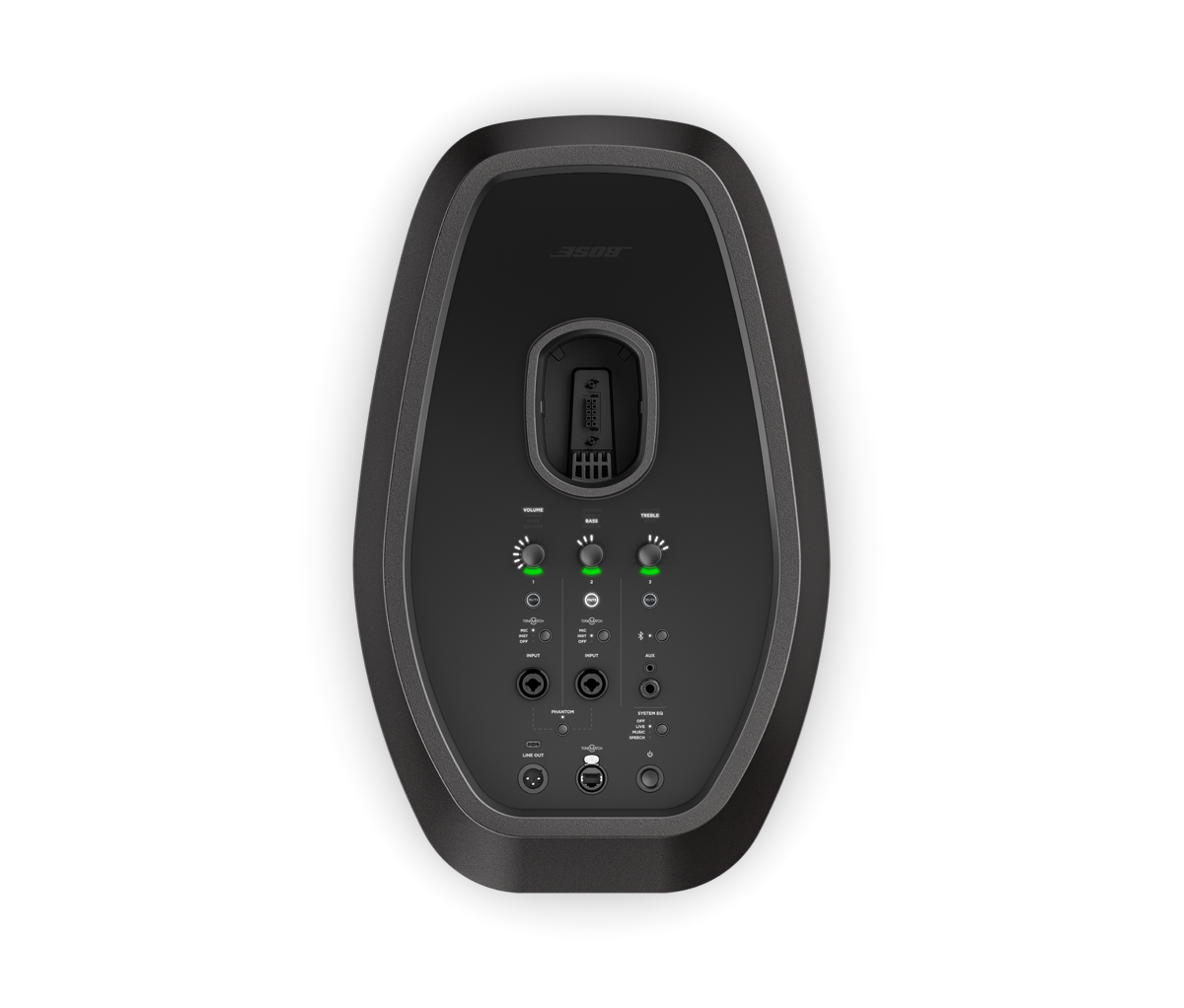

  • Connect various audio sources easilyvia built-in mixer with two combo XLR-1/4-inch; phantom-powered inputs, 1/4-inch and 1/8-inch (3.5 mm) aux input, plus Bluetooth ® streaming — and access system EQ and ToneMatch presets, volume, tone, and reverb via illuminated controls

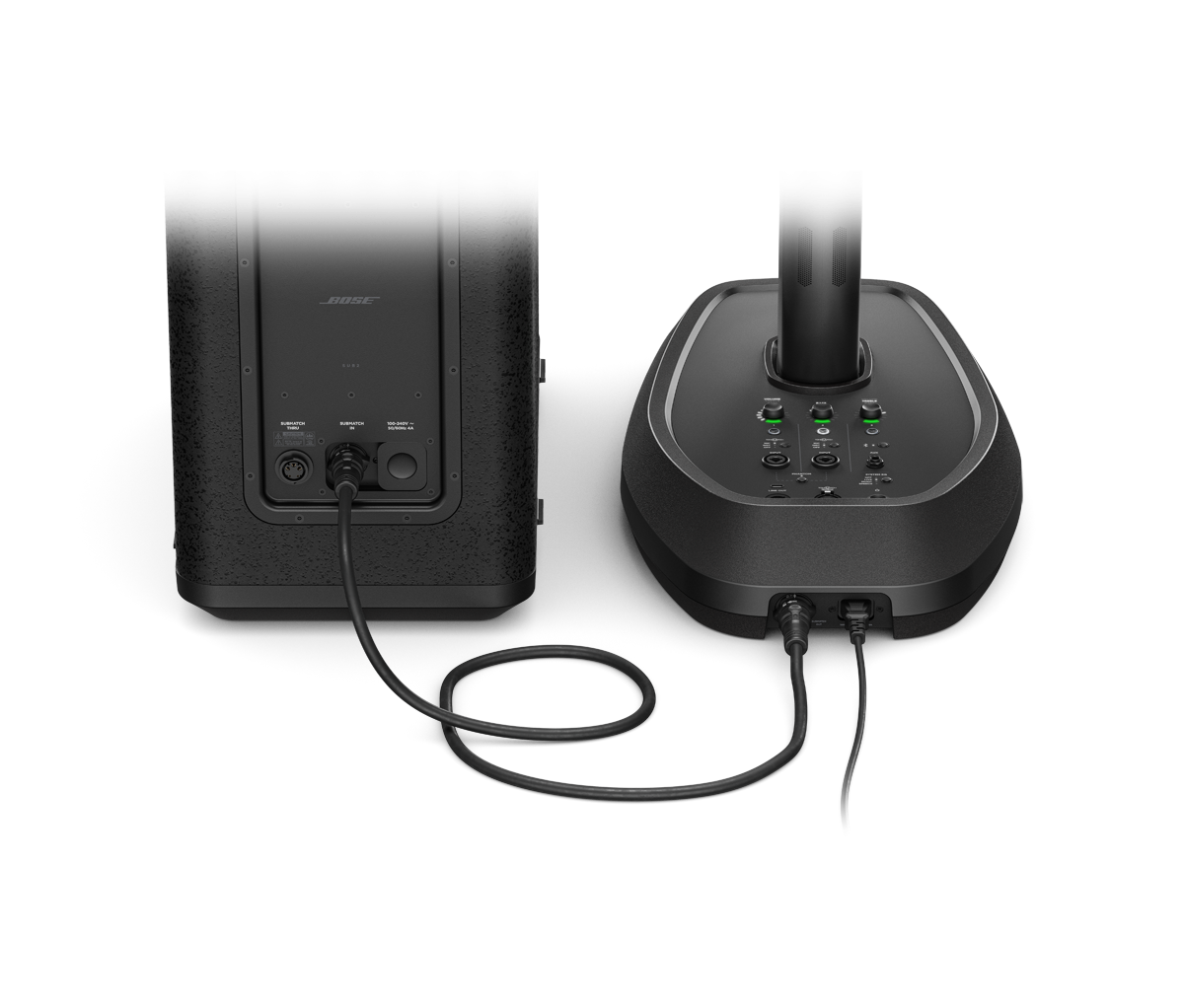

  • Add even more instruments and other audio sourcesvia dedicated ToneMatch port; one cable provides both power and digital audio between system and a Bose T4S or T8S mixer (optional)

  • Take wireless control with the Bose Music appon your smartphone to adjust settings instantly from your phone, roam the room and fine-tune, and access the ToneMatch library of custom EQ presets

Applications

Designed for a wide range of applications, including:

  • Houses of worship
  • Schools and universities
  • Resorts and hospitality venues
  • Live music performances
  • Business presentations
  • Mobile DJs

Specifications

32 specifications

AMPLIFICATION

Number of Channels
2
Power Class
Class D

AUDIO INPUTS, ANALOG

Input Channels
3
Connectors
(1) XLR-1/4-in TRS combo, (1) 1/4-in TRS, (1) 1/8-in TRS, Bluetooth audio streaming
Sensitivity Options
-100 dB to +75 dB, XLR / -115 dB to +60 dB, TRS, input to driver
Phantom Power
48 VDC, Channels 1 & 2

COMPLIANCE

Safety
UL/IEC/EN62368-1 Audio/Video, Information and Communication Technology Equipment

ELECTRICAL

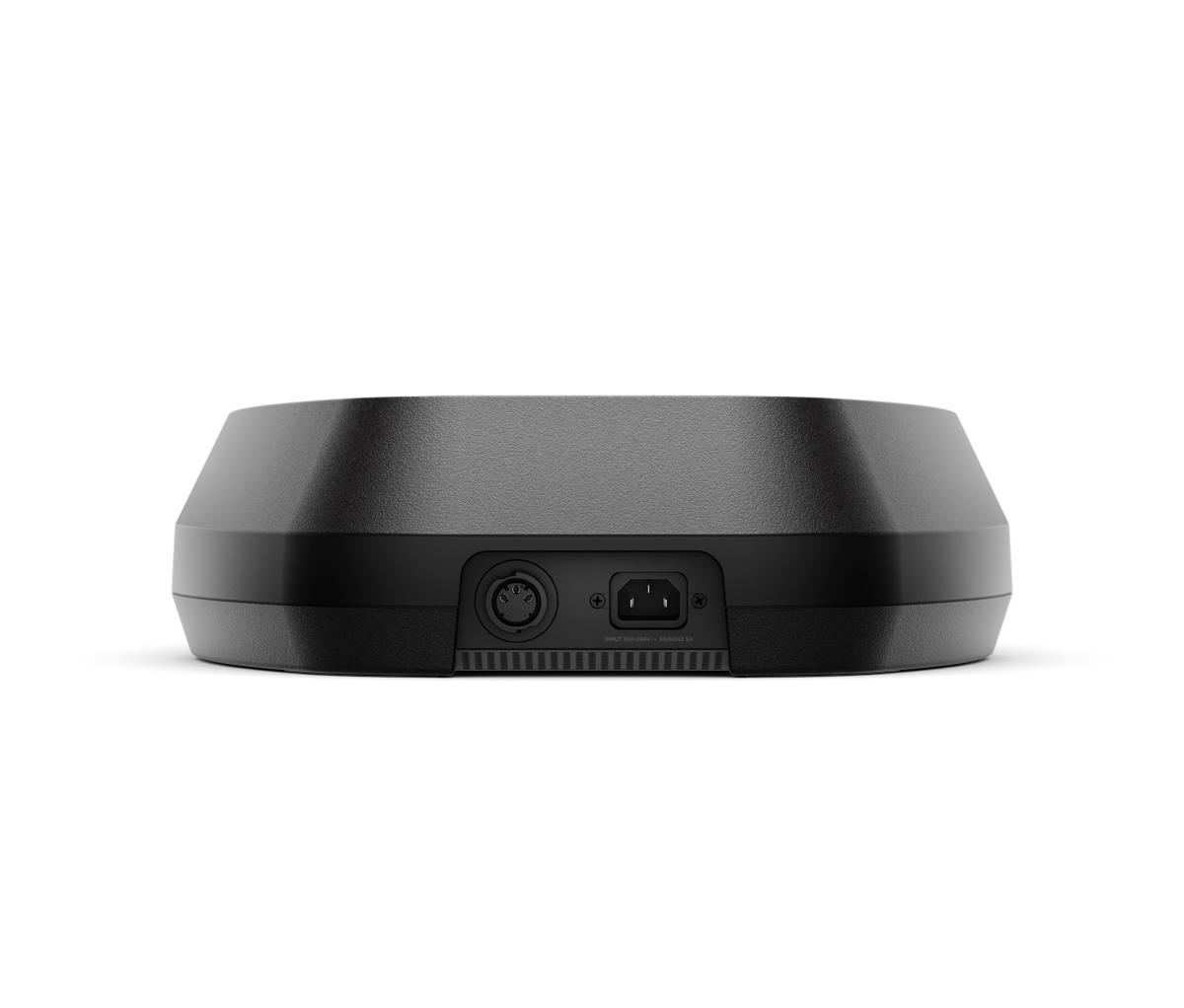

AC Power Connector
IEC, SubMatch
AC Power Input
100–240 VAC (±15%, 50/60 Hz)
Current Draw, Inrush
15.3 A at 120 VAC, 60 Hz / 29.0 A at 230 VAC, 50 Hz

GENERAL

Software Applications
Bose Music (Android, iOS)
Computer Interface Connection
USB Type-C

INDICATORS AND CONTROLS

Controls, Rear Panel
3 digital rotary encoders
LED Status Indicators
(1) standby LED, (3) channel parameter LED rings, (3) signal/clip LEDs, (3) mute LEDs, (1) phantom power LED, (2) ToneMatch LEDs, (1) Bluetooth LED, (4) system EQ LEDs

INTEGRATED DSP

DSP-Enabled
Yes
Presets
ToneMatch presets
Processing Functions
System EQ, reverb

PHYSICAL

Colors
Black
Enclosure Material
Power stand: High-impact polypropylene / Extension & Array: High-impact ABS
Grille
Perforated steel, powder-coated finish
Cooling System
Convection cooling
Product Dimensions (H×W×D)
83.5 in × 13.8 in × 22.5 in (2120 mm × 351 mm × 573 mm)
Net Weight
28.9 lb (13.1 kg)
Shipping Dimensions (H×W×D)
26.0 in × 15.2 in × 31.1 in (660 mm × 385 mm × 790 mm)
Shipping Weight
41.9 lb (19.0 kg)

PERFORMANCE

Frequency Range (-10 dB)
30 Hz – 18 kHz
Coverage, Horizontal
180°
Calculated Maximum SPL @ 1 m
128 dB
Power Handling, Peak
480 W
Coverage, Vertical
0°

TRANSDUCERS

Crossover
200 Hz
High-Frequency
32 × 2 in (51 mm) drivers

Order Codes

Order CodeDescriptionAvailability
840921-1100L1 PRO32 PORTABLE LINE ARRAY,120V,USGet Price
840921-2100L1 PRO32 PORTABLE LINE ARRAY,230V,EUGet Price
840921-3100L1 PRO32 PORTABLE LINE ARRAY,100V,JPGet Price
840921-4100L1 PRO32 PORTABLE LINE ARRAY,230V,UKGet Price
840921-5100L1 PRO32 PORTABLE LINE ARRAY,230V,AUGet Price
840921-5130L1 PRO32 PORTABLE LINE ARRAY,230V,INDIAGet Price

In the Box

  • 2 years
  • (1) carry bag (arrays)
  • (1) carry bag (power stand)
  • (1) SubMatch cable
  • (2) IEC power cords
  • (1) slip cover
