L1 Pro16 portable line array system
Portable PA

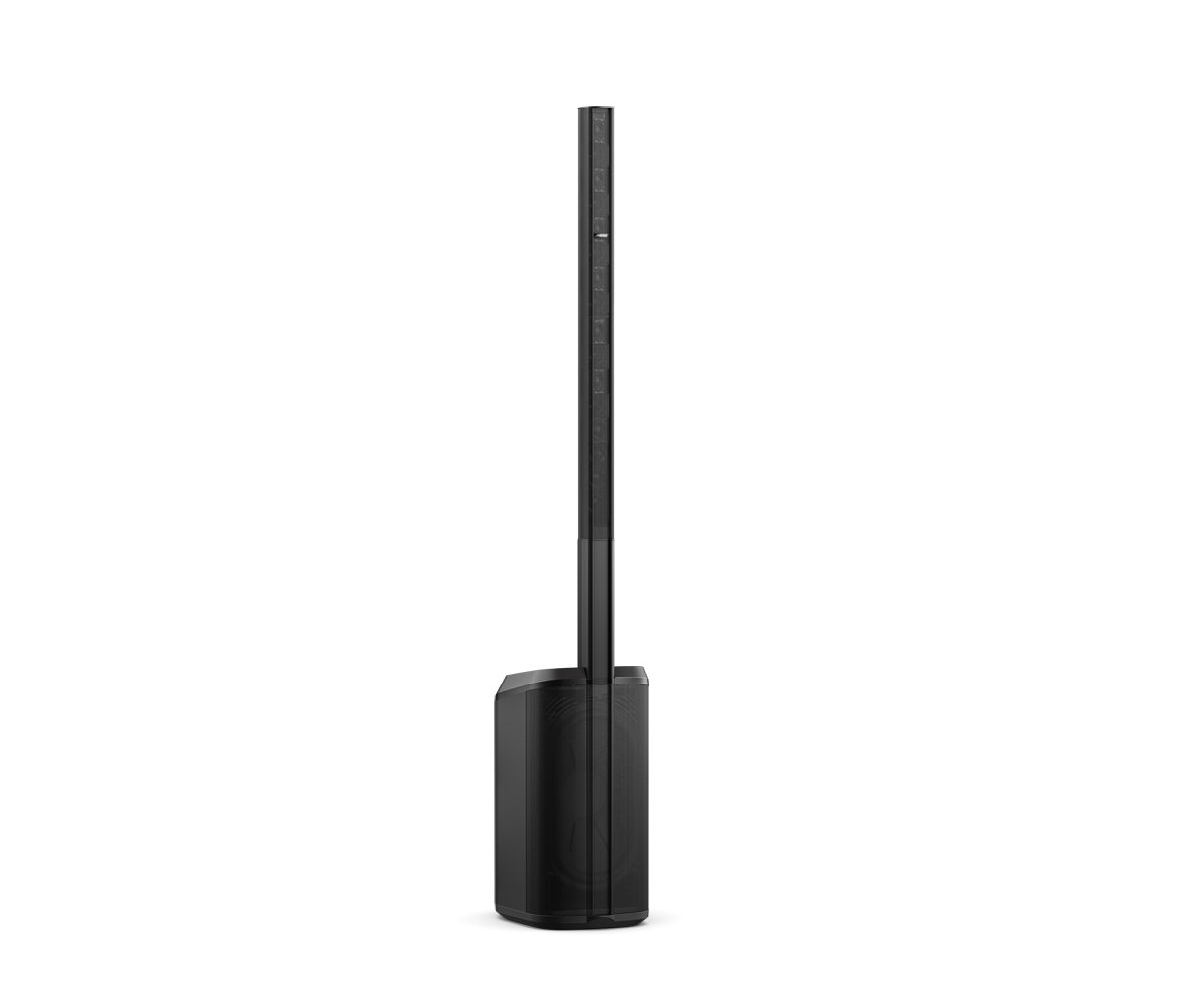

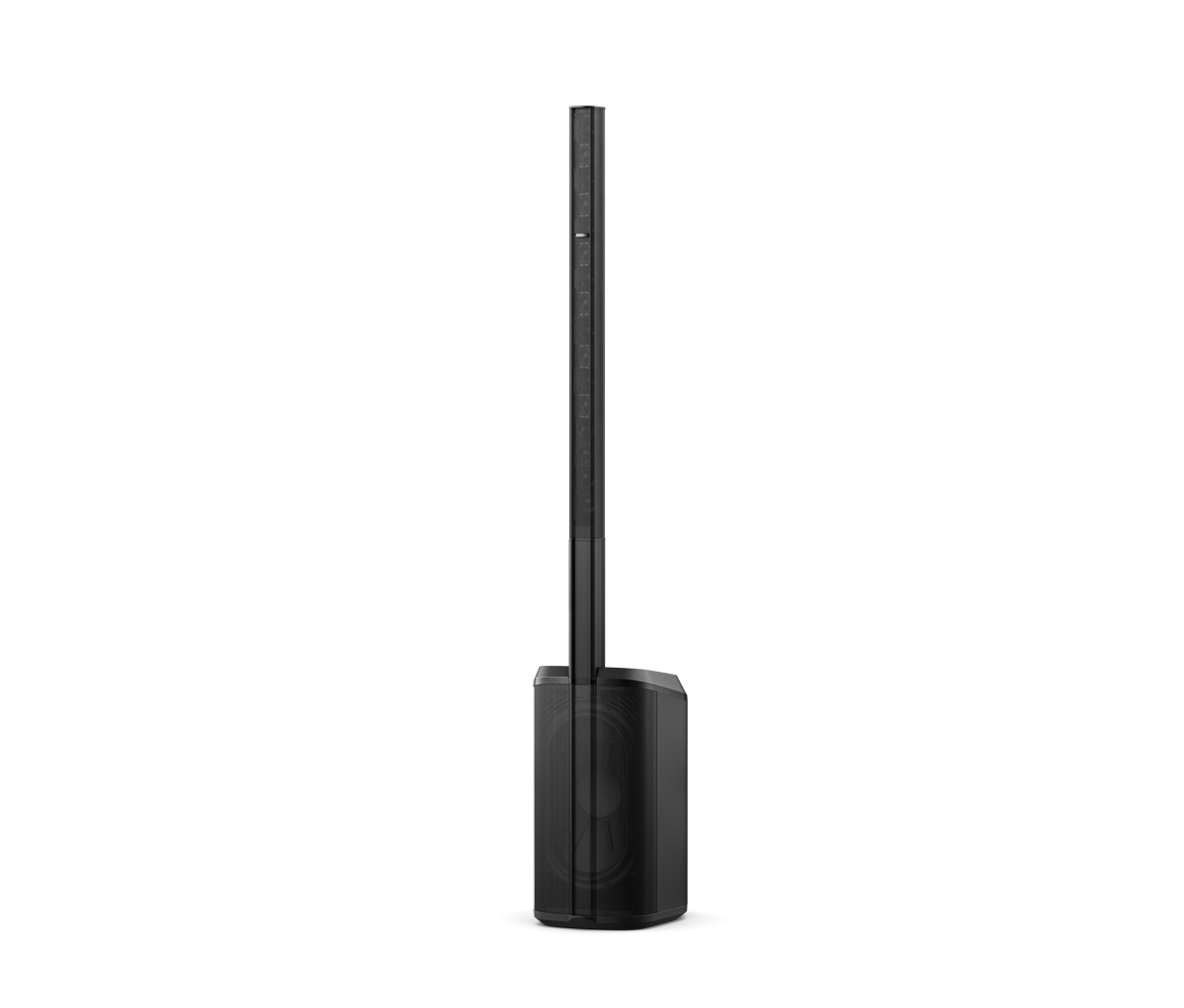

L1 Pro16 portable line array system

A balance of power and portability, the L1 Pro16 portable line array is a streamlined system with high output and extended low frequency range. With a 16-driver articulated J-shape line array, the L1 Pro16 delivers 180-degree horizontal sound coverage, great for small-to-medium sized clubs, bars, and other venues. An integrated subwoofer with a RaceTrack driver delivers powerful bass without the bulk; a built-in multi-channel mixer offers EQ, reverb, and phantom power, plus

streaming and access to the full library of ToneMatch presets; and the intuitive Bose Music app, formerly known as the L1 Mix app, places wireless control in your hands from your smartphone. For DJs, singer-songwriters, and small ensembles, the L1 Pro16 gives you expanded bandwidth and supreme clarity — the power to sound your best and simply perform.

Order Codes · 6

See all →

  • 840920-1100

    L1 PRO16 PORTABLE LINE ARRAY,120V,US

    Buy Now

  • 840920-2100

    L1 PRO16 PORTABLE LINE ARRAY,230V,EU

    Get Price

  • 840920-3100

    L1 PRO16 PORTABLE LINE ARRAY,100V,JP

    Get Price
Request a Full System Quote
  • Authorized productFull manufacturer warranty
  • Ships from A5 ITCrystal Lake, Illinois
  • Design supportSpecify the whole system

Features

  • J-shaped line array featuring 16 articulated 2-inch neodymium drivers; 180-degree horizontal coverage, tight vertical control on top, wide dispersion on the bottom to cover audiences whether set up on the floor or an elevated stage, even off to the extreme sides in medium to large venues

  • Deliver premium full-range sound with consistent tonal balancefor singer-songwriters, mobile DJs, small ensembles, and more

  • Maintain supreme vocal and instrument claritywith a J-shape extended-frequency line array featuring 16 articulated 2-inch neodymium drivers and wide 180-degree horizontal coverage

  • Bring more bass with less bulkwith an integrated 10 × 18-inch high-excursion neodymium RaceTrack woofer; performance that rivals traditional round drivers with a smaller footprint

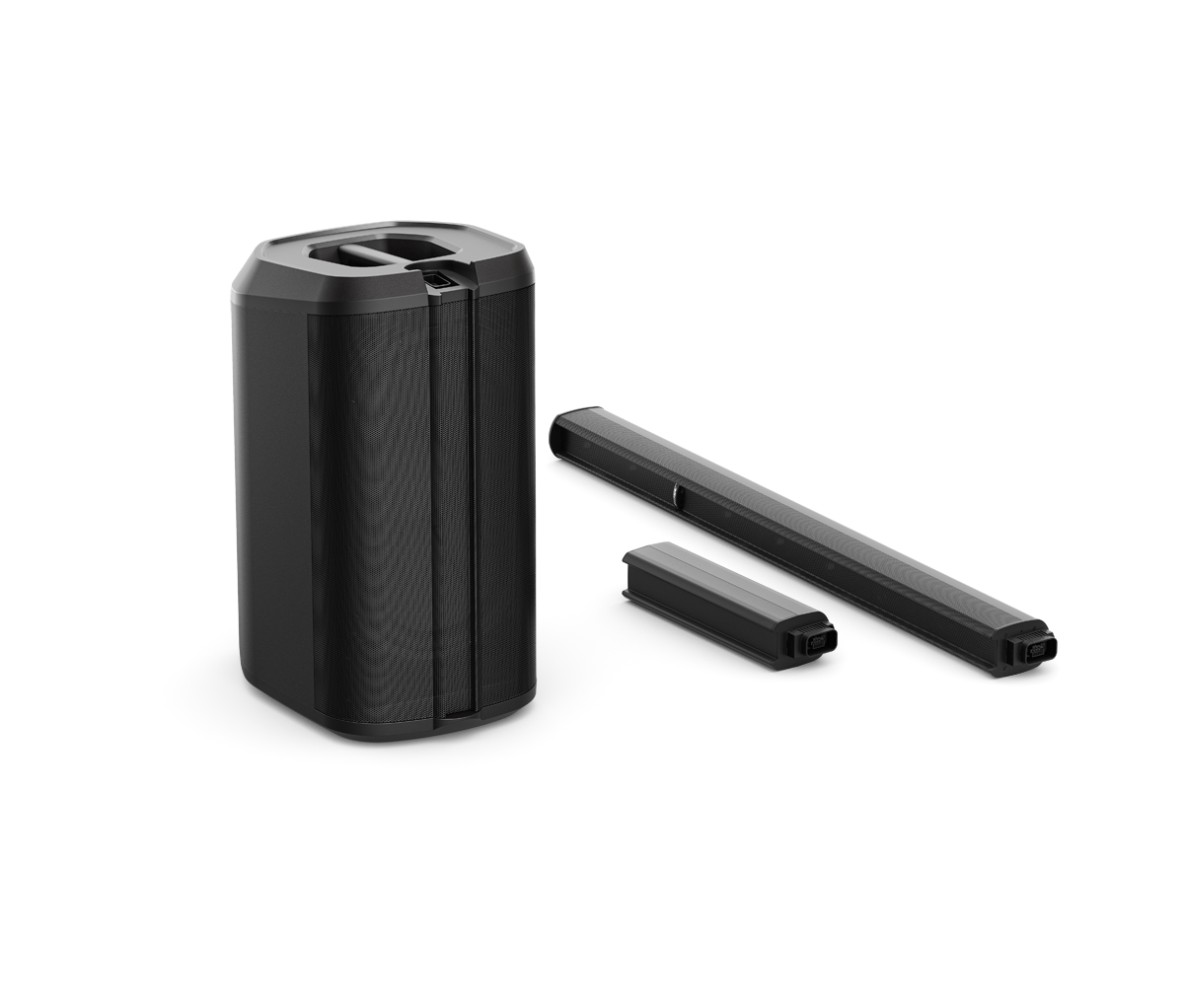

  • Go from vehicle to venue easilywith a modular three-piece system that’s easier to pack, carry, and set up

  • Select between optimized system EQ presetsfor live music, recorded music, and more

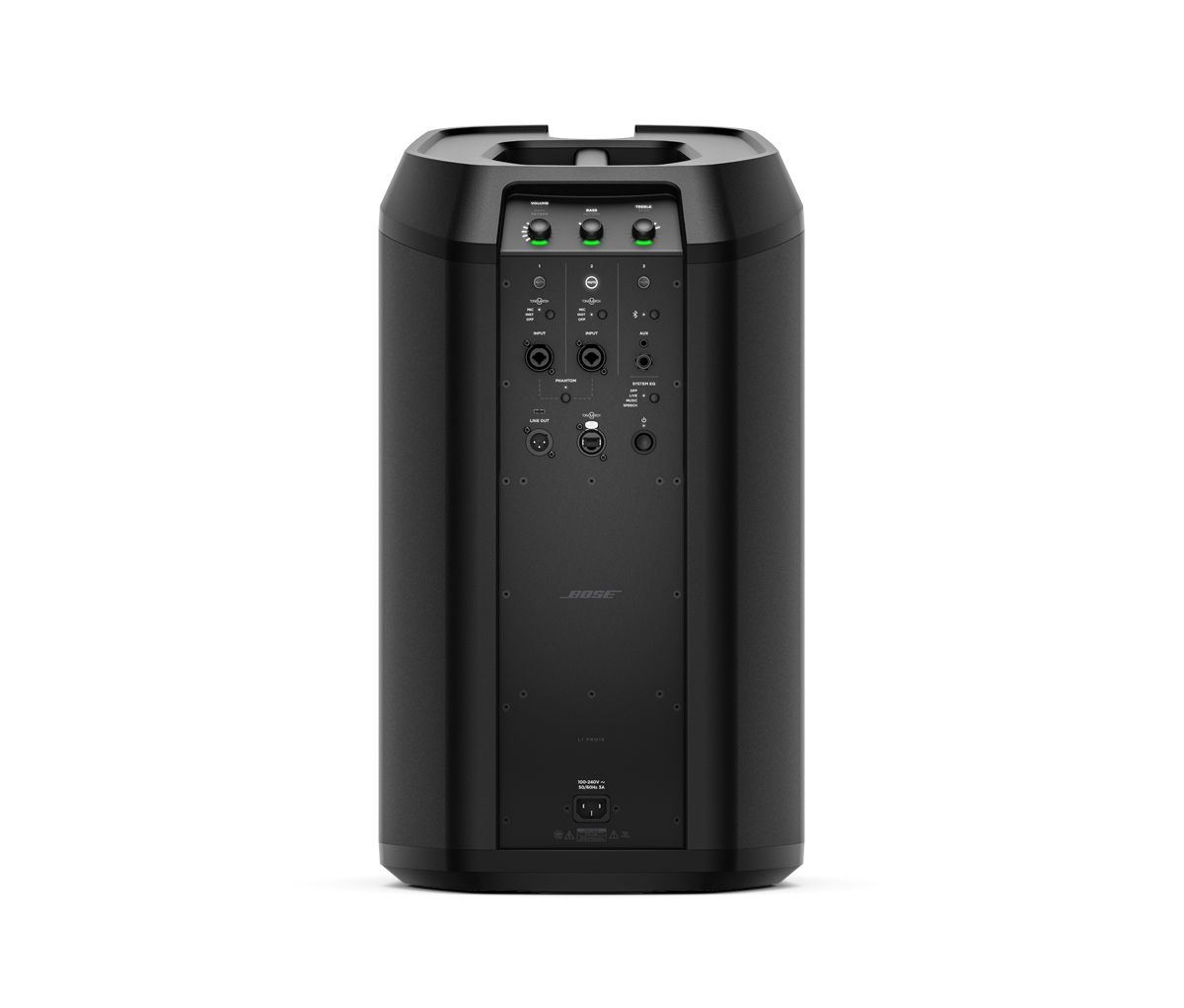

  • Connect various audio sources easilyvia built-in mixer with two combo XLR-1/4-inch; phantom-powered inputs, 1/4-inch and 1/8-inch (3.5 mm) aux input, plus Bluetooth ® streaming — and access system EQ and ToneMatch presets, volume, tone, and reverb via illuminated controls

  • Add in even more instruments and other audio sourcesvia dedicated ToneMatch port; one cable provides both power and digital audio between the system and a Bose T4S or T8S mixer (optional)

  • Take wireless control with the Bose Music appon your smartphone to adjust settings instantly from your phone, roam the room and fine-tune, and access the ToneMatch library of custom EQ presets

  • Stream high-quality Bluetooth ® audiofrom compatible devices

Applications

Designed for a wide range of applications, including:

  • Houses of worship
  • Schools and universities
  • Resorts and hospitality venues
  • Live music performances
  • Business presentations
  • Mobile DJs

Specifications

33 specifications

AMPLIFICATION

Number of Channels
2
Power Class
Class D

AUDIO INPUTS, ANALOG

Input Channels
3
Connectors
(1) XLR-1/4-in TRS combo, (1) 1/4-in TRS, (1) 1/8-in TRS, Bluetooth audio streaming
Sensitivity Options
-100 dB to +75 dB, XLR / -115 dB to +60 dB, TRS, input to driver
Phantom Power
48 VDC, Channels 1 & 2

COMPLIANCE

Safety
UL/IEC/EN62368-1 Audio/Video, Information and Communication Technology Equipment

ELECTRICAL

AC Power Connector
IEC
AC Power Input
100–240 VAC (±15%, 50/60 Hz)
Current Draw, Inrush
15.7 A at 120 VAC, 60 Hz / 28.4 A at 230 VAC, 50 Hz

GENERAL

Software Applications
Bose Music (Android, iOS)
Computer Interface Connection
USB Type-C

INDICATORS AND CONTROLS

Controls, Rear Panel
3 digital rotary encoders
LED Status Indicators
(1) standby LED, (3) channel parameter LED rings, (3) signal/clip LEDs, (3) mute LEDs, (1) phantom power LED, (2) ToneMatch LEDs, (1) Bluetooth LED, (4) system EQ LEDs

INTEGRATED DSP

DSP-Enabled
Yes
Presets
ToneMatch presets
Processing Functions
System EQ, reverb

PHYSICAL

Colors
Black
Enclosure Material
Power stand: High-impact polypropylene / Extension & Array: High-impact ABS
Grille
Perforated steel, powder-coated finish
Cooling System
Convection cooling
Product Dimensions (H×W×D)
79.2 in × 14.0 in × 18.0 in (2011 mm × 355 mm × 456 mm)
Net Weight
50.6 lb (23.0 kg)
Shipping Dimensions (H×W×D)
44.0 in × 18.1 in × 25.6 in (1118 mm × 460 mm × 650 mm)
Shipping Weight
62.6 lb (28.4 kg)

PERFORMANCE

Frequency Range (-10 dB)
31 Hz – 18 kHz
Coverage, Horizontal
180°
Calculated Maximum SPL @ 1 m
124 dB
Power Handling, Peak
1000 W
Coverage, Vertical
0°/30°

TRANSDUCERS

Crossover
200 Hz
High-Frequency
16 × 2 in (51 mm) drivers
Low-Frequency
1 × RaceTrack low-frequency 10 × 18 in (254 × 457 mm) driver

Order Codes

Order CodeDescriptionAvailability
840920-1100L1 PRO16 PORTABLE LINE ARRAY,120V,USBuy Now
840920-2100L1 PRO16 PORTABLE LINE ARRAY,230V,EUGet Price
840920-3100L1 PRO16 PORTABLE LINE ARRAY,100V,JPGet Price
840920-4100L1 PRO16 PORTABLE LINE ARRAY,230V,UKGet Price
840920-5100L1 PRO16 PORTABLE LINE ARRAY,230V,AUGet Price
840920-5130L1 PRO16 PORTABLE LINE ARRAY,230V,INDIAGet Price

In the Box

  • 2 years
  • (1) carry bag (arrays)
  • (1) IEC power cord
