Bose Professional
F1 Subwoofer
Portable PA

F1 Subwoofer

F1 Subwoofer packs all the performance of a larger bass box into a more compact design that’s easier to carry and fits in a car. A mounting stand for the Bose F1 Model 812 Flexible Array Loudspeaker is integrated right into the body of the subwoofer, so you always know where it is, making setup fast and easy. The stand even includes cable channels to neatly hide the wires, giving your system a clean, professional look. And now getting your unit to the venue is easier, too. The F1 Subwoofer features strategically placed handles for easy transport.

Order Codes · 5

See all →

  • 731444-1110

    F1 SUBWOOFER POWERED 120V US

    Buy Now

  • 731444-2110

    F1 SUBWOOFER POWERED 230V EU

    Get Price

  • 731444-3110

    F1 SUBWOOFER POWERED 100V JP

    Get Price
Request a Full System Quote
  • Authorized productFull manufacturer warranty
  • Ships from A5 ITCrystal Lake, Illinois
  • Design supportSpecify the whole system

Features

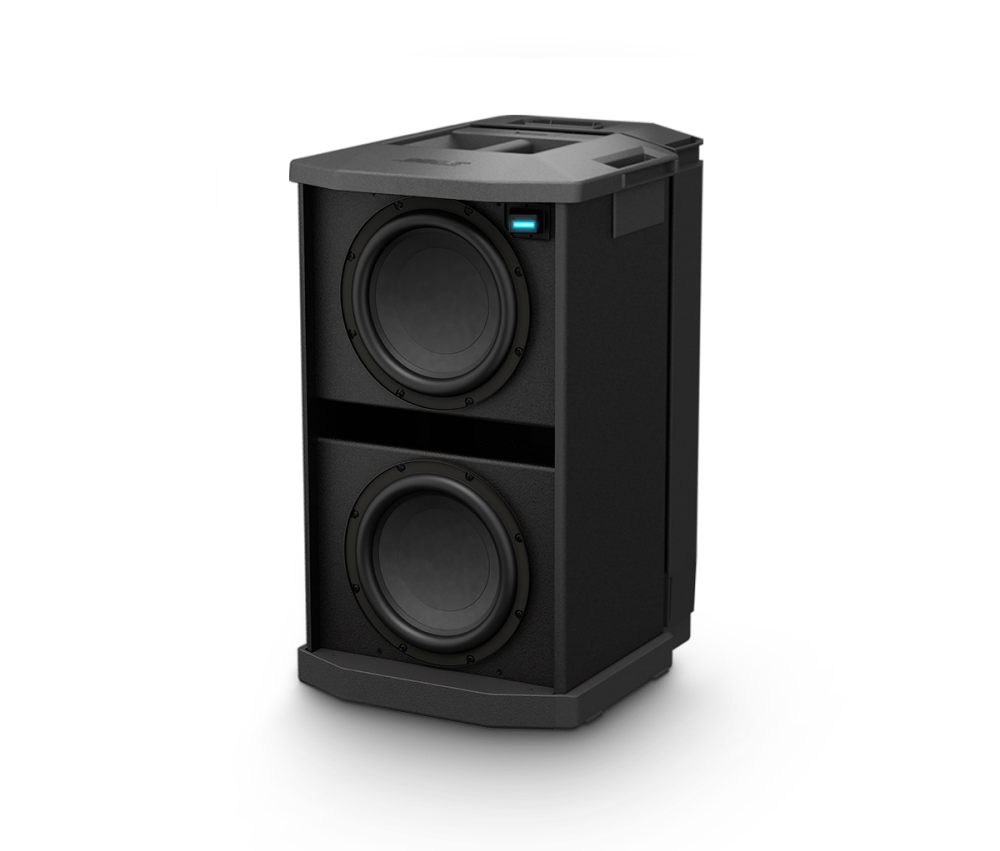

  • Two high-excursion drivers, each measuring 10 inches, are built into a compact enclosure that is light and easy to transport

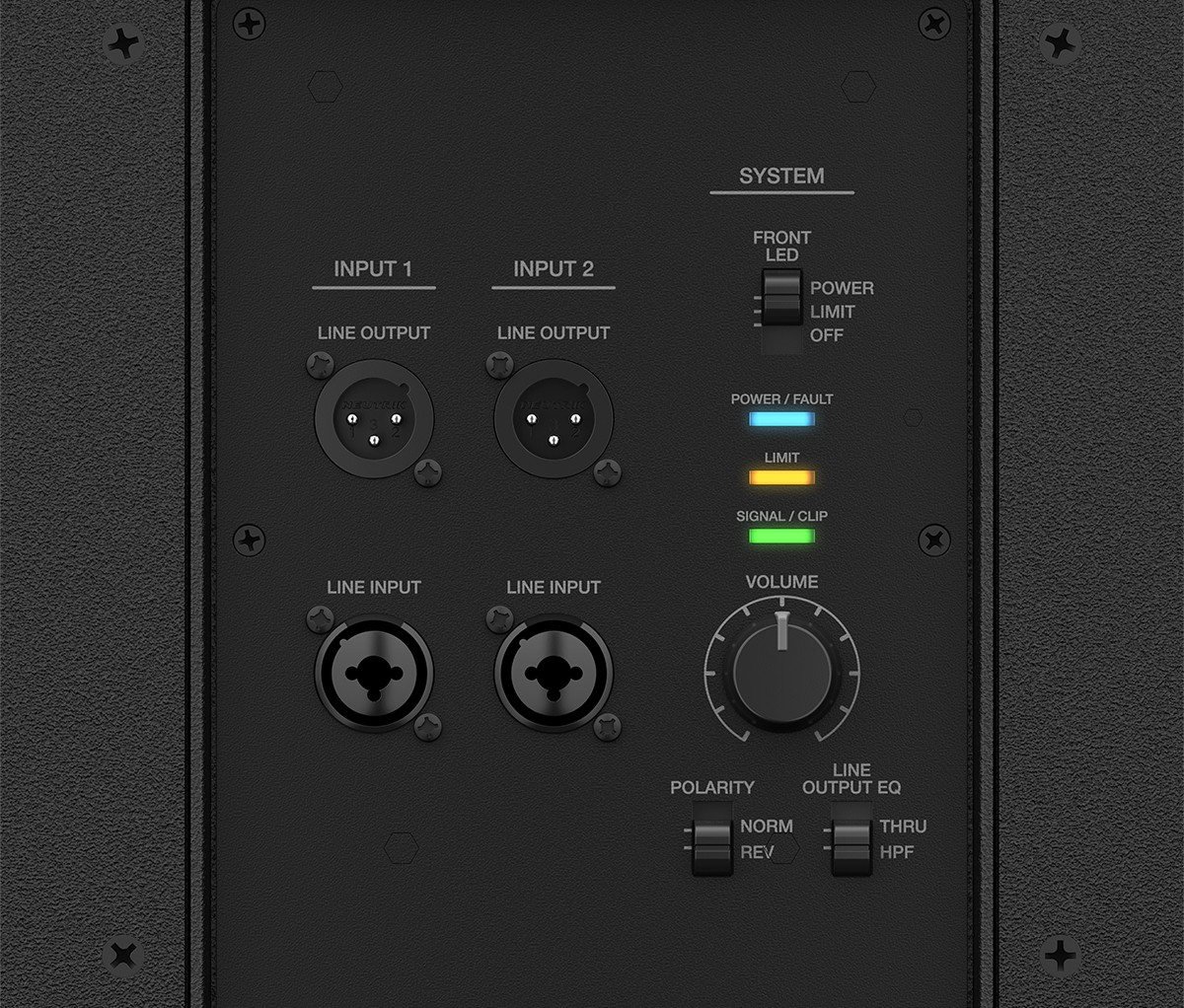

  • Polarity switchto adjust polarity of subwoofer. Selections are NORM and REV. Reversing polarity allows for easy correction of low-frequency overlap between the main loudspeaker and subwoofer

  • Line output EQsets the F1 Subwoofer’s output to a high-pass filter or full range, which allows for easy crossover selection when used with a main loudspeaker

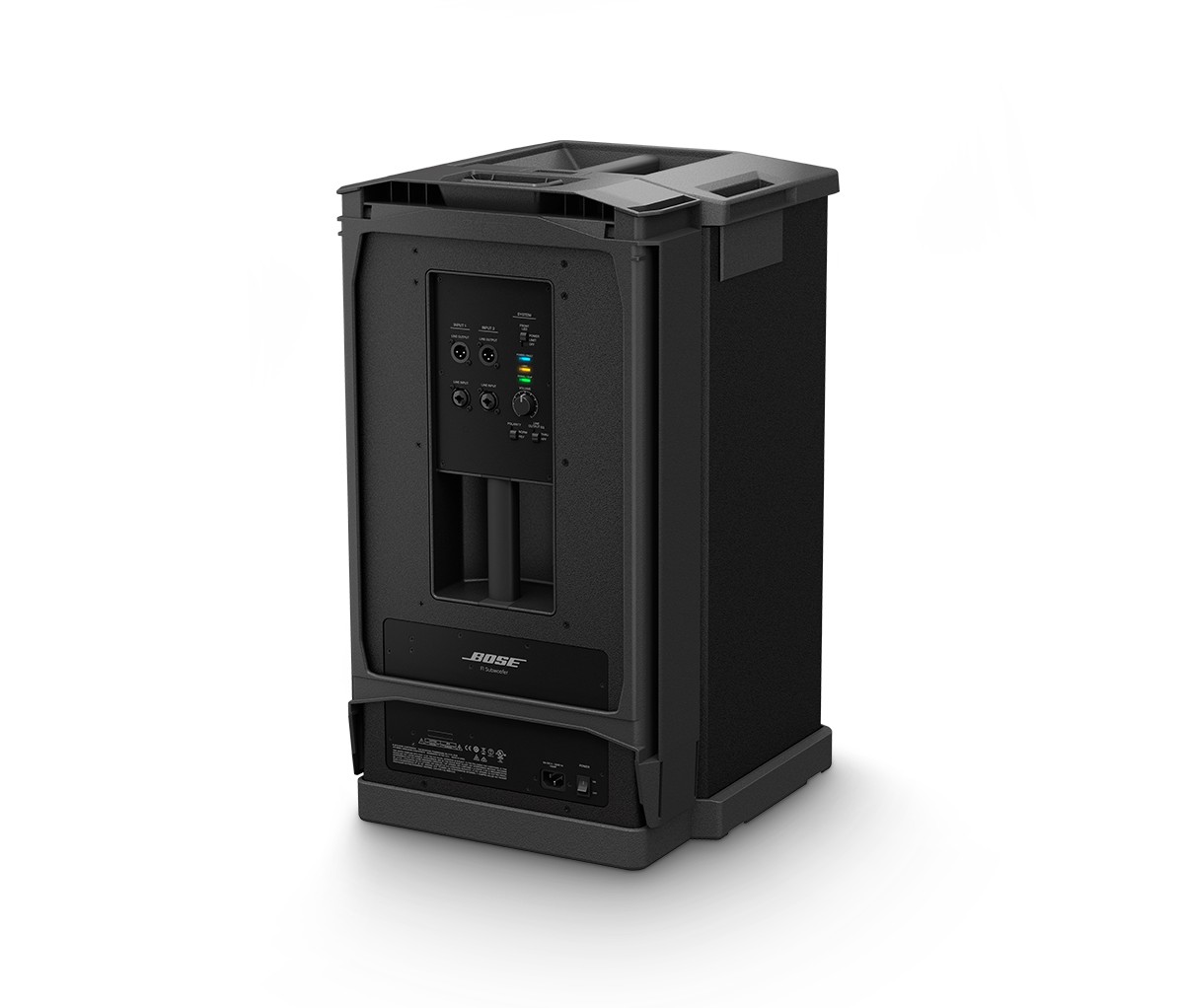

  • F1 Model 812 extension bracketis a unique bracket integrated into the subwoofer. This bracket can be raised and lowered by the end user, allowing the F1 Model 812 loudspeaker to be safely mounted to the subwoofer. The bracket eliminates the need for a conventional pole mount or tripod stand

Applications

Designed for a wide range of applications, including:

  • Live music performances
  • Bands of all styles
  • Solo musicians
  • Mobile DJs
  • Houses of worship
  • Schools and universities
  • Resorts and hospitality venues
  • Business presentations

Specifications

14 specifications

AMPLIFICATION

Number of Channels
1
Power Class
Class D
THD+N
0.1% maximum (30 Hz – 15 kHz)

AUDIO INPUTS, ANALOG

Input Channels
2
Connectors
(2) XLR-1/4-in combo

PHYSICAL

Colors
White

PERFORMANCE

Frequency Range (-10 dB)
38 Hz – 250 Hz
Coverage, Horizontal
Omnidirectional
Calculated Maximum SPL @ 1 m
130 dB
Power Handling, Peak
1000 W
Coverage, Vertical
Omnidirectional

TRANSDUCERS

Crossover
40 Hz – 100 Hz, Butterworth bandpass / 100 Hz, 4th-order Butterworth high-pass filter at line out
Driver Protection
Dynamic limiter
Low-Frequency
2 × 10 in (254 mm) high-excursion drivers

Order Codes

Order CodeDescriptionAvailability
731444-1110F1 SUBWOOFER POWERED 120V USBuy Now
731444-2110F1 SUBWOOFER POWERED 230V EUGet Price
731444-3110F1 SUBWOOFER POWERED 100V JPGet Price
731444-4110F1 SUBWOOFER POWERED 230V UKGet Price
731444-5110F1 SUBWOOFER POWERED 240V AUGet Price

Downloads

3 documents

Technical Information

User Documentation

Mechanical Files
