Bose Professional
F1 Model 812 Flexible Array loudspeaker
Portable PA

F1 Model 812 Flexible Array loudspeaker

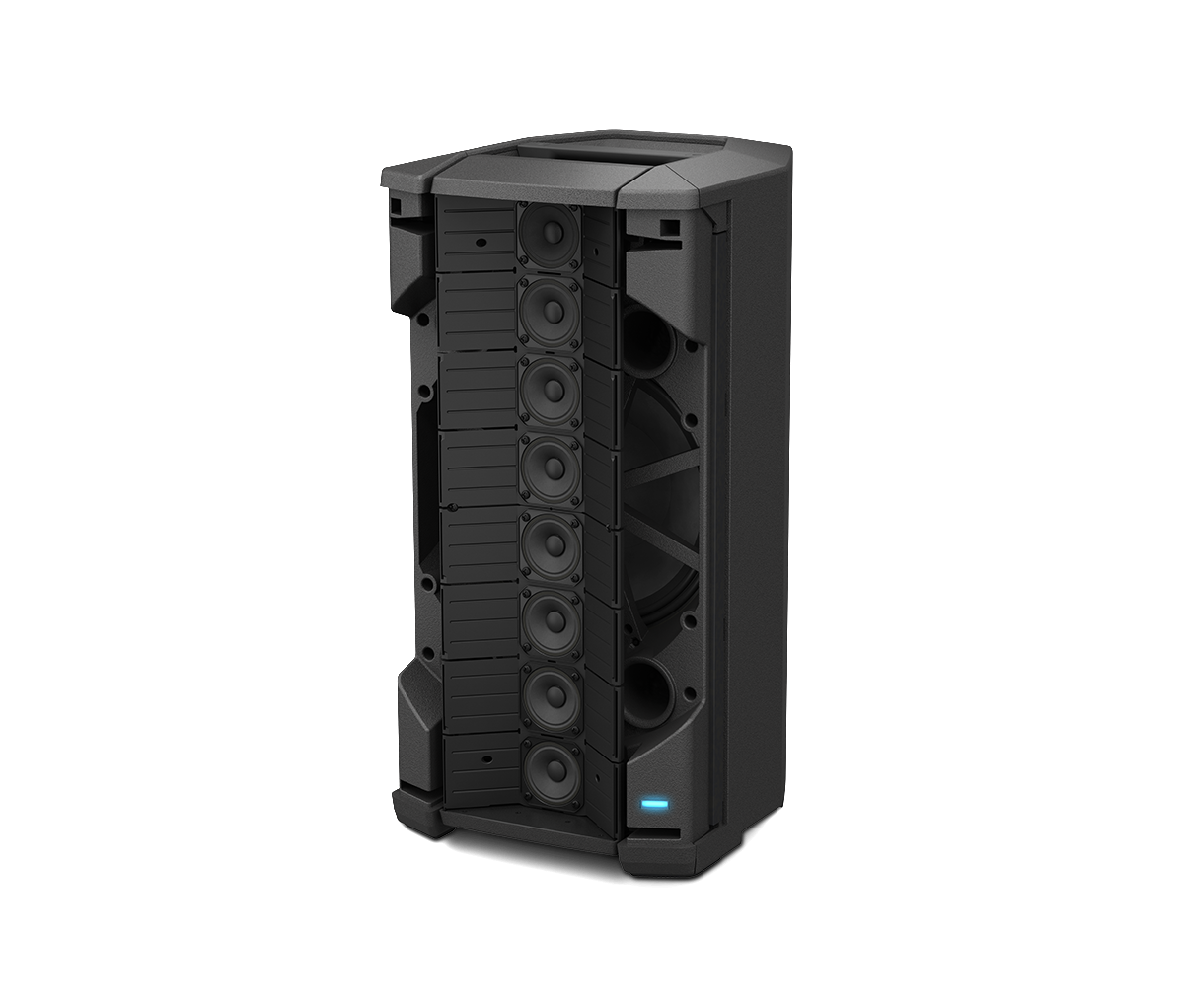

Powerful, standalone sound that flexes to meet your coverage needs — the Bose F1 Model 812 is a 1000-watt, full-range loudspeaker featuring Bose Flexible Array technology. At the heart of the F1 is a 12-inch woofer nested behind an array of eight high-output drivers. These nine speakers are supported by a lower crossover point than conventional loudspeakers — to give full voice to your sound and deliver clearer, more natural vocals and midrange clarity, even at high volumes. And you control the vertical coverage pattern. So, wherever you’re playing, you can adapt the PA to match the room. With the Bose F1 Model 812, your sound stands alone.

Order Codes · 5

See all →

  • 731419-1110

    F1 MODEL 812 FLEX ARRAY LDSPKR 120V US

    Buy Now

  • 731419-2110

    F1 MODEL 812 FLEX ARRAY LDSPKR 230V EU

    Get Price

  • 731419-3110

    F1 MODEL 812 FLEX ARRAY LDSPKR 100V JP

    Get Price
Request a Full System Quote
  • Authorized productFull manufacturer warranty
  • Ships from A5 ITCrystal Lake, Illinois
  • Design supportSpecify the whole system

Features

  • Portable, standalone designwith built-in 1000-watt amplifier and nine transducers: eight high-output drivers and a 12-inch high-power woofer

  • Lower crossover pointthan conventional loudspeakers for clear and natural vocals even at high volumes

  • Flexible Array technology:easily adjust coverage pattern — Straight, C, J, or Reverse J — to optimize sound for different spaces: floor level, on stage, for raked seats or bleachers, and more

  • Automatic EQadjusts to maintain optimum tonal balance for each coverage pattern

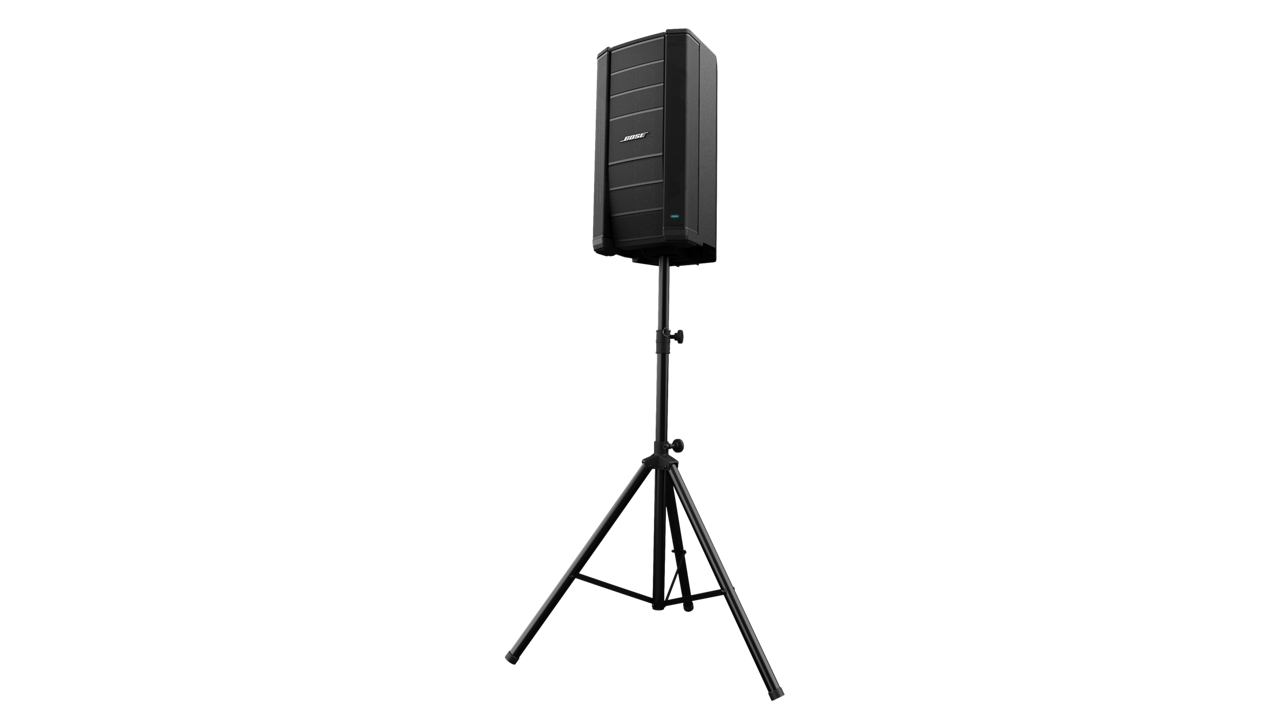

  • Built-in handlesfor easy transport and compatible with standard 35 mm speaker stands (sold separately)

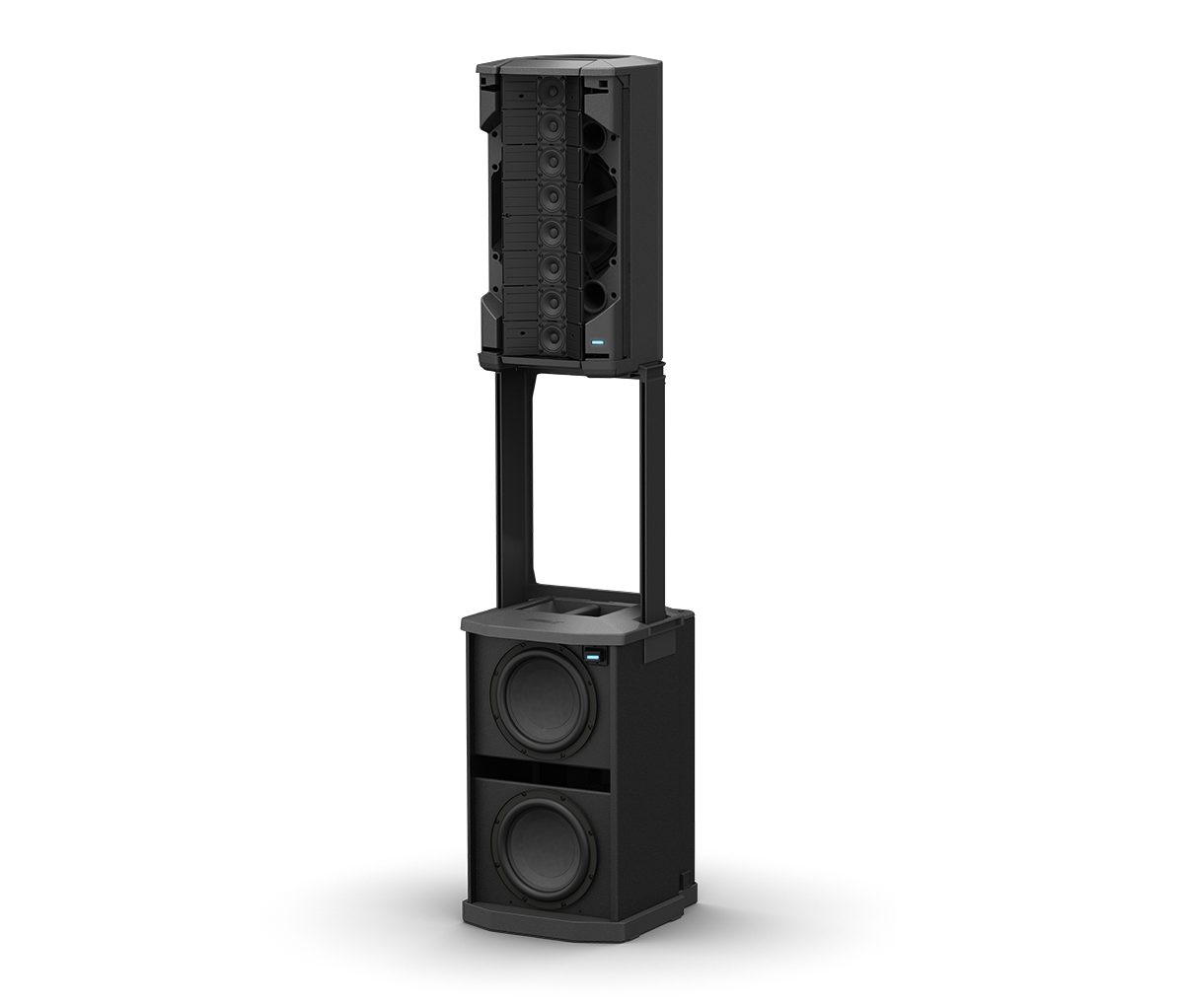

  • Optional Bose F1 Subwoofer(sold separately) for even more low-frequency response

  • Optional Bose F1 Subwoofer(sold separately) for even more low-frequency response Integrated speaker stand for F1 Model 812 Built-in 1000-watt amplifier Hidden cable channels for clean appearance Built-in handles for easy transport

Applications

Designed for a wide range of applications, including:

  • Live music performances
  • Bands of all styles
  • Solo musicians
  • Mobile DJs
  • Houses of worship
  • Schools and universities
  • Resorts and hospitality venues
  • Business presentations

Specifications

32 specifications

AMPLIFICATION

Number of Channels
2
Power Class
Class D
THD+N
0.1% maximum (30 Hz – 15 kHz)

AUDIO INPUTS, ANALOG

Input Channels
2
Connectors
(1) XLR-1/4-in combo, (1) RCA stereo pair, (1) 1/4-in TS/TRS
Sensitivity Options
-Infinity to +34 dB, line / -Infinity to +54 dB, mic, -Infinity to +26 dB, RCA / -Infinity to +20 dB, 1/4-in
Phantom Power
No

ELECTRICAL

AC Power Connector
IEC
AC Power Input
100-240 V, 50/60 Hz

GENERAL

Software Applications
No

INDICATORS AND CONTROLS

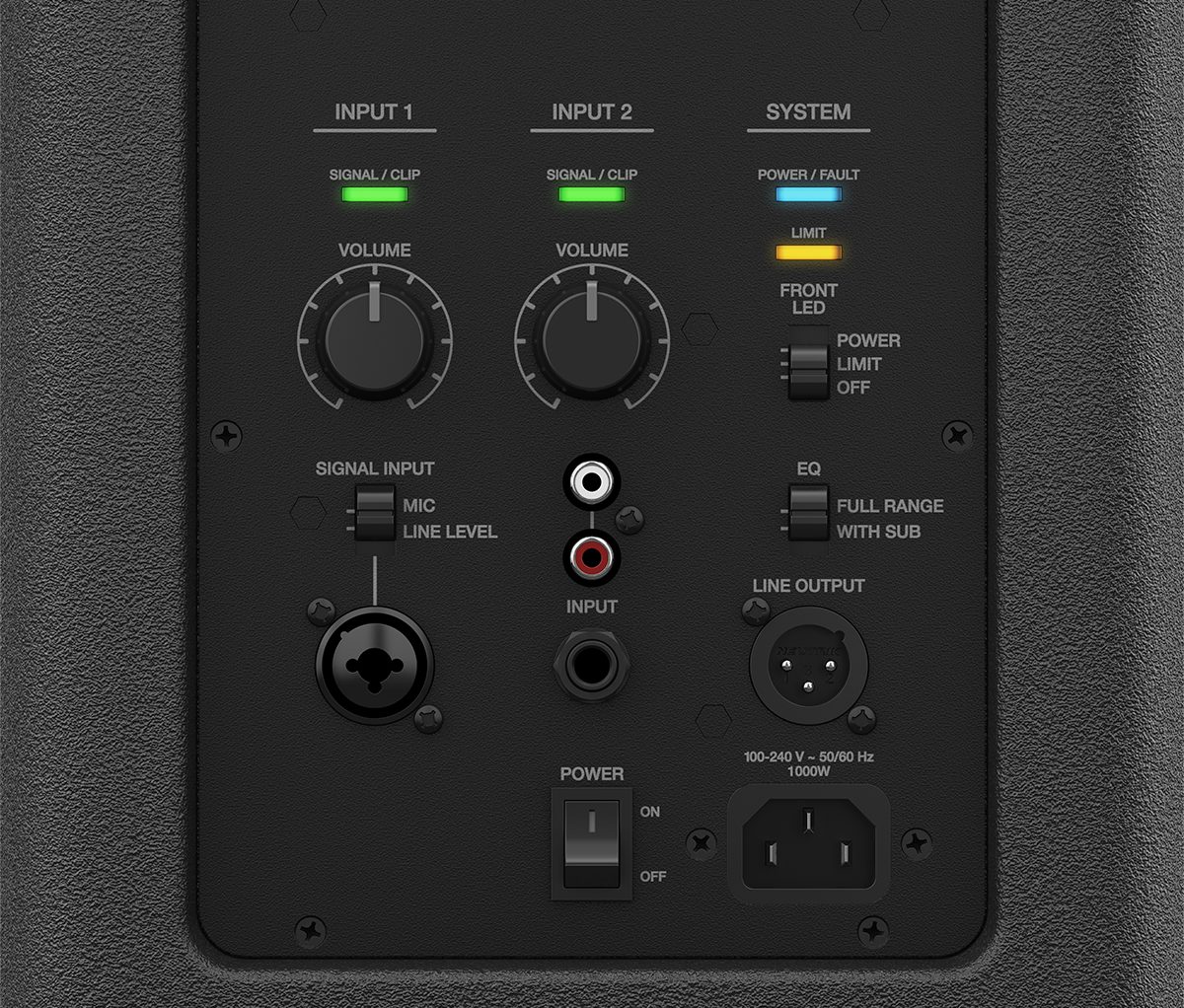

Controls, Rear Panel
Volume level, Signal input select, Front LED function select, EQ V
LED Status Indicators
(1) power/fault LED, (2) signal/clip LEDs, (1) limit LED, (1) configurable front-panel LED

INTEGRATED DSP

DSP-Enabled
Yes
Processing Functions
Output EQ, limiter

PHYSICAL

Colors
Black
Enclosure Material
High impact composite materials
Grille
Steel, powder-coated finish
Operating Temperature Range
0 °C to 50 °C (32 °F to 122 °F)
Product Dimensions (H×W×D)
26.1 in × 14.6 in × 13.1 in (663 mm × 371 mm × 333 mm)
Net Weight
44.5 lb / 20.2 kg
Shipping Dimensions (H×W×D)
32.5 in × 20.0 in × 18.5 in (826 mm × 508 mm × 470 mm)
Storage Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Shipping Weight
55.0 lb (24.9 kg)

PERFORMANCE

Frequency Range (-10 dB)
43 Hz – 20 kHz
Coverage, Horizontal
100°
Calculated Maximum SPL @ 1 m
132 dB
Power Handling, Peak
1000 W
Coverage, Vertical
40°

TRANSDUCERS

Crossover
600 Hz, 4th-order Butterworth
Driver Protection
Dynamic limiter
High-Frequency
8 × 2.25 in (57 mm) mid-high-frequency drivers
Low-Frequency
1 × 12 in (305 mm) low-frequency driver

Order Codes

Order CodeDescriptionAvailability
731419-1110F1 MODEL 812 FLEX ARRAY LDSPKR 120V USBuy Now
731419-2110F1 MODEL 812 FLEX ARRAY LDSPKR 230V EUGet Price
731419-3110F1 MODEL 812 FLEX ARRAY LDSPKR 100V JPGet Price
731419-4110F1 MODEL 812 FLEX ARRAY LDSPKR 230V UKGet Price
731419-5110F1 MODEL 812 FLEX ARRAY LDSPKR 240V AUGet Price

In the Box

  • 2 years
  • (1) IEC power cord

Downloads

3 documents

Technical Information

User Documentation

Mechanical Files
