T4S ToneMatch mixer
Portable PA

T4S ToneMatch mixer

Take control of your music with the T4S ToneMatch mixer, an ultra-compact 4-channel interface designed for performers. Engineered with a powerful DSP engine and intuitive user control, the T4S offers studio-quality EQ, dynamics and effects. Sound great with integrated Bose ToneMatch processing and zEQ, especially when connected to a Bose L1 or F1 system for full end-to-end tonal control. Play confidently on stage with the rugged T4S using its tactile controls, easy-to-read LED display and scene recall. The T4S, a true performer’s companion.

Order Code

  • 785403-0110

    T4S TONEMATCH MIXER

    Buy Now
Request a Full System Quote
  • Authorized productFull manufacturer warranty
  • Ships from A5 ITCrystal Lake, Illinois
  • Design supportSpecify the whole system

Features

  • Powerful Audio Processing:Updated, studio-quality effects with advanced digital audio processing High-quality effects include compressor, limiter, de-esser, noise gate, chorus, flanger, phaser, tremolo, delay and reverb Bose ToneMatch processing for natural-sounding vocals and instruments zEQ focuses the sound of ToneMatch presets for effective adjustments on the fly Independent ToneMatch, EQ, dynamics and effects per channel Dedicated reverb on Aux 1 send, and a global shared reverb for use across all channels Master output EQ helps compensate for venue acoustics Full end-to-end tonal optimization when used with Bose L1 and F1 systems

  • Seamless Live Control:Tactile controls and indicators designed for live, on-stage use Fast-learning user interface Built-in tap tempo delay, chromatic tuner, and recallable scenes LED display and illuminated controls are easy to read and use, even on dimly-lit stages

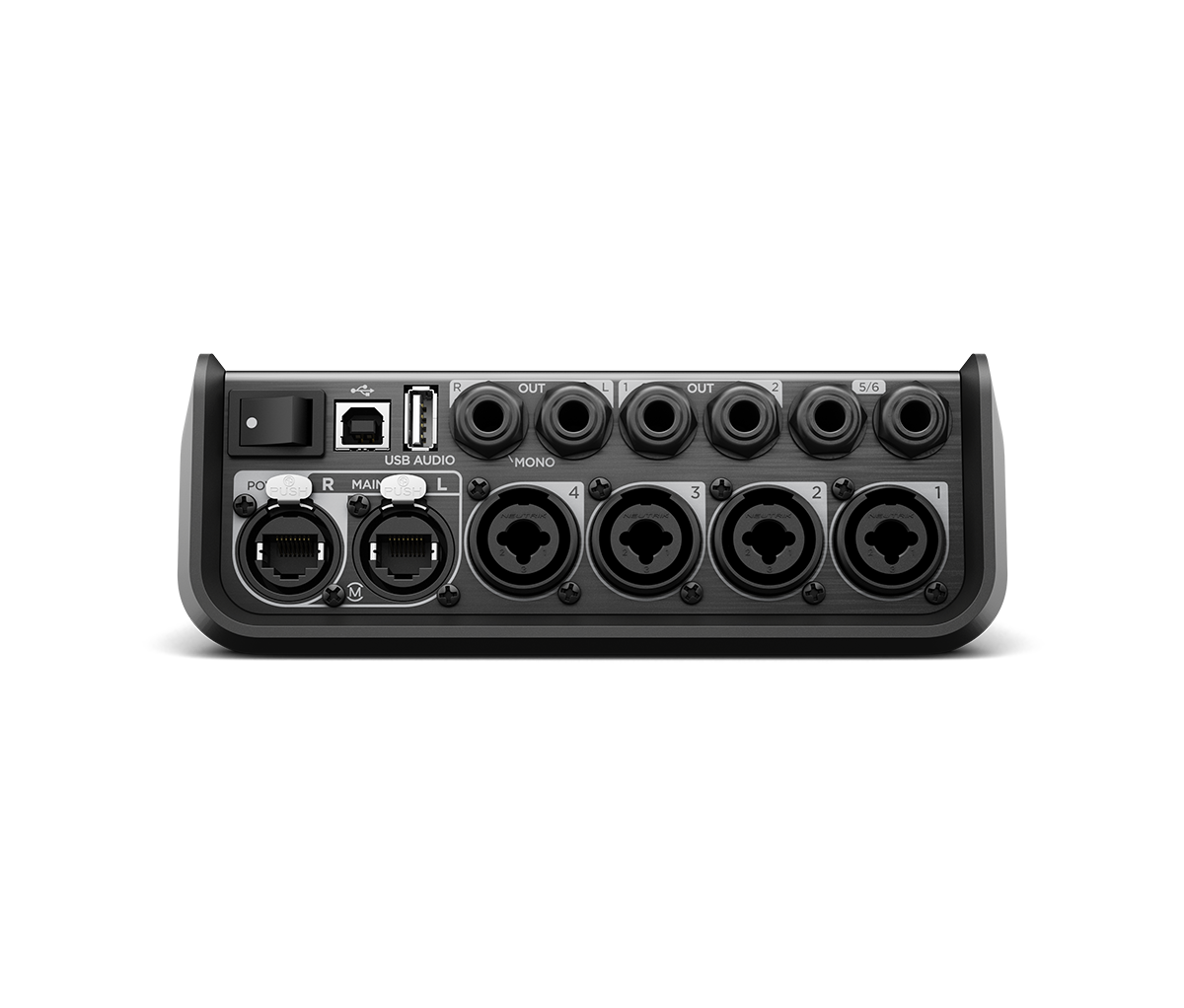

  • High-Density Connectivity:Unprecedented connectivity and control in a small digital stereo mixer Four high-quality audio preamps with XLR-combo jacks for microphones or instruments, and switchable phantom power Two ToneMatch outputs for digital audio and power Two Aux sends, and Two Aux inputs for additional sources USB-A and -B for USB drive playback or PC/Mac interfacing Independent headphone and balanced 1/4-inch; TRS stereo outputs

  • Convenient Gig-Ready Features:Rugged enclosure with a protective magnetic cover to protect controls and connectors Includes a ToneMatch cable for connecting to a Bose L1 PRO system for digital audio and power Bottom insert allows you to use standard mounting accessories to keep your T4S within reach

Applications

Designed for a wide range of applications, including:

  • Corporate AV
  • General purpose PA
  • Live streaming
  • Mobile DJs
  • Singer/songwriters

Specifications

12 specifications

AUDIO INPUTS, ANALOG

Input Channels
4 XLR combo jacks, 2 TRS 1/4-in jacks
Phantom Power
48 VDC, all channels

AUDIO OUTPUTS, ANALOG

Channels
4 balanced, line

GENERAL

Computer Interface Connection
USB Type-B

INDICATORS AND CONTROLS

Display
OLED

INTEGRATED DSP

Equalization
3-band EQ
DSP-Enabled
Yes
Presets
Bose factory presets, user presets
Sample Rate / Bit Depth
48 kHz / 24-bit

PHYSICAL

Colors
Black
Product Dimensions (H×W×D)
8.4 in × 7.3 in × 3.3 in (214 mm × 184 mm × 83 mm)
Net Weight
2.1 lb (1.0 kg)

In the Box

  • (1) ToneMatch mixer & cover
  • (1) ToneMatch cable

Downloads

3 documents

User Documentation
