DesignMax DM3SE loudspeakers (1 pair)
Loudspeakers

DesignMax DM3SE loudspeakers (1 pair)

With coaxial two-way drivers, the 30-watt Bose Professional DesignMax DM3SE loudspeaker offers clear, intelligible highs and surprising low end for their size — along with premium aesthetics that complement any commercial sound installation. The DM3SE features a two-way 3.5-inch woofer and 0.75-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz – 20 kHz. The DM3SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation.

Order Codes · 4

See all →

  • 829712-0110

    DESIGNMAX DM3SE PAIR BLK

    Buy Now

  • 829712-0210

    DESIGNMAX DM3SE PAIR WHT

    Buy Now

  • 829712-0120

    DESIGNMAX DM3SE PAIR BLK (NEW)

    Buy Now
Request a Full System Quote
  • Authorized productFull manufacturer warranty
  • Ships from A5 ITCrystal Lake, Illinois
  • Design supportSpecify the whole system

Features

  • Combine DesignMax models to complete any design, big or small12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

  • Deliver clear highs and surprising low-end for their size with coaxial two-way driversno DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

  • Ensure a consistent listening experiencethroughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter

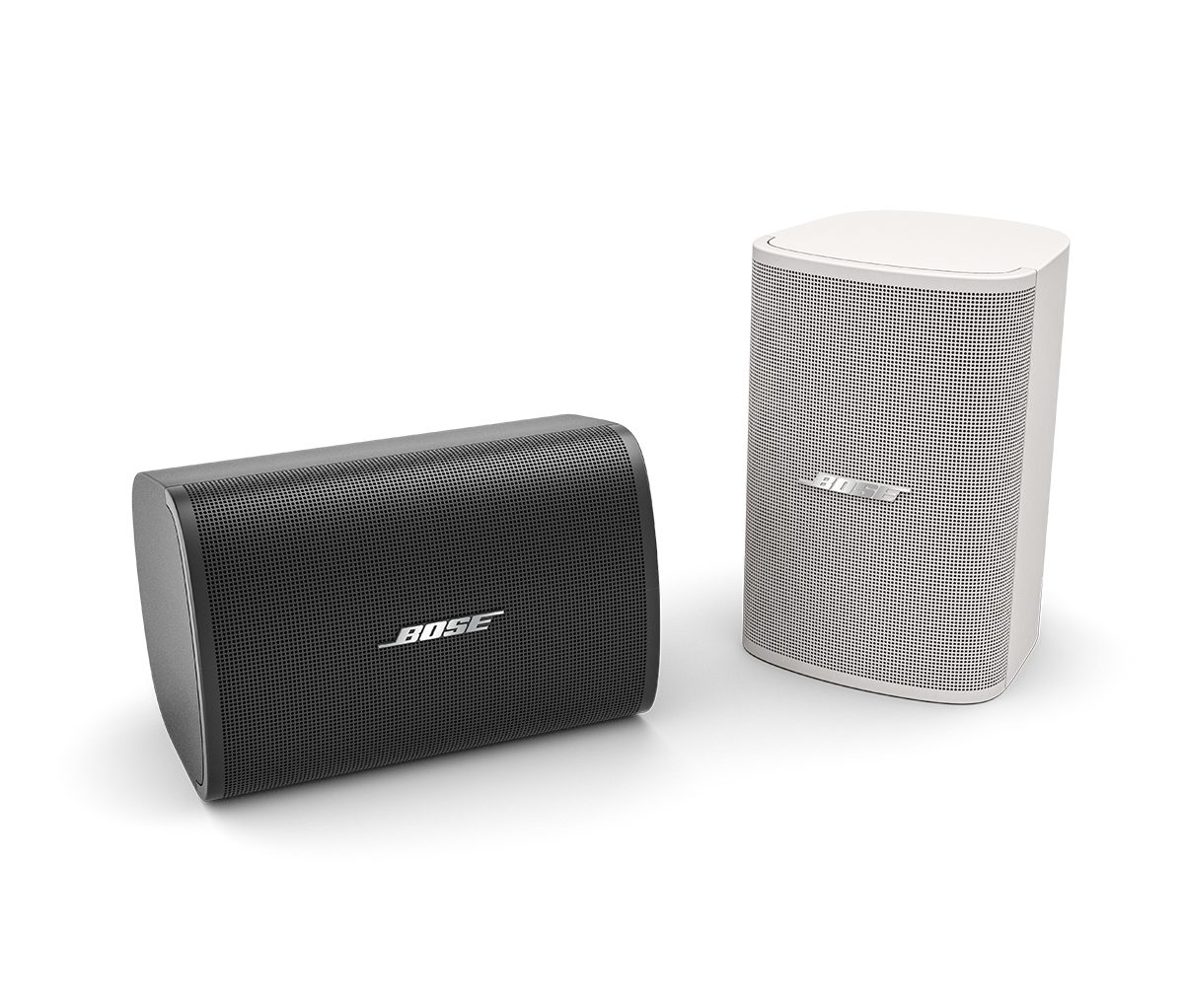

  • Blend with any room designwith elegant form factors, minimum-bezel grilles available in black or white, and removable logos

  • Reduce installation timewith the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

  • Install easily with industry-standard accessoriesall models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

  • Install DM3SE outsideIP55 rating with standard aluminum grille for outdoor use

Applications

Designed for a wide range of applications, including:

  • Performing arts venues
  • Places of worship
  • Conference centers
  • Retail stores
  • Restaurants and bars
  • Hospitality venues

Specifications

26 specifications

COMPLIANCE

Safety Agency Ratings
UL 1480A, NFPA 70, CE-compliant

PHYSICAL

Colors
Black (RAL 9005), white (similar to RAL 9003), paintable
Enclosure Material
Engineered plastics, highly UV fade-resistant
Environmental
Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather resistant input cover
Grille

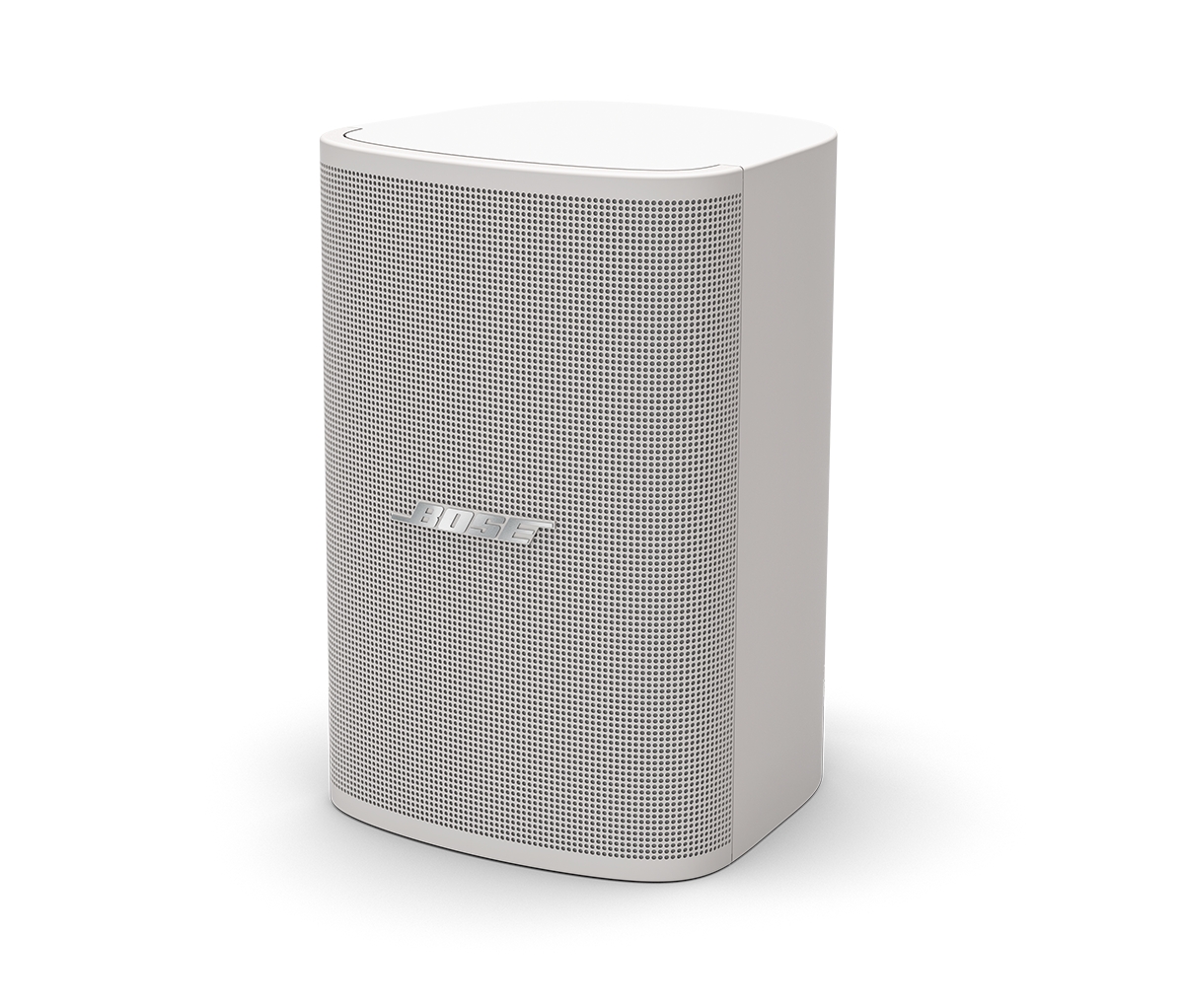

Perforated aluminum, powder-coated finish, tamper-resistant design, paintable
Ingress Protection
IP55
Logo
Rotatable, removable
Operating Temperature Range
-25 °C to 70 °C (-13 °F to 158 °F)
Product Dimensions (H×W×D)
9.1 in × 6.1 in × 6.1 in (232 mm × 154 mm × 155 mm), loudspeaker / 9.1 in × 6.1 in × 6.7 in (232 mm × 154 mm × 171 mm), loudspeaker with bracket
Net Weight
5.6 lb (2.5 kg), loudspeaker with grille (single)
Shipping Weight
16.0 lb (7.2 kg), pair

PERFORMANCE

Frequency Range (-10 dB)
75 Hz – 20,000 Hz
Coverage, Horizontal
140° conical
Calculated Maximum SPL @ 1 m
101 dB
Nominal Impedance
8 Ω (transformer bypass)
Power Handling, long-term continuous
30 W
Power Handling, Peak
120 W
Recommended Signal Processing
Not required, Bose Professional EQ voicing and SmartBass processing available
Sensitivity (SPL/1 W at 1 m)
86 dB
Transformer Taps, 100V
6, 12, 25 W, bypass
Transformer Taps, 70V
3 W, 6 W, 12 W, 25 W, bypass
Coverage, Vertical
140° conical

TRANSDUCERS

Crossover
1.7 kHz, passive 2-way crossover
Driver Protection
Recommended high-pass protection 80 Hz with recommended 24 dB/octave filter
High-Frequency

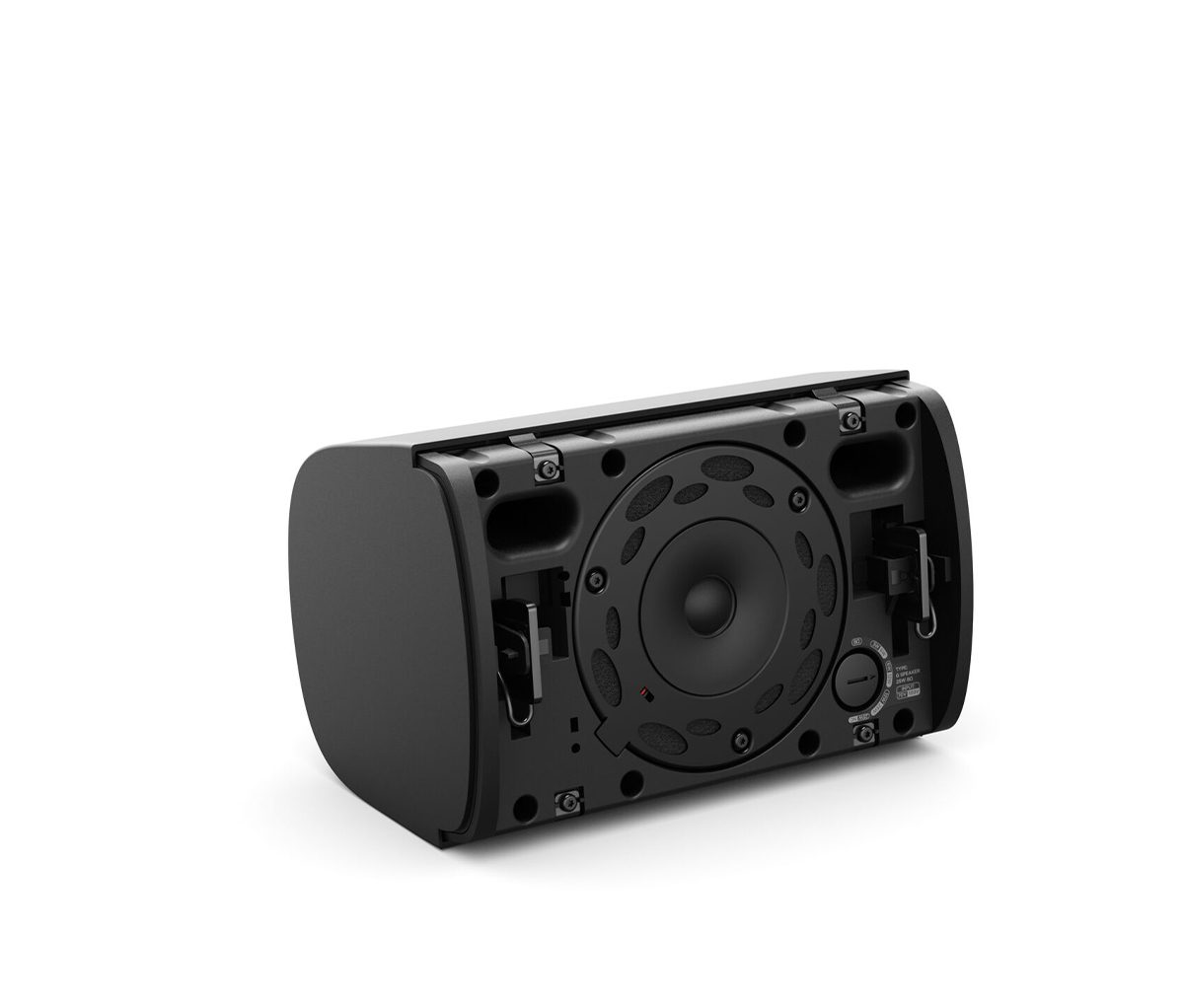

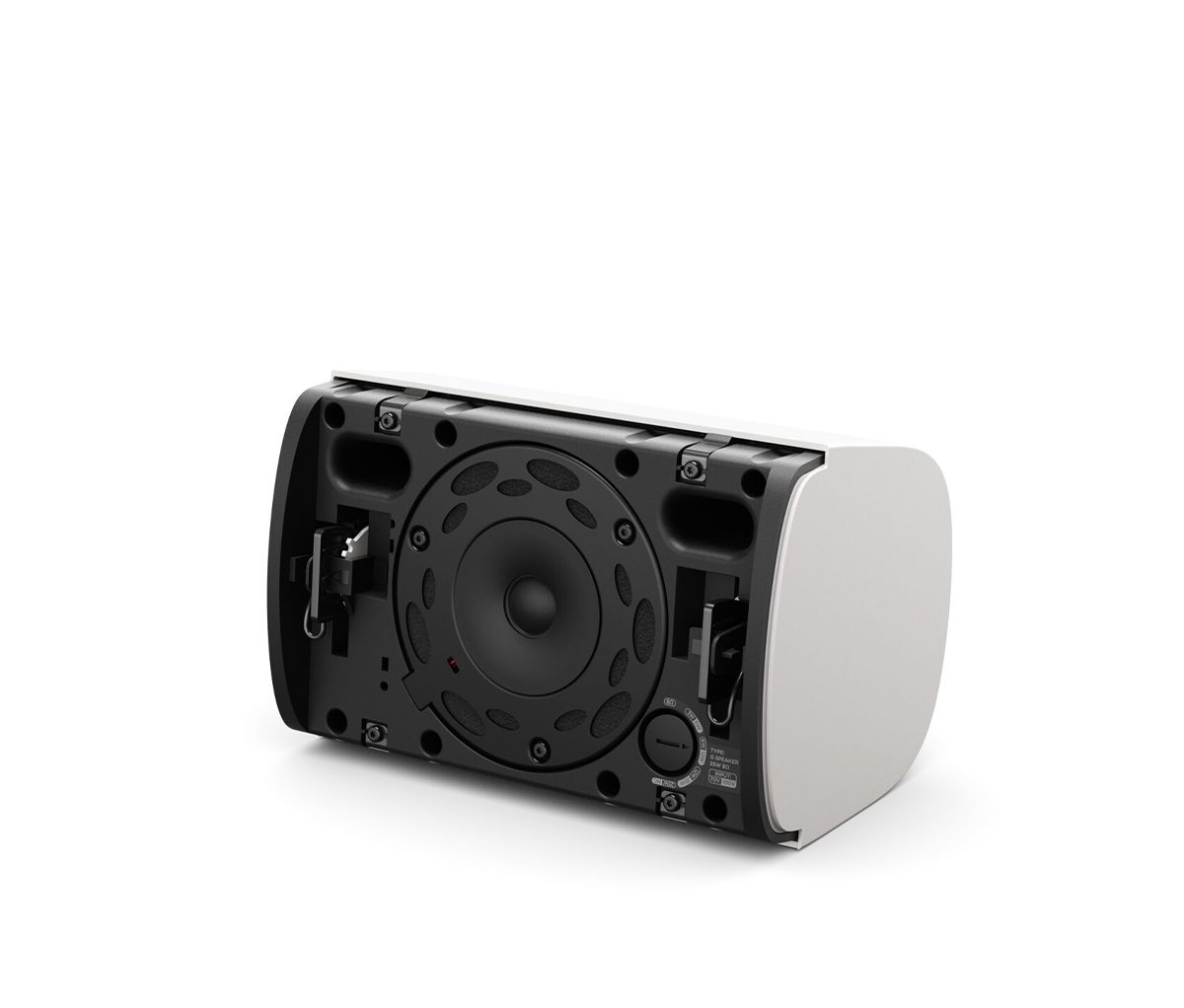

1 × 0.75 in (20 mm) neodymium dome tweeter, coaxially mounted, weather-treated
Low-Frequency
1 × 3.25 in (83 mm) woofer, weather-treated

Order Codes

Order CodeDescriptionAvailability
829712-0110DESIGNMAX DM3SE PAIR BLKBuy Now
829712-0210DESIGNMAX DM3SE PAIR WHTBuy Now
829712-0120DESIGNMAX DM3SE PAIR BLK (NEW)Buy Now
829712-0220DESIGNMAX DM3SE PAIR WHT (NEW)Buy Now

In the Box

  • 5 years / 2 years
  • (2) DesignMax DM3SE loudspeakers
  • (2) grilles
  • (2) U-brackets
  • (2) weather-resistant input covers
  • (1) installation guide
