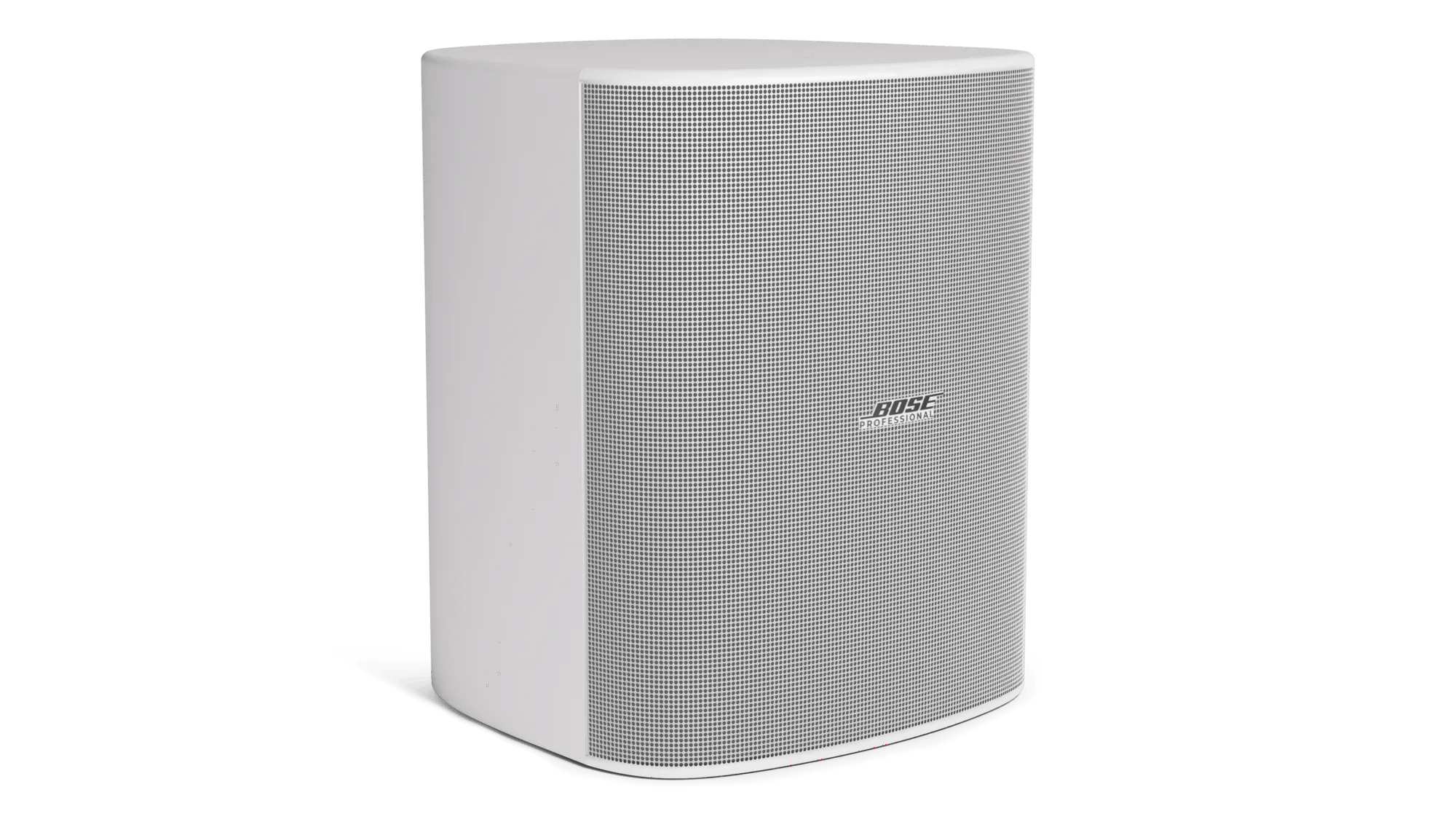

DesignMax DM12SE 12-Inch Coaxial Surface-Mount Loudspeaker
Loudspeakers

DesignMax DM12SE 12-Inch Coaxial Surface-Mount Loudspeaker

The Bose Professional DesignMax DM12SE is a weatherized, full-range, 12-inch coaxial surface-mount loudspeaker that delivers deep bass and consistent 102° conical coverage. Combining high output, clear intelligibility, and the sleek aesthetic the DesignMax family is known for, it delivers the flexibility integrators need for indoor or outdoor installations in performance, hospitality, worship, and retail spaces.

Order Codes · 2

  • A01114-0100

    DESIGNMAX DM12SE SINGLE BLK

    Get Price

  • A01114-0200

    DESIGNMAX DM12SE SINGLE WHT

    Get Price
Request a Full System Quote
  • Authorized productFull manufacturer warranty
  • Ships from A5 ITCrystal Lake, Illinois
  • Design supportSpecify the whole system

Features

  • 12” coaxial transducerdelivers clear, full-range sound with consistent 102° conical coverage

  • Weatherized, injection-molded enclosurefor indoor and outdoor reliability

  • Deep bass responsedown to 38 Hz for powerful low-end performance

  • Coaxial point-source designensures clarity and uniformity across the space

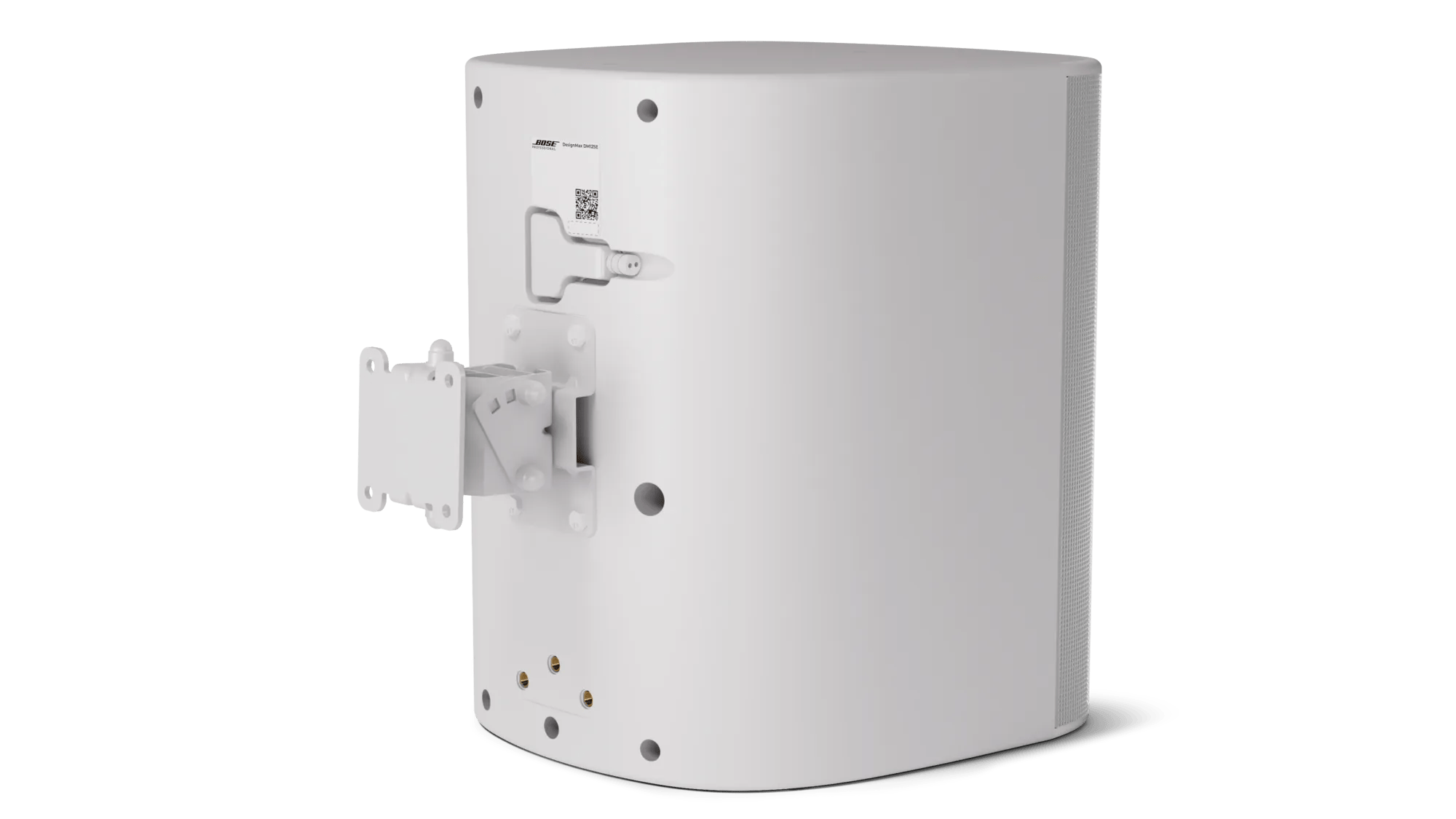

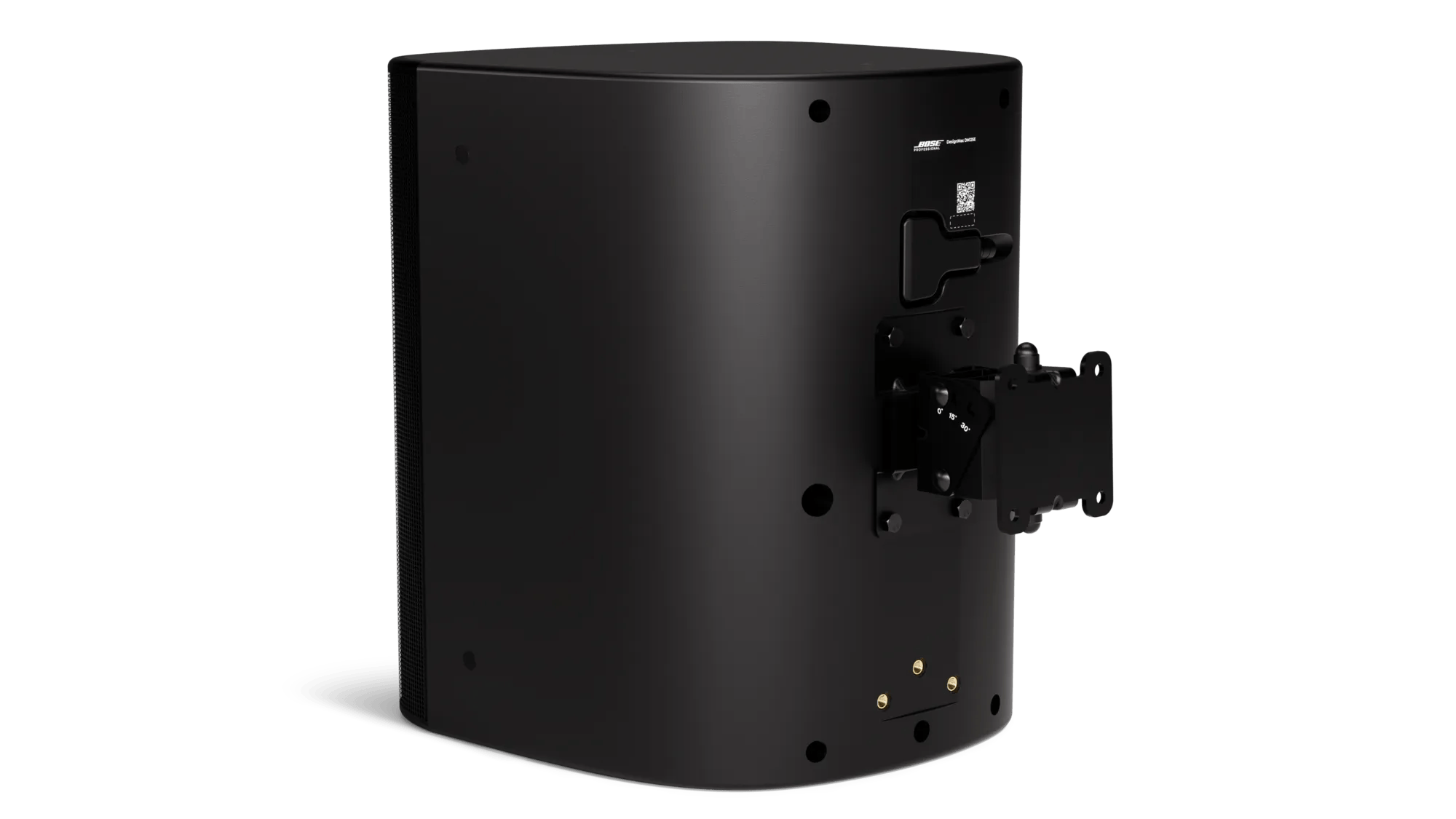

  • Rugged, outdoor-ready pan/tilt bracketenables fast installs, precise aiming, and long-term reliability

  • Factory-optimized tuningsfor Bose Professional amplifiers and processors

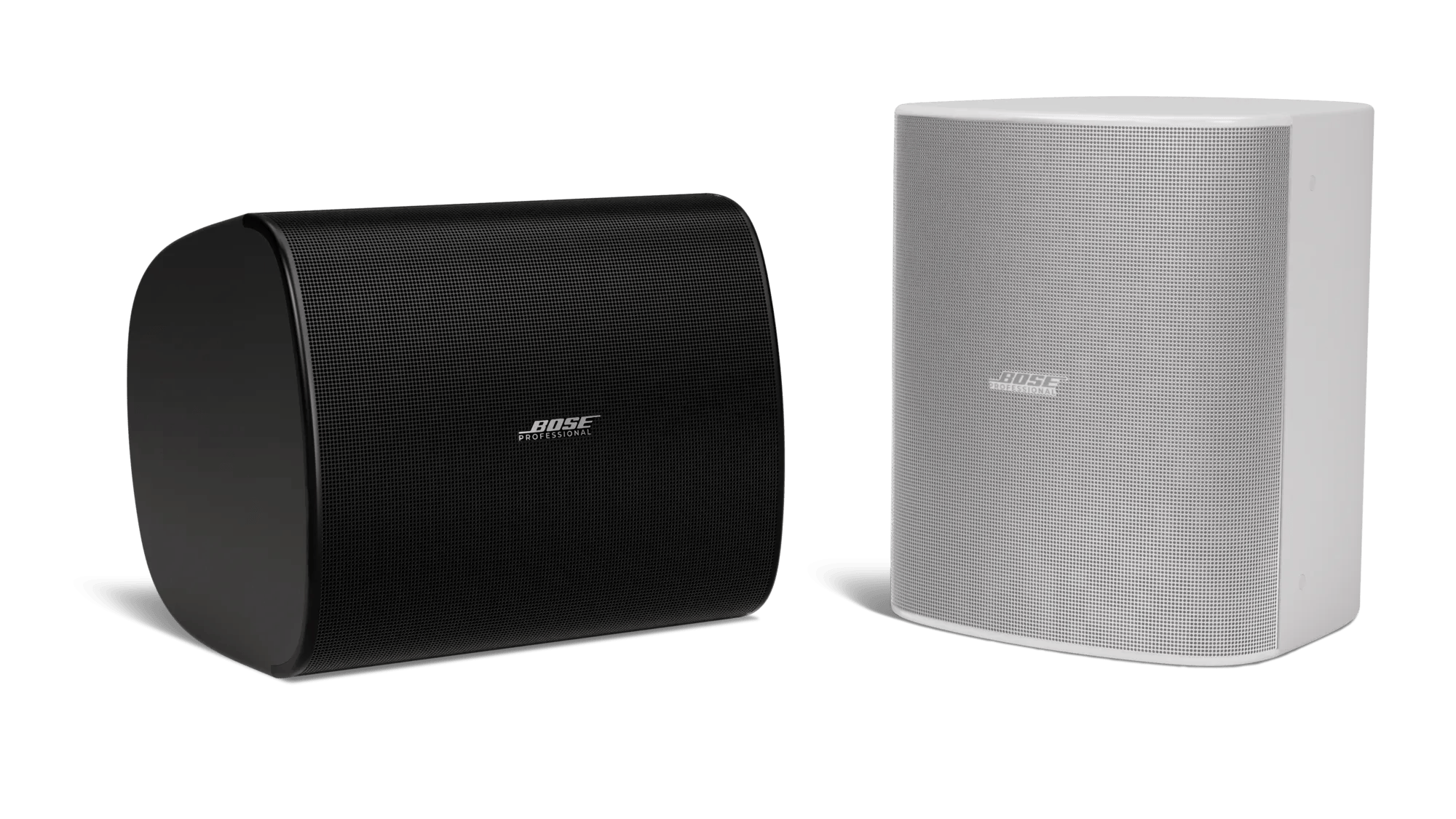

  • Available in black or white finishesmatching the sleek DesignMax aesthetic

Applications

Designed for a wide range of applications, including:

  • Performance venues
  • Places of worship
  • Hospitality spaces
  • Fitness studios
  • Retail stores
  • Nightlife and bar areas
  • Outdoor patios and courtyards
  • Theaters and multipurpose rooms

Specifications

22 specifications

PHYSICAL

Colors
White grille (similar to RAL 9003), black grille (similar to RAL 9005), paintable
Enclosure Material
Engineered plastics, injection-molded, UV fade-resistant
Environmental
Outdoors or indoors, IP55
Grille
Perforated aluminum, powder-coated finish, tamper-resistant design, paintable
Ingress Protection
IP55
Logo
Rotatable
Suspension/Mounting

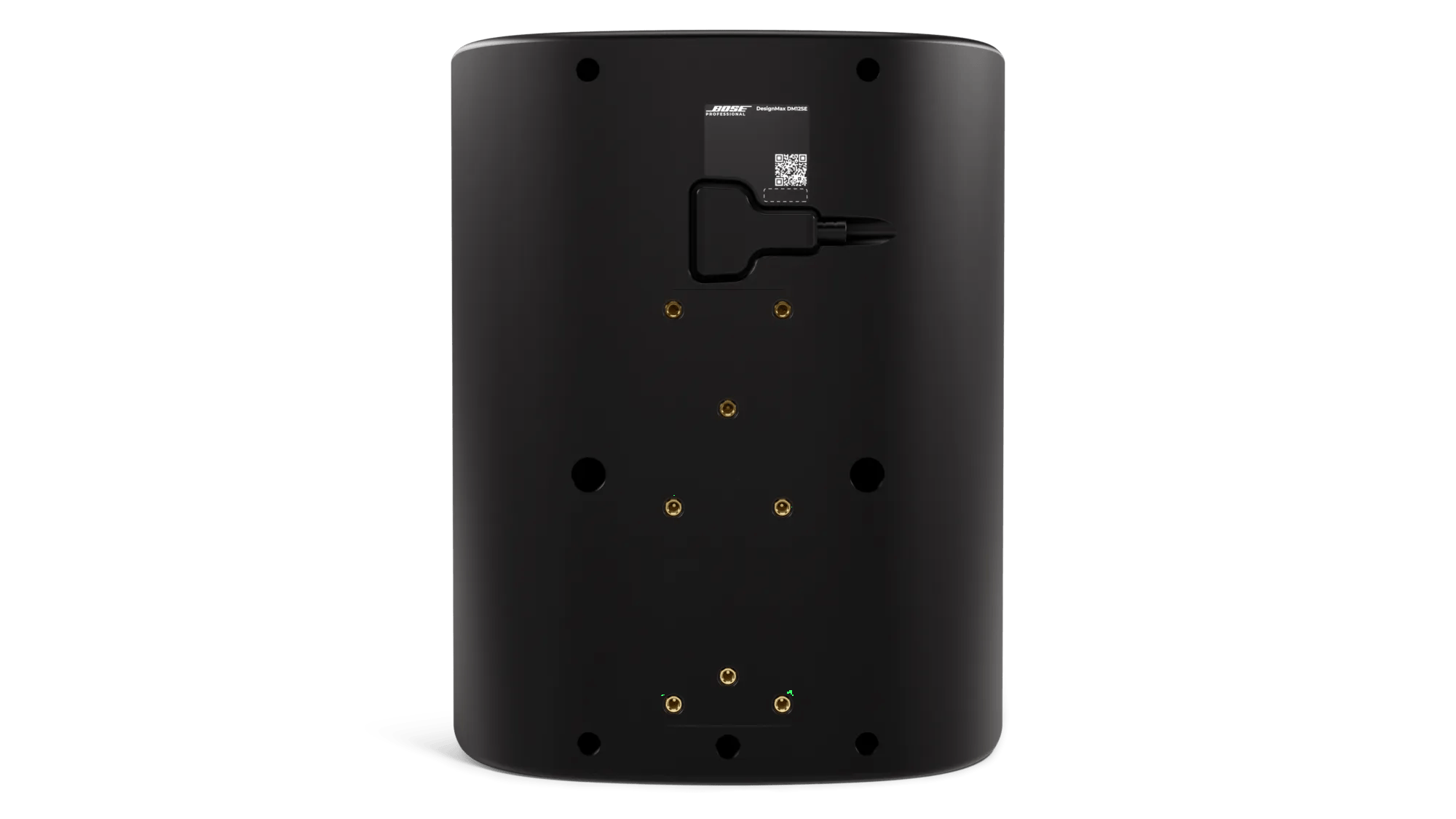

(12) M8 threaded inserts (2 top, 2 side, 8 rear)
Operating Temperature Range
-25 °C to 70 °C (-13 °F to 158 °F)

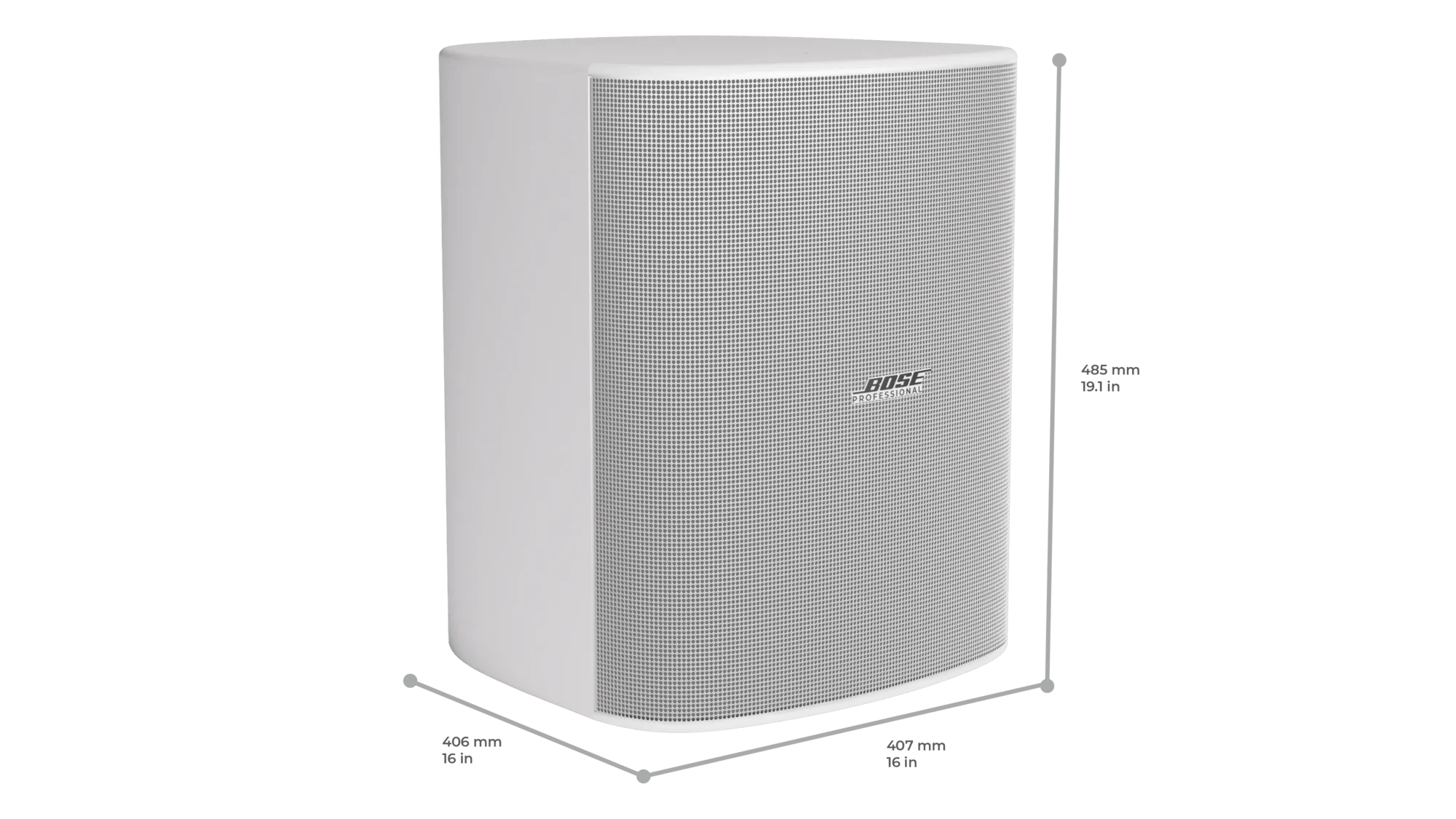

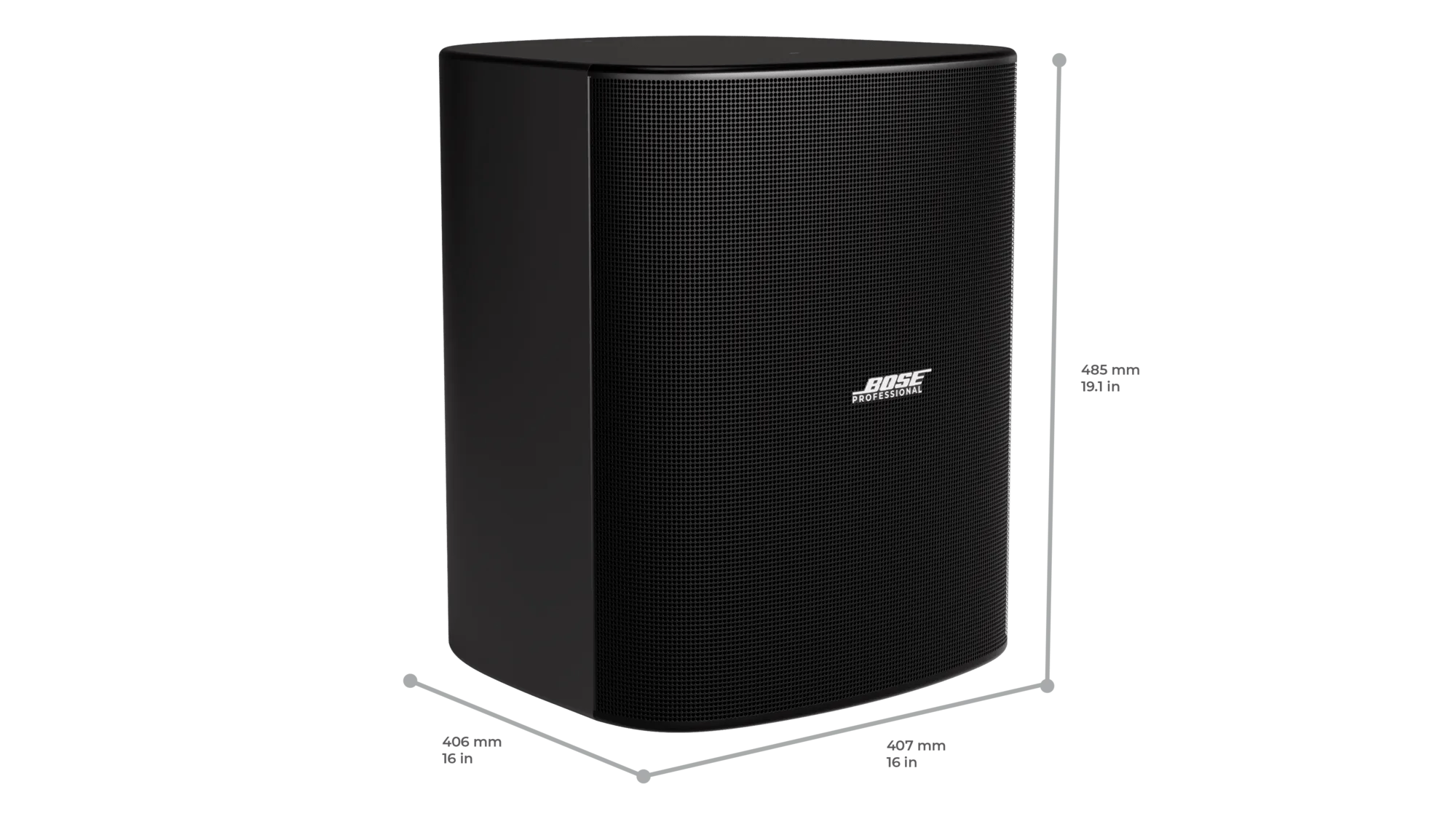

Product Dimensions (H×W×D)
19.1 in × 16.0 in × 16.0 in (485 mm × 407 mm × 406 mm)
Net Weight
37.4 lb (16.9 kg)

PERFORMANCE

Frequency Range (-10 dB)
38 Hz – 20,000 Hz
Coverage, Horizontal
102° conical
Calculated Maximum SPL @ 1 m
119 dB
Nominal Impedance
8 Ω
Power Handling, long-term continuous
300 W
Power Handling, Peak
1200 W
Recommended Signal Processing
Not required, Bose Professional EQ voicing and SmartBass processing available
Sensitivity (SPL/1 W at 1 m)
94 dB
Coverage, Vertical
102° conical

TRANSDUCERS

Driver Protection
Recommended High-pass Protection 40 Hz with minimum 12-dB/octave filter
High-Frequency
1 × 1.4 in (36 mm) compression driver, 1.0-in (25 mm) exit, coaxial center-firing, weather-treated
Low-Frequency

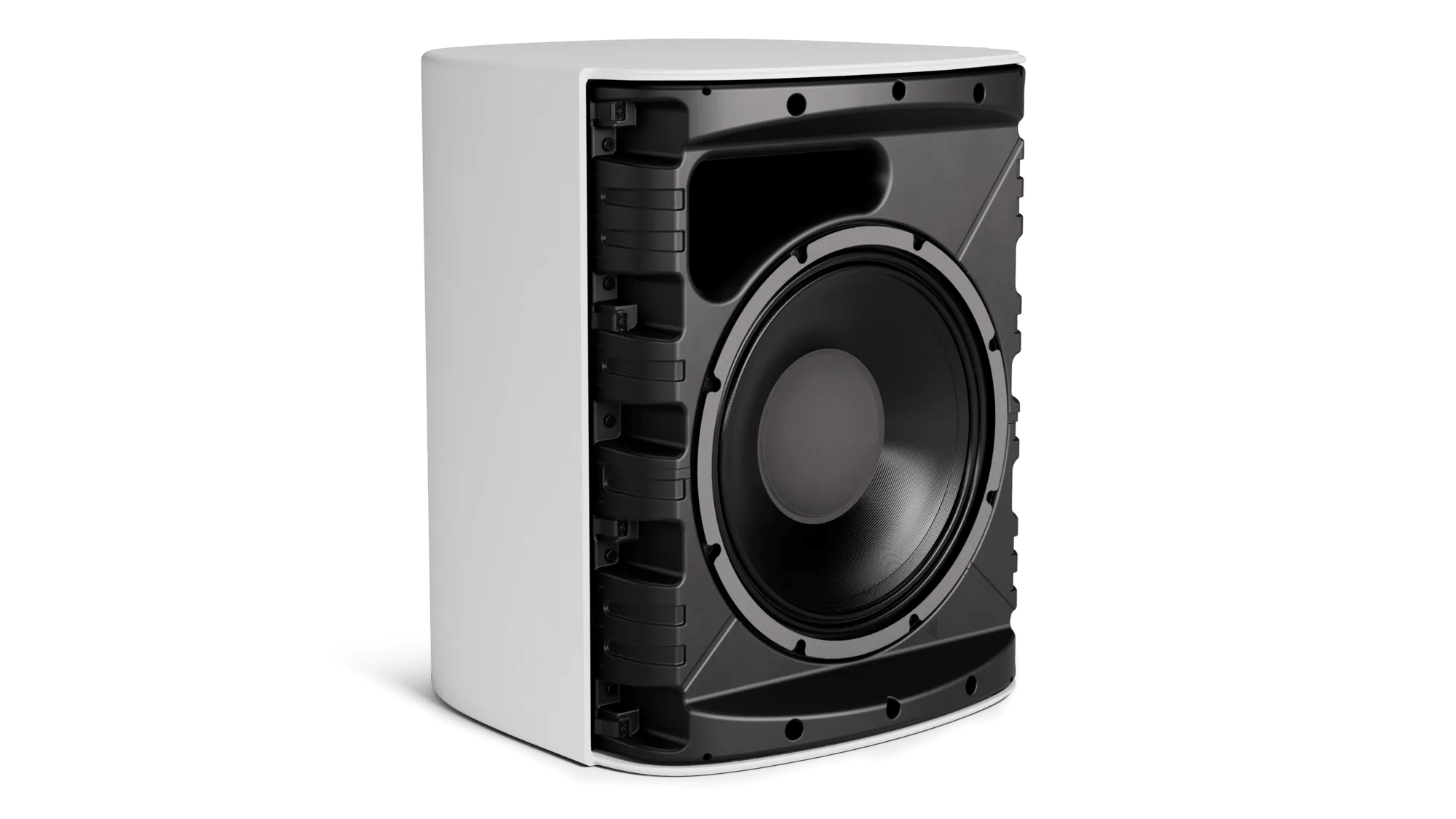

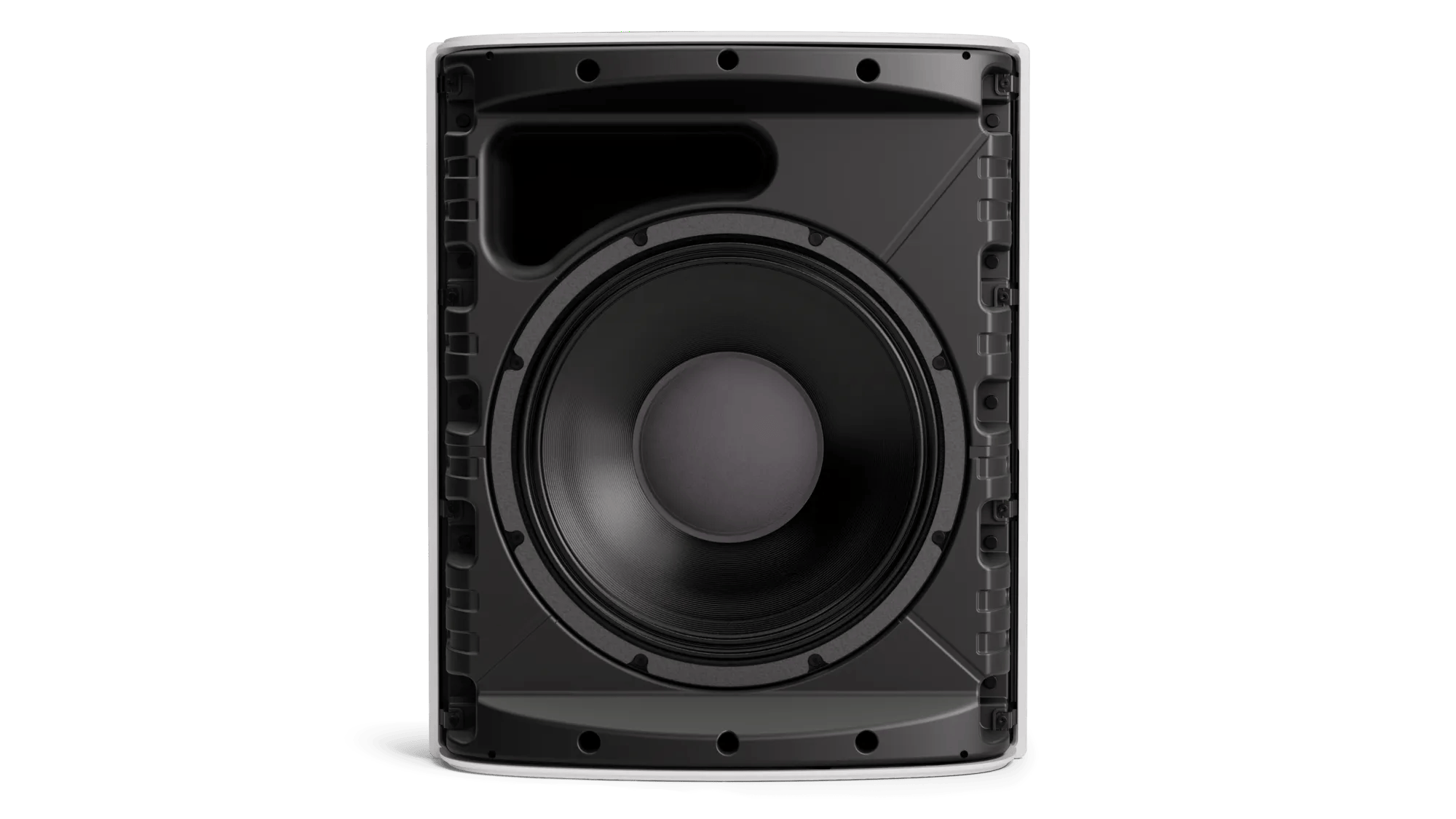

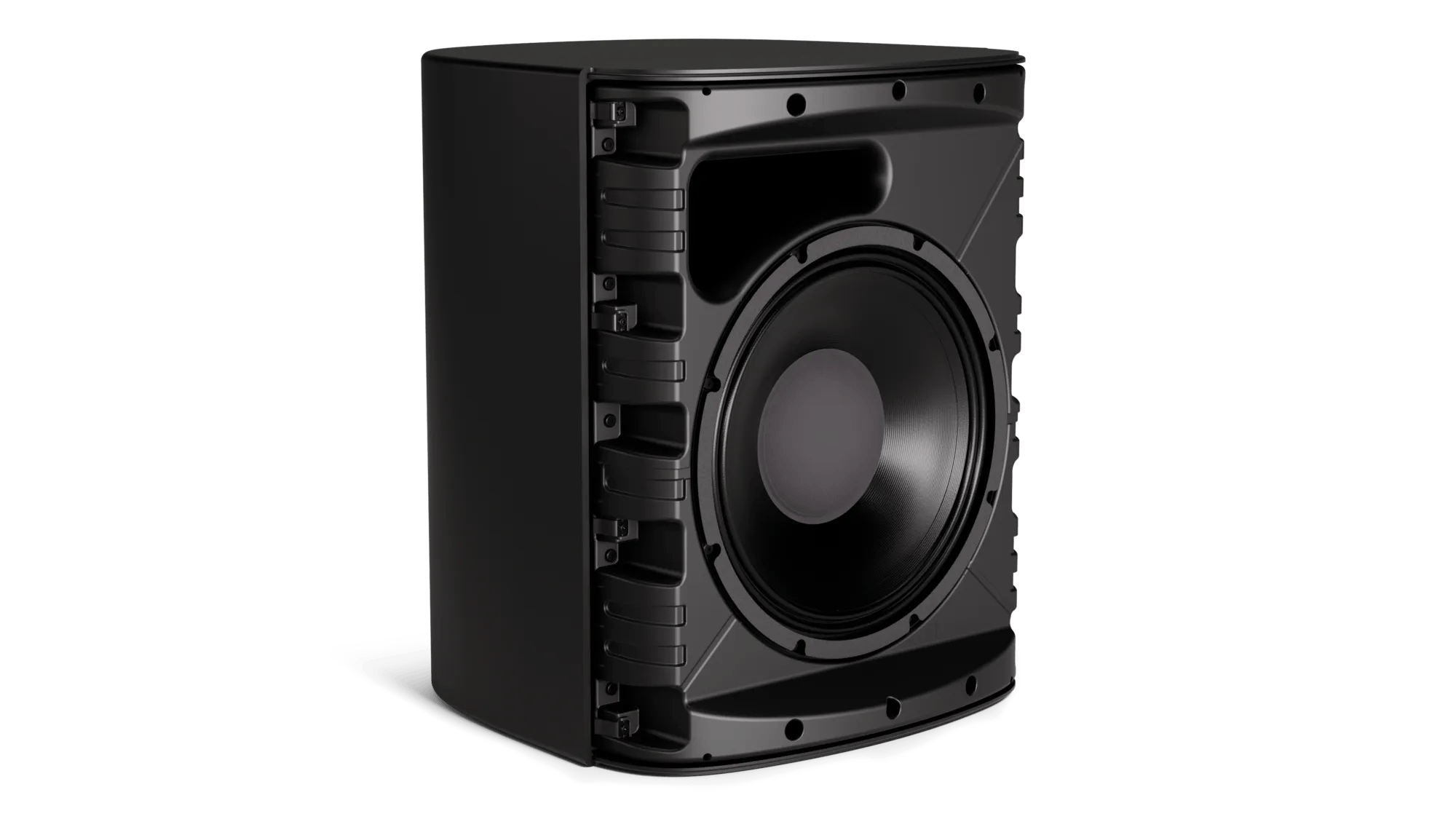

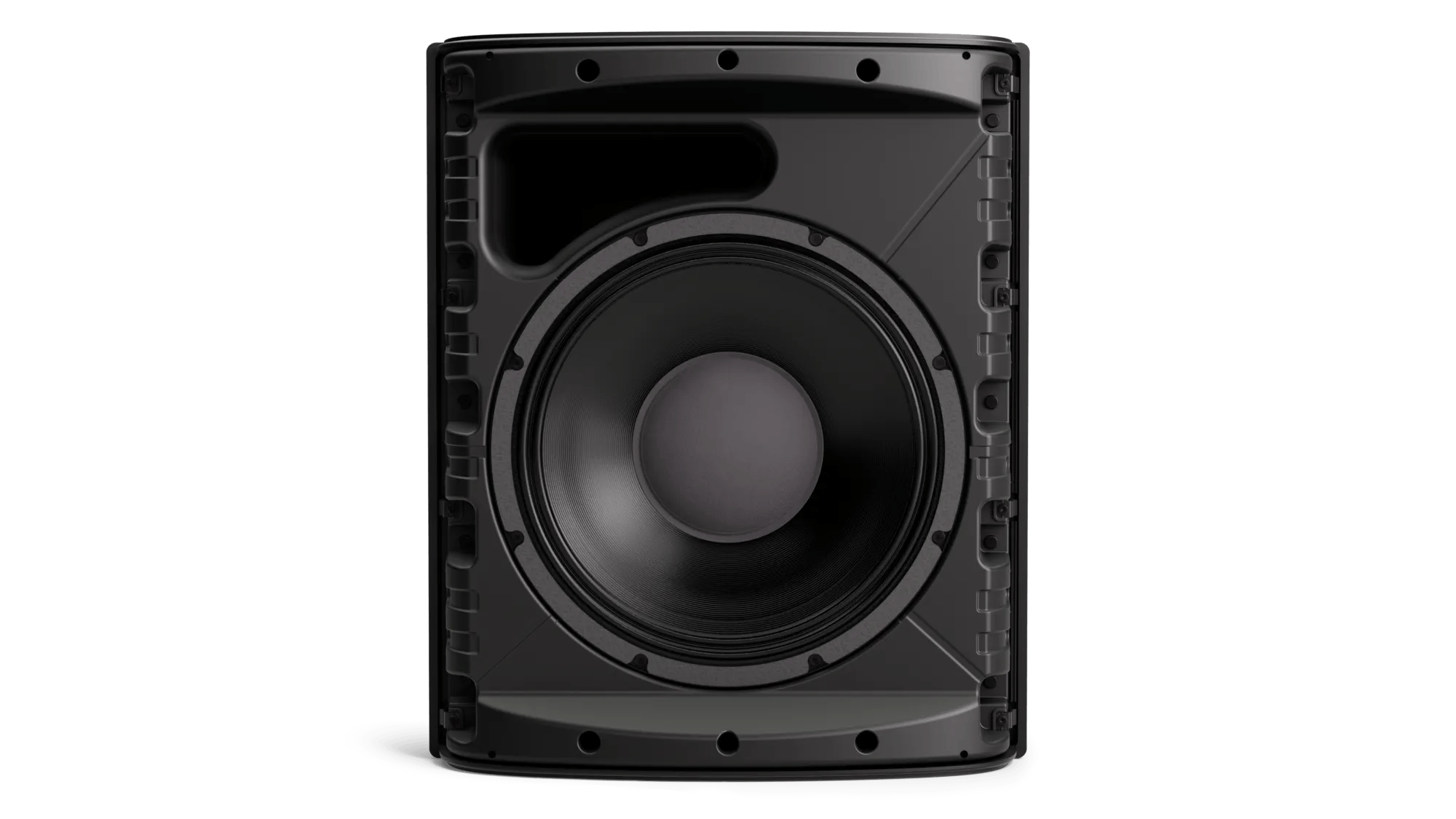

1 × 12 in (305 mm) woofer, weather-treated

In the Box

  • (1) DesignMax DM12SE
  • (1) input panel cover
  • (1) installation guide
  • (1) Surface-Mount Pan and Tilt Bracket
