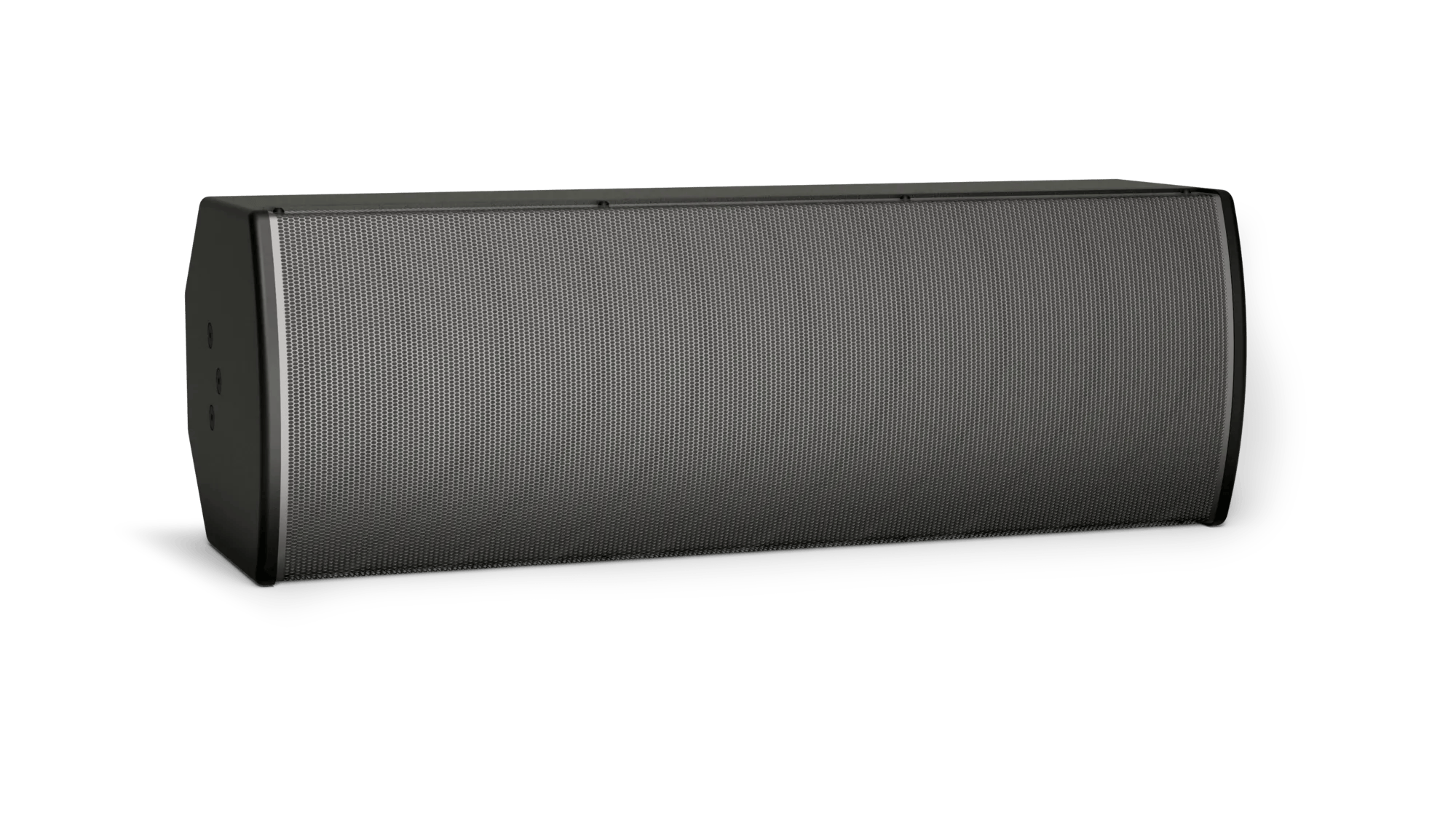

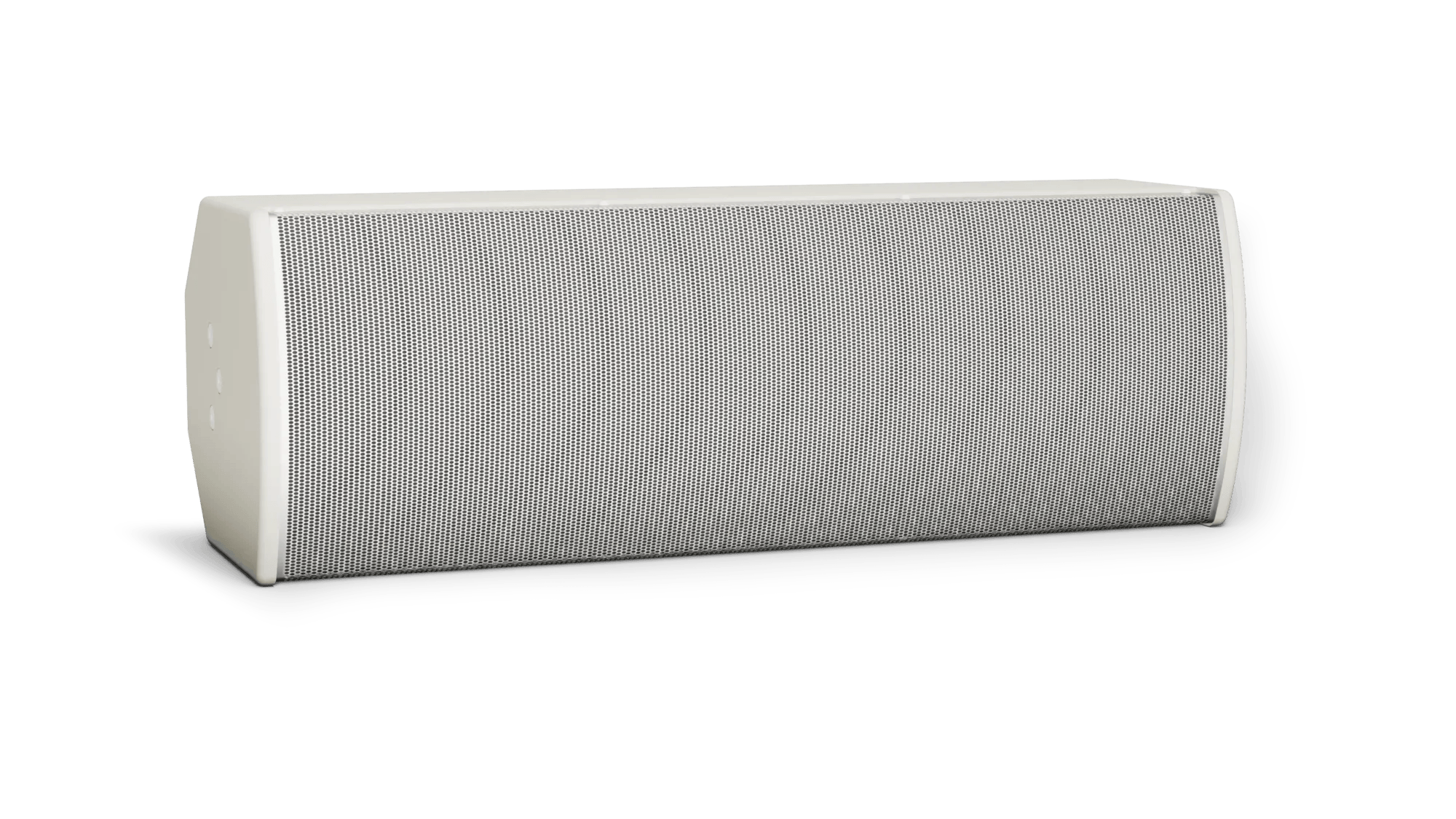

ArenaMatch AMU208 compact high-performance loudspeaker
The newly expanded AMU multi-use loudspeaker series combines a powerful mix of driver configurations and coverage patterns with a variety of mounting options and orientations. Together with indoor/outdoor flexibility and two colors, AMU offers virtually endless installation options to solve your specific needs. Featuring high-output sound, exceptional vocal clarity, and rich musical depth, the AMU Series shines in both large distributed and small- to mid-sized audio systems. The integrated 70/100V transformer includes a bypass switch for live sound reinforcement. Systems can be enhanced with the MB210-WR dual 10-inch weatherized subwoofer, and PowerShareX amplifiers include factory-optimized presets for peak performance and simplified installation. The AMU208 is a small-format ArenaMatch Utility model for outdoor applications that require excellent audio from compact loudspeaker. It provides wide, even coverage with a 90° × 60° constant-directivity high-frequency horn, 70 Hz – 16 kHz frequency response, 126 dB peak SPL, and supports the lowest vocal ranges with two Bose Professional LF8 8-inch woofers.
Features
Applications
Designed for a wide range of applications, including:
Specifications
COMPLIANCE
- EN 54-24 Certified
- Yes
- Safety Agency Ratings
- EN 54-24 Certified: EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings
PHYSICAL
- Colors

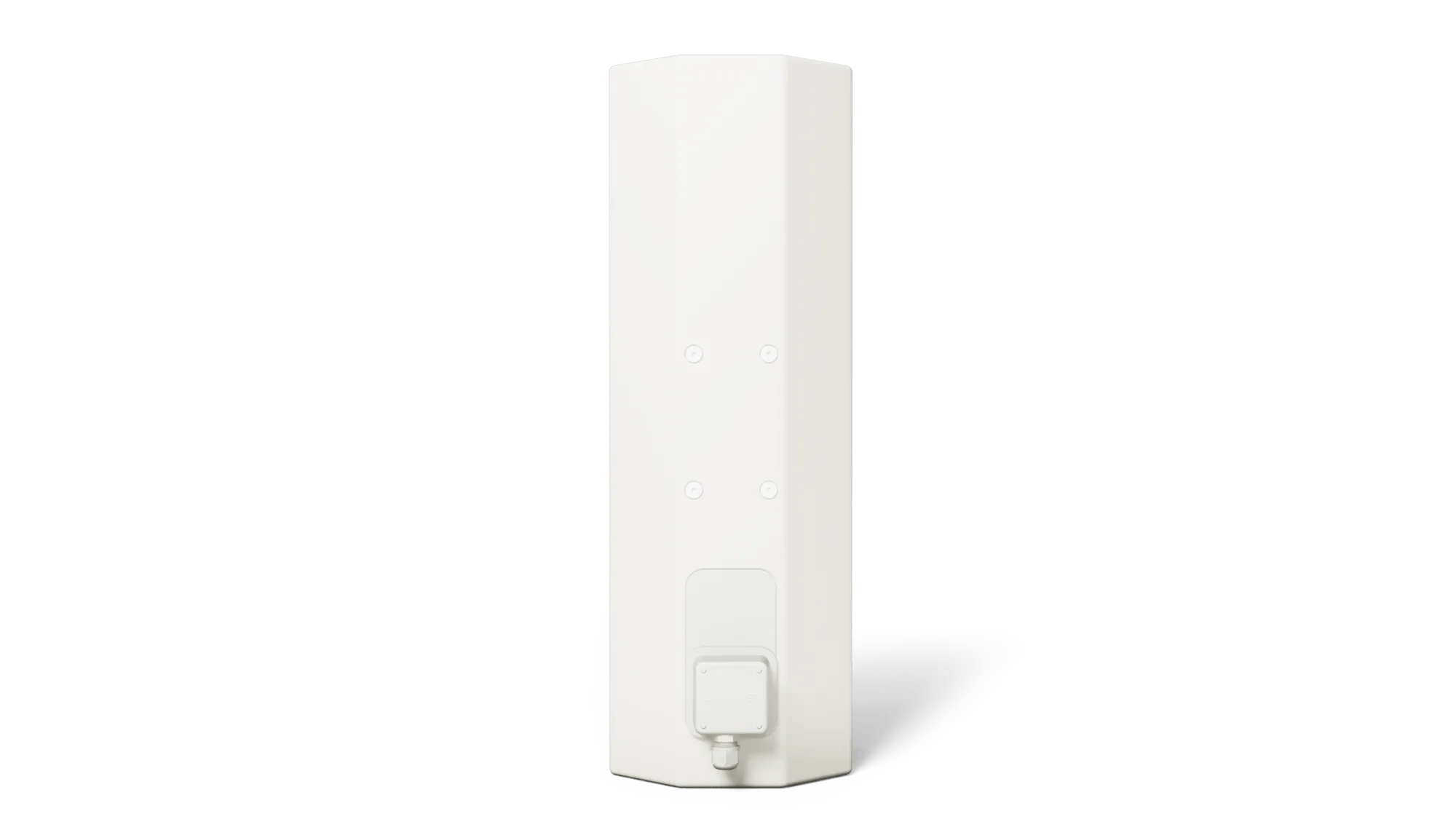

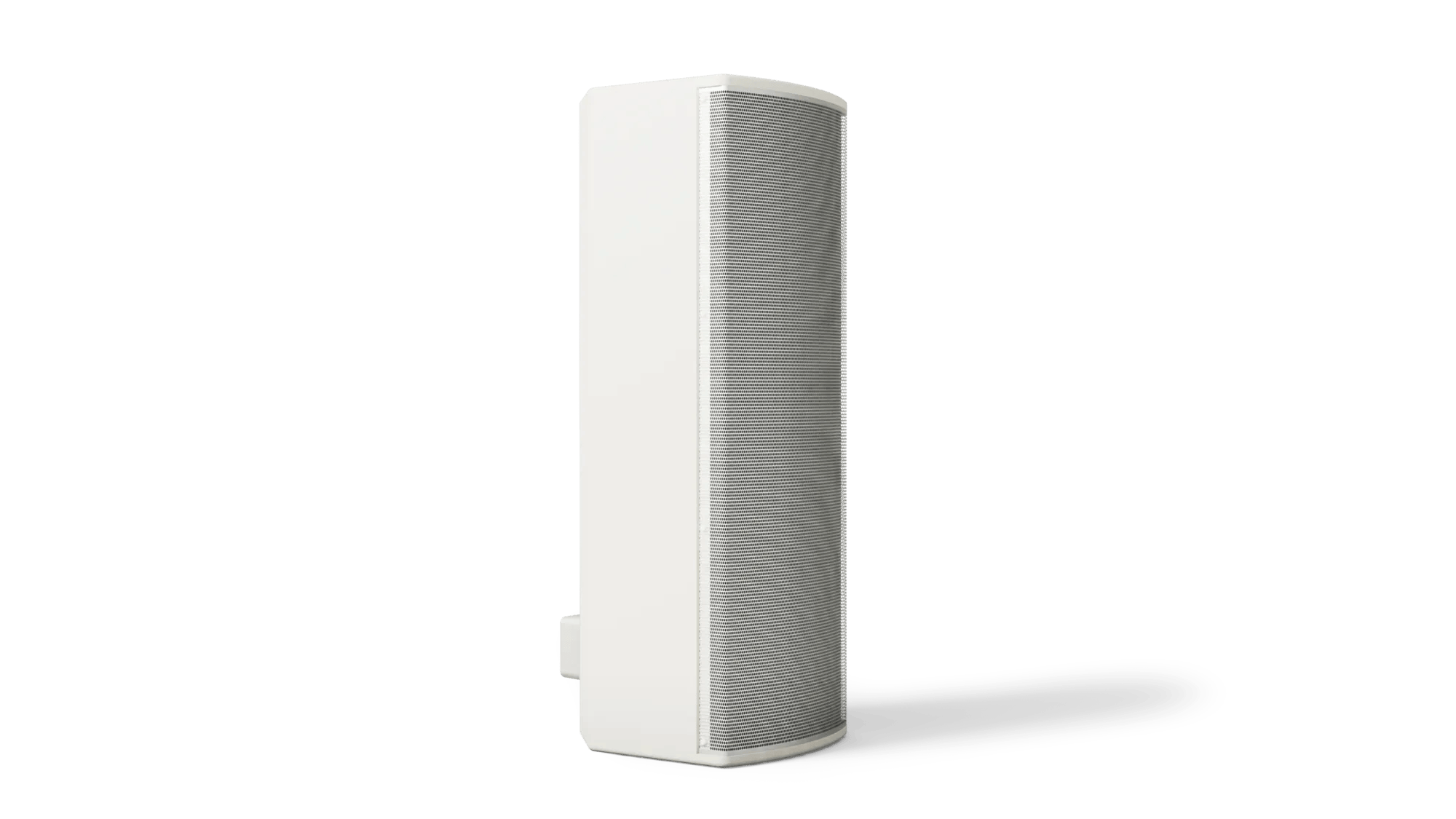

- White
- Enclosure Material
- Exterior-grade plywood
- Environmental
- Indoor or outdoor. IP55-rated for direct exposure outdoor ratings
- Grille
- 3 layers (perforated stainless steel, acoustic foam, stainless-steel mesh), powder-coated finish
- Ingress Protection
- IP55 per EN60529; IP33C per EN 54-24

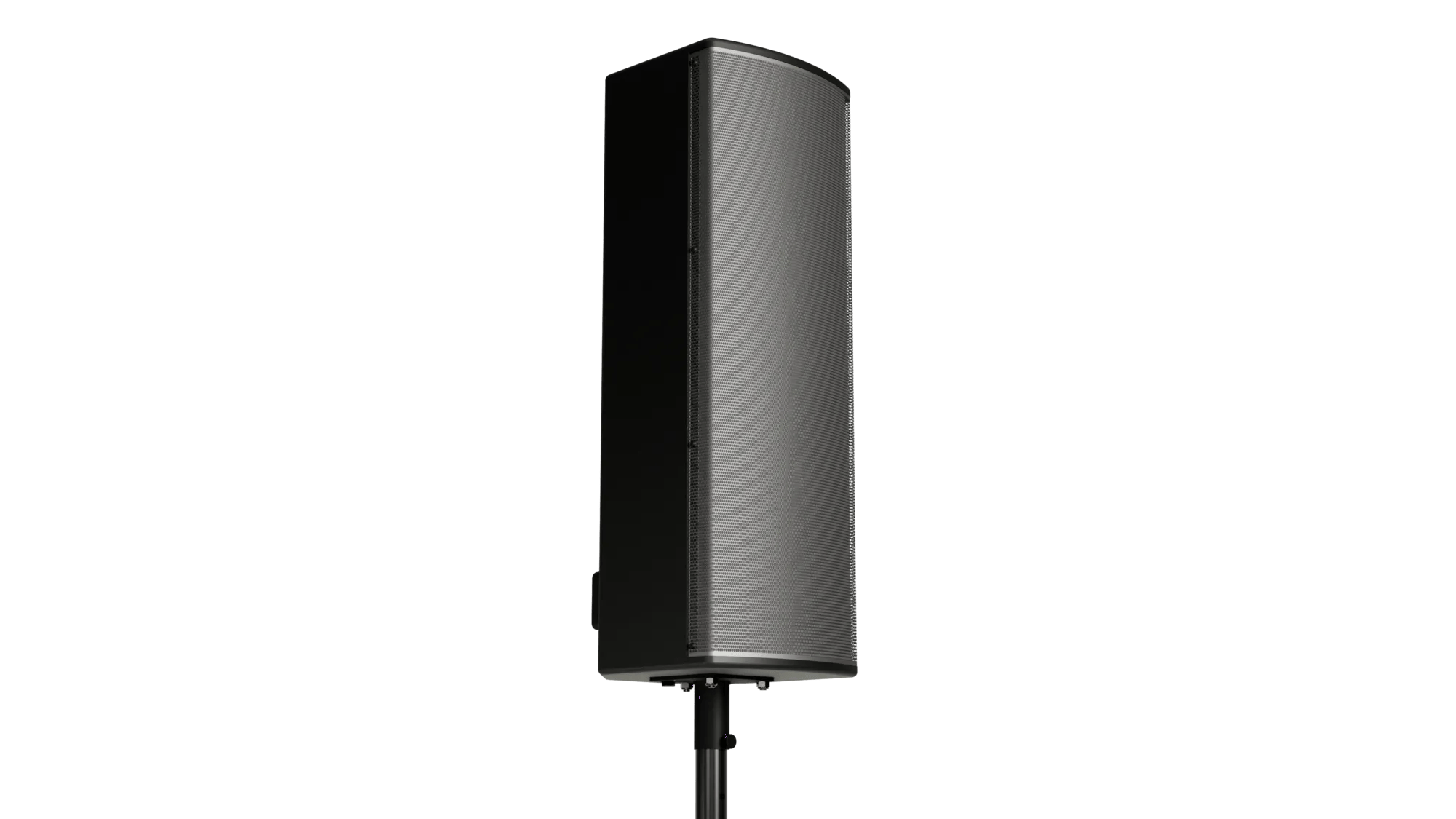

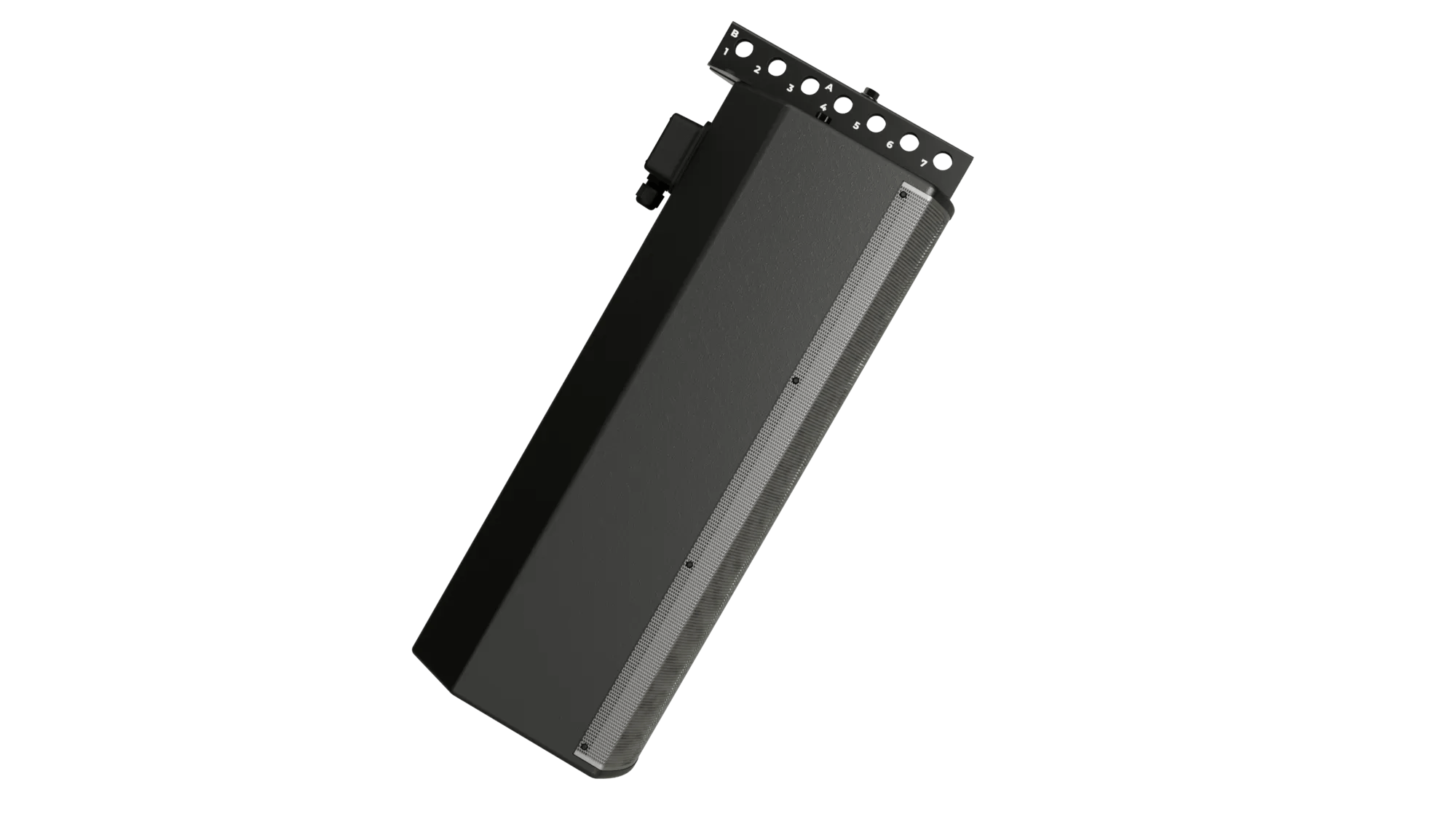

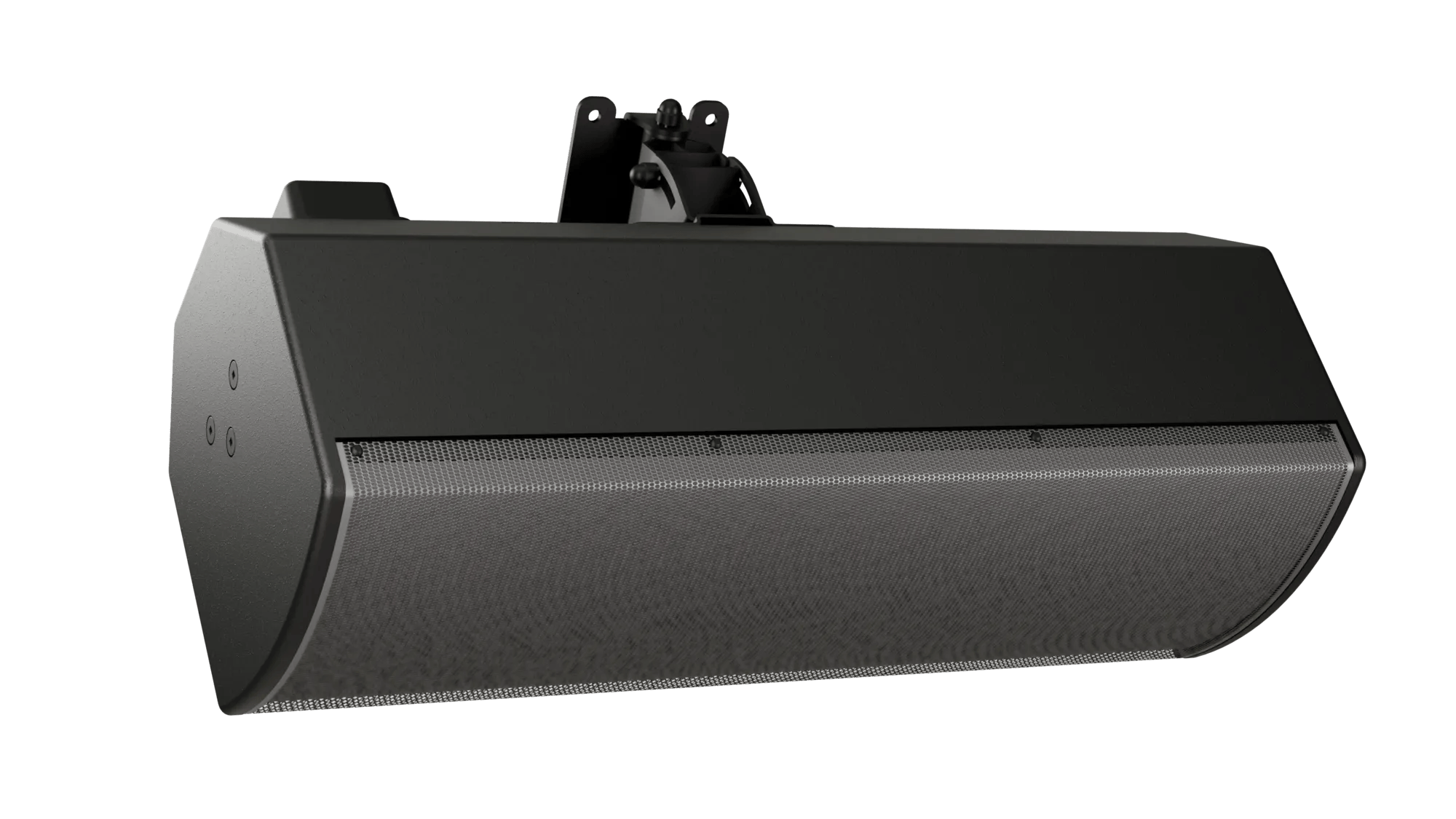

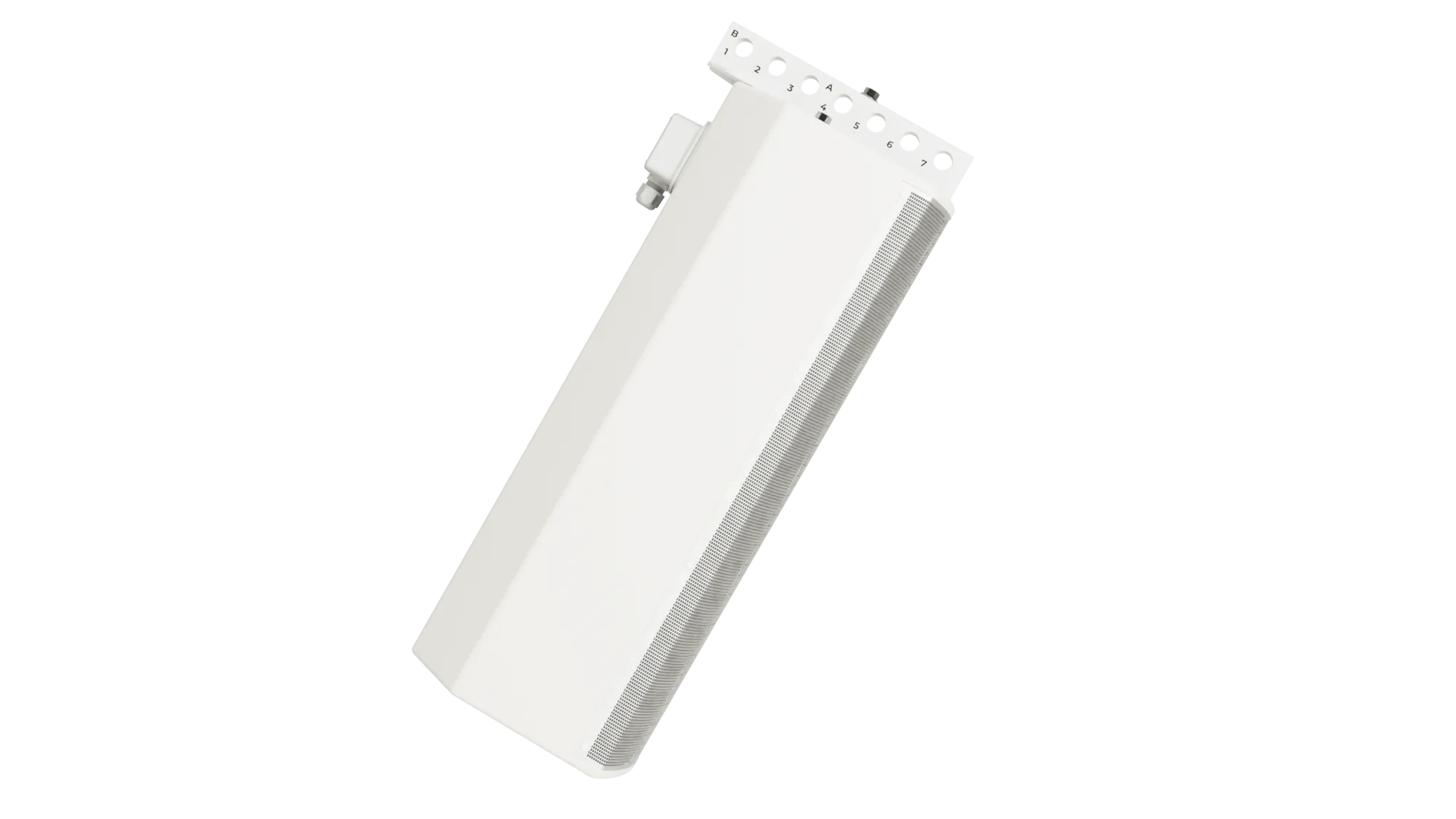

- Suspension/Mounting

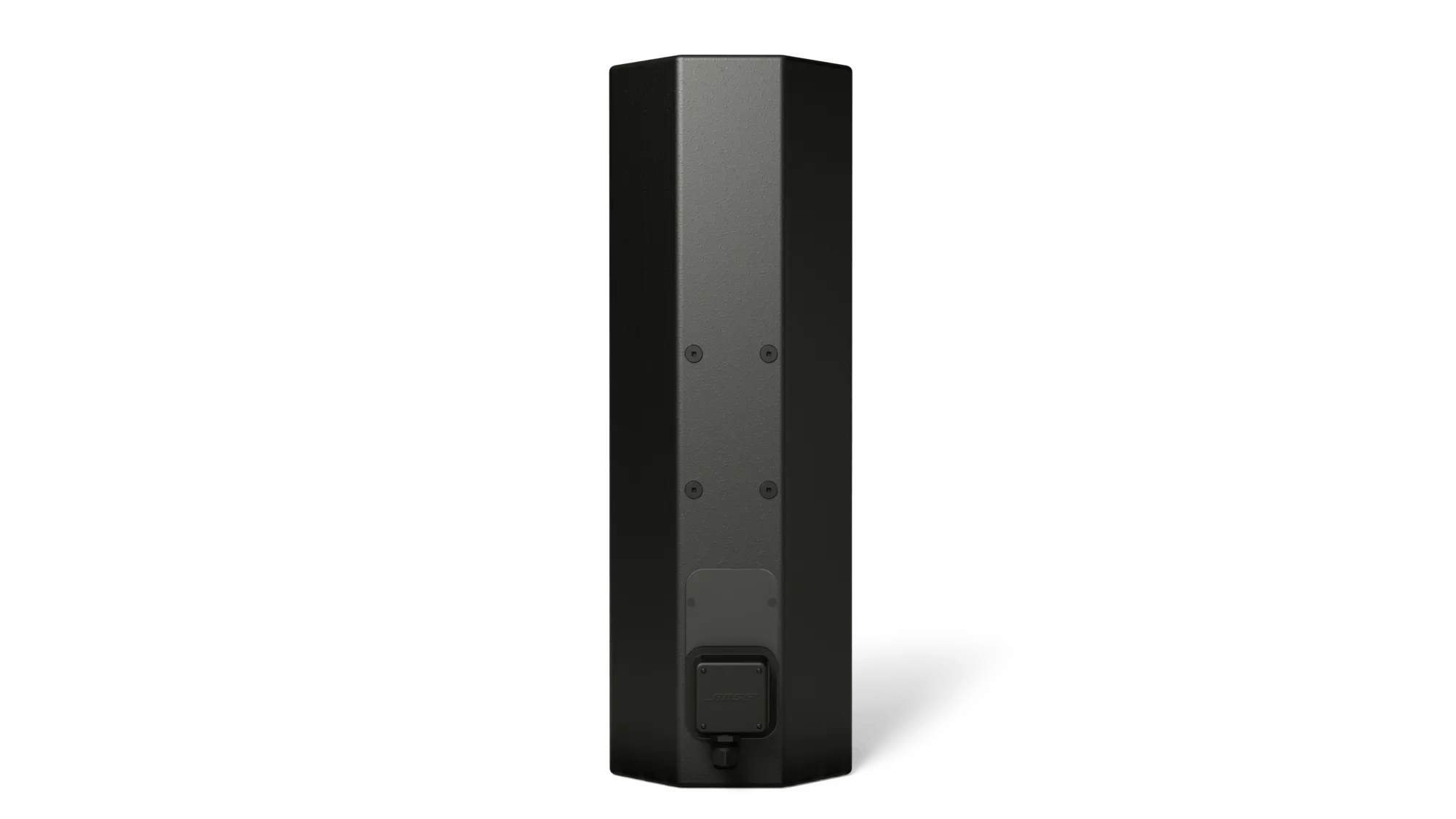

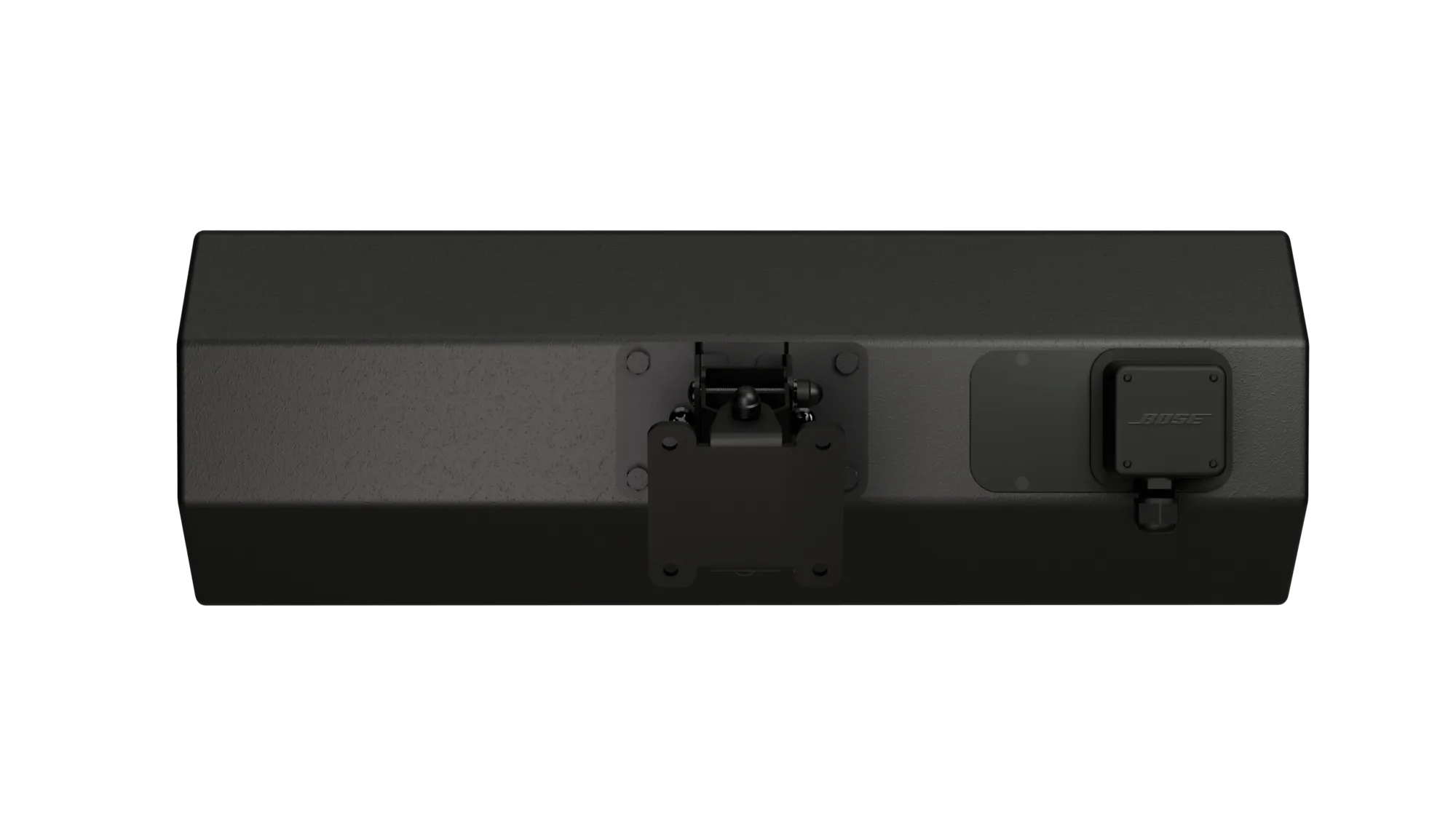

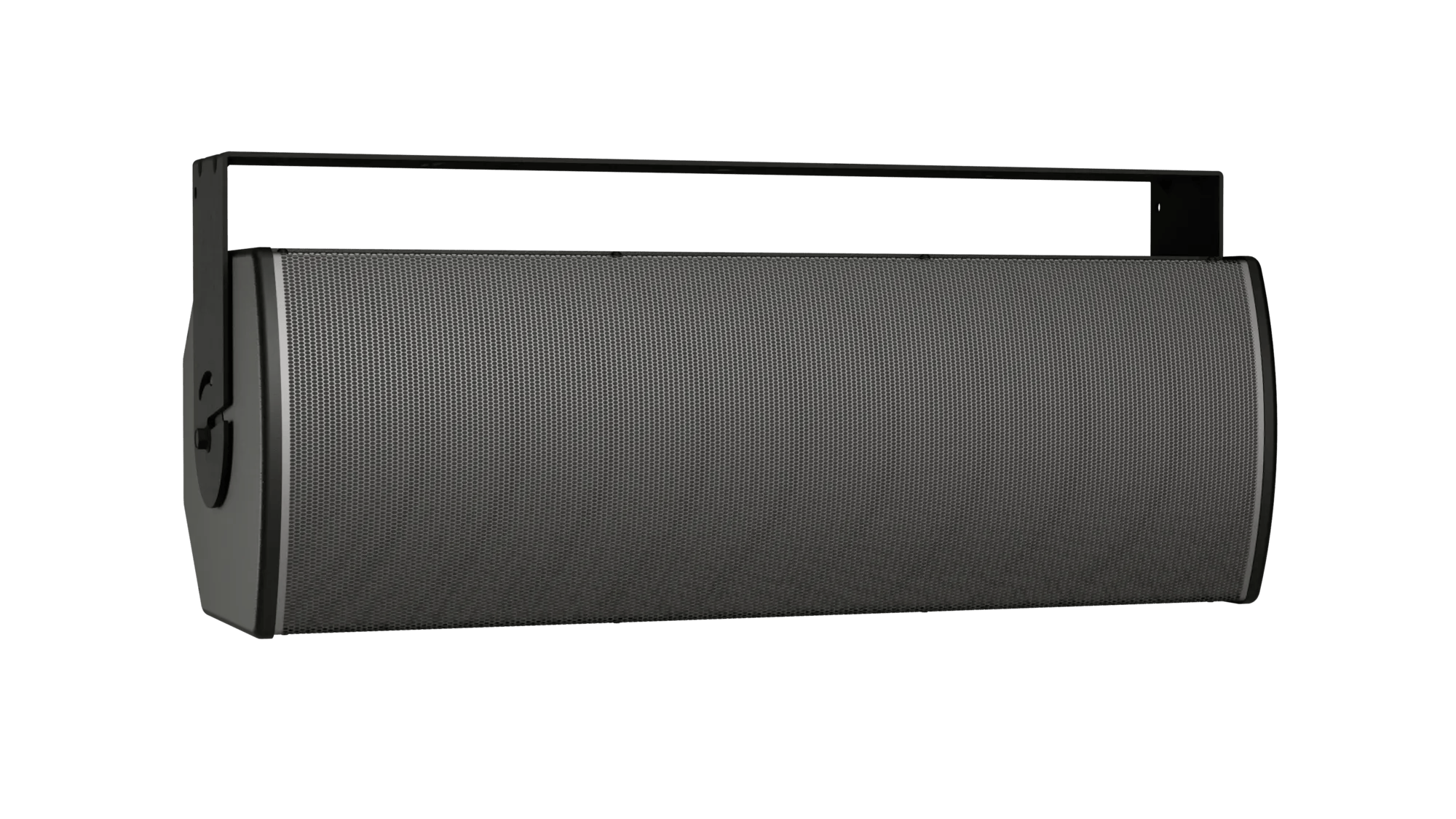

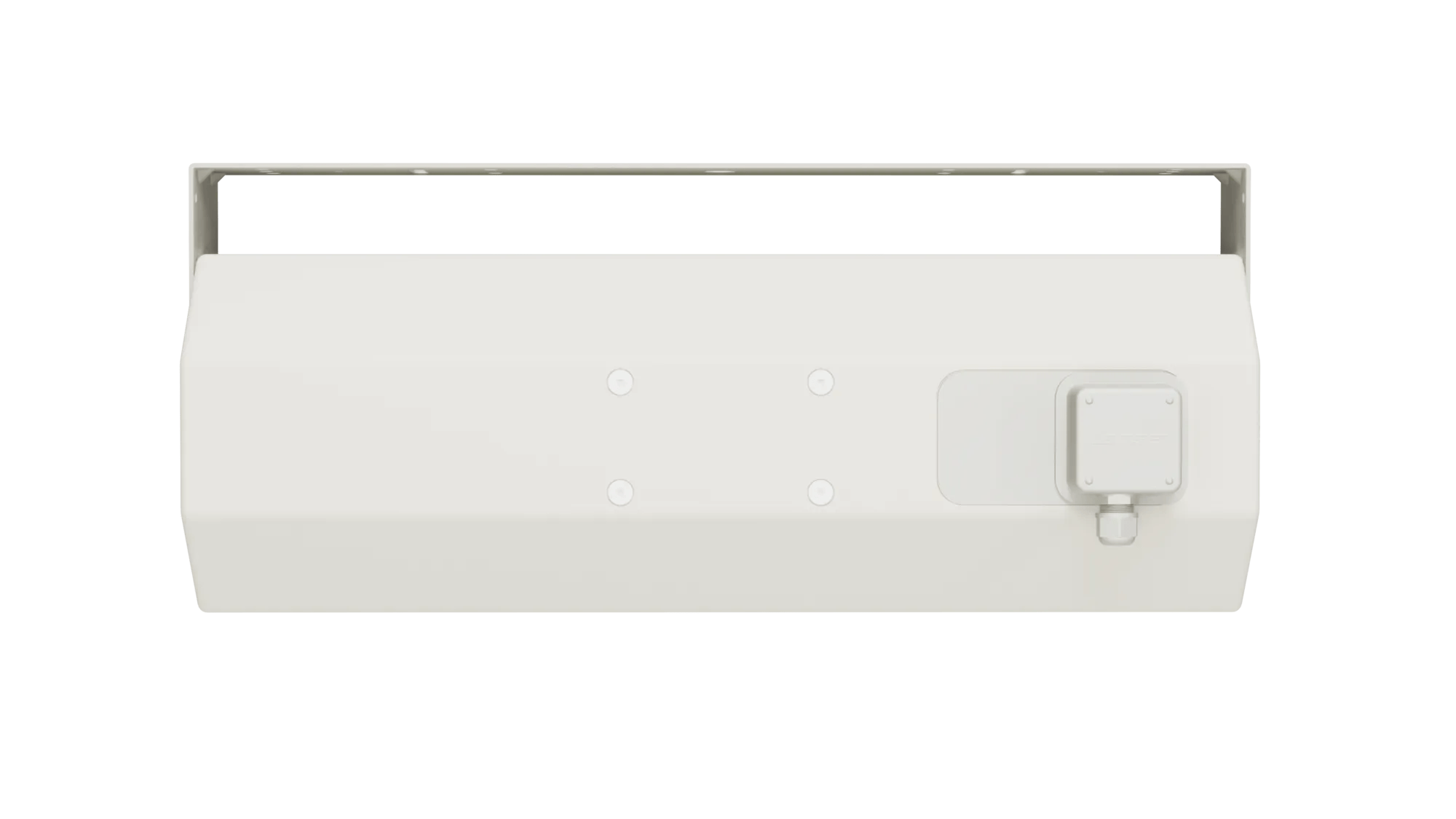

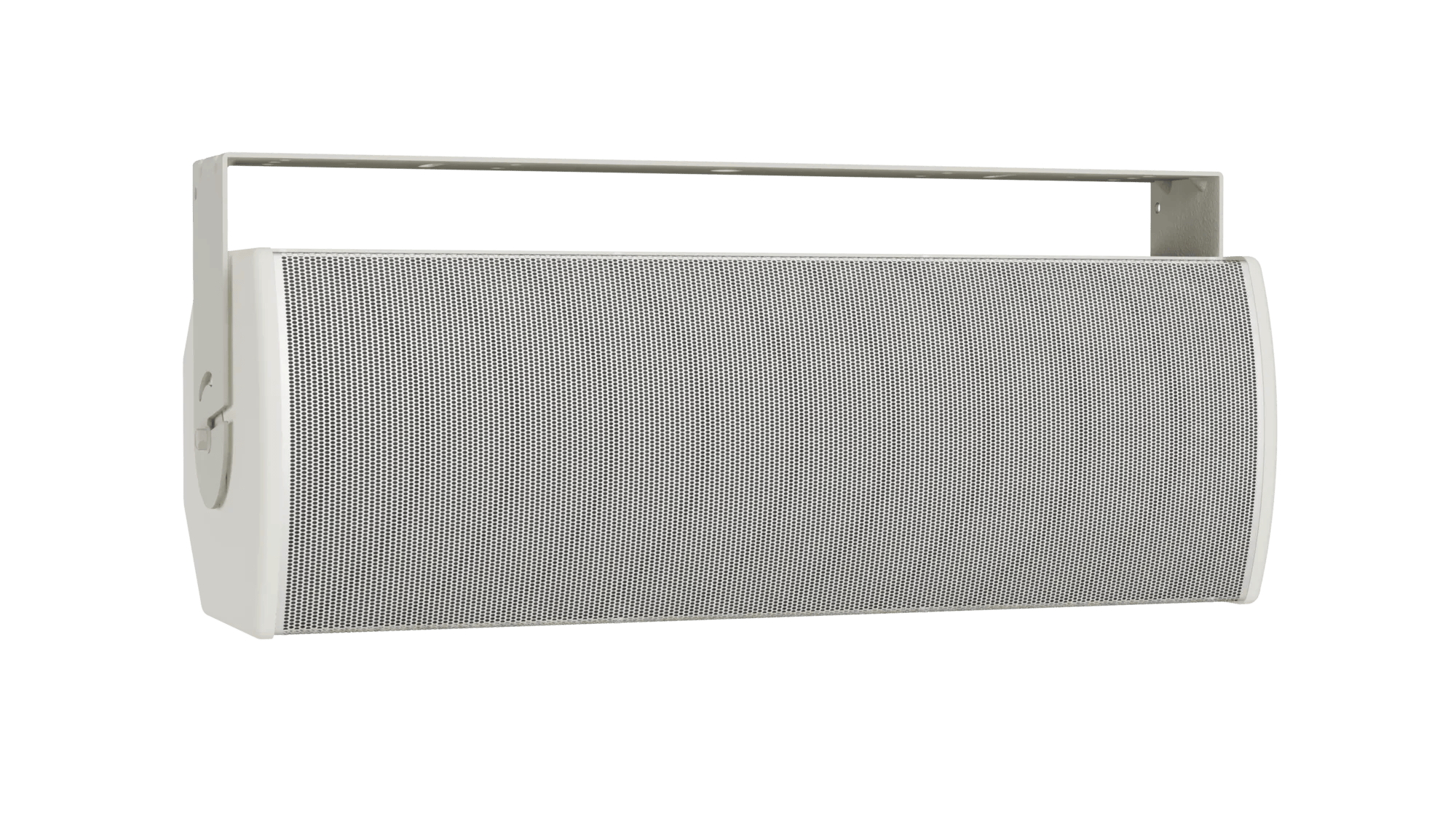

- 2 × M8 threaded inserts for U-bracket, 4 × M8 threaded inserts on rear (127 × 70 mm, 4-bolt pattern)
- Product Dimensions (H×W×D)

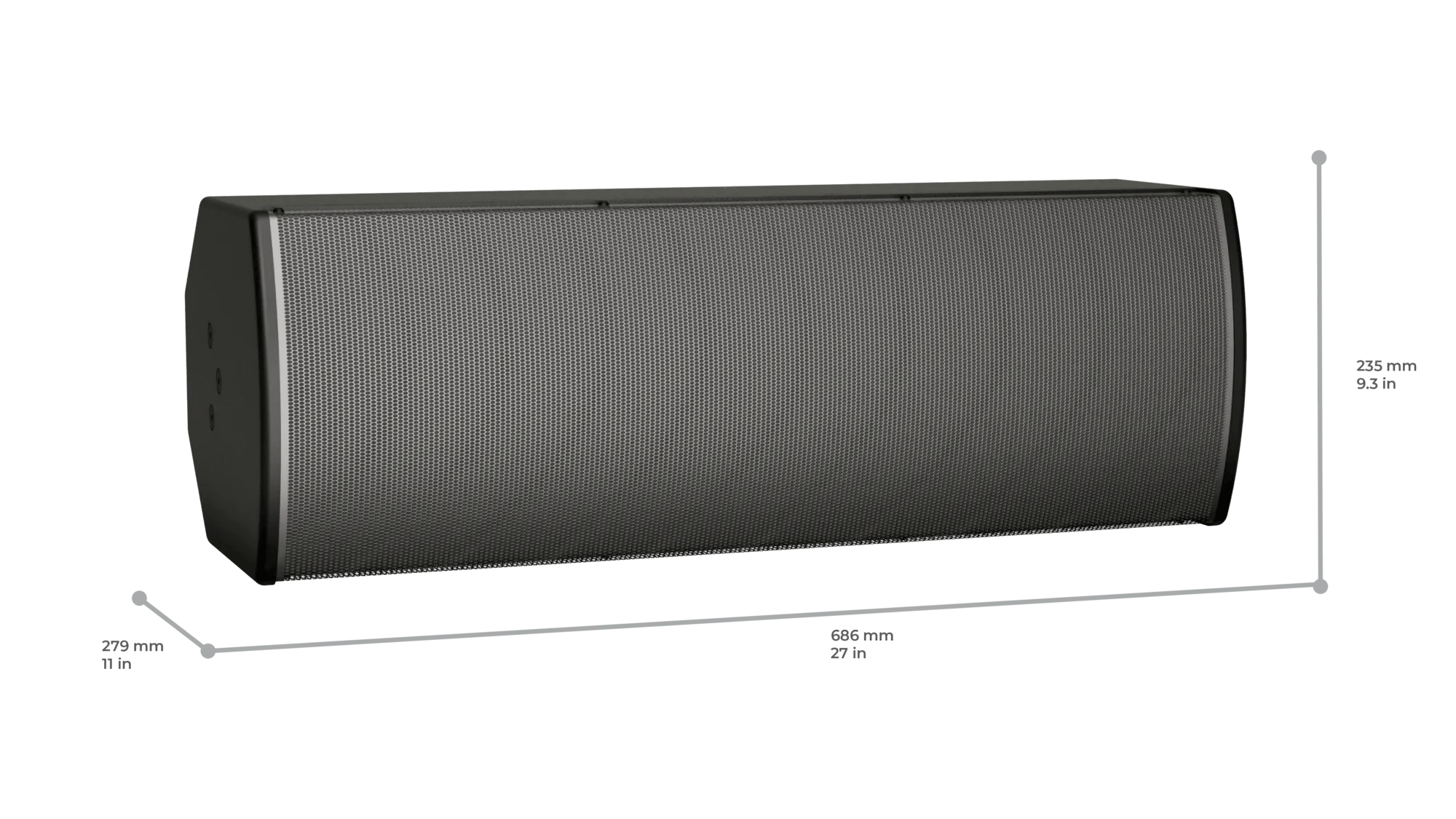

- 9.3 in × 27.0 in × 11.0 in (235 mm × 686 mm × 279 mm), loudspeaker with input cover
- Net Weight
- 37.5 lb (17.0 kg), loudspeaker / 43.0 lb (19.5 kg), loudspeaker with U-bracket
- Shipping Weight
- 51.0 lb (23.1 kg)
PERFORMANCE
- Frequency Range (-10 dB)
- 70 Hz – 18,000 Hz
- Coverage, Horizontal
- 60°
- Calculated Maximum SPL @ 1 m
- 120 dB (free field), 122 dB (wall/ceiling)
- Nominal Impedance
- 8 Ω (transformer bypass)
- Power Handling, long-term continuous
- 300 W
- Power Handling, Peak
- 1200 W
- Sensitivity (SPL/1 W at 1 m)
- 95 dB (free field), 97 dB (wall/ceiling)
- Transformer Taps, 100V
- 10, 20, 40, 80 W
- Transformer Taps, 70V
- 5 W, 10 W, 20 W, 40 W, 80 W
- Coverage, Vertical
- 90°
TRANSDUCERS
- Crossover
- 200 Hz & 1.2 kHz, passive, separate bandpass filters per transducer
- High-Frequency

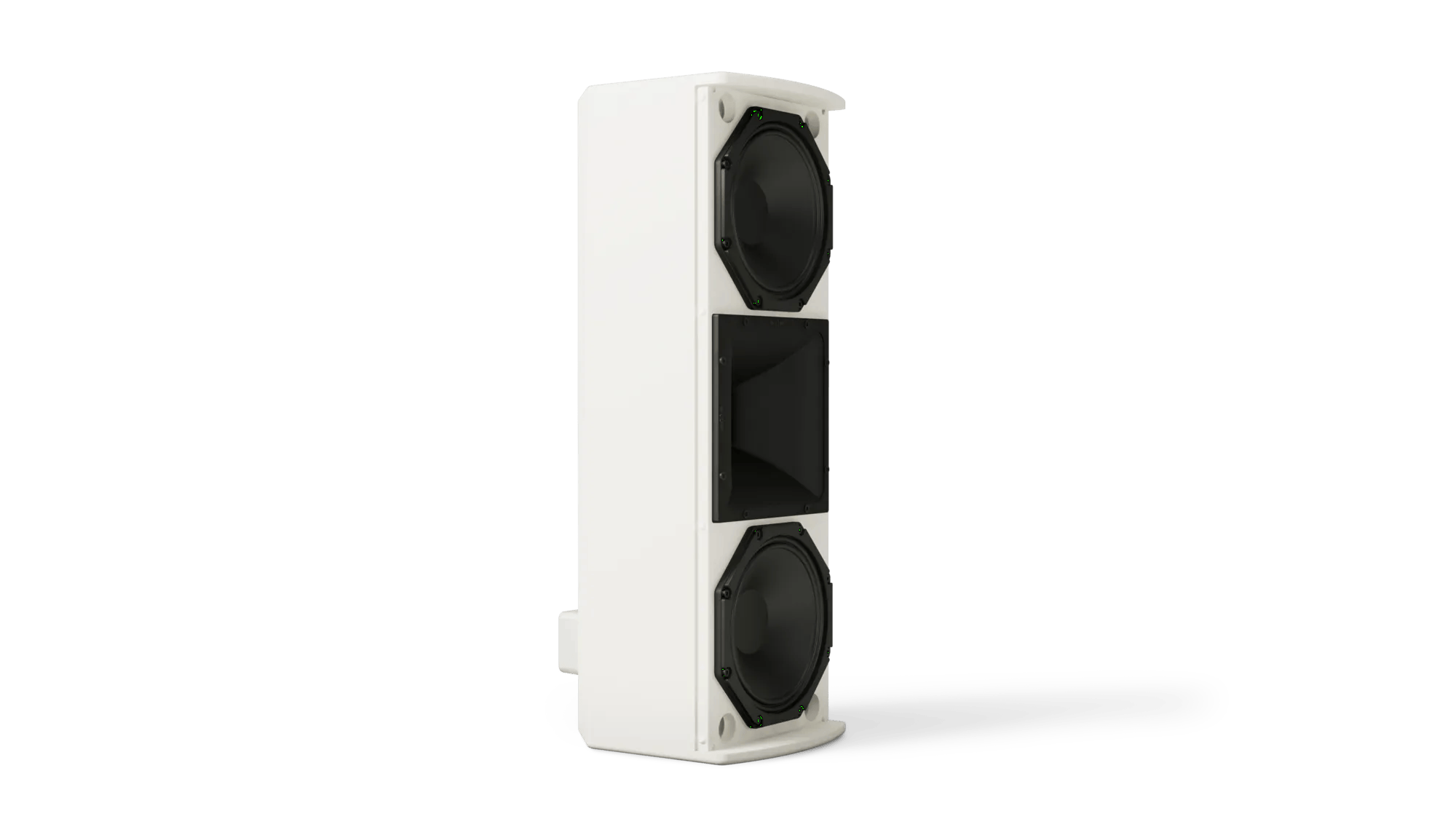

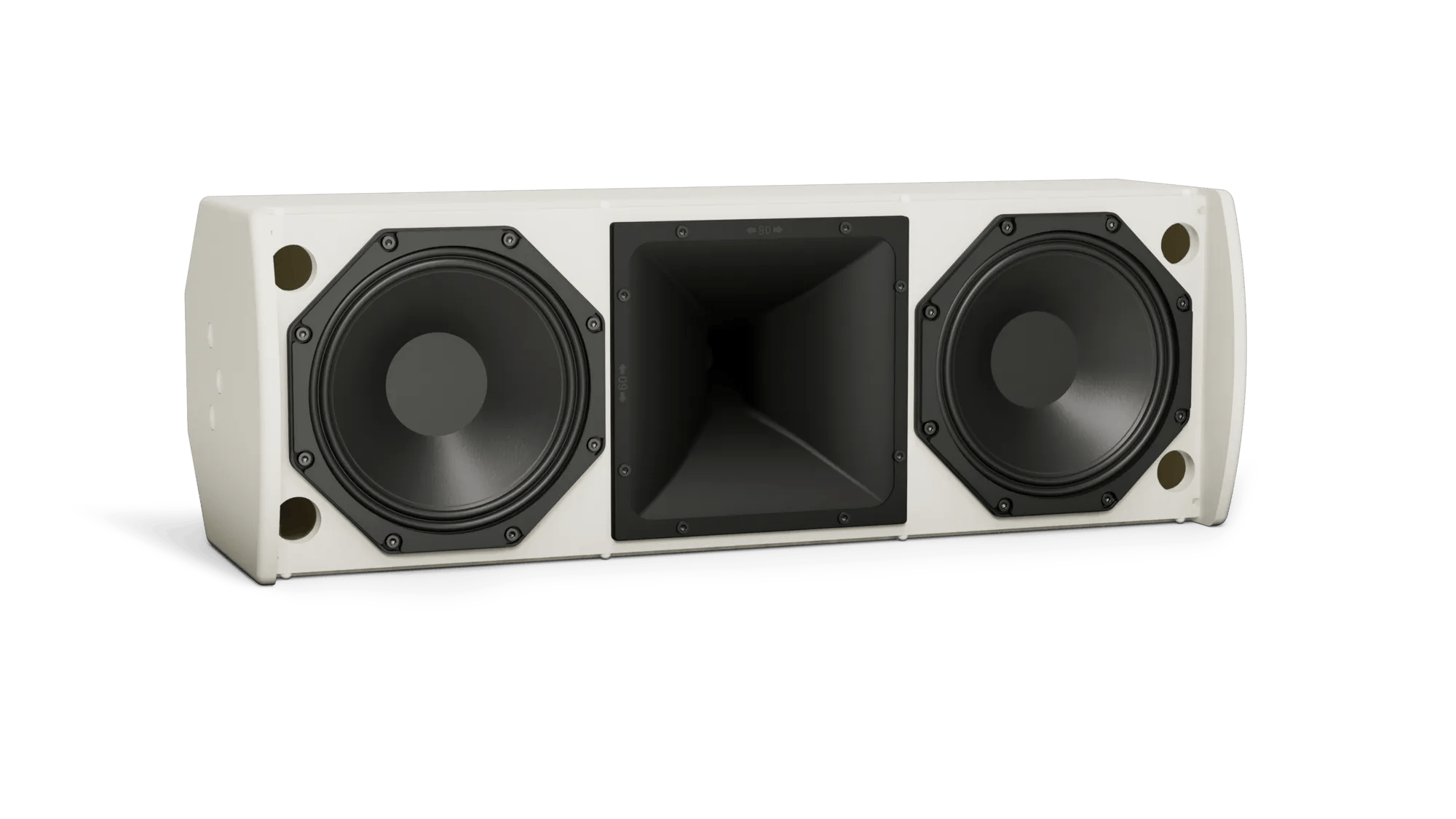

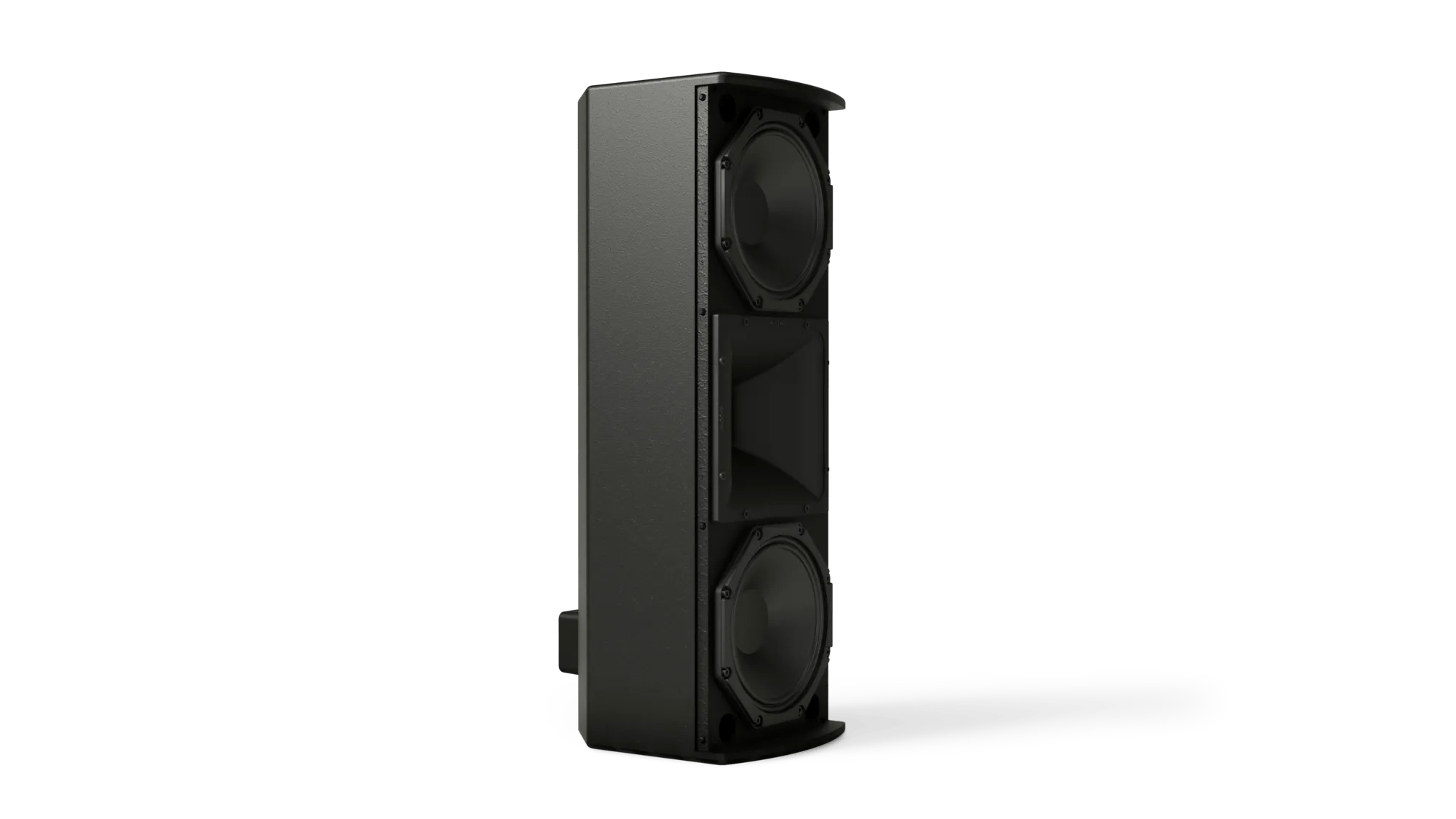

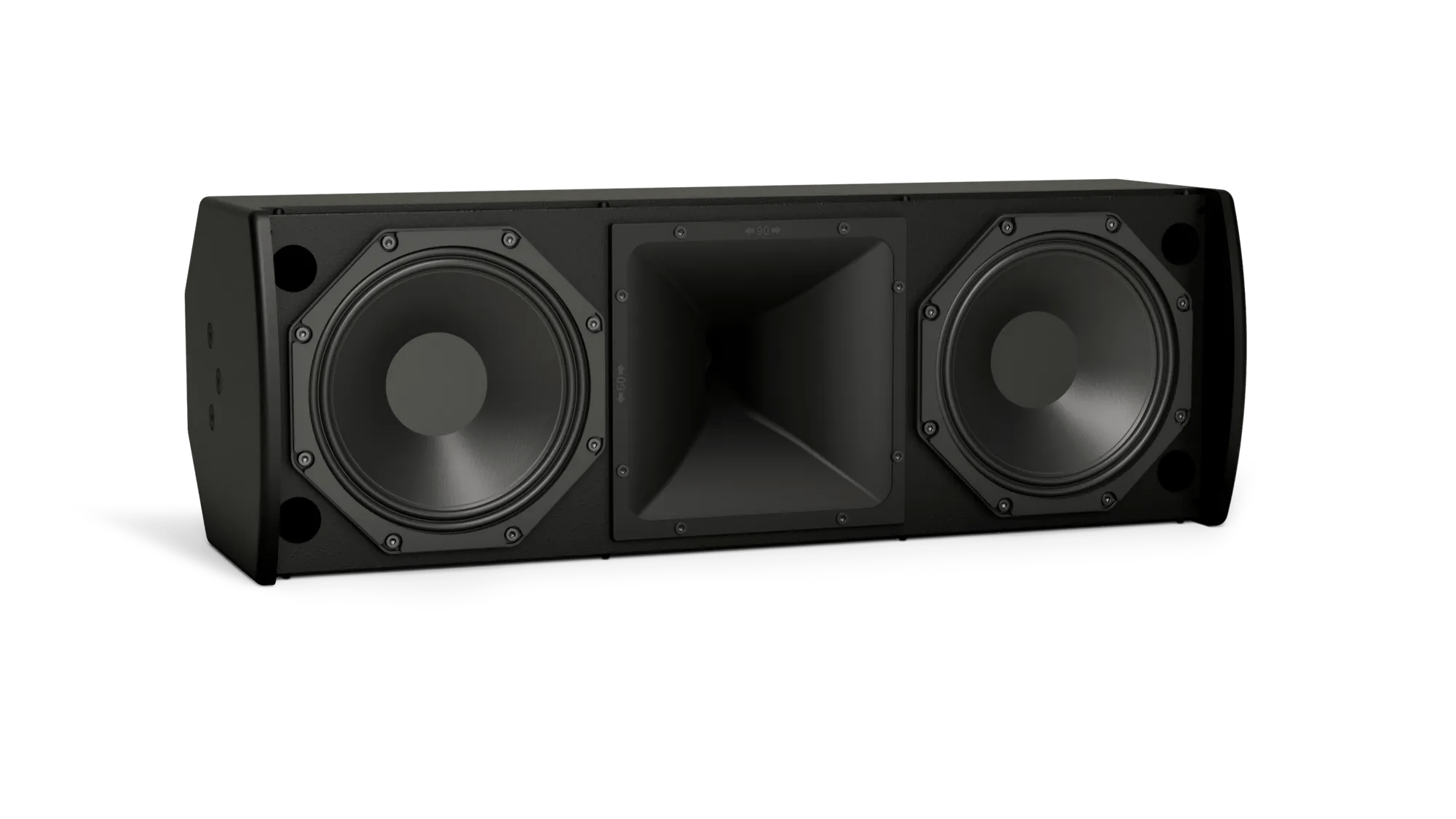

- 1 × Bose Professional EMB2S extended high-frequency compression driver, 2 in (51 mm) voice coil
- Low-Frequency
- 2 × Bose Professional LF8 high-excursion 8 in (203 mm) woofer, 2 in (51 mm) voice coil
In the Box
