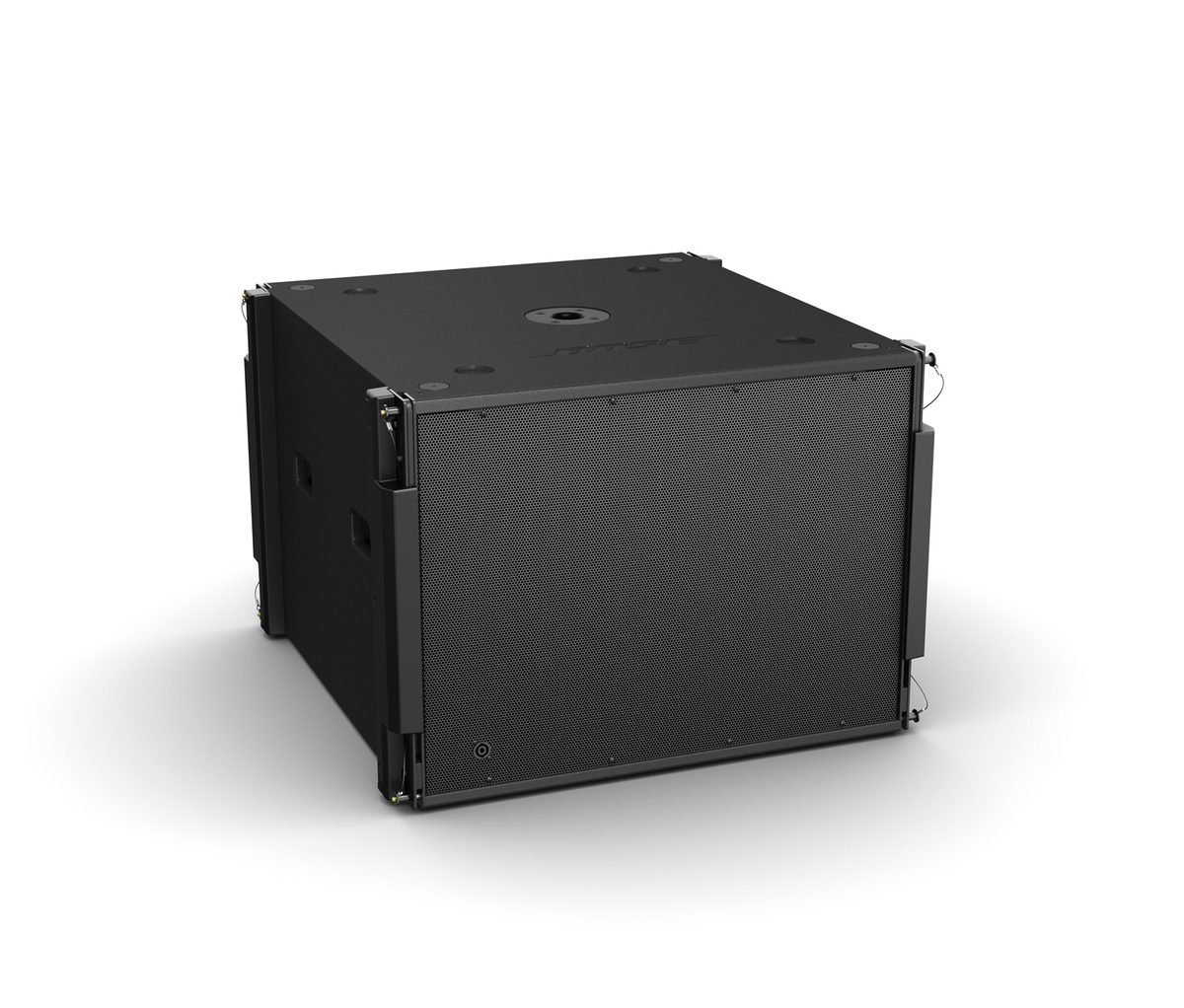

ShowMatch SMS118 subwoofer

Bose Professional ShowMatch SMS118 subwoofers are designed primarily to integrate with DeltaQ array loudspeakers and extend low-frequency response down to 29 Hz. The SMS118 enclosure width and integrated rigging allows fast integration in arrays with ShowMatch full-range modules using optional array frames and accessories. The portable-rated Baltic birch enclosure may also be used for ground-stack applications and includes an integrated mounting-pole adapter for use with other mid/high loudspeakers.

Order Code

734302-0110
ShowMatch SMS118
Get Price

Request a Full System Quote

Authorized productFull manufacturer warranty
Ships from A5 ITCrystal Lake, Illinois
Design supportSpecify the whole system

Features

DeltaQ technologyis the next-generation array design that allows “Q” (directivity) to vary with each module in the array for more consistent coverage over wide frequency range, reduced array weight and cost, and outstanding vocal clarity. Arrays can cover large vertical angles with fewer boxes.
ShowMatch DeltaQ companion 1 × 18-inch subwooferfor low-frequency extension down to 29 Hz with mixed mid/high and subwoofer ShowMatch arrays.

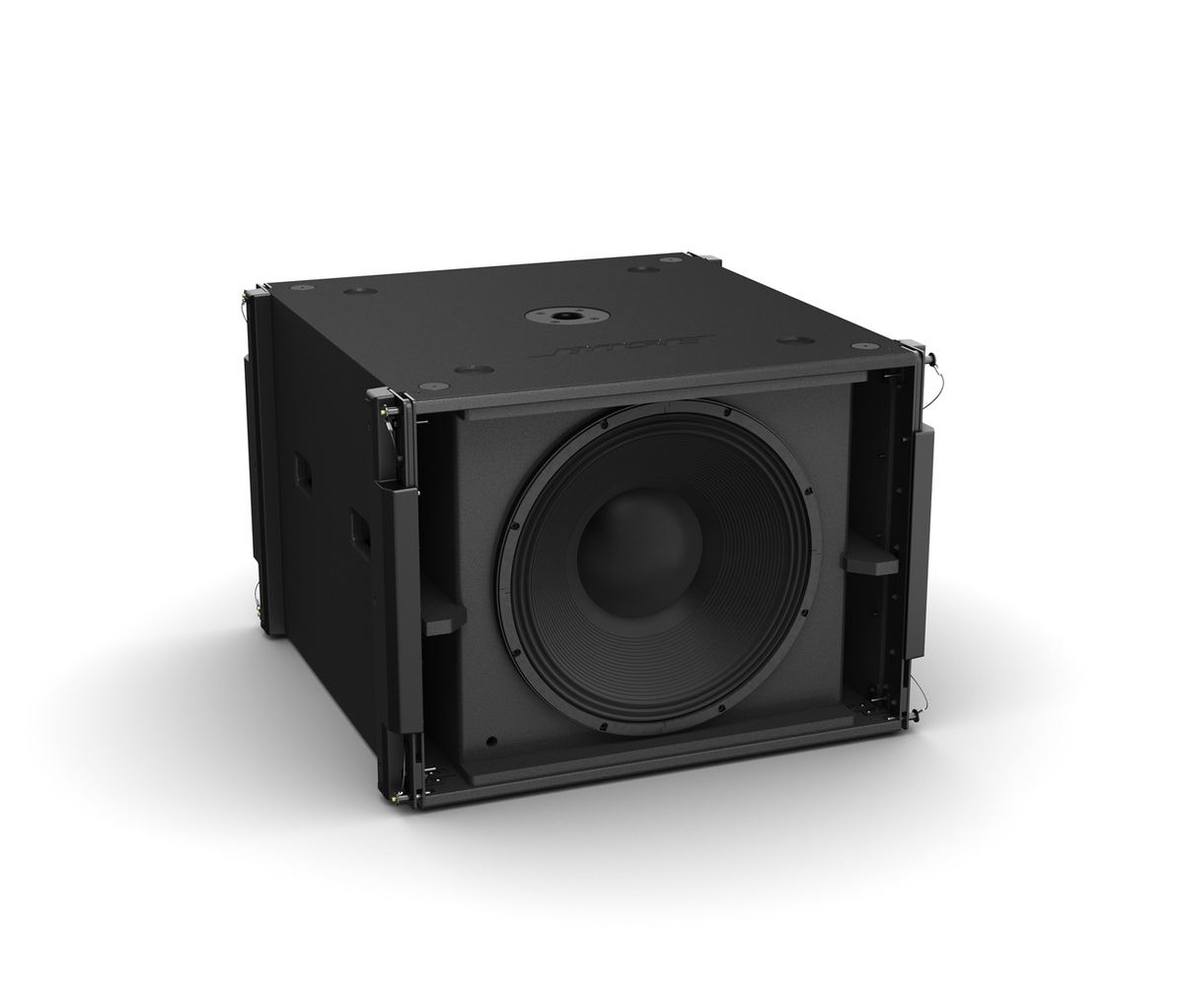

Bose Professional LF18neodymium 18-inch, high-excursion, 4.5-inch voice coil, transducer provides maximum performance (same transducer as in Bose Professional RMS218).
Integrated 4-point “quick pin” riggingallows arrays of up to 18 subwoofers with 10:1 safety factor.
Front-grille mounted NL4 input, plus rear NL4 inputs, allow easy setup for “reversed box” cardioid arrays.

Applications

Designed for a wide range of applications, including:

Theaters
Houses of worship
Auditoriums
Performing arts venues
Arenas

Specifications

17 specifications

COMPLIANCE

EN 54-24 Certified: No

PHYSICAL

Colors: Black
Enclosure Material: Baltic birch plywood
Grille: 16-gauge (1.5 mm) perforated steel, powder-coated finish
Suspension/Mounting: 4-point “quick pin” rigging, 4 × M10 top & 4 × M10 bottom inserts, M20 pole cup
Product Dimensions (H×W×D): 21.2 in × 30.1 in × 30.5 in (540 mm × 765 mm × 775 mm)
Net Weight: 136.5 lb (61.9 kg)

PERFORMANCE

Frequency Range (-10 dB): 29 Hz – 300 Hz
Coverage, Horizontal: Omnidirectional
Calculated Maximum SPL @ 1 m: 121 dB (free field/array), 127 dB (half-space/ground stack) continuous / 127 dB (free field/array), 133 dB (half-space/ground stack) peak
Nominal Impedance: 4 Ω
Power Handling, long-term continuous: 750 W
Power Handling, Peak: 3000 W
Sensitivity (SPL/1 W at 1 m): 92 dB (free field/array), 98 dB (half-space/ground stack)
Coverage, Vertical: Omnidirectional

TRANSDUCERS

Crossover: 60 Hz – 100 Hz, requires active crossover in DSP
Low-Frequency: 1 × Bose Professional LF18 neodymium high-excursion 18 in (457 mm) woofer, 4.5 in (114 mm) voice coil
