MB210-WR outdoor subwoofer
Bose Professional MB210-WR compact subwoofers are designed for outdoor installations of background/foreground music and small sound-reinforcement systems that require low-frequency extension down to 37 Hz. The MB210-WR subwoofer features two 10-inch high-excursion woofers, derived from the award-winning F1 subwoofer, in a compact, exterior-grade plywood enclosure optimized for outdoor, fixed-installation applications. Featuring outstanding performance to size ratio, the MB210-WR is designed to complement Bose Professional loudspeaker lines in outdoor applications — such as ArenaMatch Utility, Panaray, DesignMax, and Freespace — with additional bass impact.
Features
Applications
Designed for a wide range of applications, including:
Specifications
COMPLIANCE
- EN 54-24 Certified
- No
PHYSICAL
- Colors
- Black, white
- Enclosure Material
- Exterior-grade plywood
- Environmental
- Rated for direct-exposure outdoor installations (IEC 60529: IP55)
- Grille
- 3 layers (perforated stainless steel, acoustic foam, stainless-steel mesh), powder-coated finish
- Ingress Protection
- IP55
- Suspension/Mounting

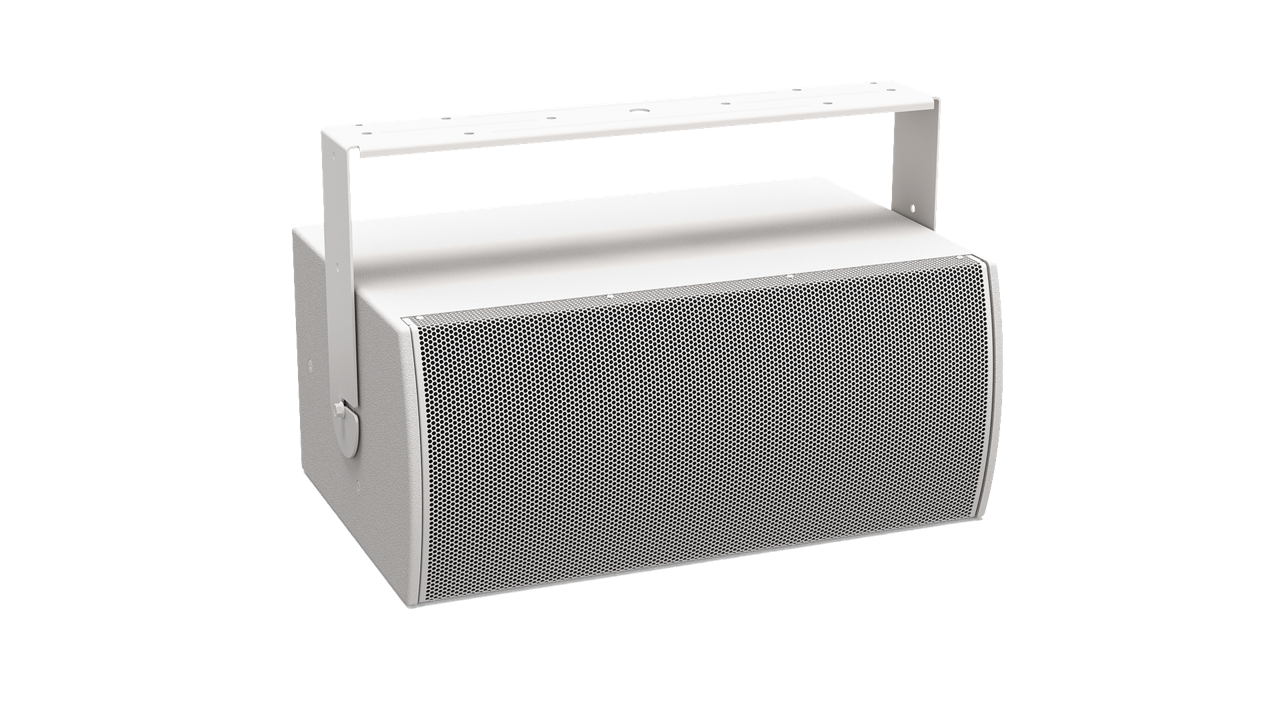

- 3 × M8 threaded inserts for U-bracket (per side)
- Product Dimensions (H×W×D)
- 11.5 in × 26.0 in × 19.1 in (291 mm × 659 mm × 484 mm)
- Net Weight
- 42.8 lb (19.4 kg)
PERFORMANCE
- Frequency Range (-10 dB)
- 37 Hz – 180 Hz
- Coverage, Horizontal
- Omnidirectional below 200 Hz
- Calculated Maximum SPL @ 1 m
- 117 dB (free field), 123 dB (wall/ceiling) continuous / 123 dB (free field), 129 dB (wall/ceiling) peak
- Nominal Impedance
- 8 Ω
- Power Handling, long-term continuous
- 500 W
- Power Handling, Peak
- 2000 W
- Recommended Power Amplification
- 500 W – 2000 W
- Sensitivity (SPL/1 W at 1 m)
- 90 dB (free field), 96 dB (wall/ceiling)
- Coverage, Vertical
- Omnidirectional below 200 Hz
TRANSDUCERS
- Low-Frequency
- 2 × 10 in (254 mm) high-excursion woofers
In the Box
