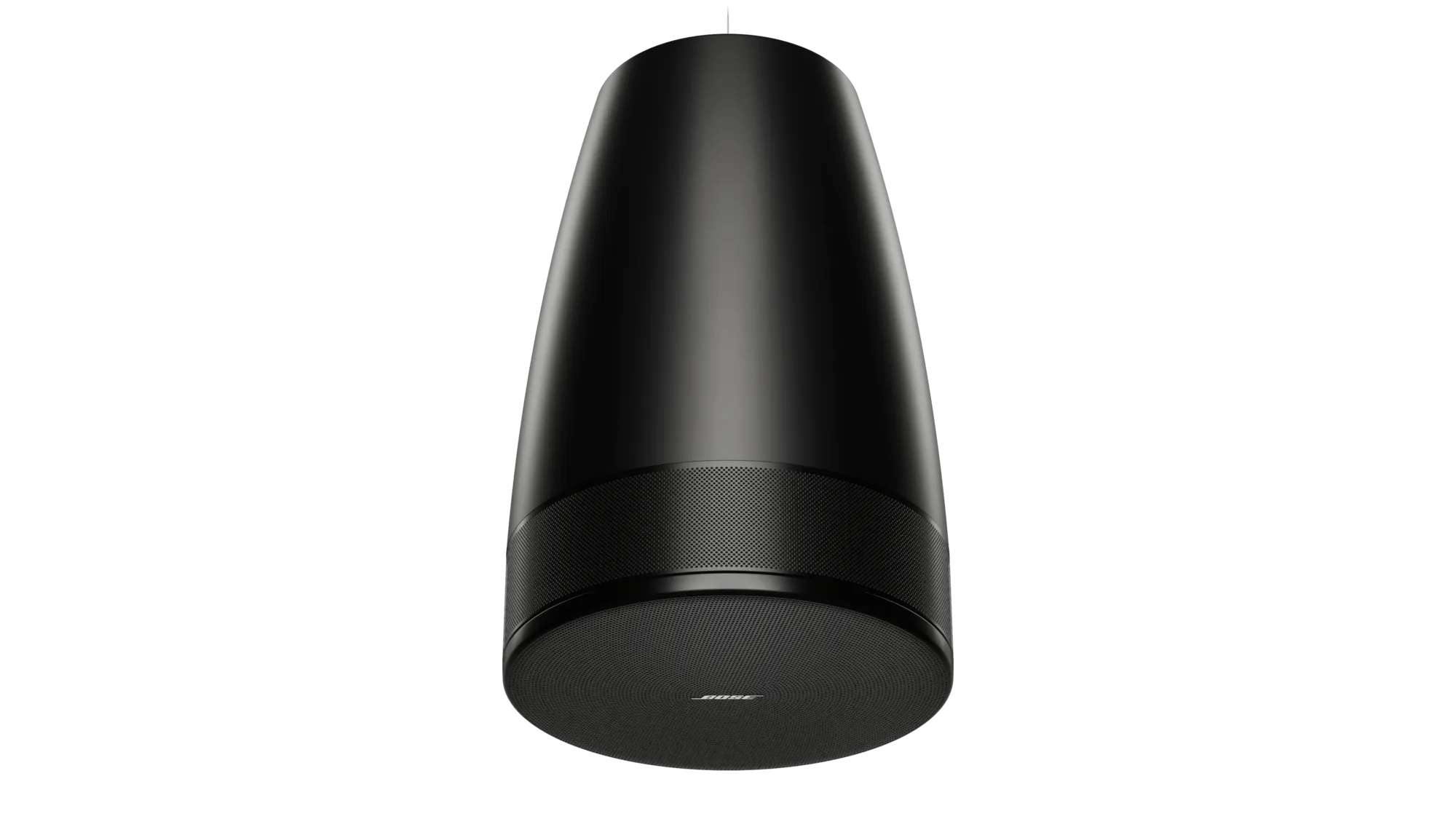

DesignMax Luna DML88P loudspeaker
Loudspeakers

DesignMax Luna DML88P loudspeaker

Learn more about the Bose Professional DesignMax DML88P, offering premium aesthetics that complement any commercial sound installation.

Order Codes · 2

Request a Full System Quote
  • Authorized productFull manufacturer warranty
  • Ships from A5 ITCrystal Lake, Illinois
  • Design supportSpecify the whole system

Features

  • Proprietary Ring Array™configuration delivers precise, balanced sound with no hot spots or dead zones

  • Integrated 8” wooferextends down to 40 Hz—no subs needed

  • Wide-throw 140° coveragereduces speaker count and installation costs

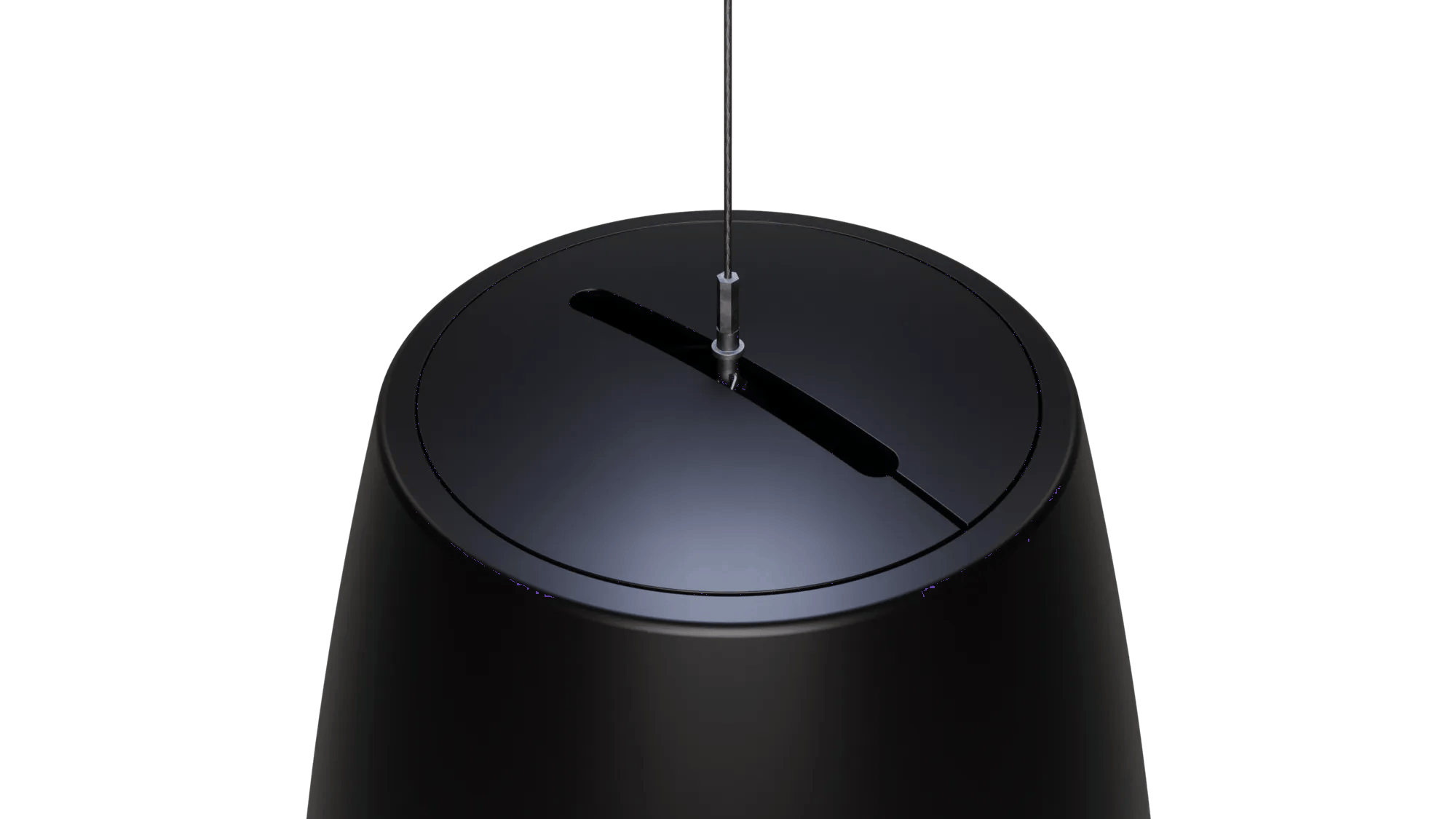

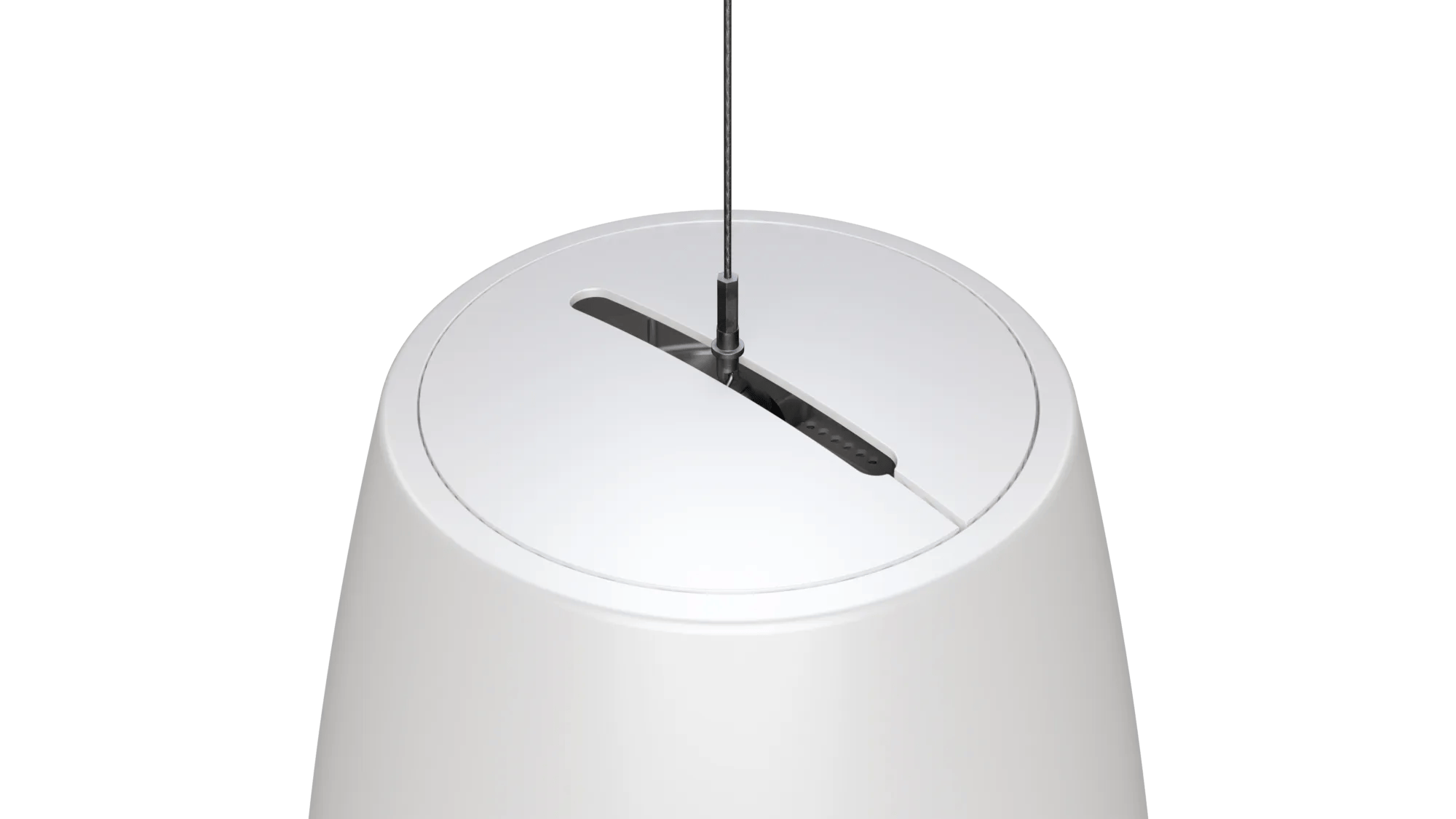

  • Flexible mountinglets you use a single cable—or two-point suspension—for fast installs and perfectly balanced hangs

  • Streamlined designwith concealed wiring and premium finish options

  • Factory-optimized loudspeaker presetswhen combined with Bose Professional amplifiers and processors

  • Compatible accessoriesinclude DesignMax Pendant Threaded Rod Adapter and Conduit Adapter

Applications

Designed for a wide range of applications, including:

  • Retail stores
  • Restaurants and breweries
  • Fitness clubs and studios
  • Amusement and recreation spaces
  • Education and gymnasiums

Specifications

21 specifications

COMPLIANCE

Safety Agency Ratings
UL Listed, UL 1480A, NFPA 70 & NFPA 90A, CE-compliant

PHYSICAL

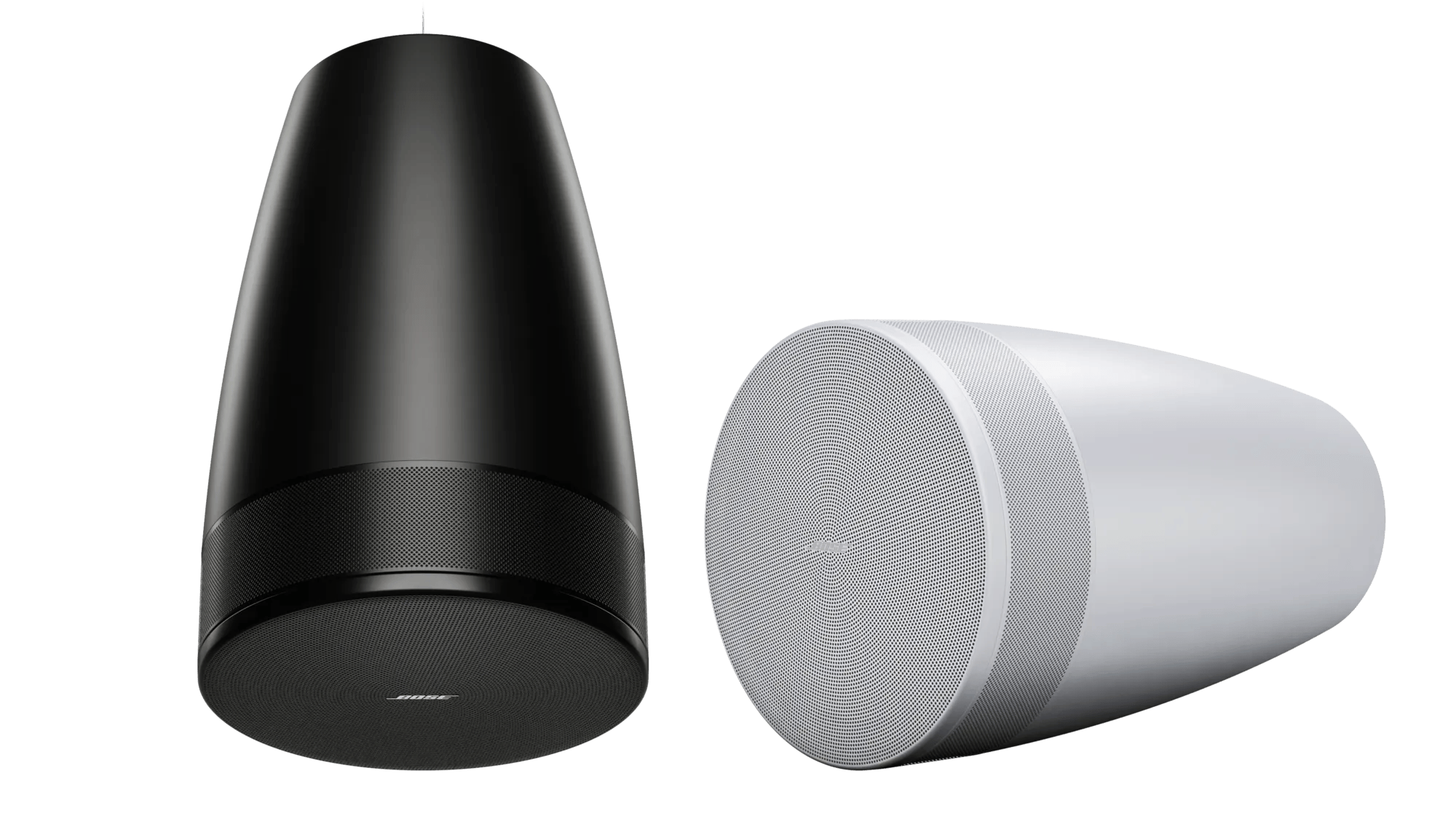

Colors

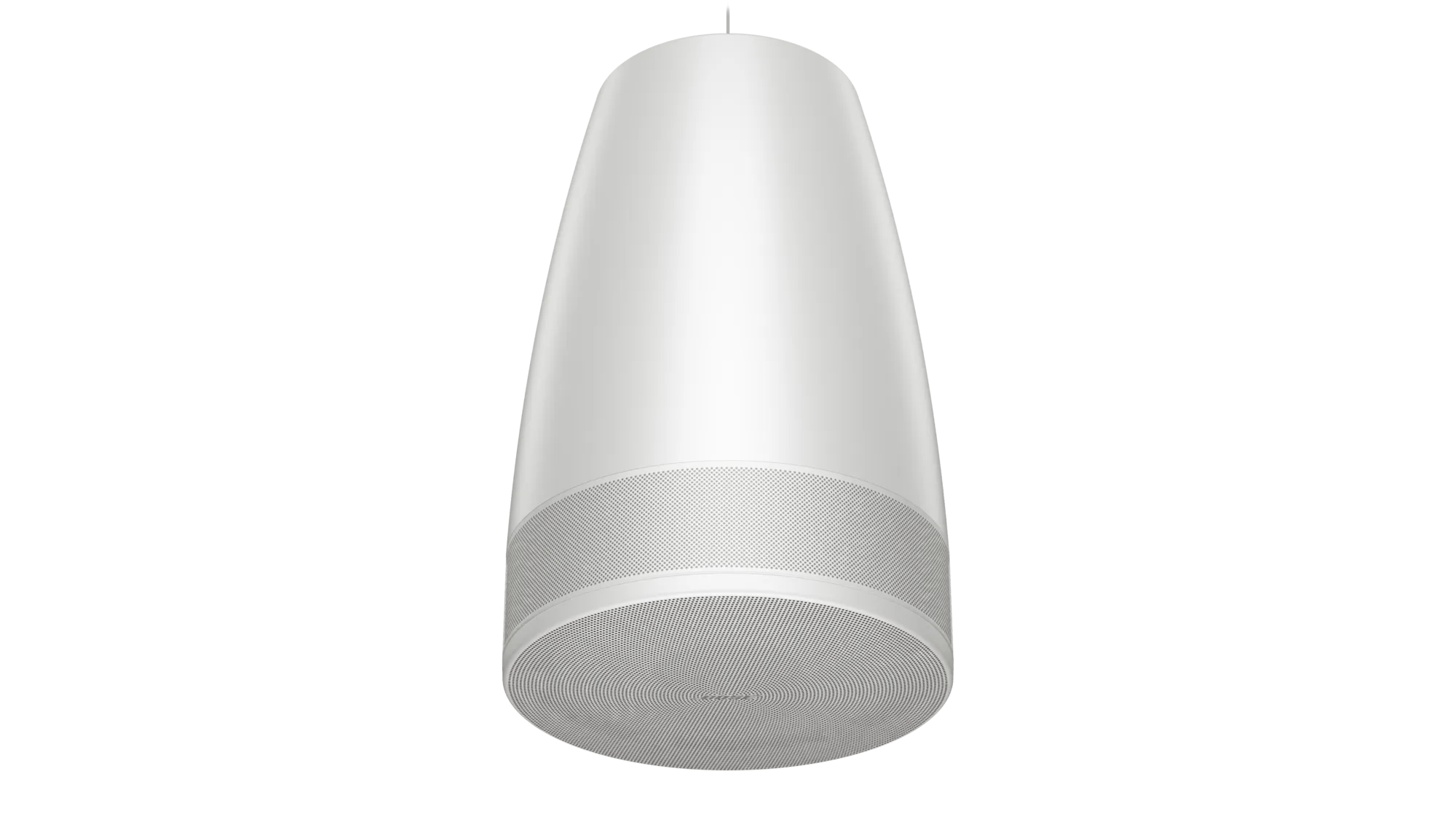

Black (similar to RAL 9005), white (similar to RAL 9003), paintable
Enclosure Material
Engineered plastics
Environmental
Indoors only; UL Listed, UL 1480A, NFPA 70 & NFPA 90A, CE-compliant

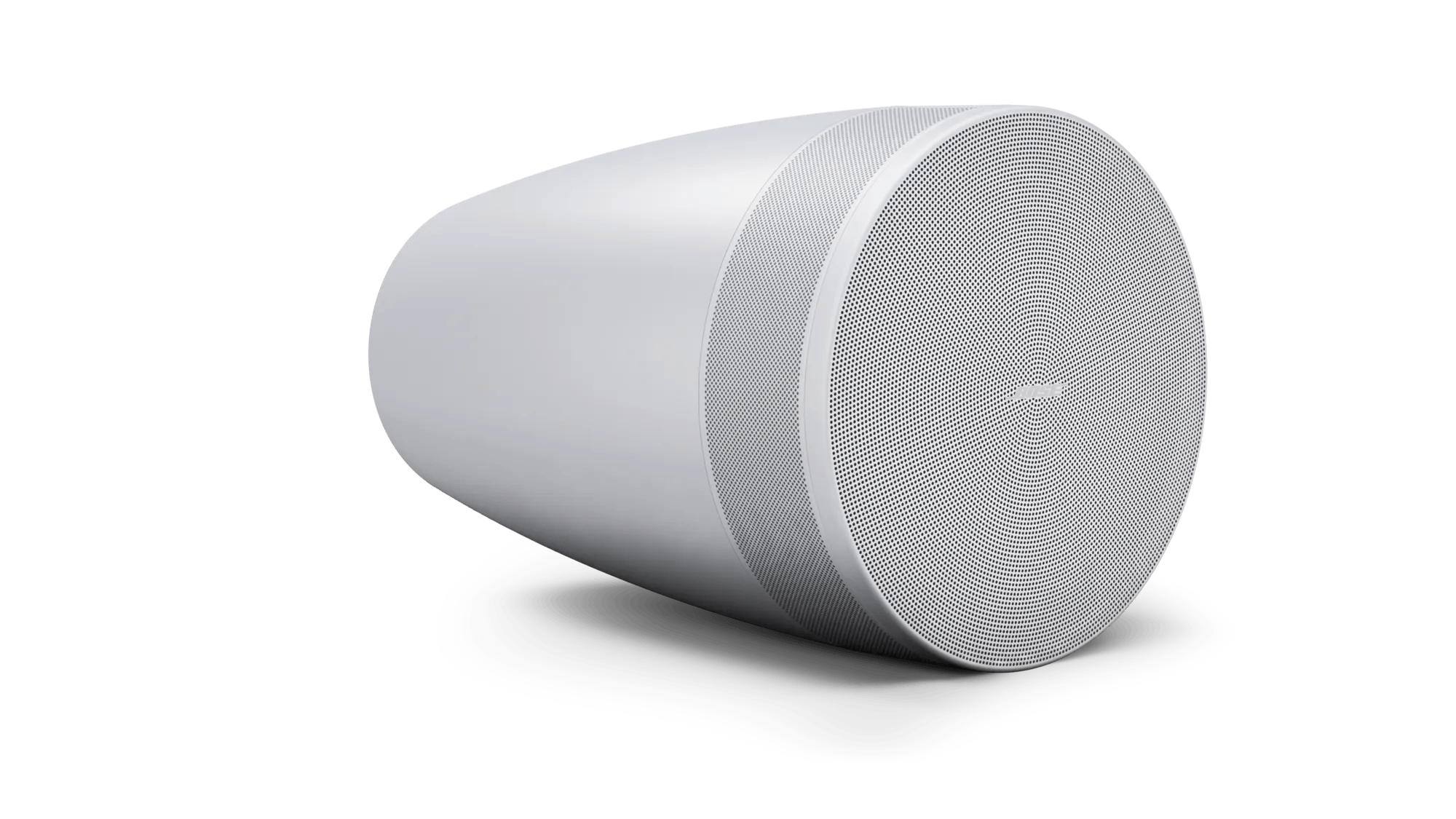

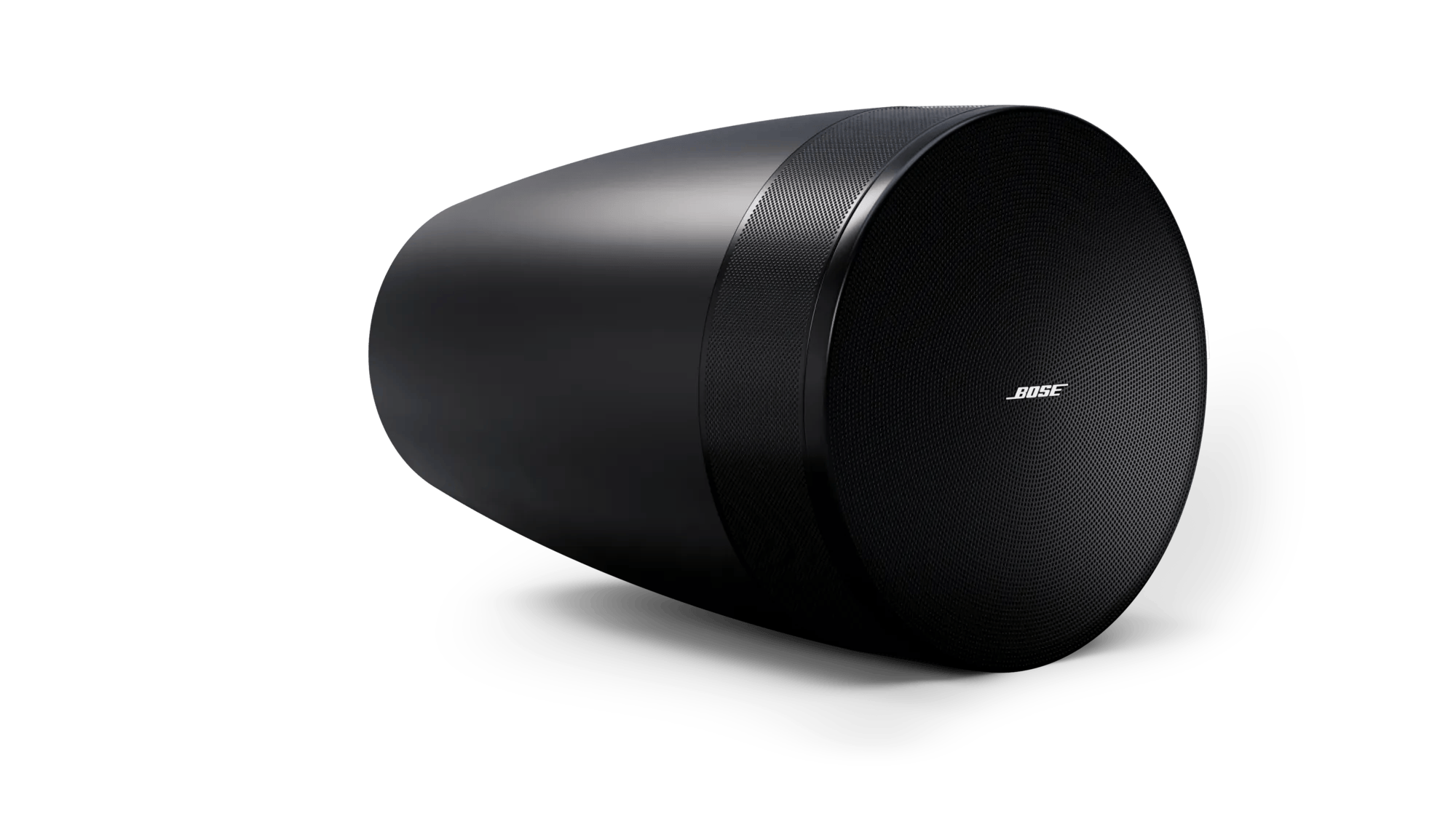

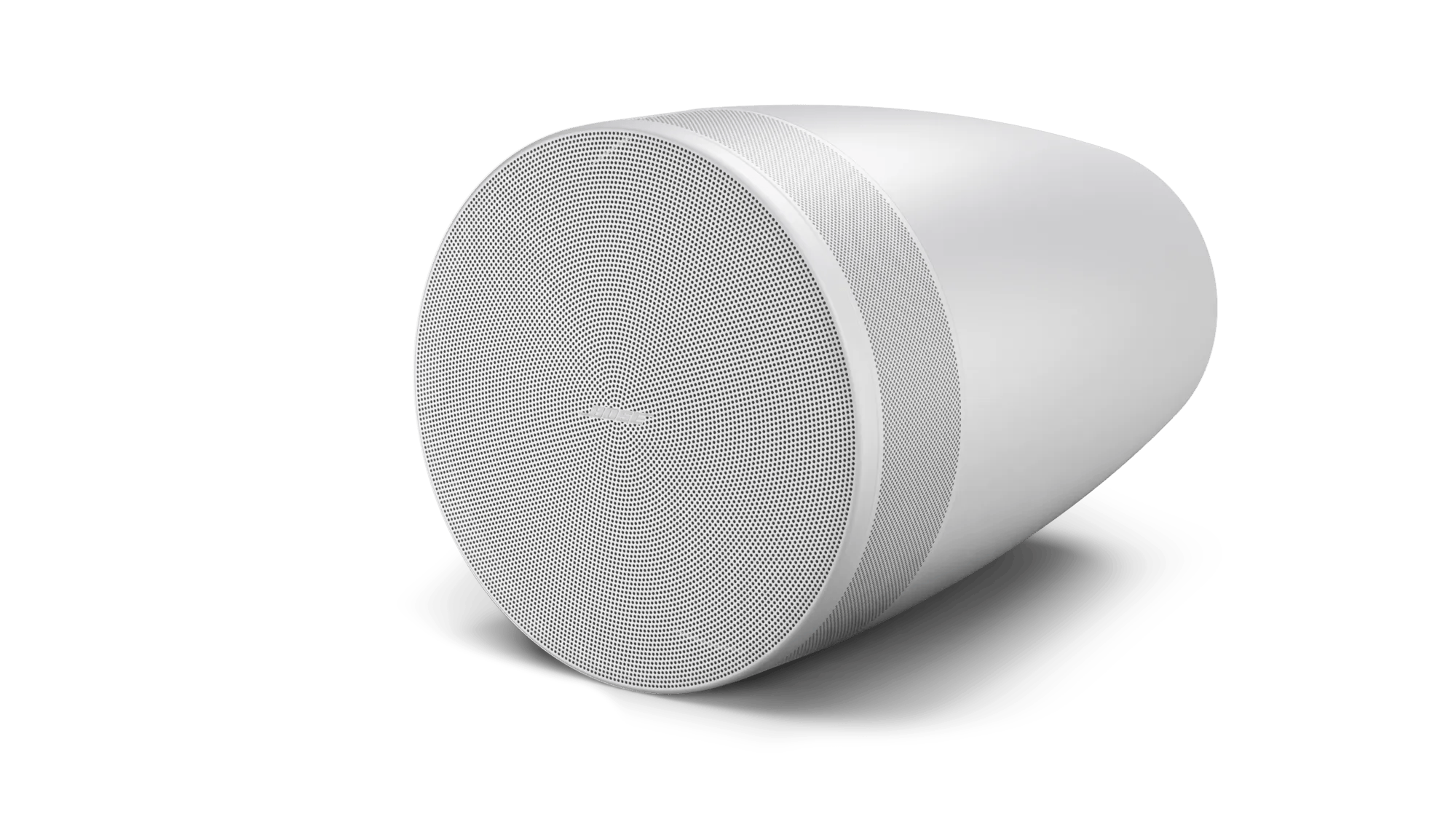

Grille
Perforated steel, powder-coated finish, paintable
Logo
Rotatable, removable

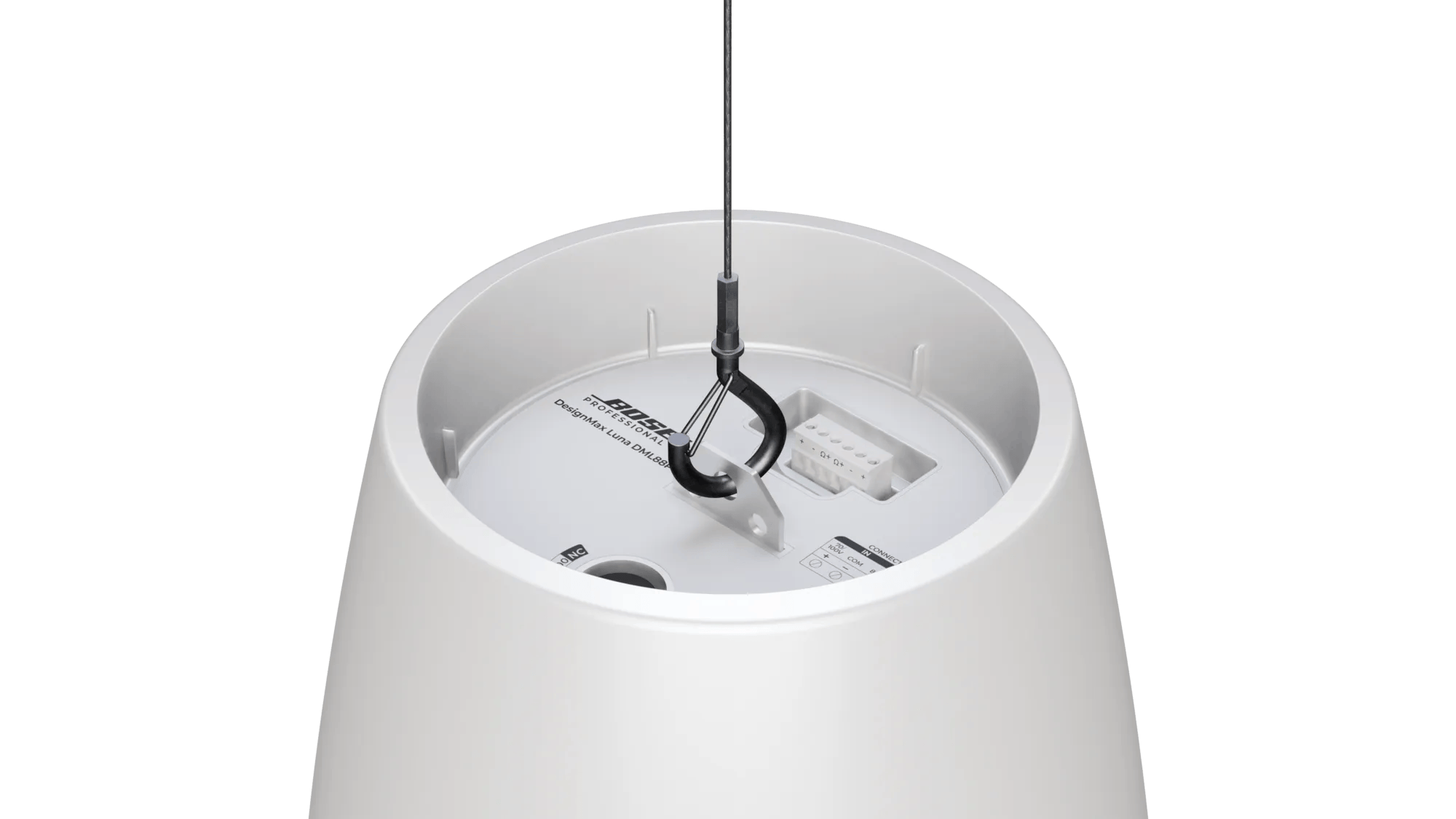

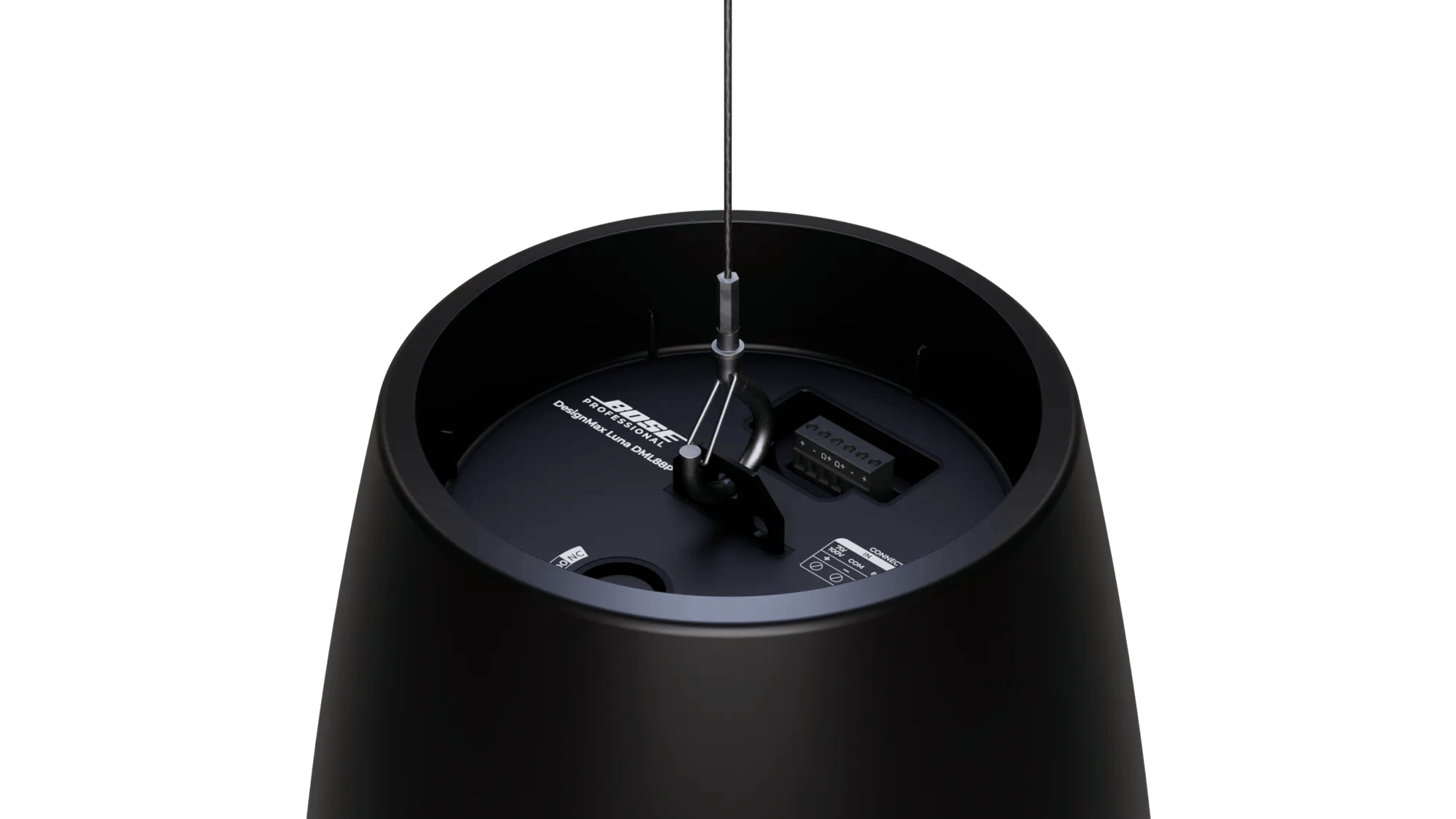

Suspension/Mounting
(1) 3-hole suspension cable attachment point

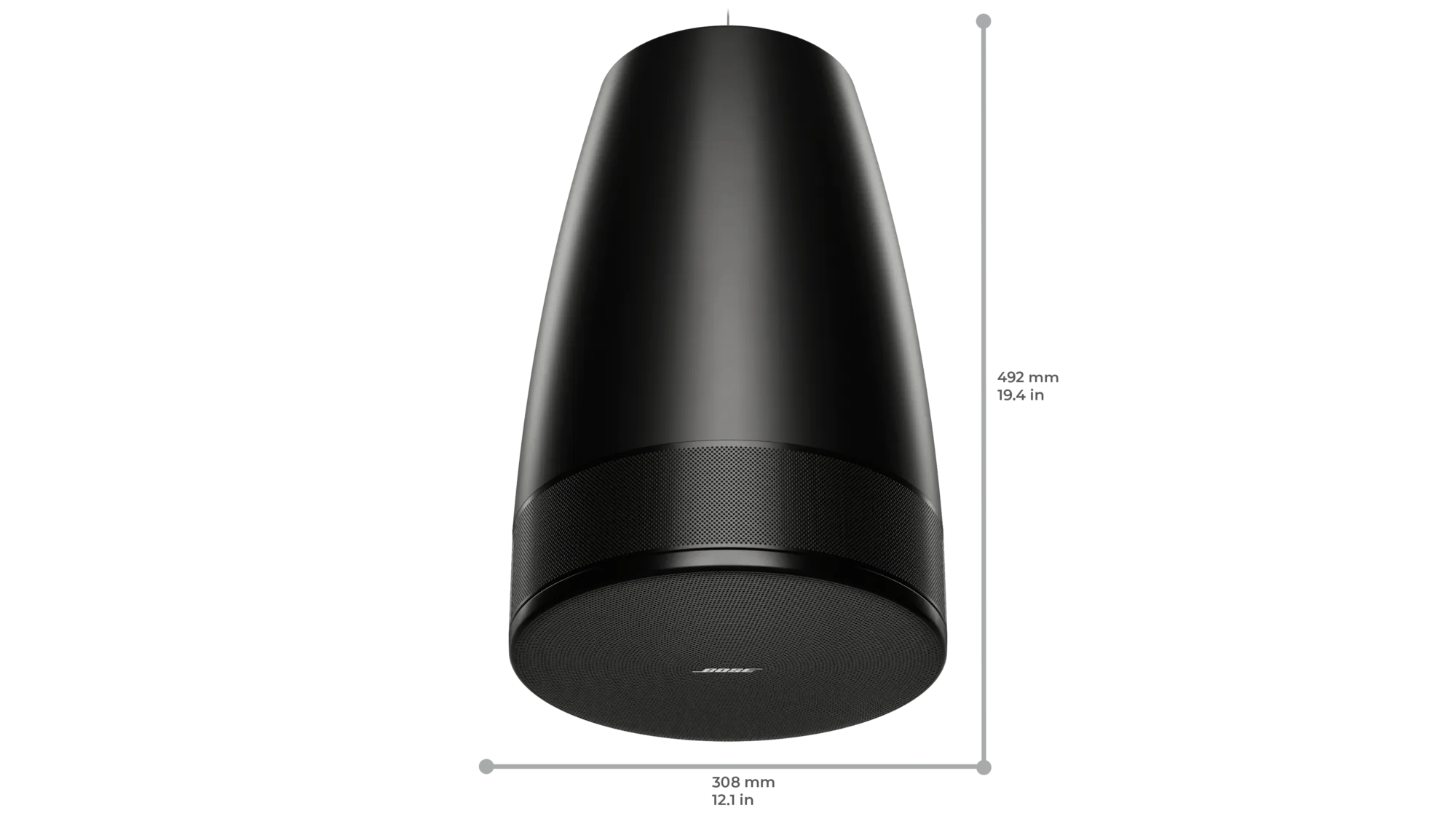

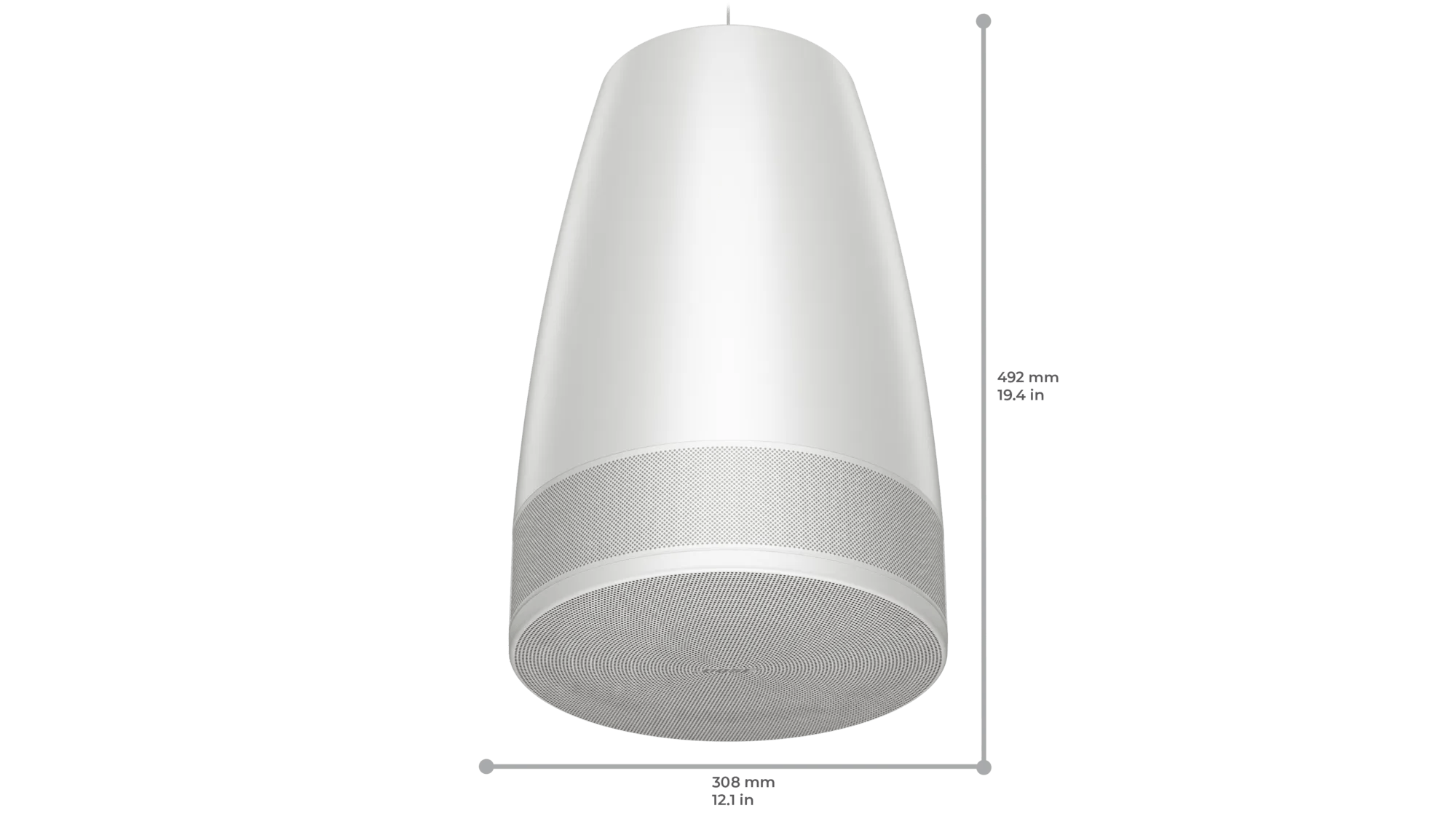

Product Dimensions (H×W×D)
308 mm × 492 mm (12.1 in × 19.4 in), loudspeaker diameter x depth
Net Weight
10.0 kg (22.0 lb)

PERFORMANCE

Frequency Range (-10 dB)
40 Hz – 20,000 Hz
Coverage, Horizontal
140° conical
Calculated Maximum SPL @ 1 m
107 dB
Nominal Impedance
8 Ω (transformer bypass)
Power Handling, long-term continuous
140 W
Power Handling, Peak
560 W
Recommended Signal Processing
Not required, Bose Professional EQ voicing and SmartBass processing available
Sensitivity (SPL/1 W at 1 m)
85 dB

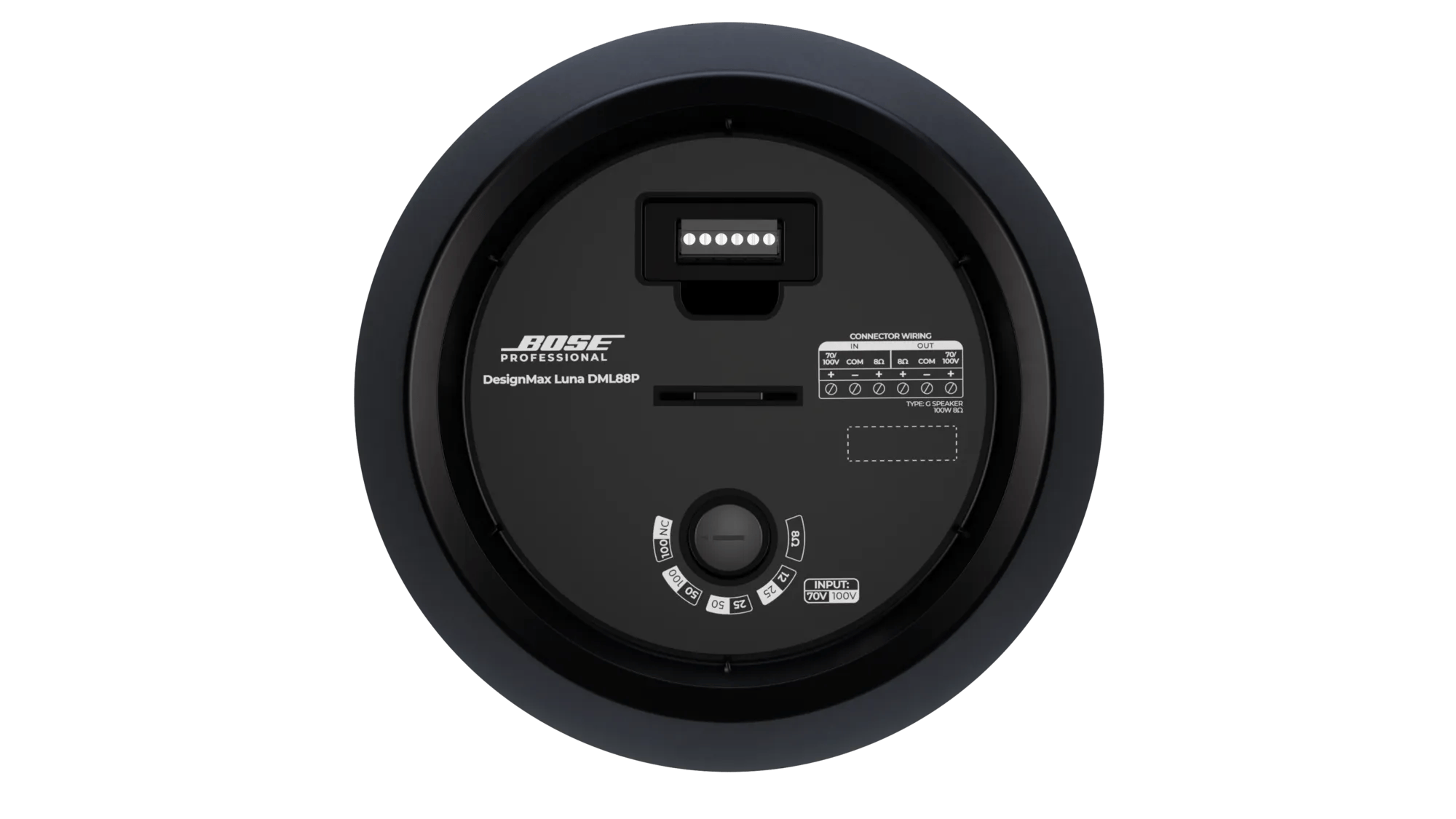

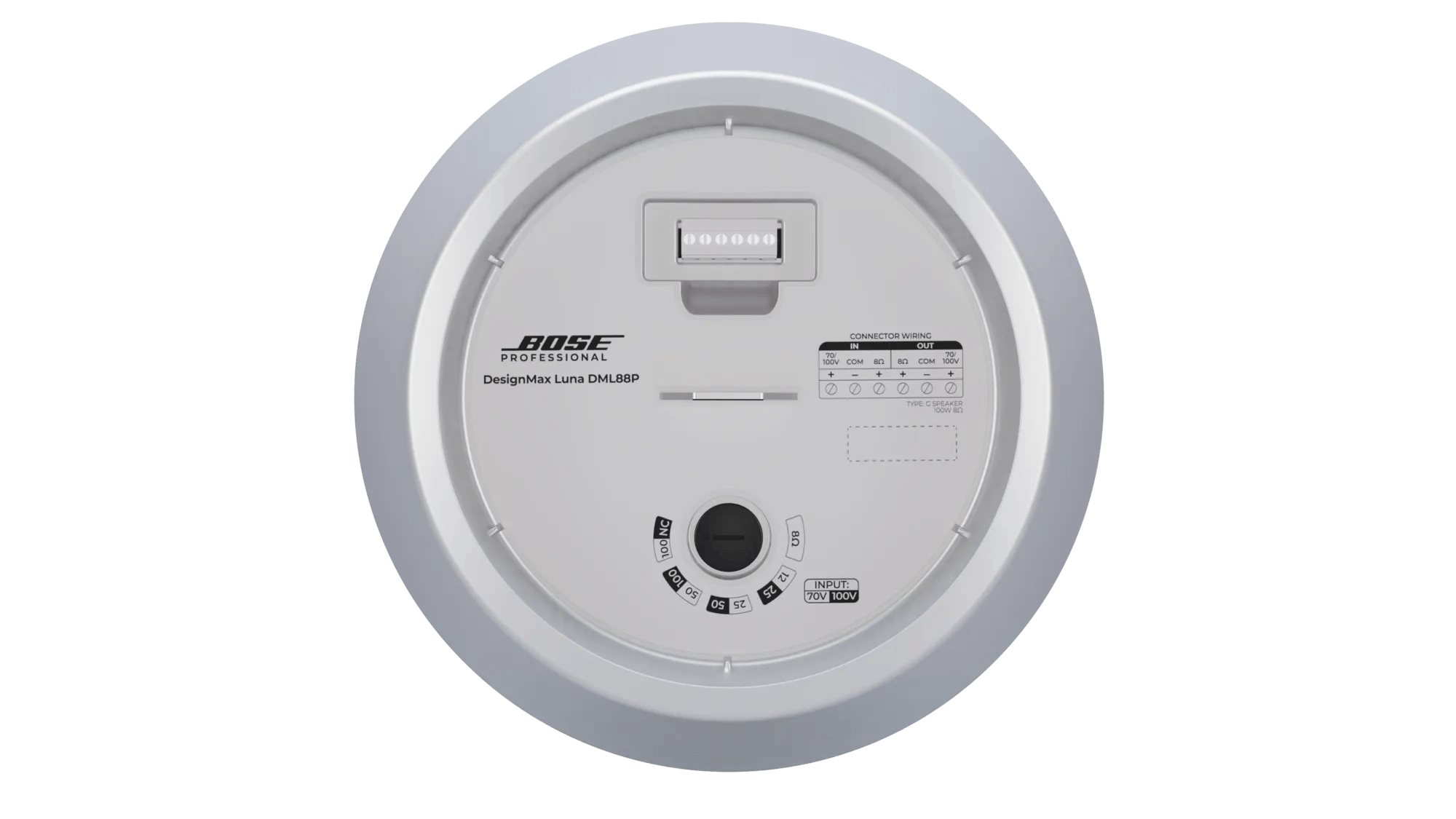

Transformer Taps, 100V
25 W, 50 W, 100 W, bypass
Transformer Taps, 70V
12 W, 25 W, 50 W, 100 W, bypass

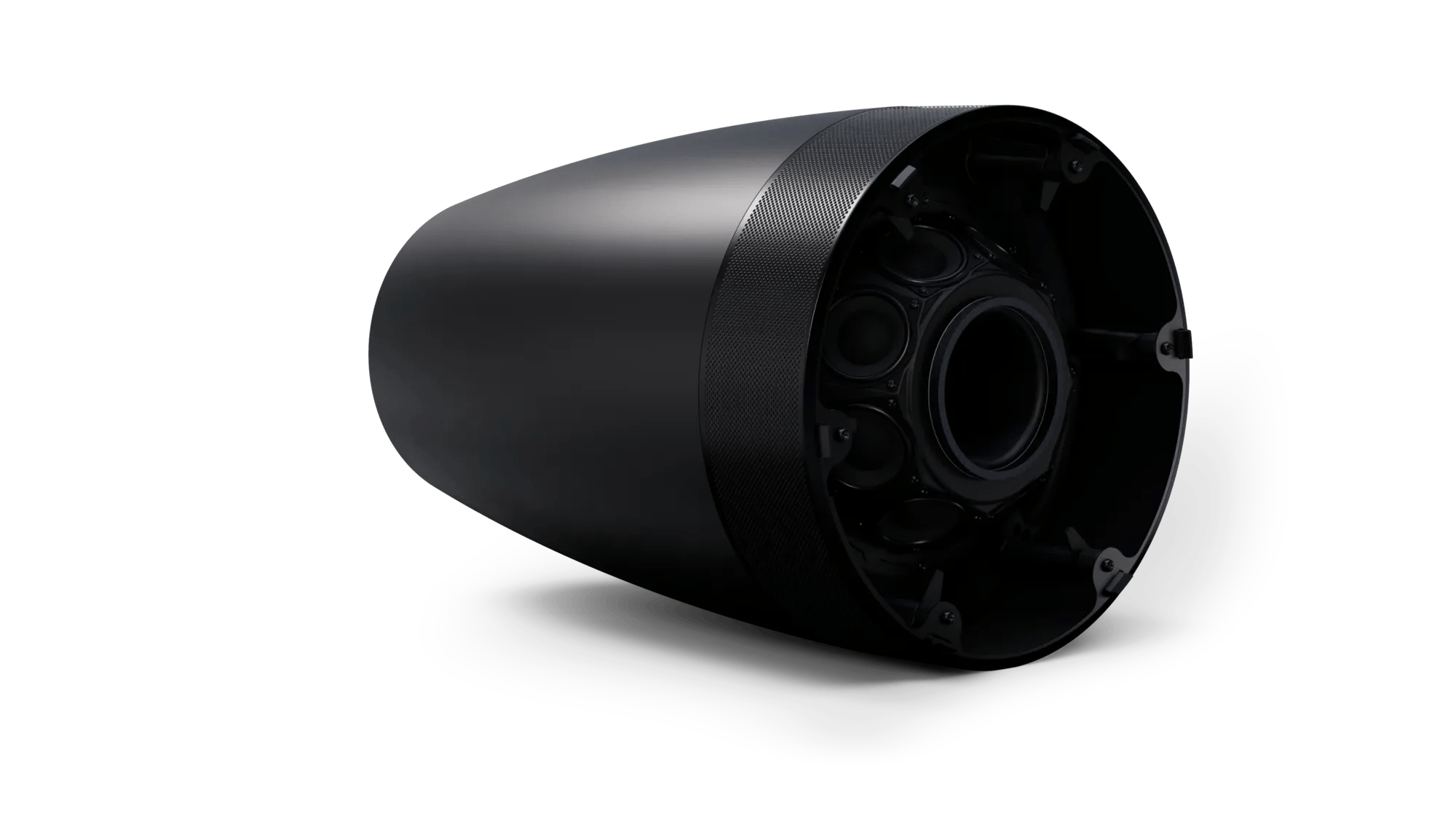

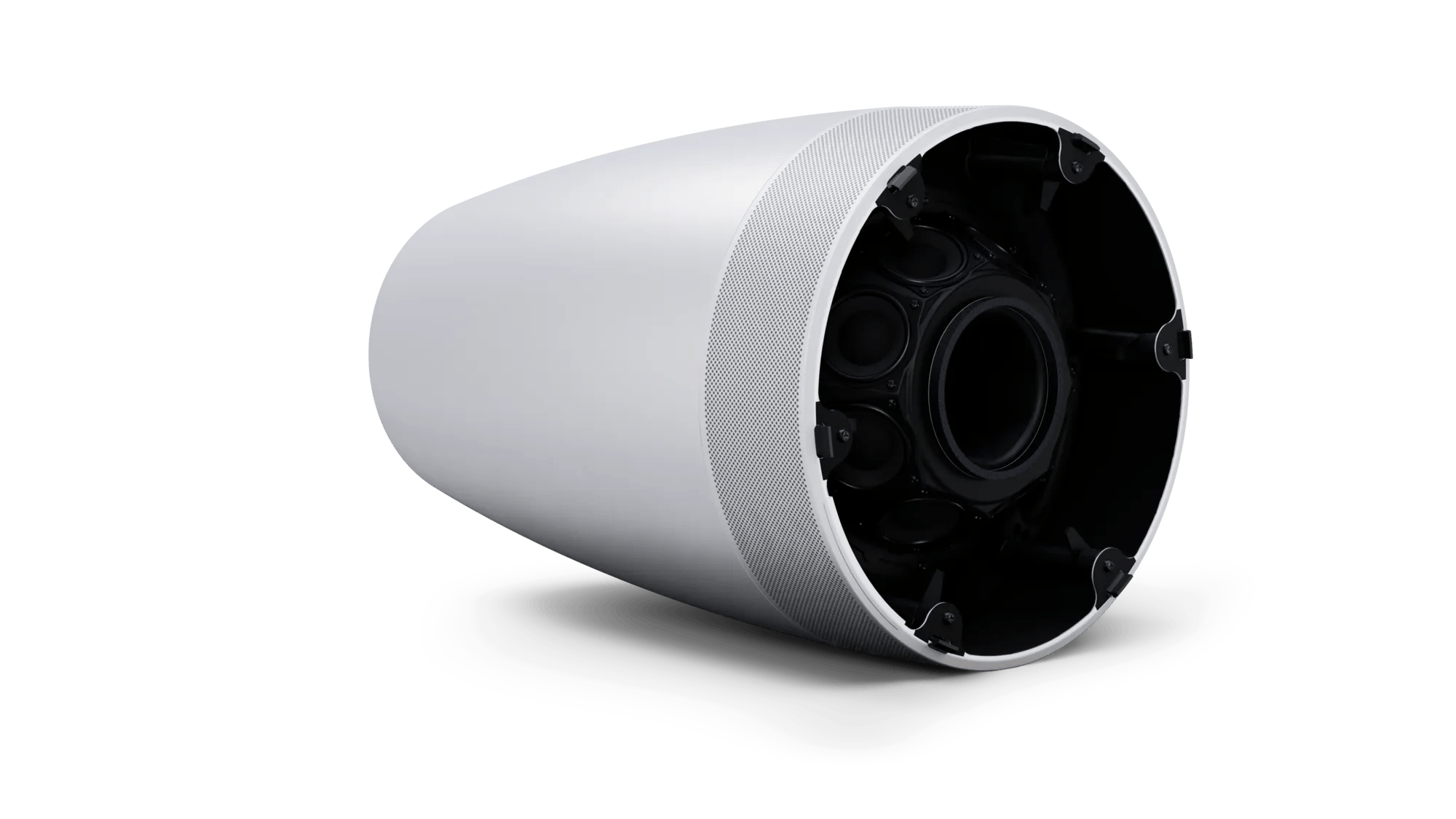

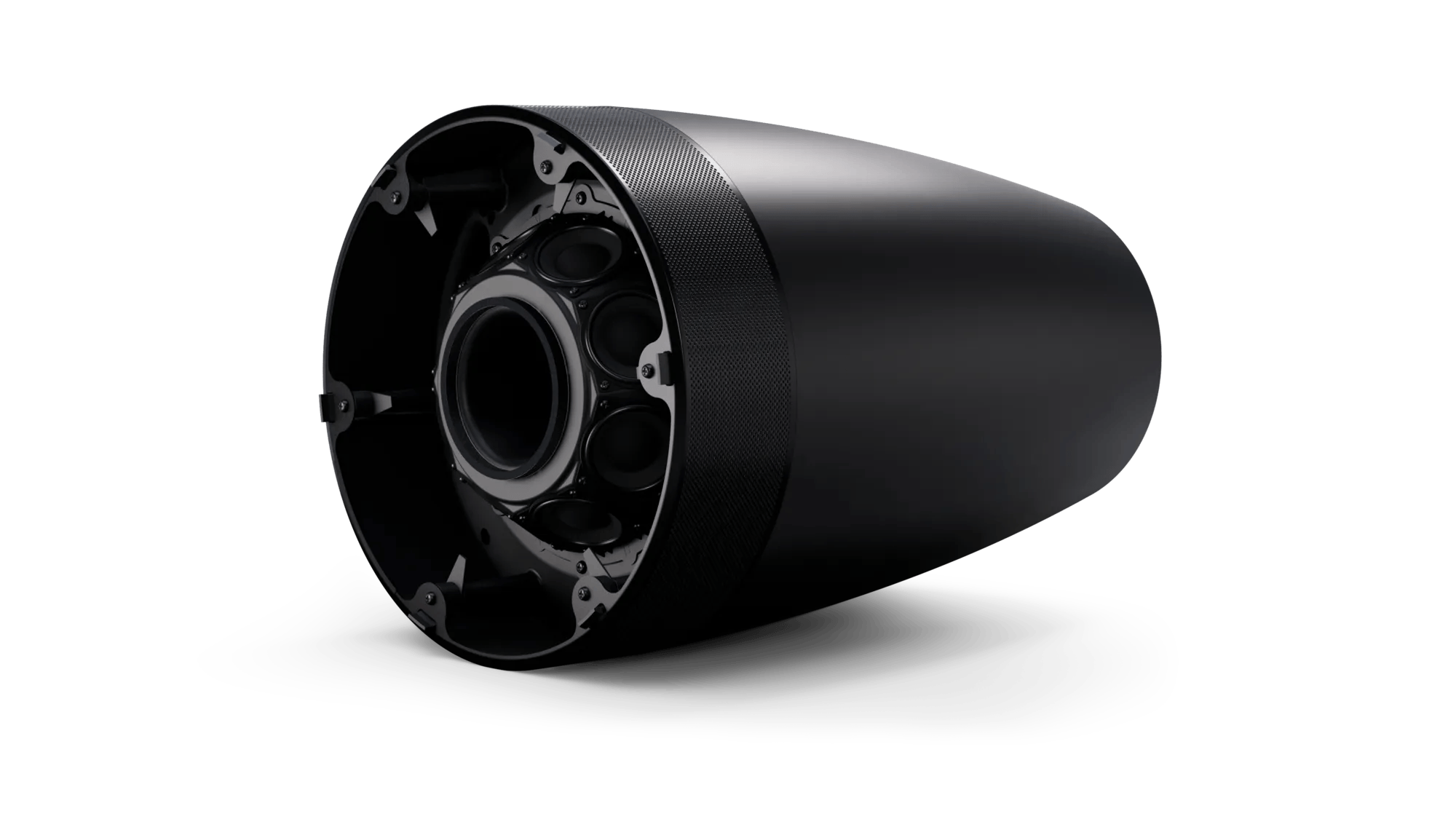

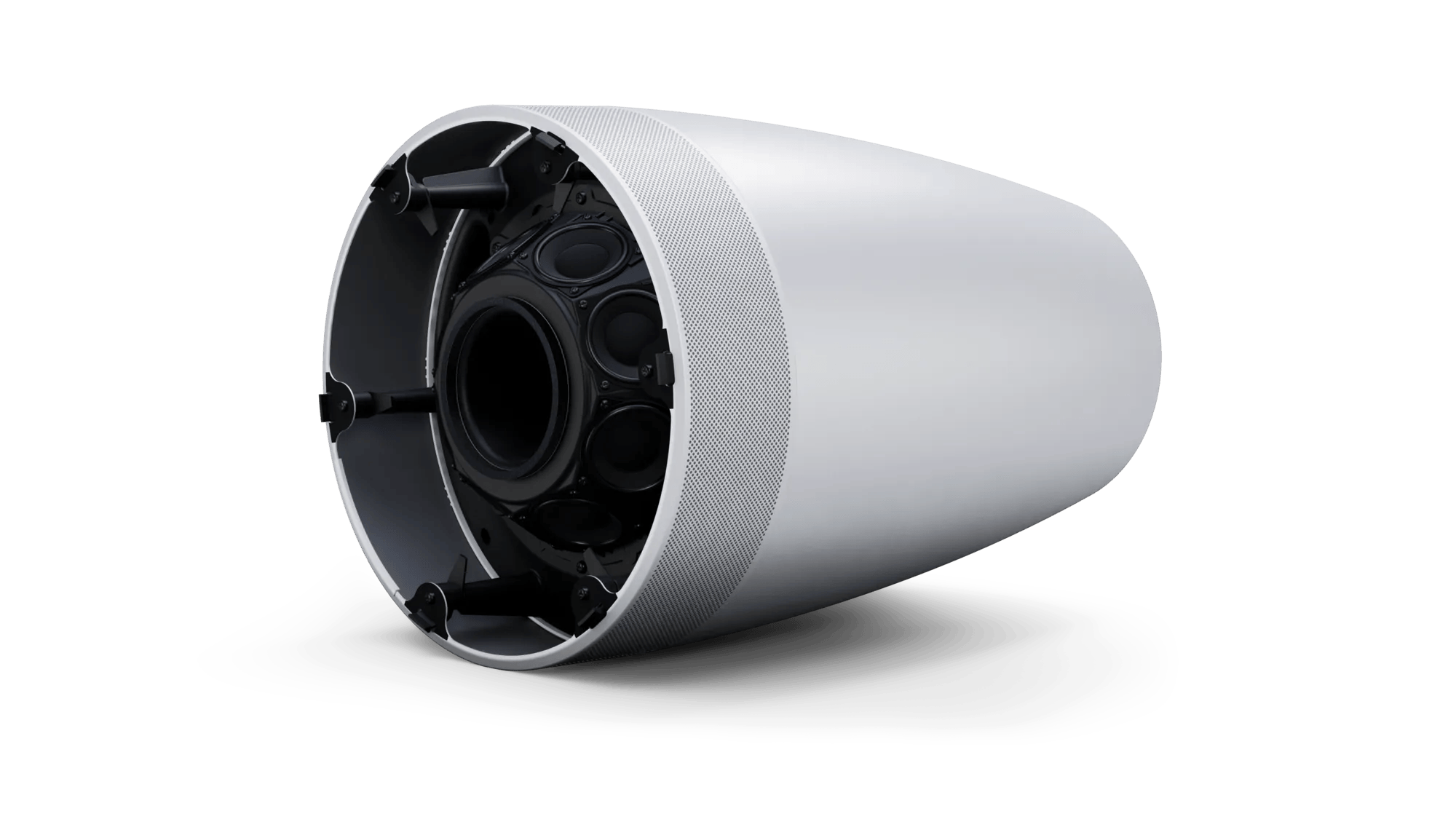

TRANSDUCERS

High-Frequency
8 × 2.0-in (51 mm) drivers in circular array Low-Frequency
Low-Frequency
1 × 8 in (203 mm) woofer

In the Box

  • (1) DesignMax Luna DML88P

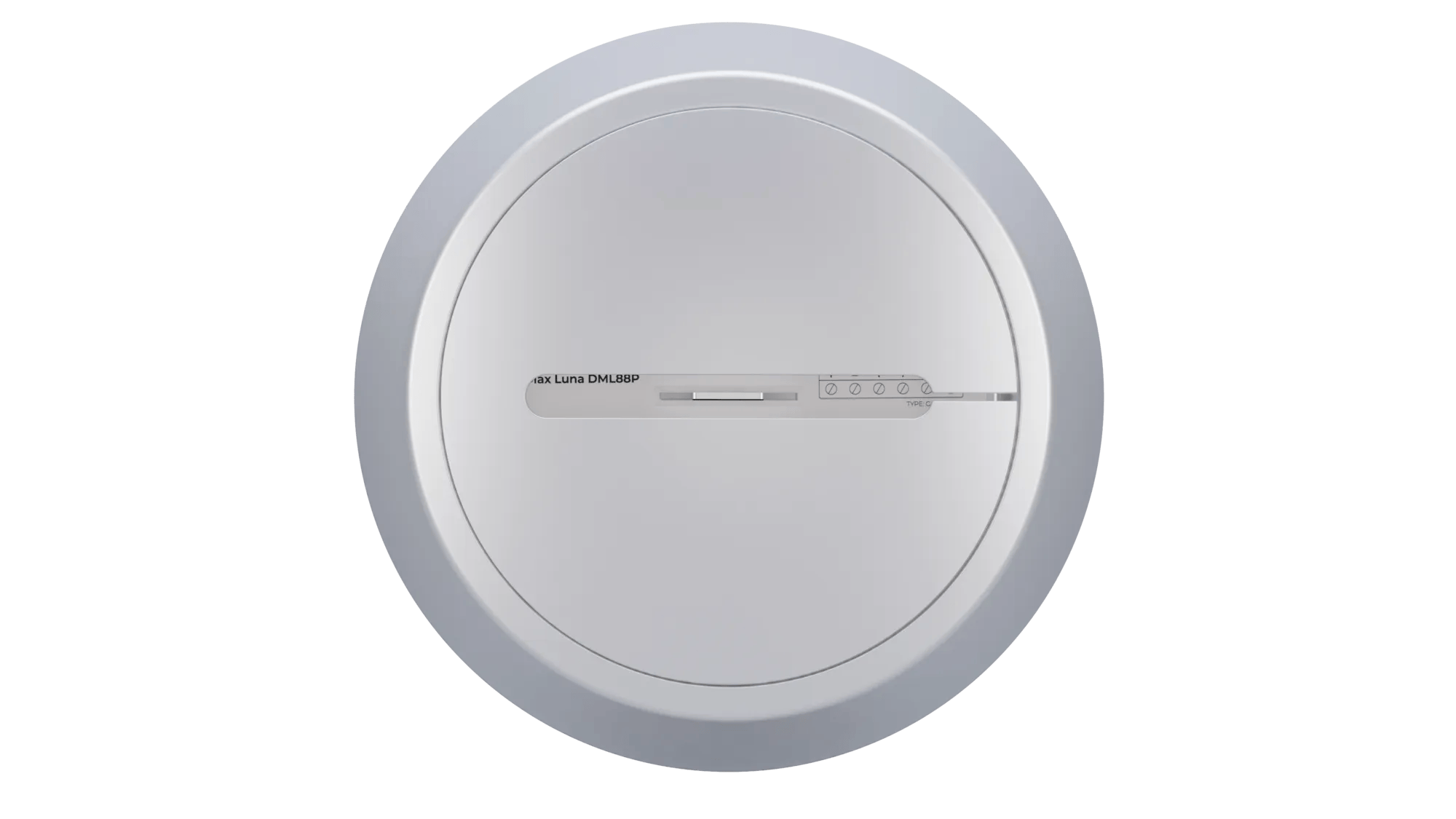

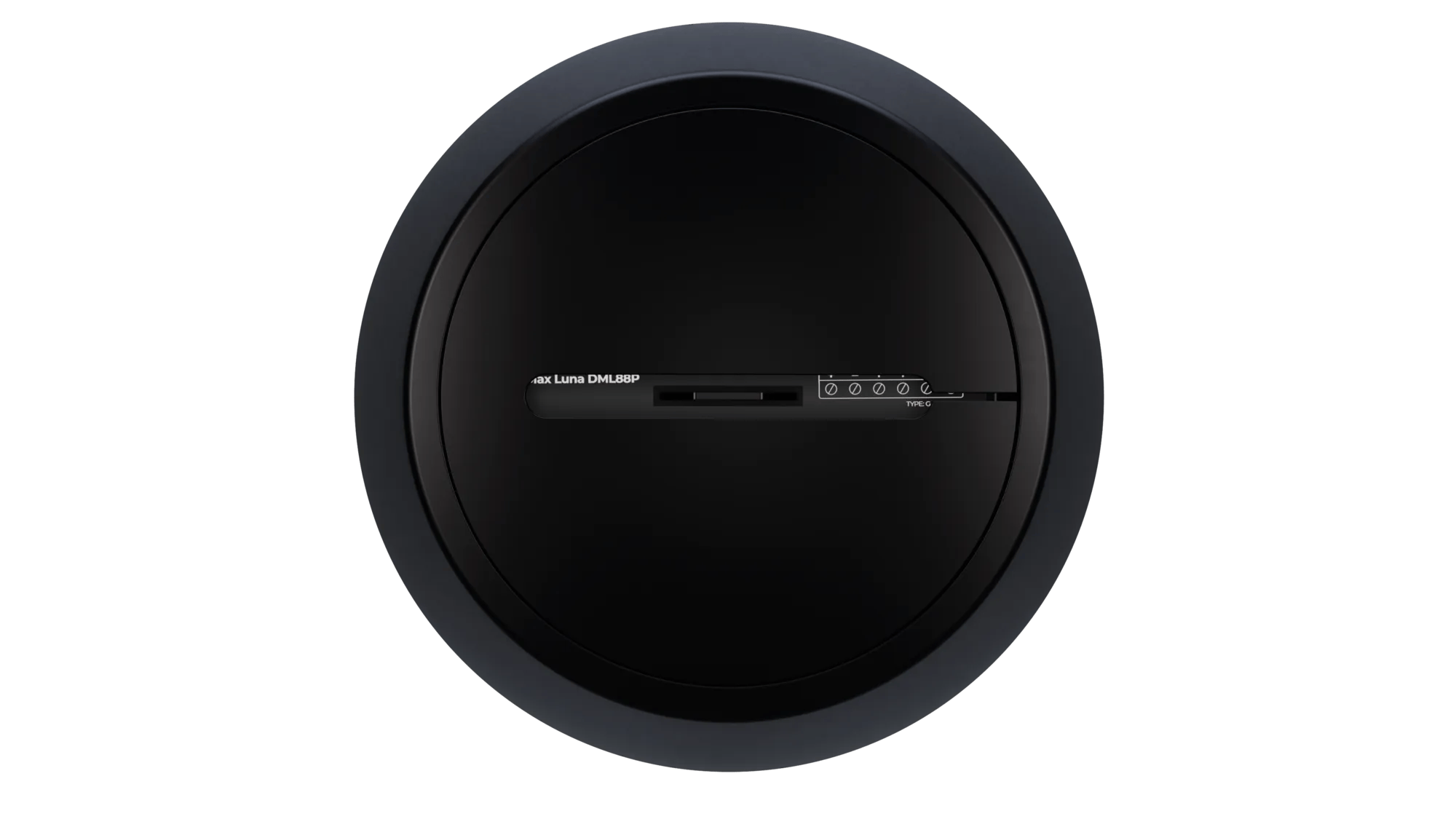

  • (1) connection panel cover
  • (1) adjustable suspension cable system
  • (4) cable ties
  • (1) installation guide
