DesignMax DM6PE loudspeakers (1 pair)
Loudspeakers

DesignMax DM6PE loudspeakers (1 pair)

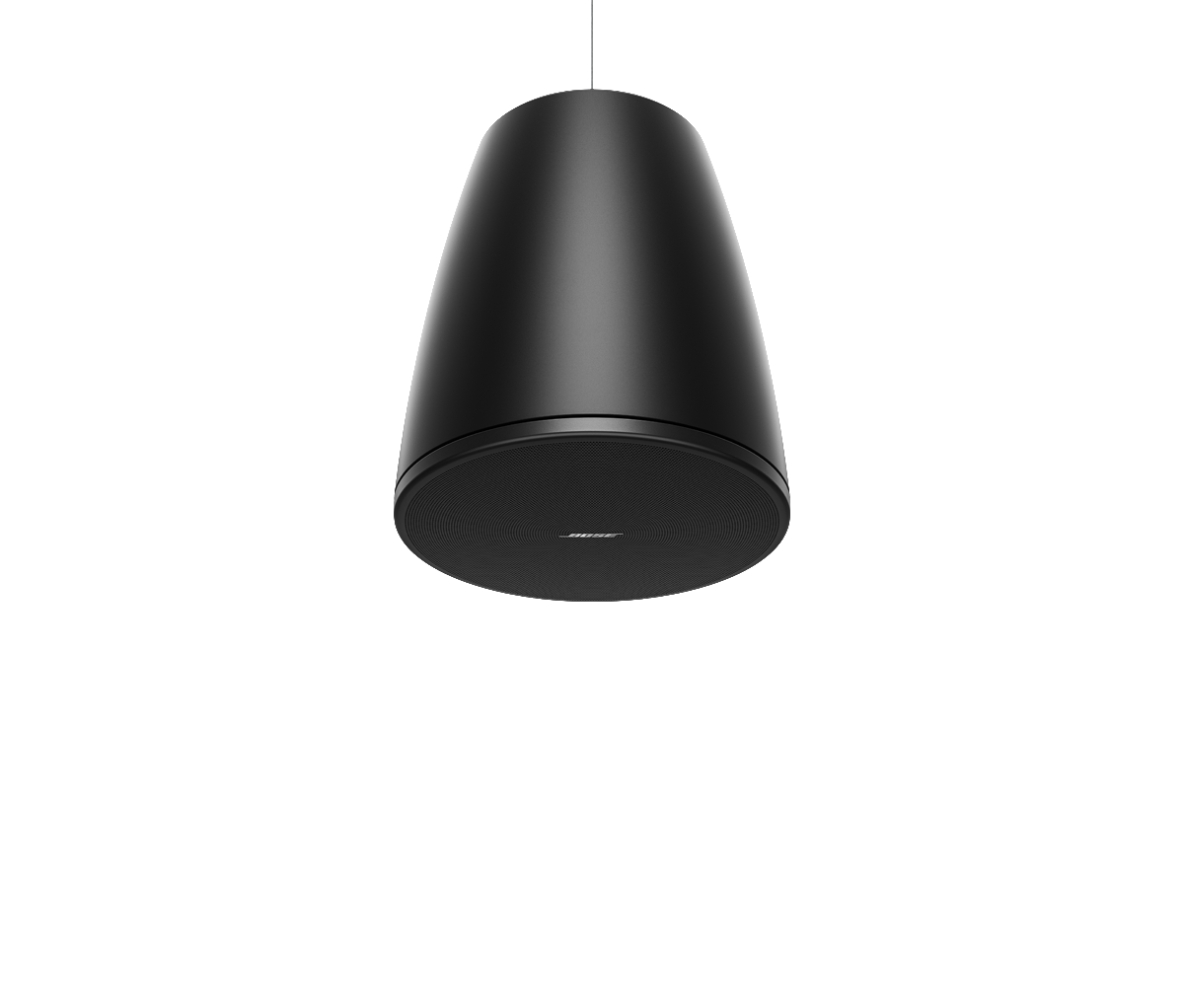

With a coaxial two-way design, the 125-watt Bose Professional DesignMax DM6PE loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. It features a coaxial 6.5-inch woofer and a 1.25-inch tweeter mounted within the Dispersion Alignment system and the DM6PE pendant loudspeaker delivers 62 Hz – 20 kHz. The DM6PE is an IP55 outdoor-rated pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.

Order Codes · 4

See all →

  • 841168-0110

    DESIGNMAX DM6PE PAIR BLACK

    Get Price

  • 841168-0210

    DESIGNMAX DM6PE PAIR WHITE

    Get Price

  • 841168-0120

    DESIGNMAX DM6PE PAIR BLACK (NEW)

    Get Price
Request a Full System Quote
  • Authorized productFull manufacturer warranty
  • Ships from A5 ITCrystal Lake, Illinois
  • Design supportSpecify the whole system

Features

  • Complete any commercial sound installationwith 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options

  • Choose from three DM6 modelsthe in-ceiling DM6C, the surface-mounted and outdoor-rated DM6SE, and the sleek, outdoor-rated DM6PE pendant loudspeaker

  • Deliver rich lows and clear, intelligible highs with a coaxial two-way designno DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

  • Ensure a consistent listening experiencethroughout the room with the Dispersion Alignment system, which matches the acoustic pattern of the woofer to the pattern of the tweeter

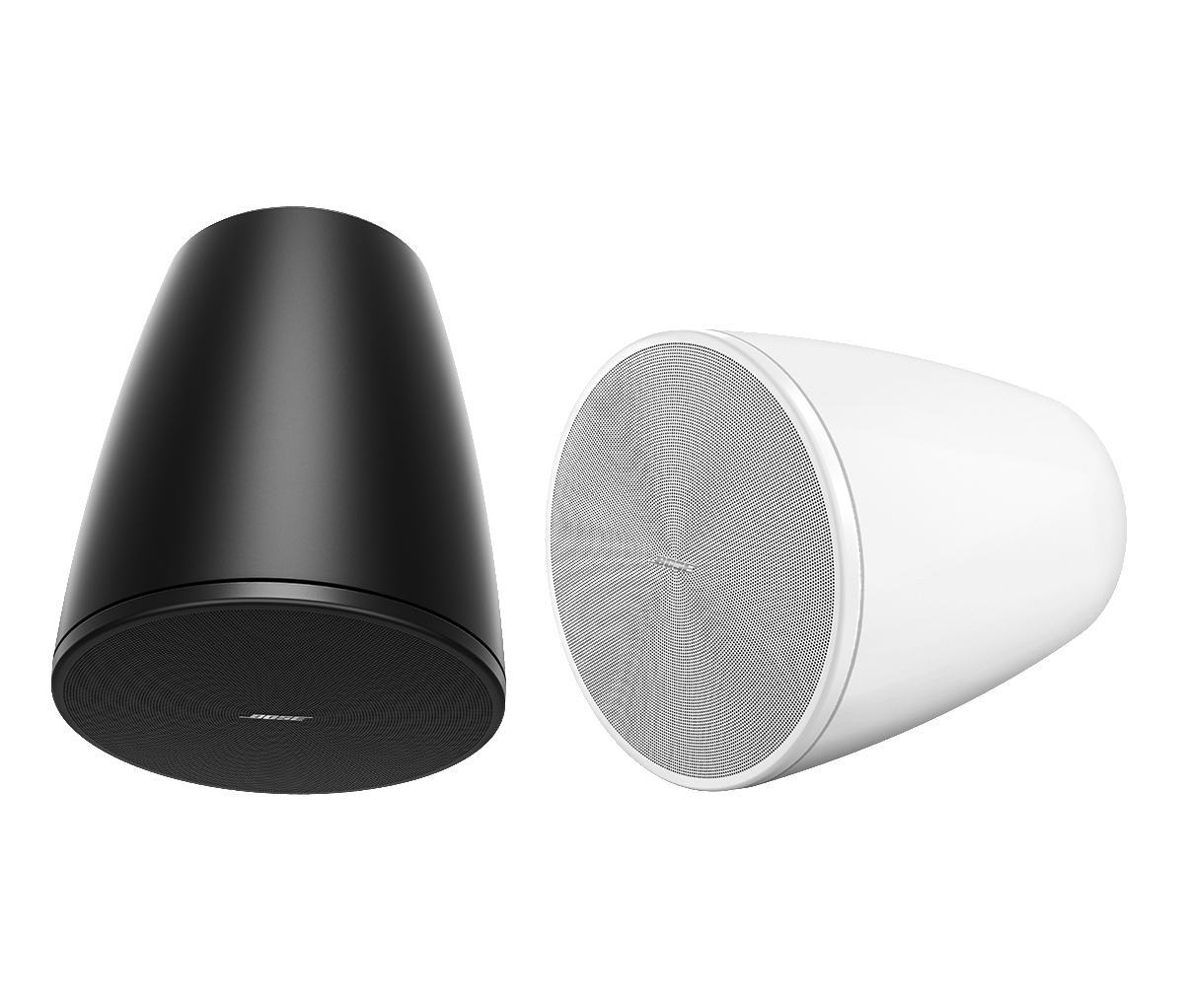

  • Blend with any room designwith elegant form factors, minimum-bezel grilles available in black or white, and removable logos

  • Install easily with industry-standard accessoriesall models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

  • Install DM6PE outsideIP55 rating with powder-coated steel grille for outdoor

Specifications

27 specifications

COMPLIANCE

Safety Agency Ratings
UL 1480A, UL 2239 for suspension cable, NFPA 70 & NFPA 90A, CE-compliant

PHYSICAL

Colors
Black (similar to RAL 9005), white (similar to RAL 9003), paintable
Enclosure Material
Engineered plastics, highly UV fade-resistant
Environmental
Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather resistant input cover
Grille
Perforated steel, powder-coated finish
Ingress Protection
IP55
Logo
Rotatable, removable

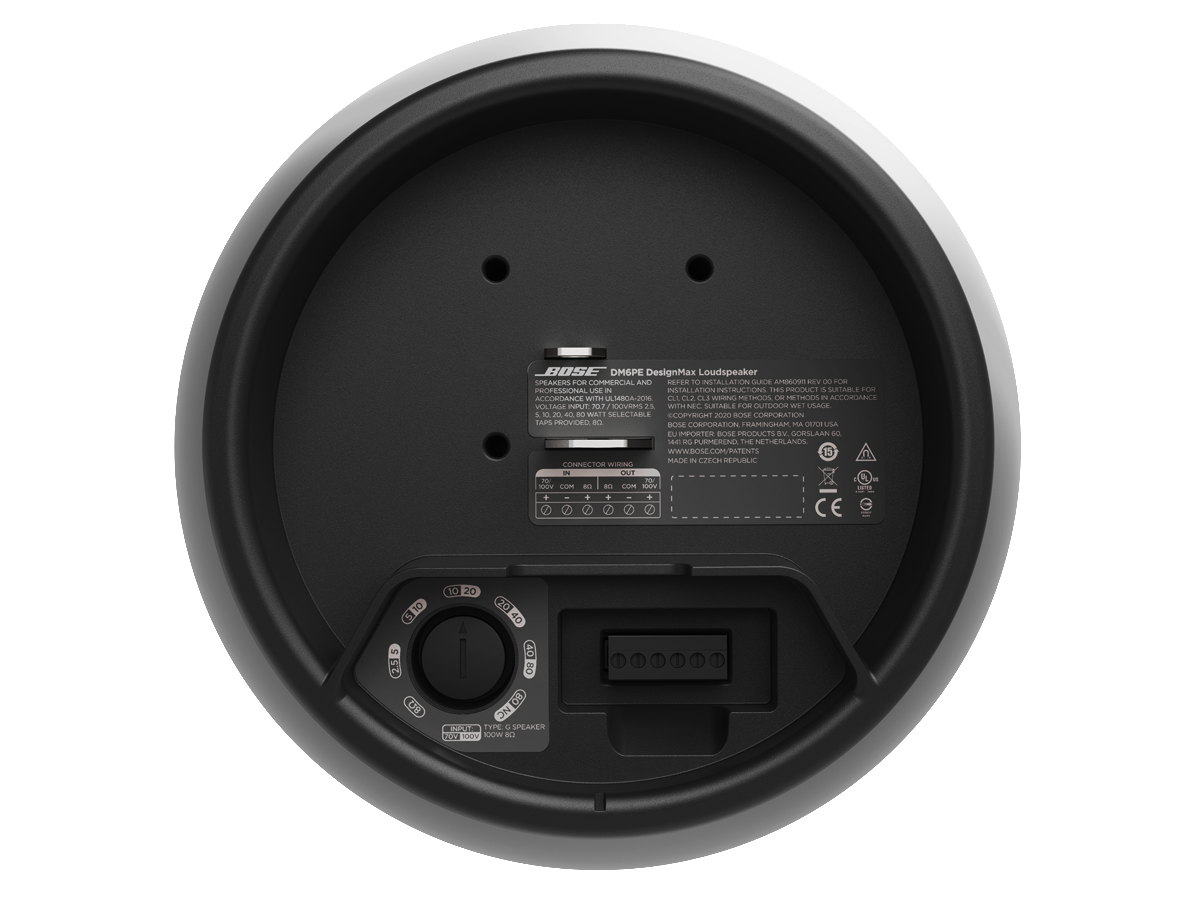

Suspension/Mounting
1 suspension attachment point, 1 safety cable attachment point
Operating Temperature Range
-25 °C to 65 °C (-13 °F to 149 °F)
Product Dimensions (H×W×D)
12.1 in × 14.8 in (308 mm × 375 mm), loudspeaker diameter × depth
Net Weight
12.5 lb (5.7 kg), single
Shipping Weight
33.1 lb (15.0 kg), pair

PERFORMANCE

Frequency Range (-10 dB)
62 Hz – 20,000 Hz
Coverage, Horizontal
115° conical
Calculated Maximum SPL @ 1 m
110 dB
Nominal Impedance
8 Ω (transformer bypass)
Power Handling, long-term continuous
100 W
Power Handling, Peak
400 W
Recommended Signal Processing
Not required, Bose Professional EQ voicing and SmartBass processing available
Sensitivity (SPL/1 W at 1 m)
89 dB
Transformer Taps, 100V
5, 10, 20, 40, 80 W, bypass
Transformer Taps, 70V
2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass
Coverage, Vertical
115° conical

TRANSDUCERS

Crossover
1.7 kHz, passive 2-way crossover
Driver Protection
Recommended high-pass protection 60 Hz with recommended 24 dB/octave filter
High-Frequency
1 × 1.25 in (32 mm) neodymium dome tweeter, coaxially mounted, weather-treated
Low-Frequency
1 × 6.5 in (165 mm) woofer, weather-treated

Order Codes

Order CodeDescriptionAvailability
841168-0110DESIGNMAX DM6PE PAIR BLACKGet Price
841168-0210DESIGNMAX DM6PE PAIR WHITEGet Price
841168-0120DESIGNMAX DM6PE PAIR BLACK (NEW)Get Price
841168-0220DESIGNMAX DMPE PAIR WHITE (NEW)Get Price

In the Box

  • (4) cable ties
  • (2) suspension cables, 15.0 ft (4.5 m) each
  • (1) weather-resistant input cover
