DesignMax DM5P loudspeakers (1 pair)

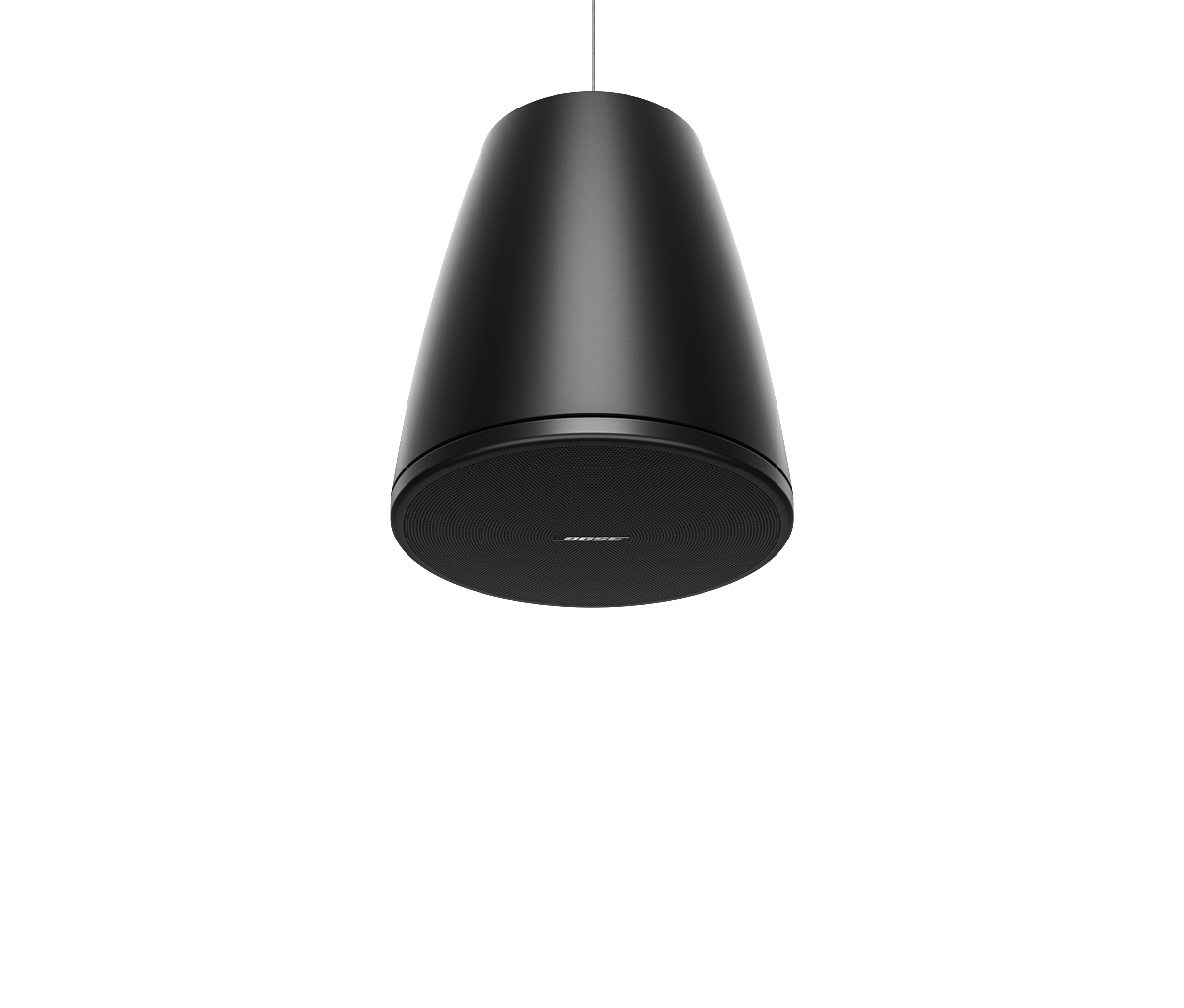

With a coaxial two-way design, the 60-watt Bose Professional DesignMax DM5P loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. It features a coaxial 5.25-inch woofer and 1-inch tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 65 Hz – 20 kHz. The DM5P is a pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.
Features
Specifications
COMPLIANCE
- Safety Agency Ratings
- UL 1480A, UL 2239 for suspension cable, NFPA 70 & NFPA 90A, CE-compliant
PHYSICAL
- Colors

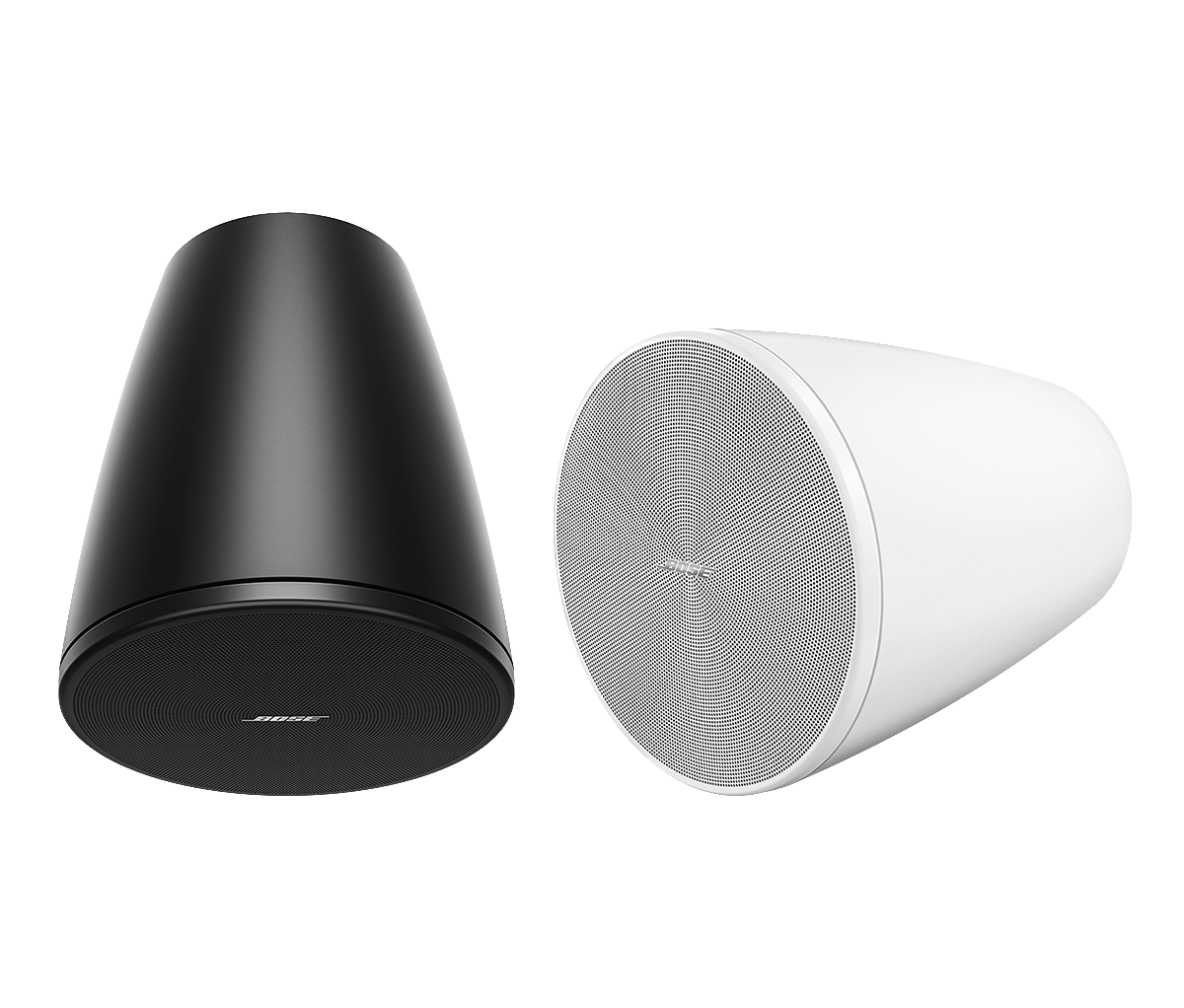

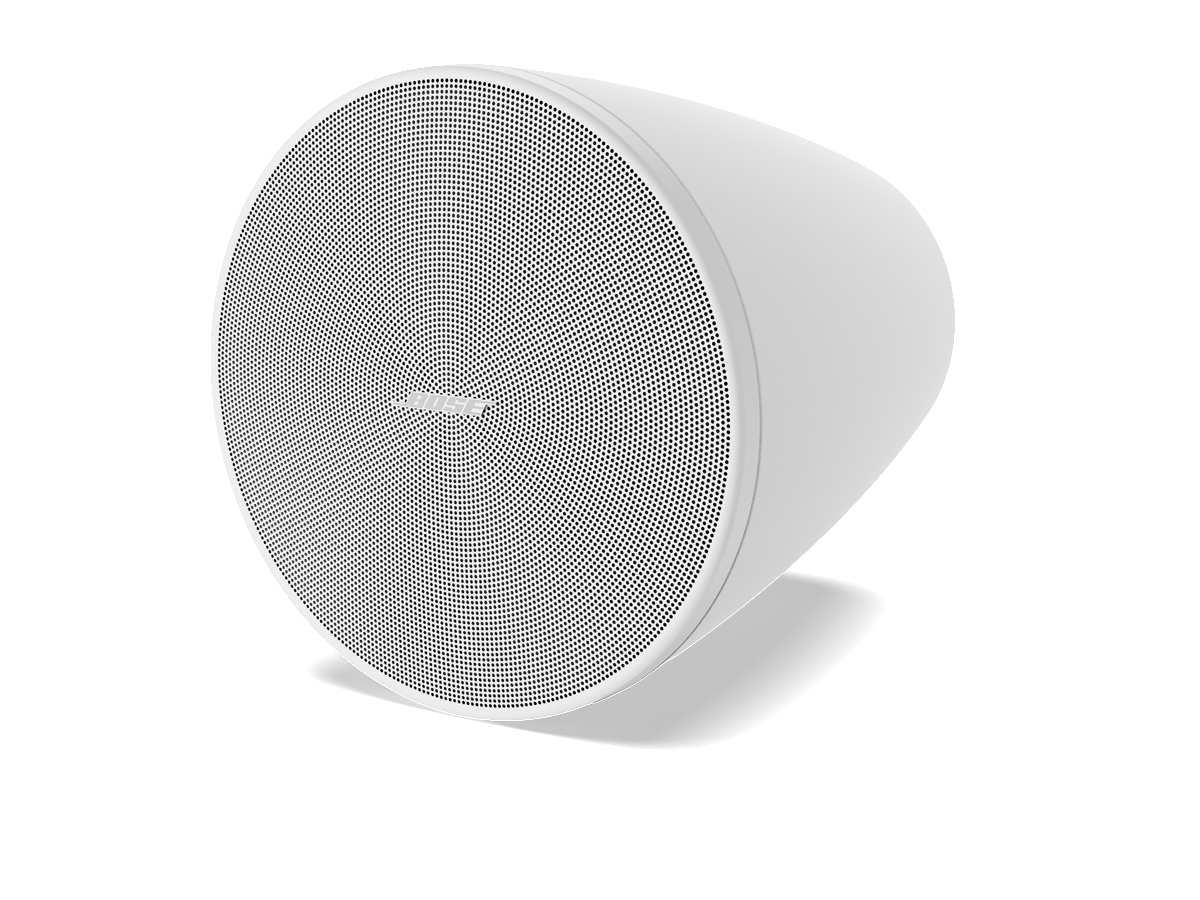

- Black (similar to RAL 9005), white (similar to RAL 9003), paintable
- Enclosure Material
- Engineered plastics
- Environmental
- Indoor only
- Grille
- Perforated steel, powder-coated finish
- Logo
- Rotatable, removable
- Suspension/Mounting
- 1 suspension attachment point, 1 safety cable attachment point
- Operating Temperature Range
- 0 °C to 50 °C (32 °F to 122 °F)
- Product Dimensions (H×W×D)
- 10.2 in × 11.8 in (259 mm × 300 mm), loudspeaker diameter × depth / 15.0 ft × 0.1 in (4.6 m × 2 mm), suspension cable length × diameter
- Net Weight
- 9.1 lb (4.1 kg), single
- Shipping Weight
- 24.3 lb (11.0 kg), pair
PERFORMANCE
- Frequency Range (-10 dB)
- 65 Hz – 20,000 Hz
- Coverage, Horizontal
- 120° conical
- Calculated Maximum SPL @ 1 m
- 105 dB
- Nominal Impedance
- 8 Ω (transformer bypass)
- Power Handling, long-term continuous
- 50 W
- Power Handling, Peak
- 200 W
- Recommended Signal Processing
- Not required, Bose Professional EQ voicing and SmartBass processing available
- Sensitivity (SPL/1 W at 1 m)
- 87 dB

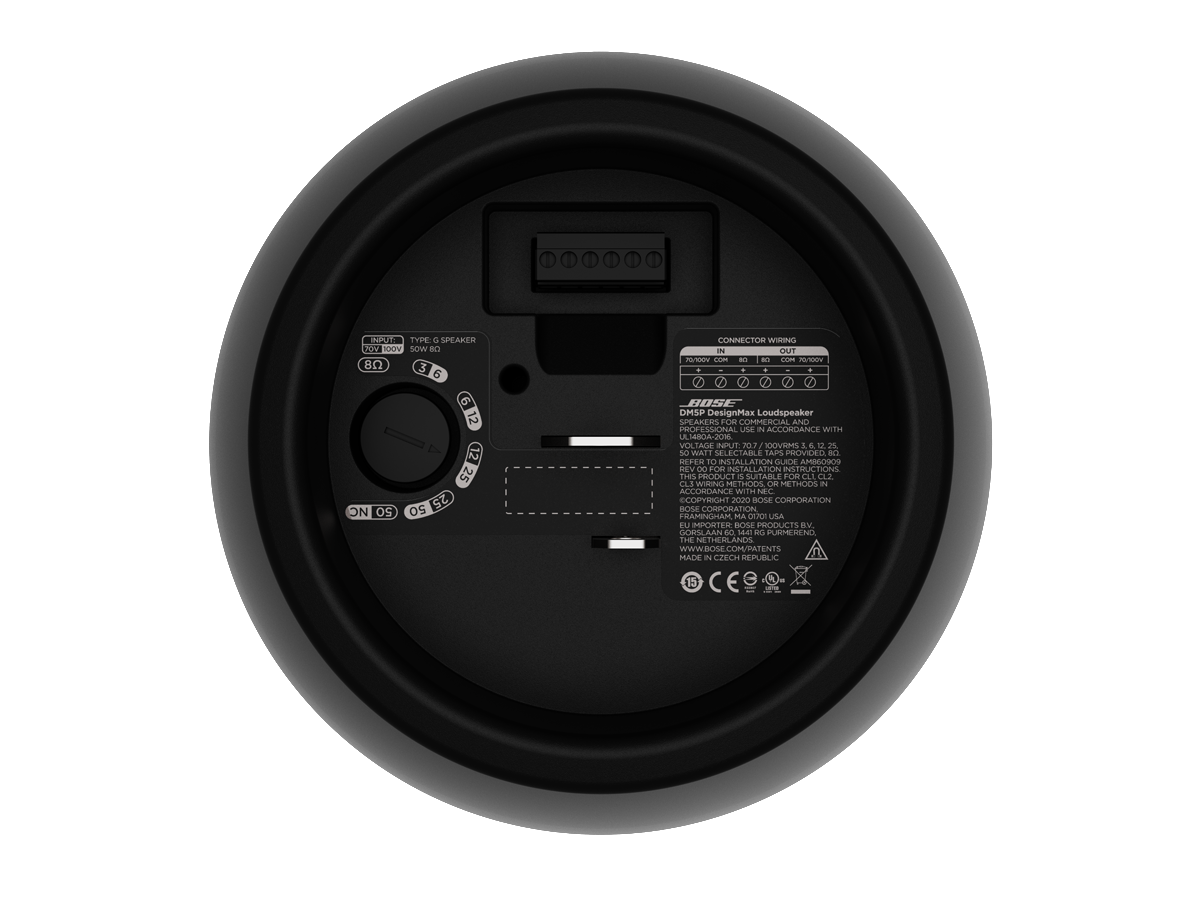

- Transformer Taps, 100V
- 6, 12, 25, 50 W, bypass
- Transformer Taps, 70V
- 3 W, 6 W, 12 W, 25 W, 50 W, bypass
- Coverage, Vertical
- 120° conical
TRANSDUCERS
- Crossover
- 1.8 kHz, passive 2-way crossover
- Driver Protection
- Recommended high-pass protection 65 Hz with minimum 24 dB/octave filter
- High-Frequency

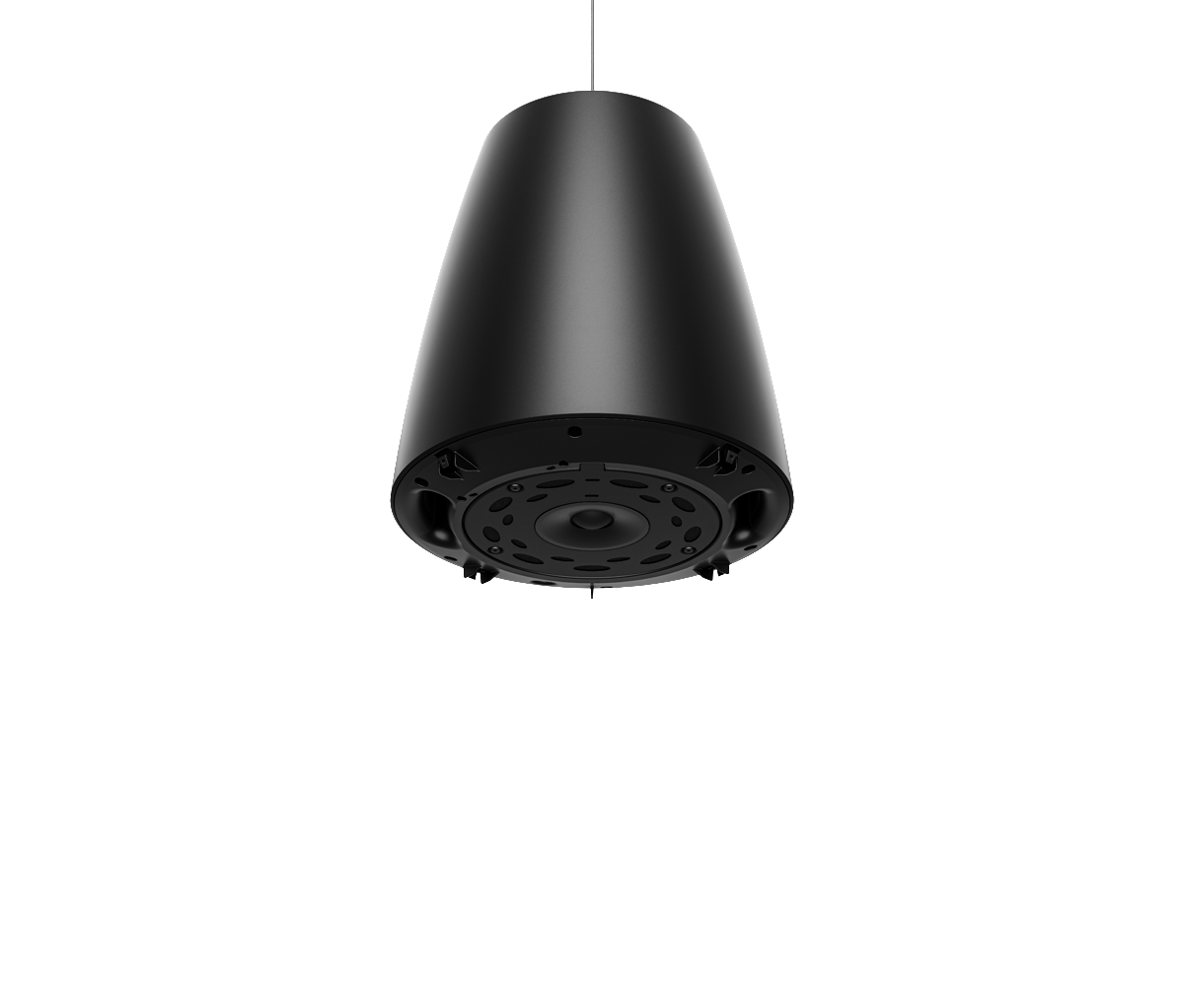

- 1 × 1 in (25 mm) neodymium dome tweeter, coaxially mounted
- Low-Frequency
- 1 × 5.25 in (133 mm) woofer
