Forum FC112

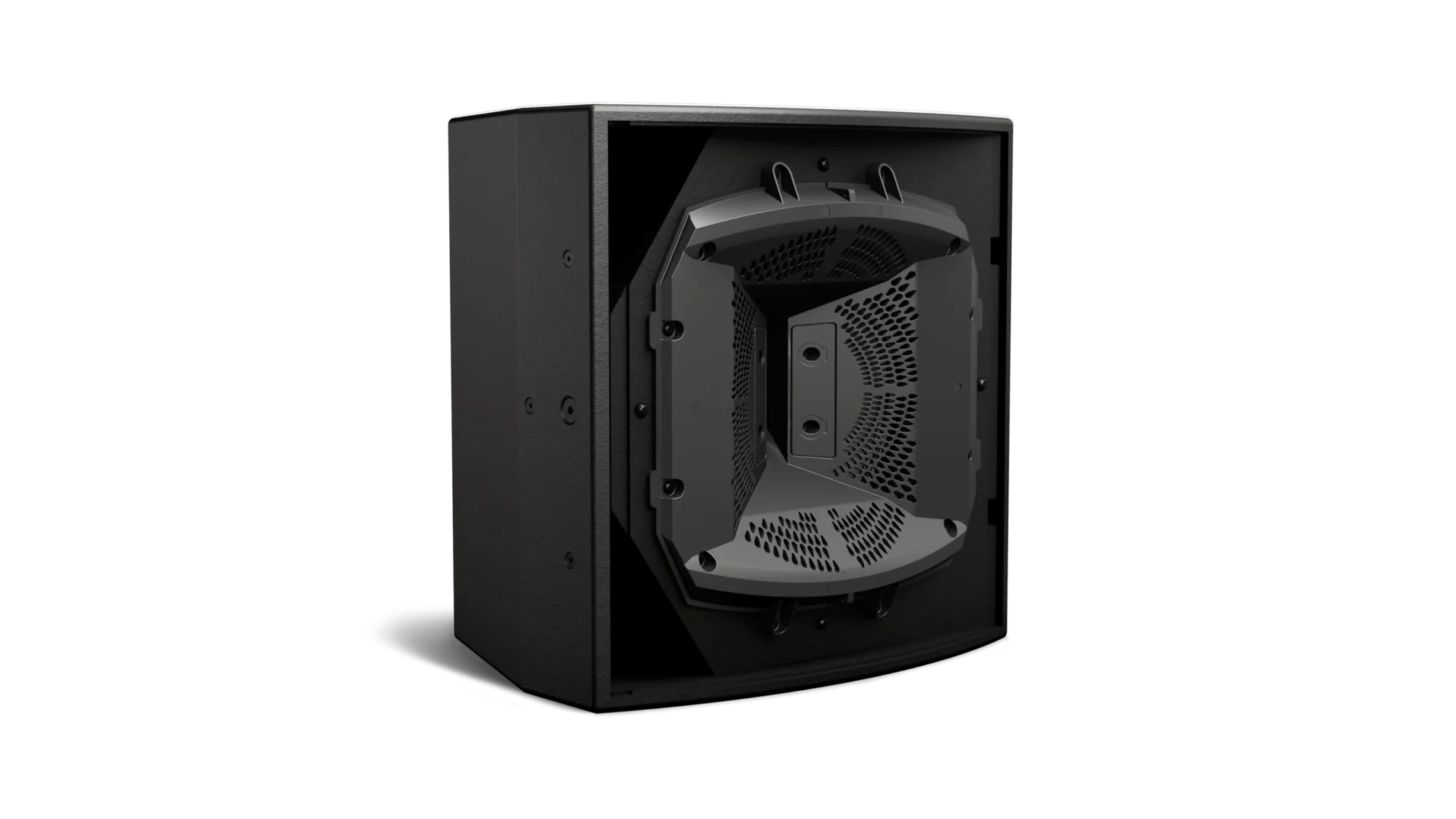

Forum FC112 is a 12-inch full-range coaxial point-source loudspeaker that delivers exceptional fidelity and output in a compact, install-friendly form factor. With a frequency range of 48 Hz–20 kHz and 132 dB max peak SPL, Forum FC112 provides clear, impactful sound for mid-to-large installations. The design features a high-excursion coaxial driver and Beamwidth Matching Waveguide technology for consistent 110° × 60° coverage, ensuring even audio distribution across the space. The fully tuned passive crossover means no additional processing is required—just plug in and get excellent performance with any full-range signal. Designed for easy installation, Forum FC112 offers surprisingly high output from a compact enclosure, making it well-suited for a variety of installations—right out of the box.
Features
Applications
Designed for a wide range of applications, including:
Specifications
PHYSICAL
- Colors
- Black
- Enclosure Material
- Birch plywood
- Environmental
- Protected-outdoor usage, IP43
- Grille
- Perforated steel, powder-coated finish
- Ingress Protection
- IP43
- Logo
- Rotatable

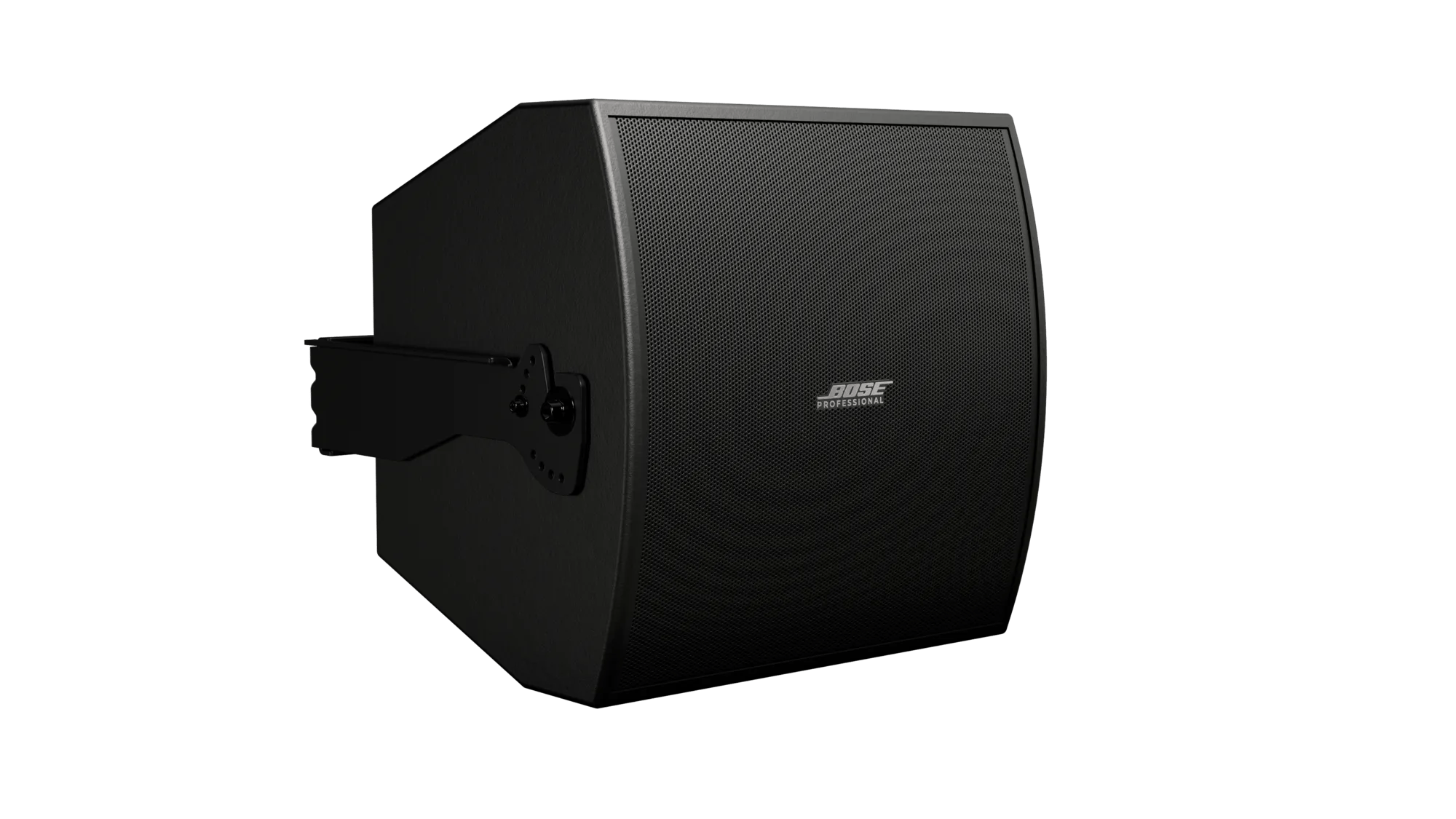

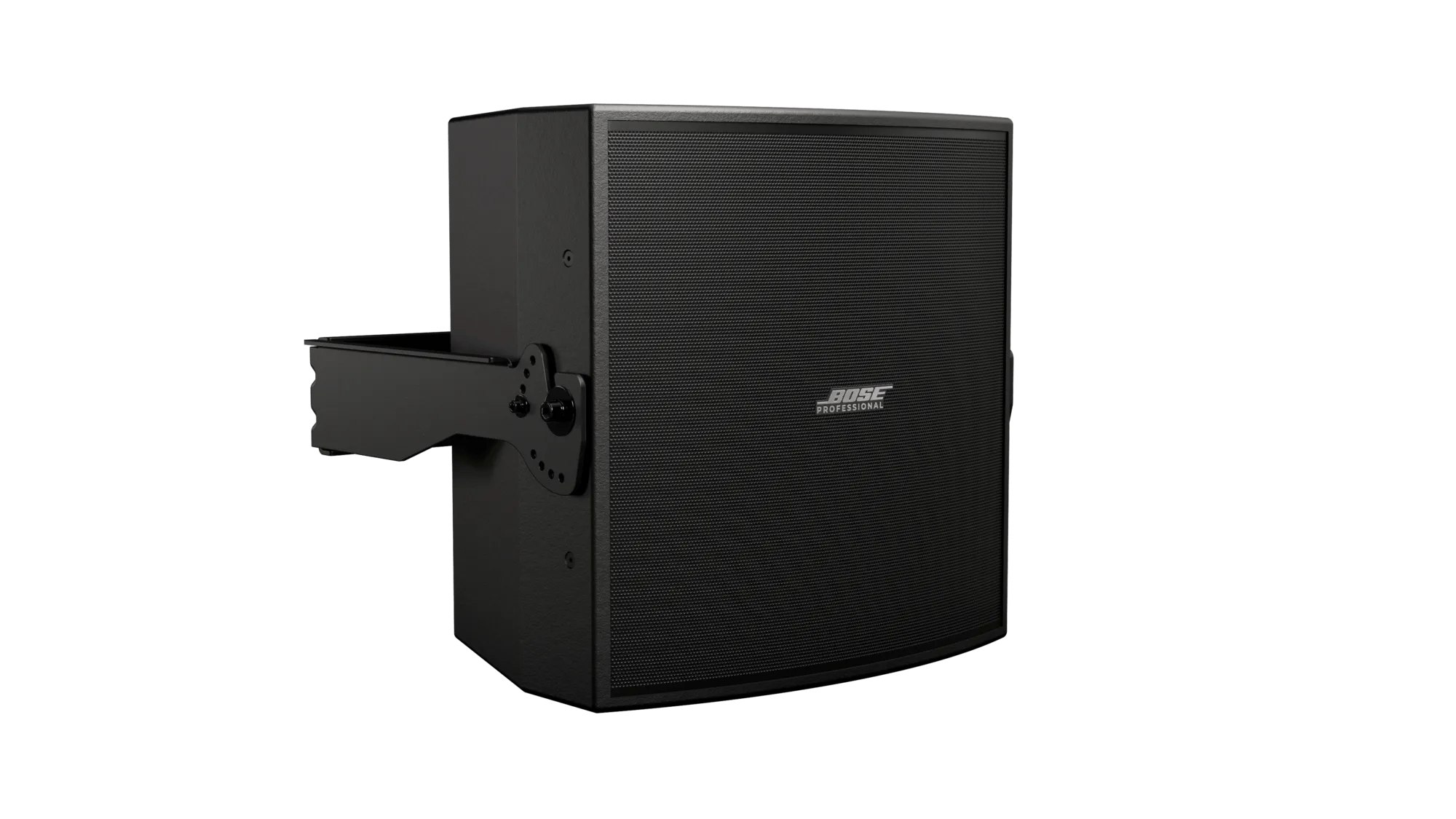

- Suspension/Mounting
- M10 threaded inserts

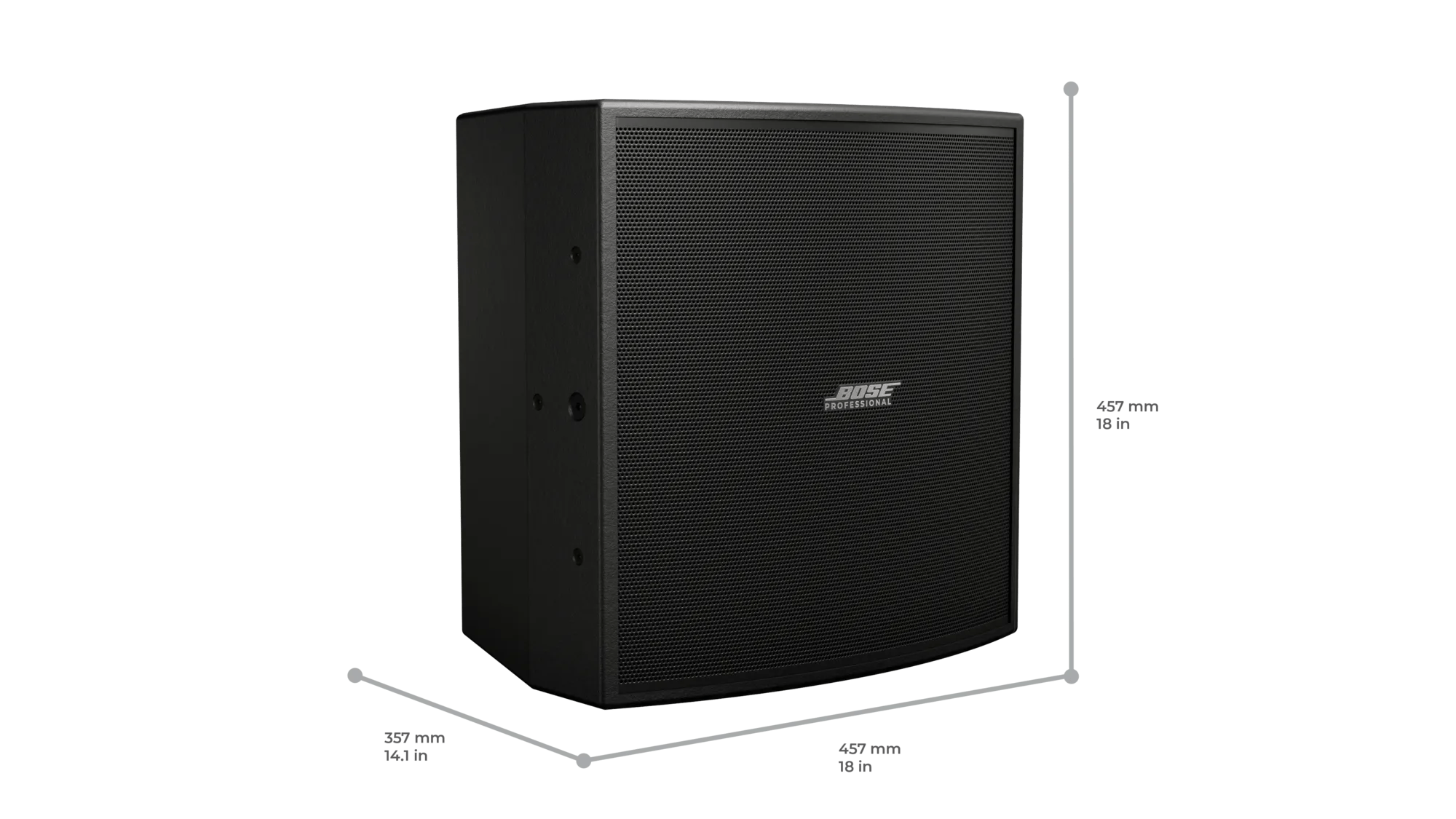

- Product Dimensions (H×W×D)
- 457 mm × 457 mm × 370 mm (18.0 in × 18.0 in × 14.6 in)
- Net Weight
- 20.1 kg (44.3 lb)
- Shipping Weight
- 23.4 kg (51.6 lb)
PERFORMANCE
- Frequency Range (-10 dB)
- 48 Hz – 20,000 Hz

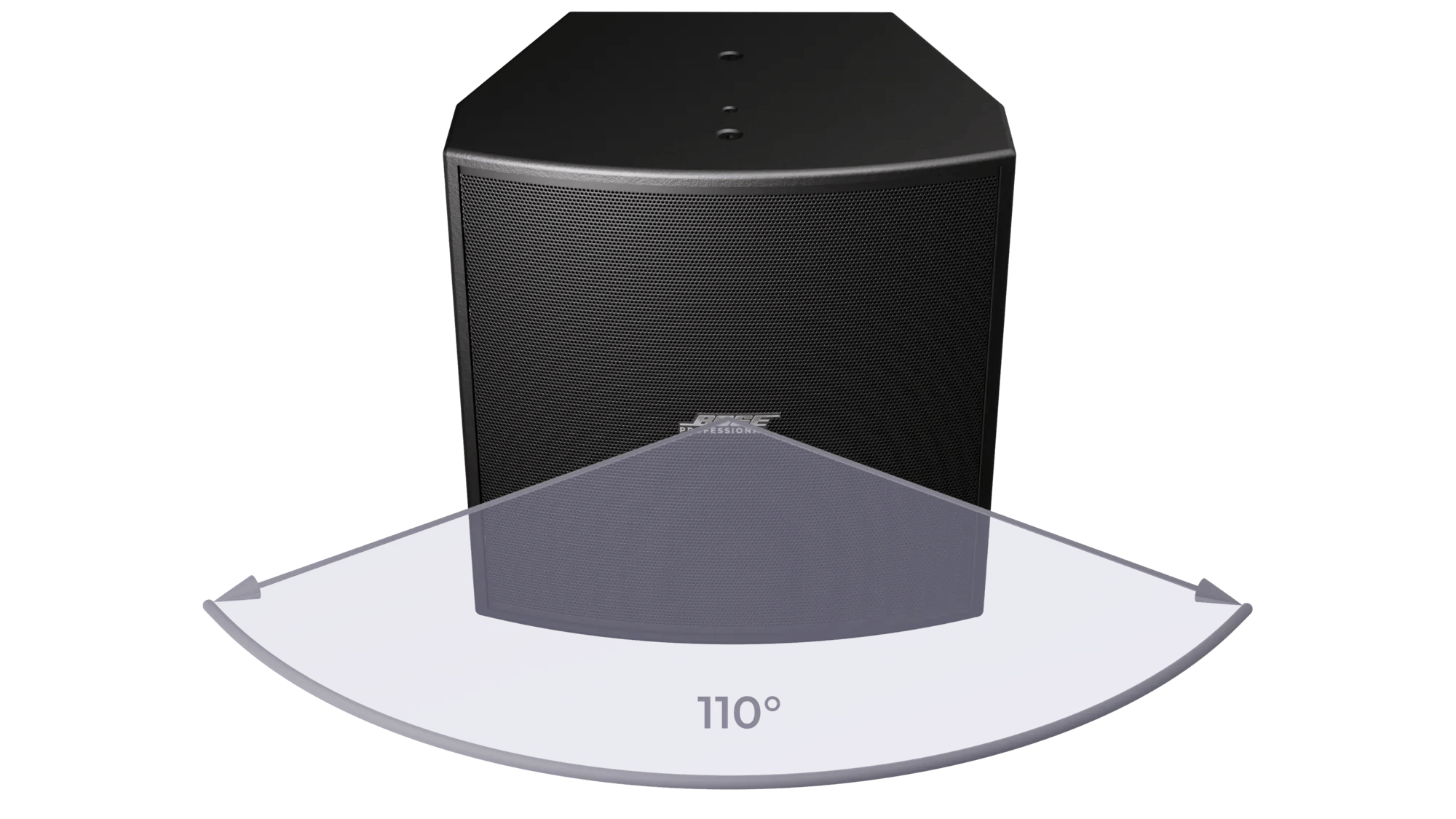

- Coverage, Horizontal
- 110°
- Calculated Maximum SPL @ 1 m
- 126 dB continuous, 132 dB peak
- Nominal Impedance
- 8 Ω, passive / 8 Ω (LF) + 8 Ω (HF), bi-amp
- Power Handling, long-term continuous
- 300 W
- Power Handling, Peak
- 2400 W
- Recommended Signal Processing
- Bose Professional presets available but not required
- Sensitivity (SPL/1 W at 1 m)
- 96 dB

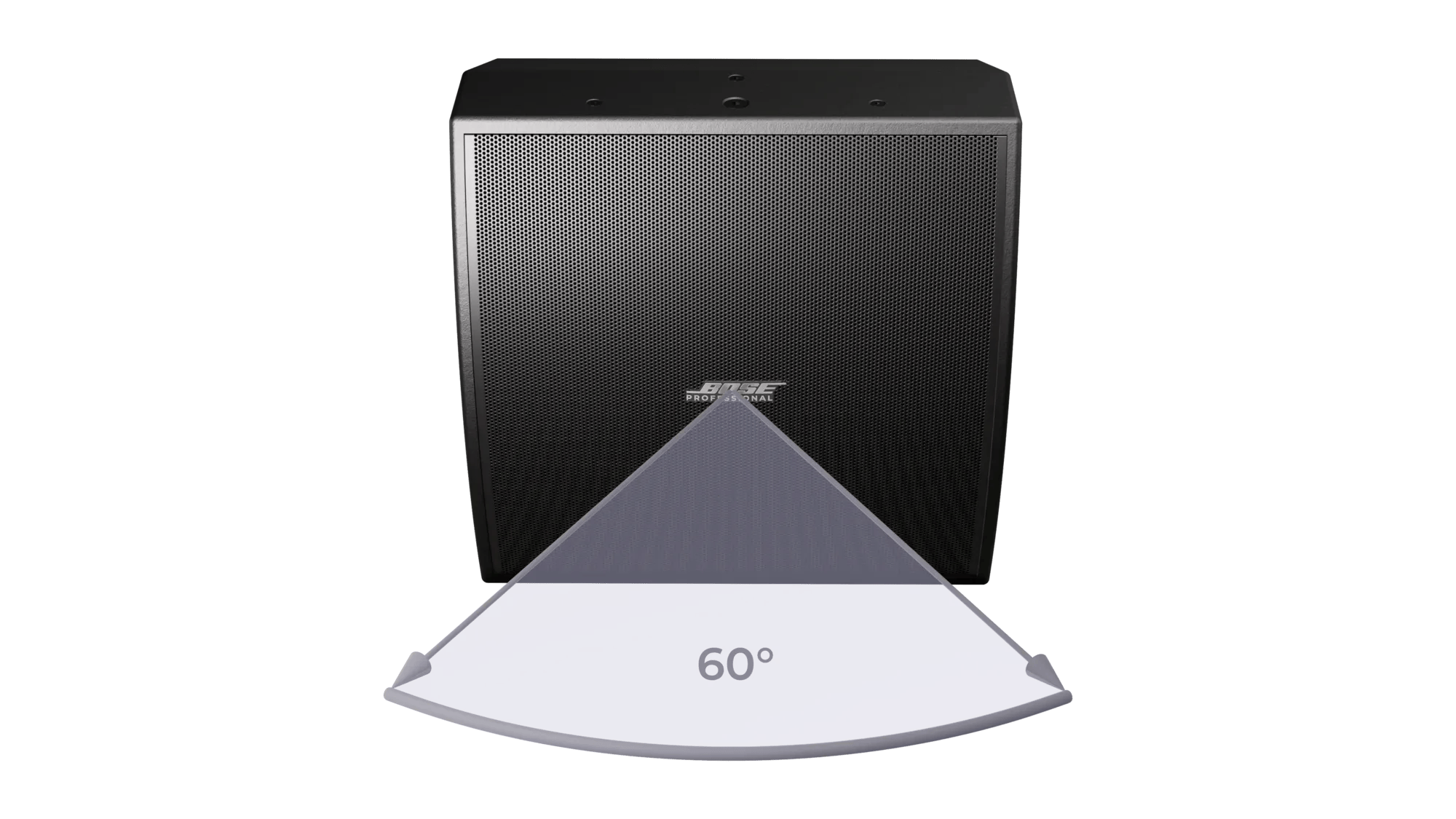

- Coverage, Vertical
- 60°

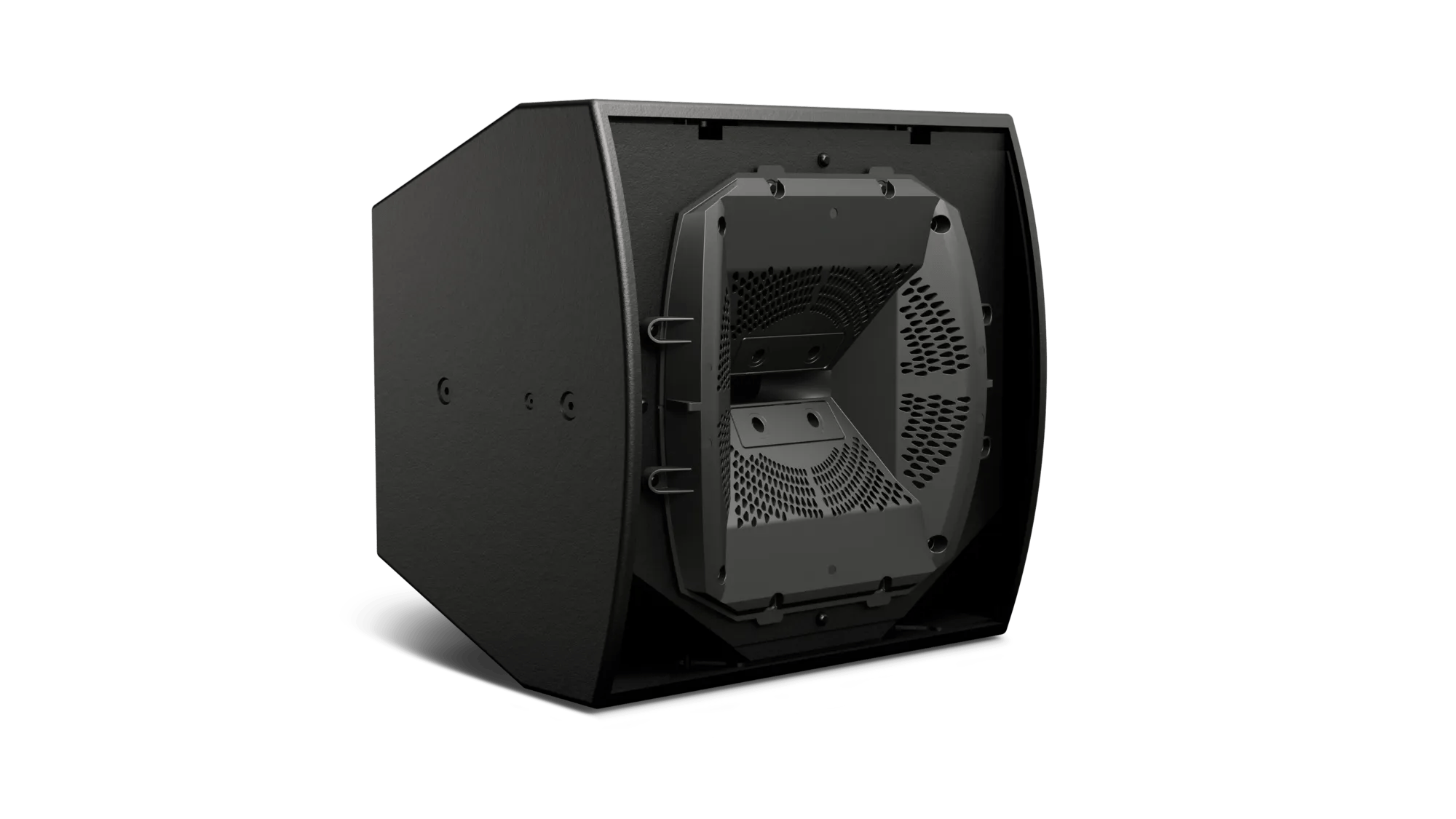

TRANSDUCERS

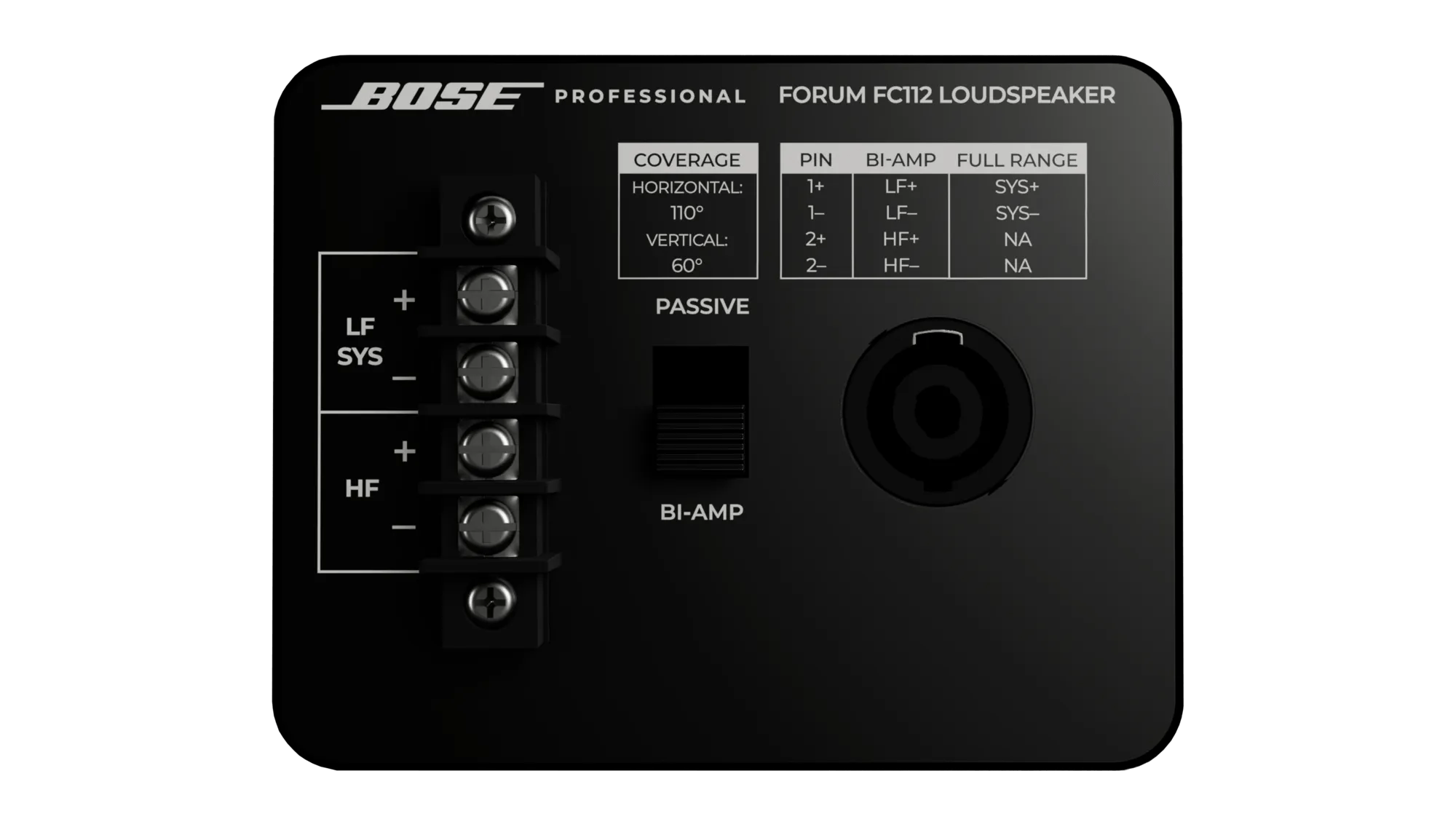

- Crossover
- Internal passive or external bi-amp
- High-Frequency
- 1 × compression driver, 1.7 in (44 mm) voice coil
- Low-Frequency
- 1 × 12.0 in (305 mm) woofer
In the Box
