AMM108 multipurpose loudspeaker
Loudspeakers

AMM108 multipurpose loudspeaker

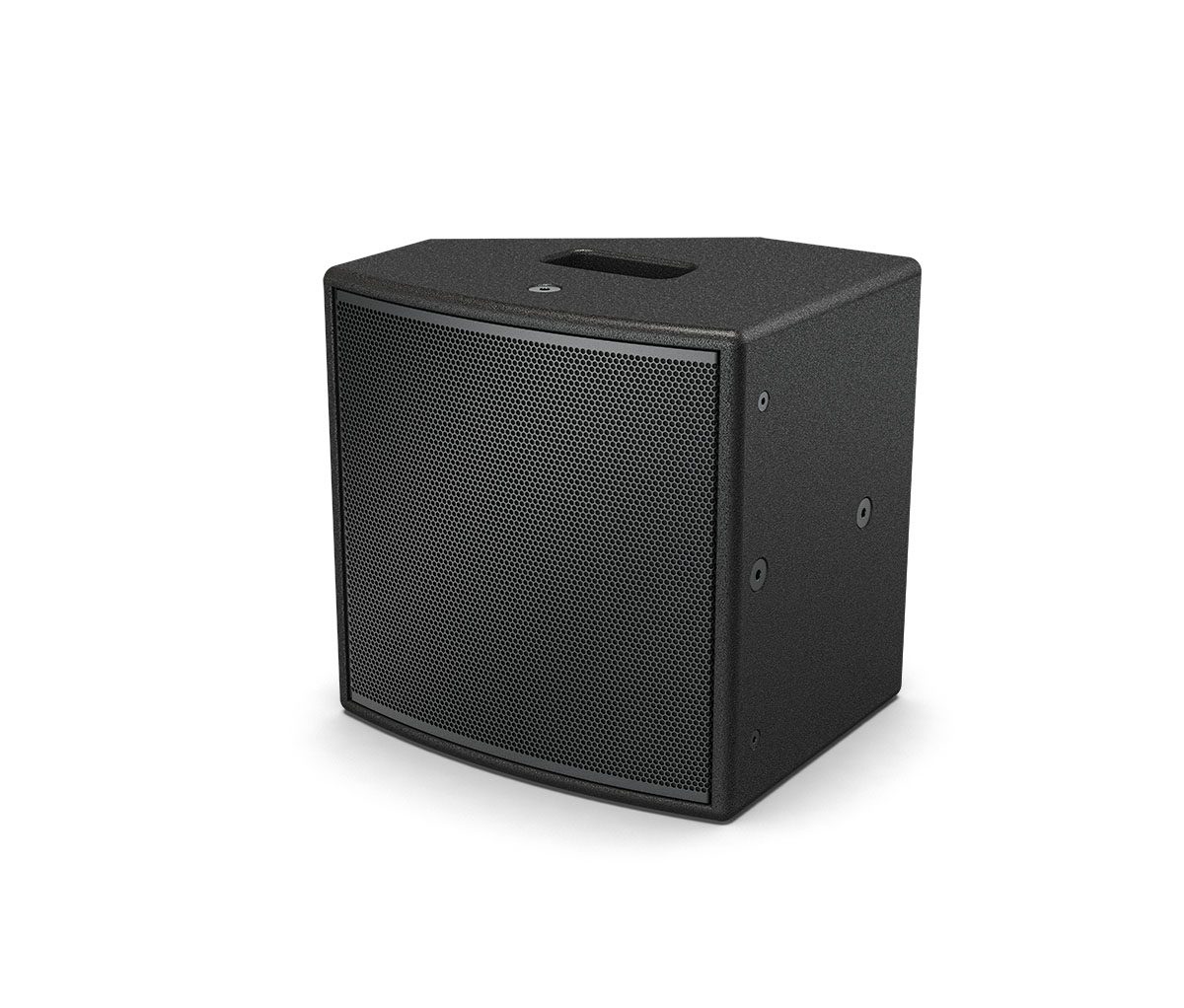

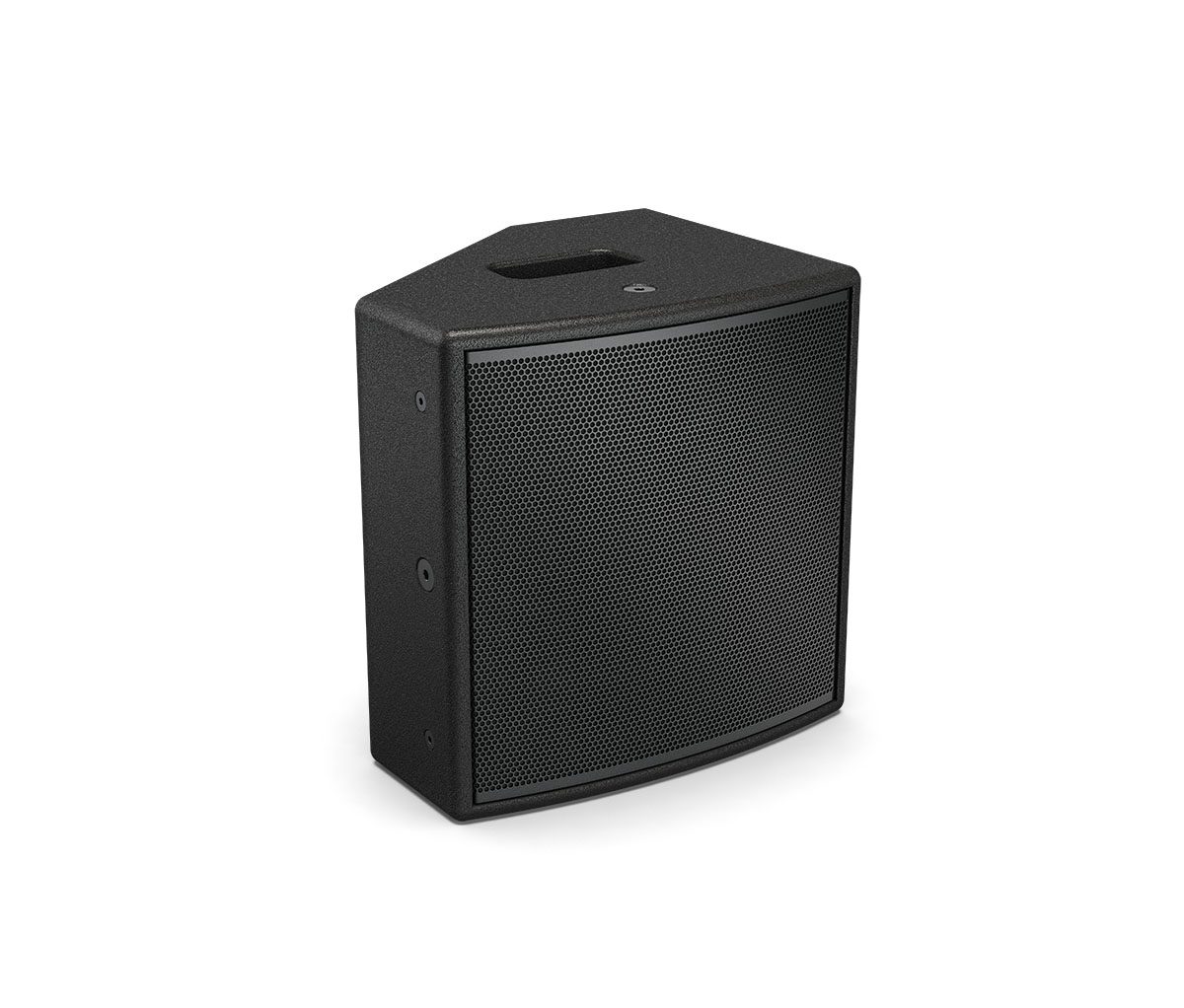

The Bose Professional AMM108 multipurpose loudspeaker features a passive, coaxial two-way design with a 1.7-inch compression driver, 8-inch low-frequency transducer, and high output: 128 dB peak. Its proprietary Beamwidth Matching Waveguide ensures signature Bose Professional sound quality, delivering consistent frequency response, clarity, and projection across the coverage area — a remarkably powerful audio experience for both performers and audiences. The AMM108 is equally suited for a variety of medium-throw sound reinforcement, monitor, and fill applications in permanent or portable sound systems and offers outstanding vocal clarity and projection. The AMM108 features consistent voicing with Bose Professsional AM array modules and Bose Professional AMU utility loudspeakers. So it’s easy to mix and match models from all three lines to create different types of systems.

Order Code

Request a Full System Quote
  • Authorized productFull manufacturer warranty
  • Ships from A5 ITCrystal Lake, Illinois
  • Design supportSpecify the whole system

Features

  • Compact high-output designdelivers 128 dB peak via shared-magnet coaxial driver: 1.7-inch compression driver and 8-inch low-frequency driver

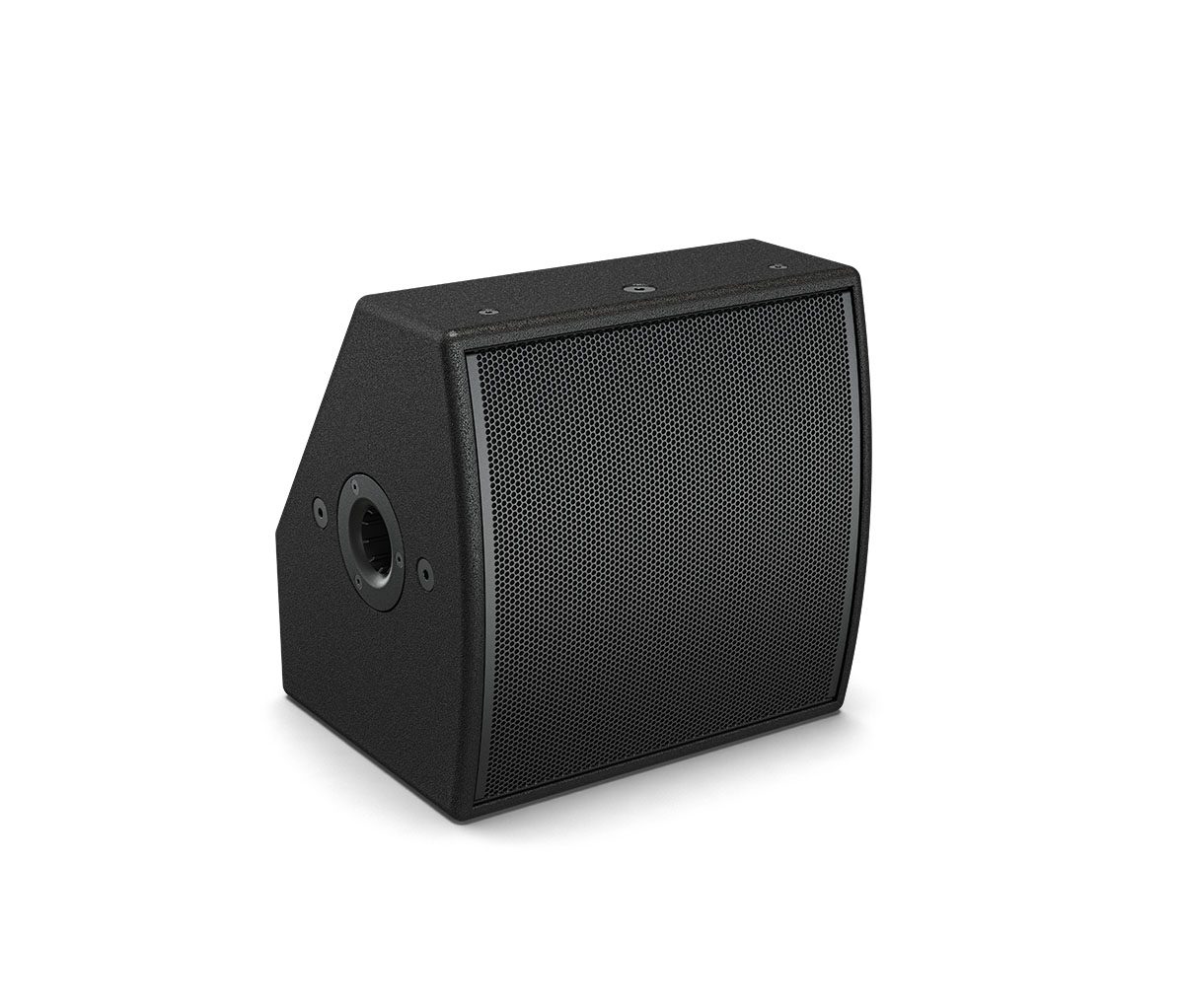

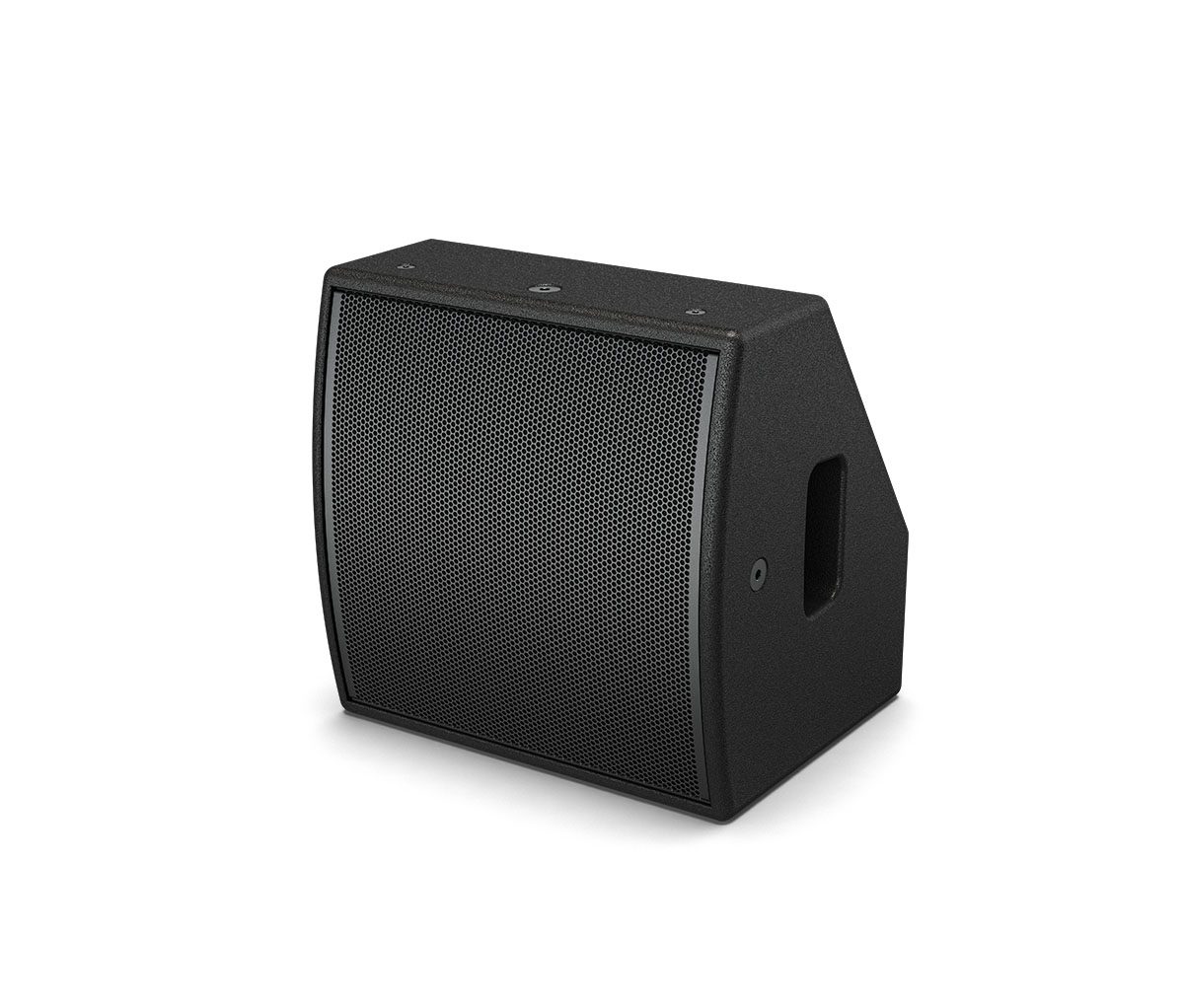

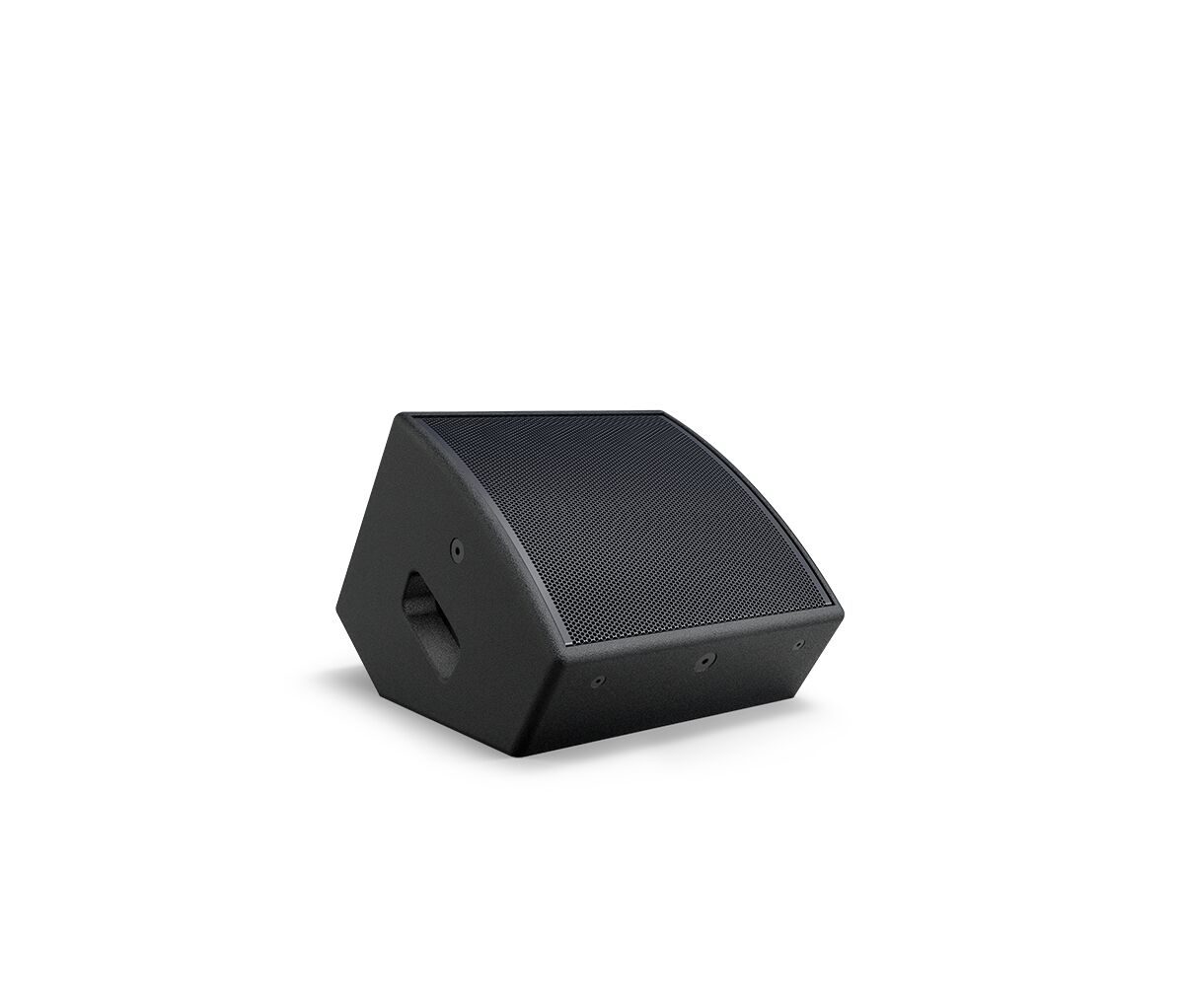

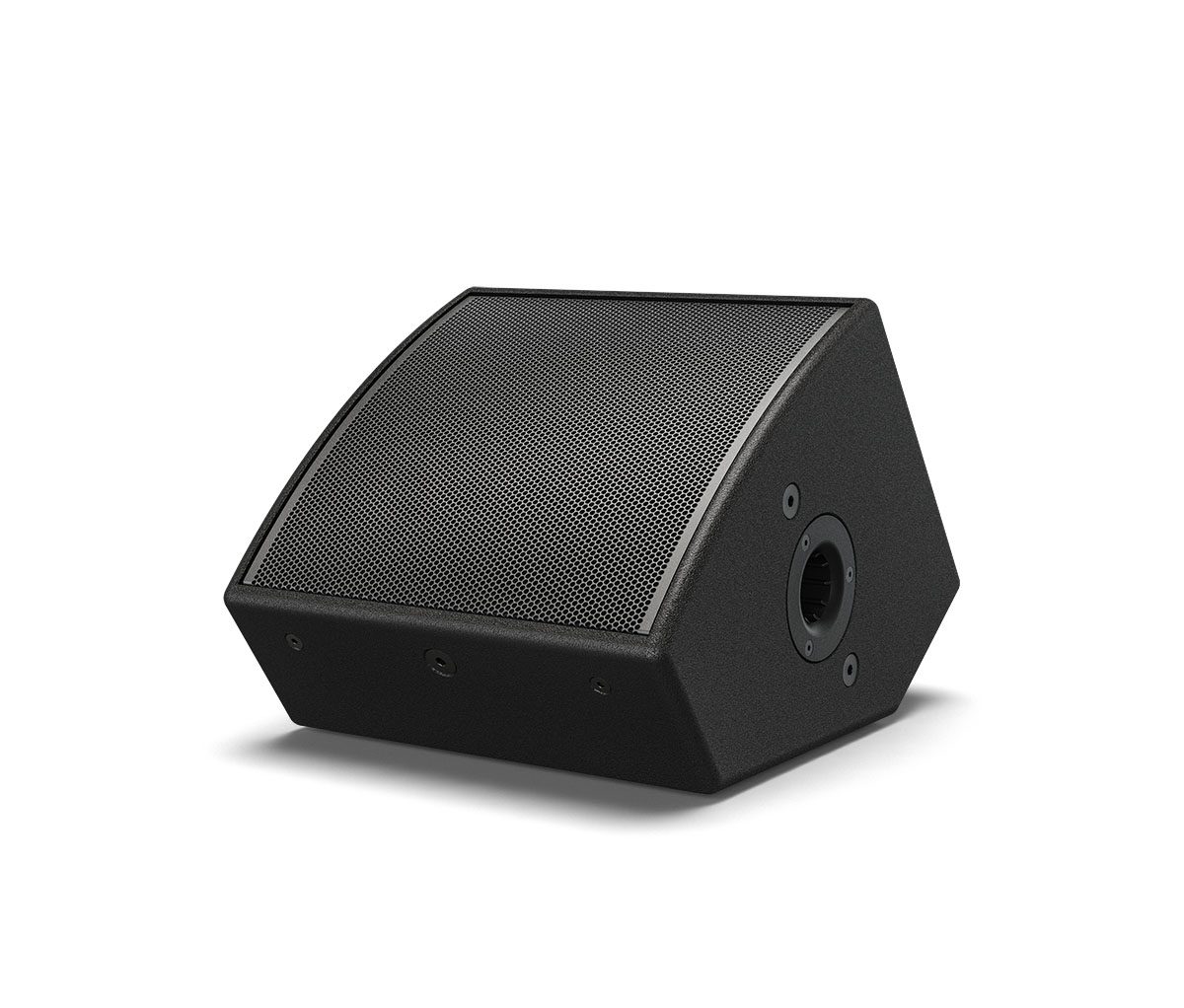

  • Multipurpose versatilityfor deployment as main, monitor, fill, or delay; extend system bandwidth to 35 Hz by pairing with AMS115 subwoofer

  • Consistent tonality and voicingwith AM array modules and AMU utility loudspeakers — easily create entire systems and save substantial time during system configuration

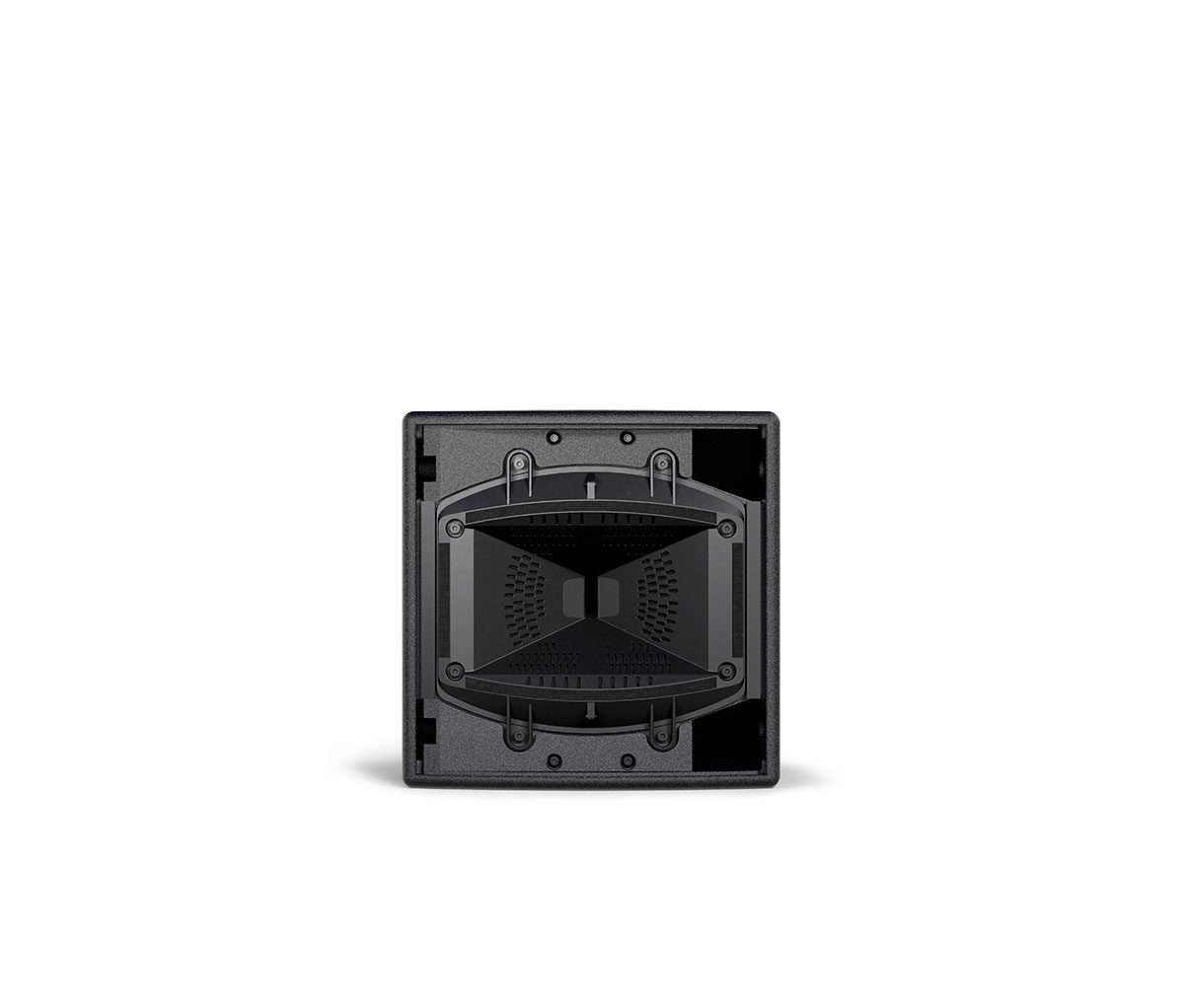

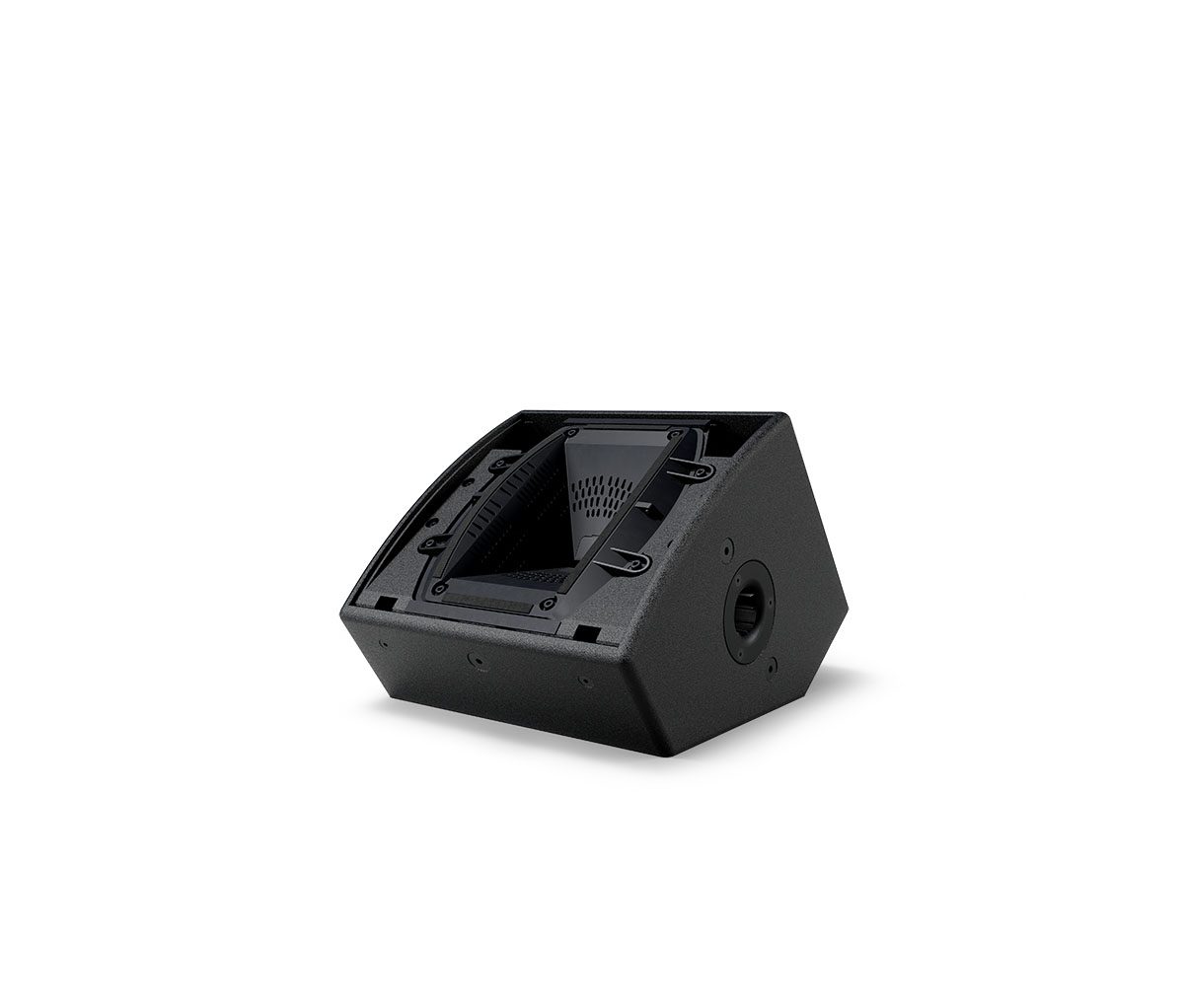

  • Proprietary Beamwidth Matching Waveguideensures signature sound quality, aligning low and high beamwidth through crossover region to deliver excellent tonal consistency across the coverage area

  • Multi-position enclosure with 110° × 60° coverage angleeasily swap horizontal and vertical coverage by simply rotating cabinet, no disassembly or tools required

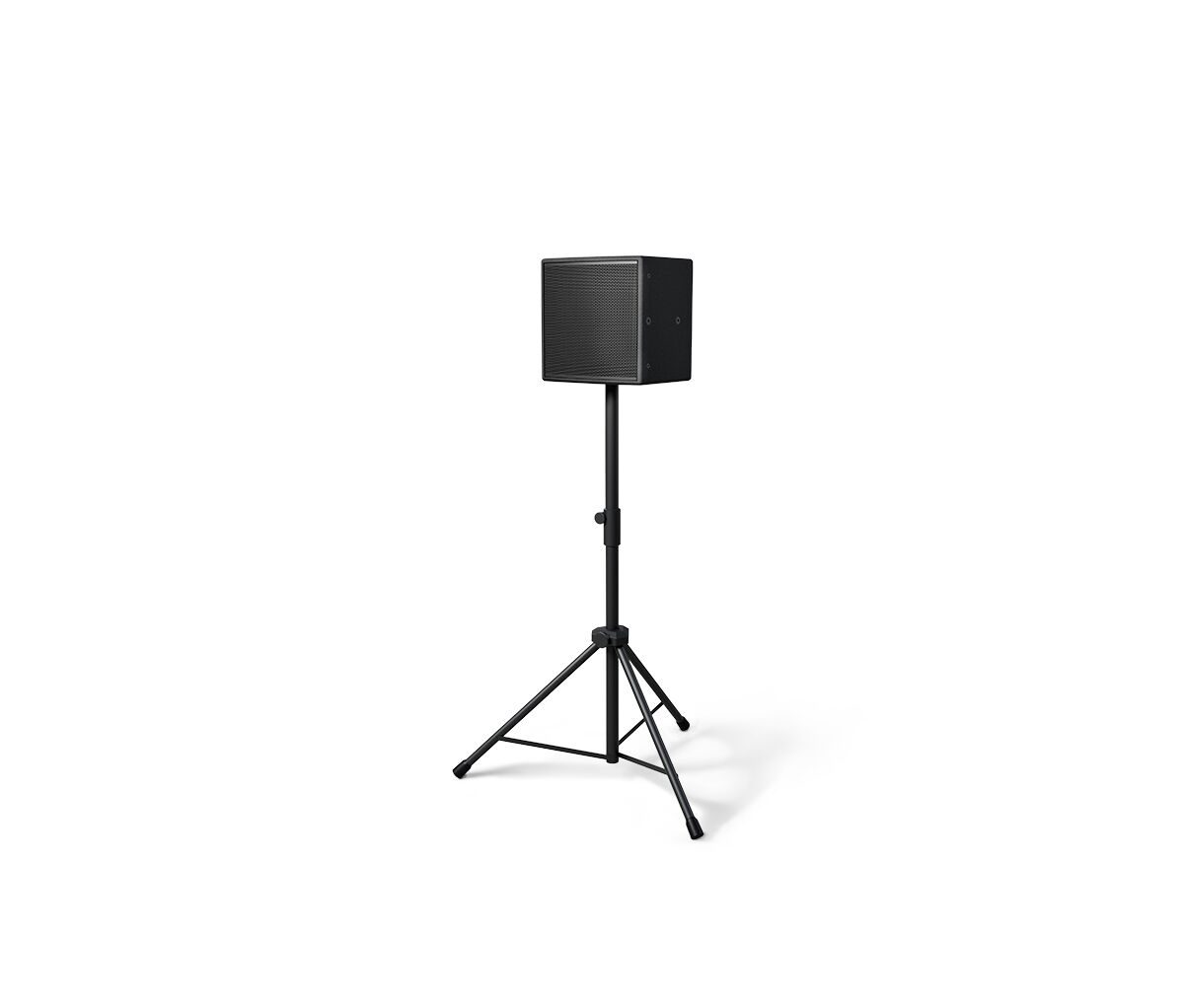

  • Lightweight 13 kg (29 lb)cabinet with large, ergonomic handle and 35 mm pole stand adaptor for easy transportation and setup

  • Pair with Bose Professional PowerMatch amplifiers and ControlSpace DSPfor best performance and loudspeaker protection

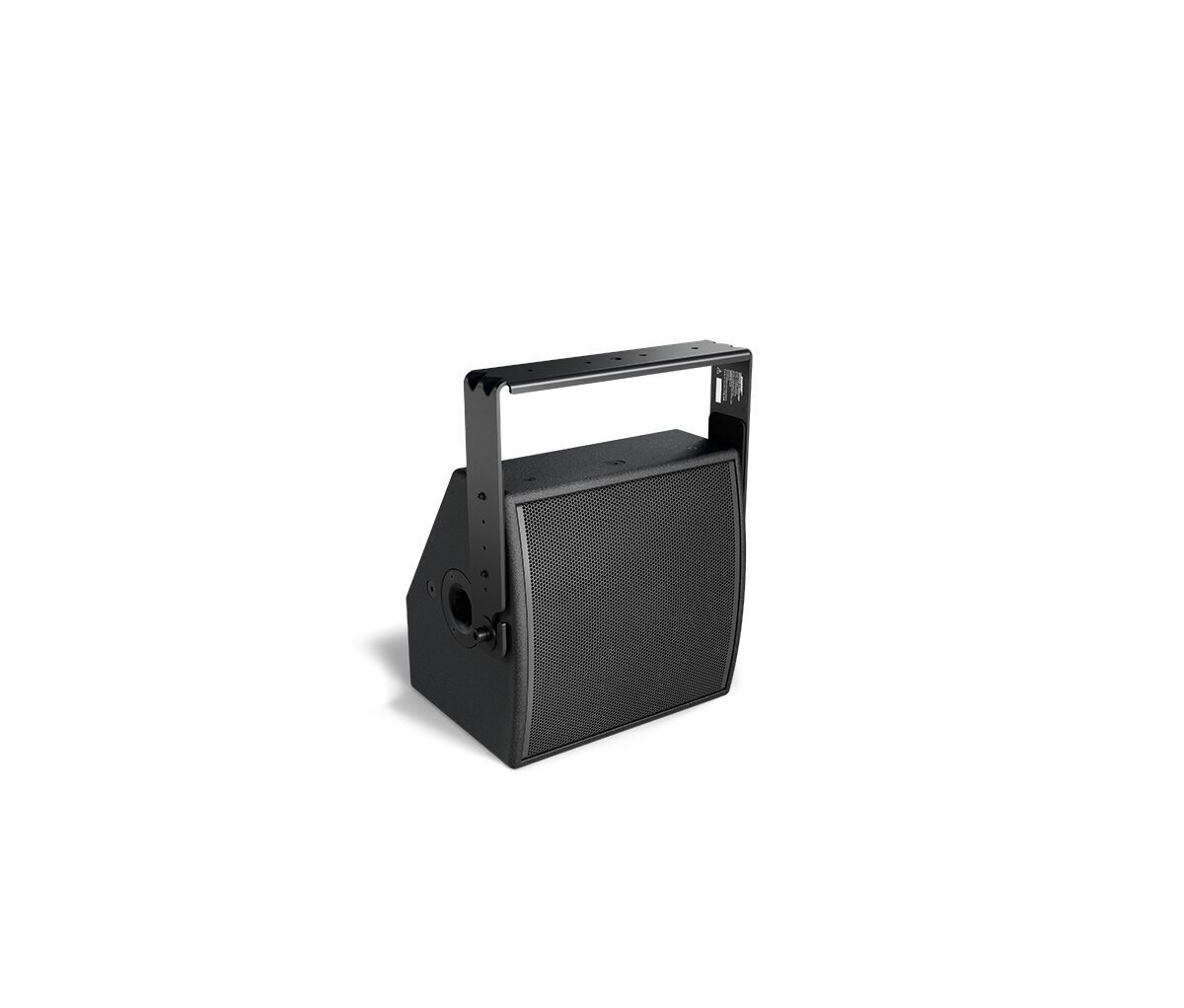

  • Deploy easily in permanent or portable applicationswith optional U-bracket, suspension bracket, Pan-and-tilt bracket for RMU, or use the 6 integrated M10 inserts for custom suspension

  • Companion AMS115 multipurpose subwoofer also available15-inch transducer, low frequency down to 35 Hz, 130 dB peak output, 28 kg (63 lb) design with integrated M20 threaded pole mount and 12 M10 threaded inserts for suspension in permanent installations

Specifications

18 specifications

COMPLIANCE

EN 54-24 Certified
No

PHYSICAL

Colors
Black
Enclosure Material
Baltic birch plywood
Grille
Perforated steel, powder-coated finish
Ingress Protection
IP43 (front-of-house position only)
Suspension/Mounting
1 × 35 mm (1.4 in) pole cup, 4 × M8 threaded inserts, 6 × M10 threaded inserts
Product Dimensions (H×W×D)
12.5 in × 12.5 in × 10.5 in (318 mm × 318 mm × 268 mm)
Net Weight
28.8 lb (13.0 kg)

PERFORMANCE

Frequency Range (-10 dB)
75 Hz – 20,000 Hz
Coverage, Horizontal
110°
Calculated Maximum SPL @ 1 m
116 dB continuous, 128 dB peak
Nominal Impedance
8 Ω, passive
Power Handling, long-term continuous
150 W
Power Handling, Peak
2400 W
Sensitivity (SPL/1 W at 1 m)
94 dB
Coverage, Vertical
60°

TRANSDUCERS

High-Frequency
1 × 1.7 in (43 mm) compression driver
Low-Frequency
1 × 8 in (203 mm) woofer

In the Box

  • 5 years
  • (1) installation guide
  • (1) AMM108
