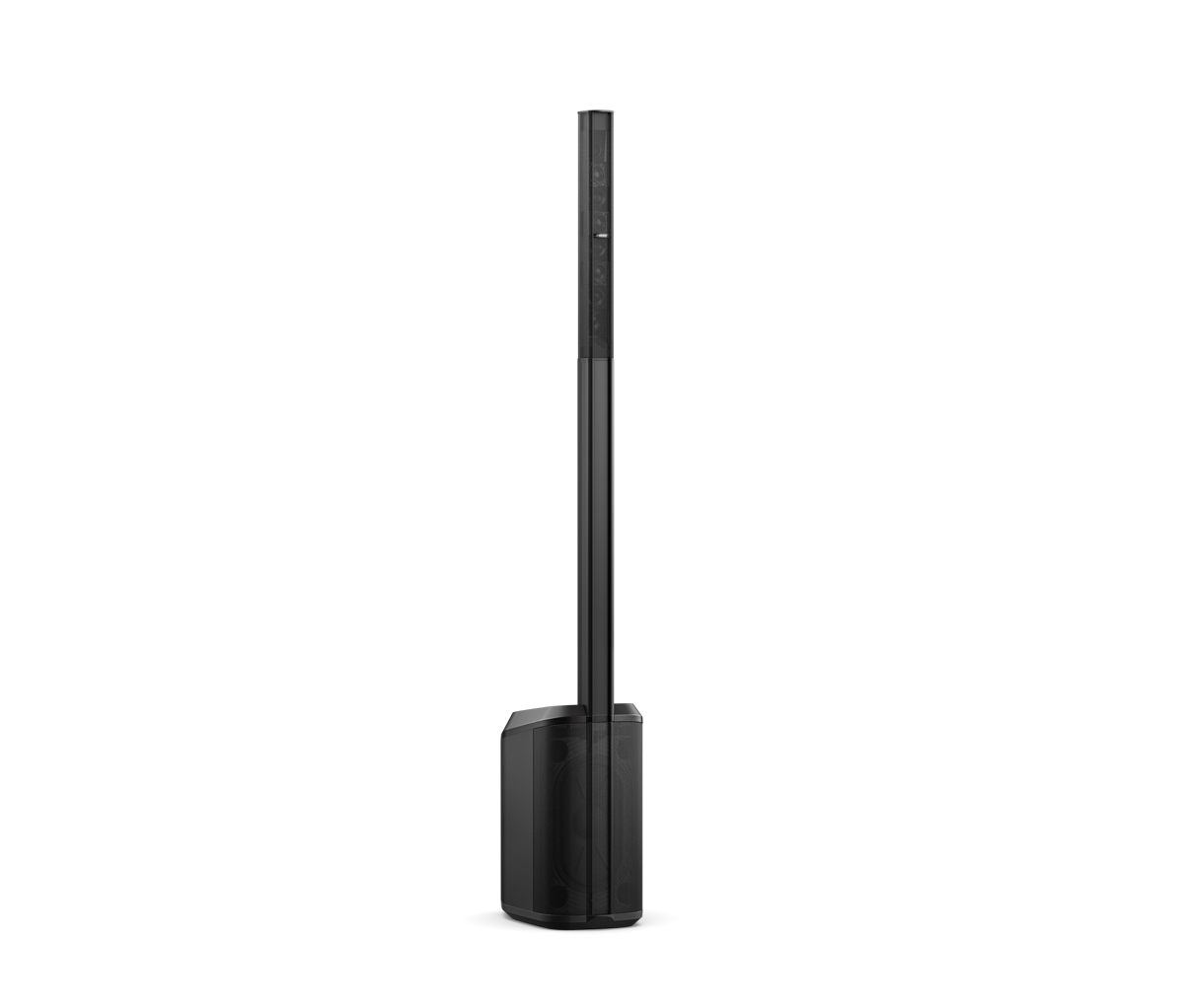

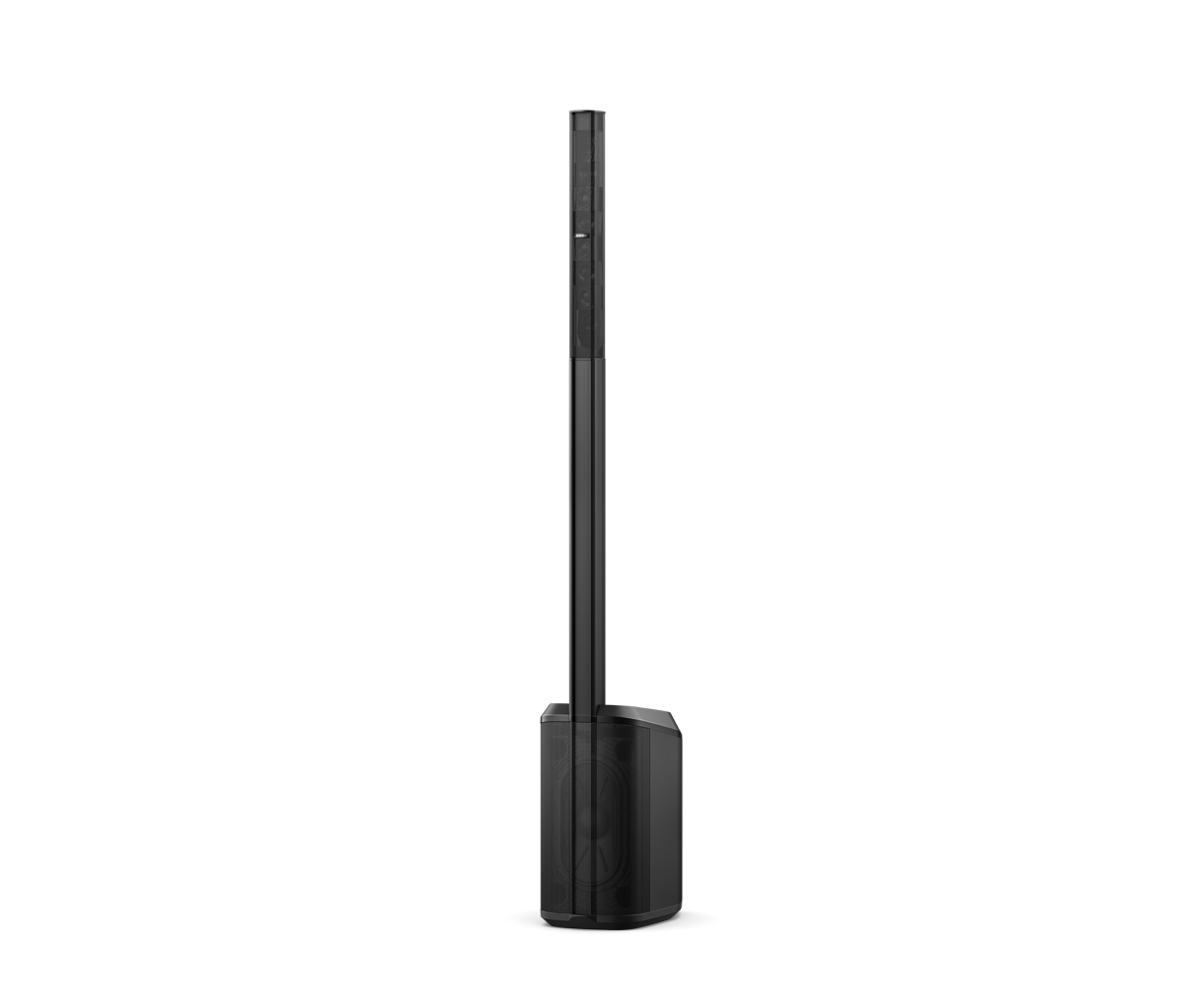

L1 Pro8 portable line array system

As the most portable L1 Pro system, the L1 Pro8 portable PA is ready whenever you are. With an 8-driver articulated C-shape line array, the L1 Pro8 delivers 180-degree horizontal sound coverage, making it an ideal companion for shows in small venues like coffee shops and cafes. An integrated subwoofer with a RaceTrack driver delivers powerful bass without the bulk; a built-in multi-channel mixer offers EQ, reverb, and phantom power, plus

streaming and access to the full library of ToneMatch presets; and the intuitive Bose Music app, formerly known as the L1 Mix app places wireless control in your hands from your smartphone. It’s an ultra-portable system with a surprising size-to-performance ratio. The L1 Pro8 gives singer-songwriters and DJs both setup simplicity and supreme clarity — the power to sound your best and simply perform.

Order Codes · 6

See all →

840919-1100
L1 PRO8 PORTABLE LINE ARRAY,120V,US
Buy Now
840919-2100
L1 PRO8 PORTABLE LINE ARRAY,230V,EU
Get Price
840919-3100
L1 PRO8 PORTABLE LINE ARRAY,100V,JP
Get Price

Request a Full System Quote

Authorized productFull manufacturer warranty
Ships from A5 ITCrystal Lake, Illinois
Design supportSpecify the whole system

Features

Generous coverage:C-shaped line array featuring 8 articulated 2-inch neodymium drivers; 180-degree horizontal coverage with wide vertical dispersion, allowing your audience to hear clearly whether they are seated or standing, even off to the extreme sides in small to medium venues
Deliver premium full-range sound with consistent tonal balancefor singer-songwriters, mobile DJs, and more
Maintain supreme vocal and instrument claritywith a C-shape extended-frequency line array featuring 8 articulated 2-inch neodymium drivers and wide 180-degree horizontal coverage
Bring more bass with less bulkwith an integrated subwoofer featuring a 7 × 13-inch high-excursion RaceTrack driver; performance that rivals traditional round drivers with a smaller footprint

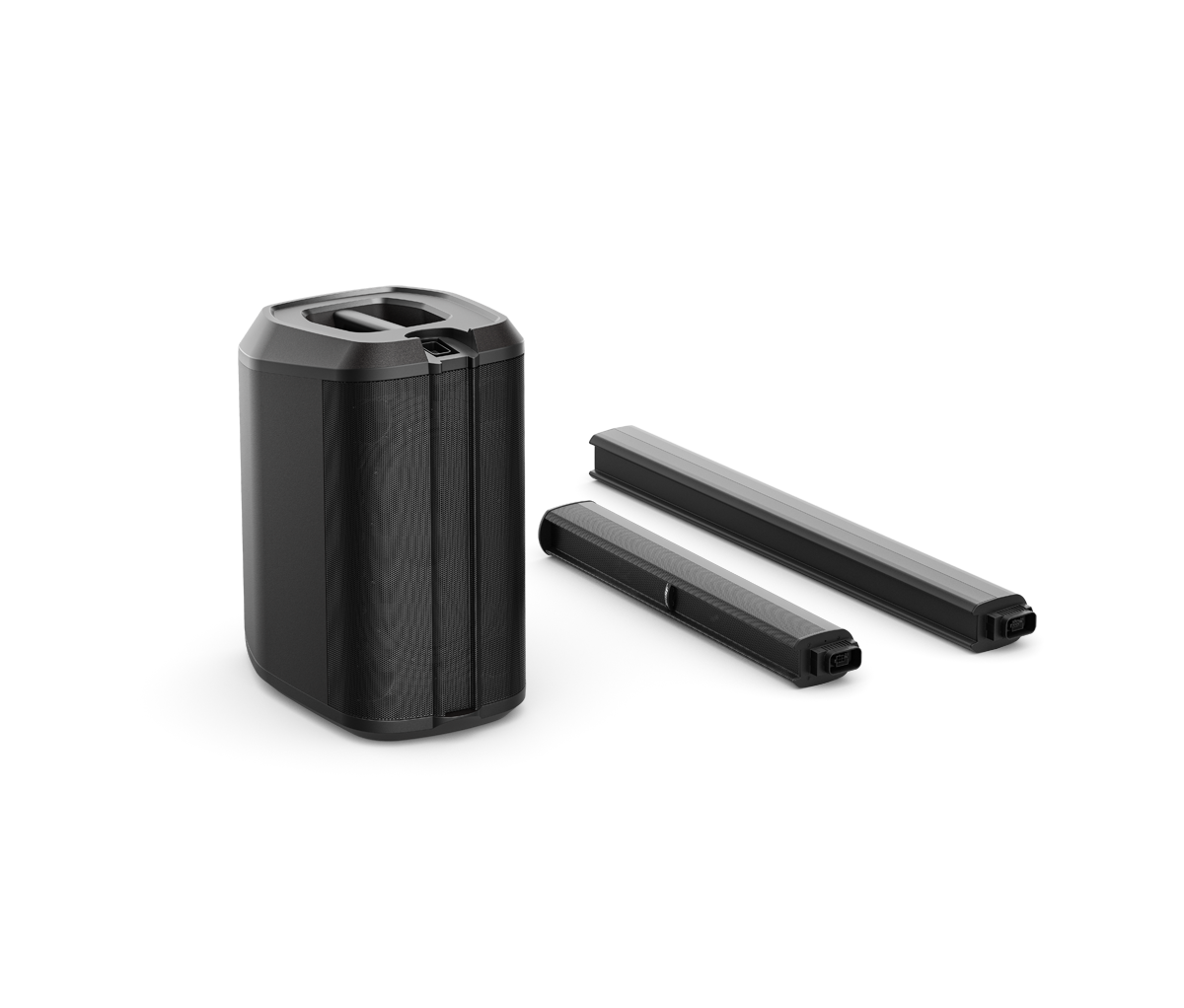

Go from vehicle to venue in one tripwith a modular three-piece system that’s easier to pack, carry, and set up
Select between optimized system EQ presetsfor live music, recorded music, and more

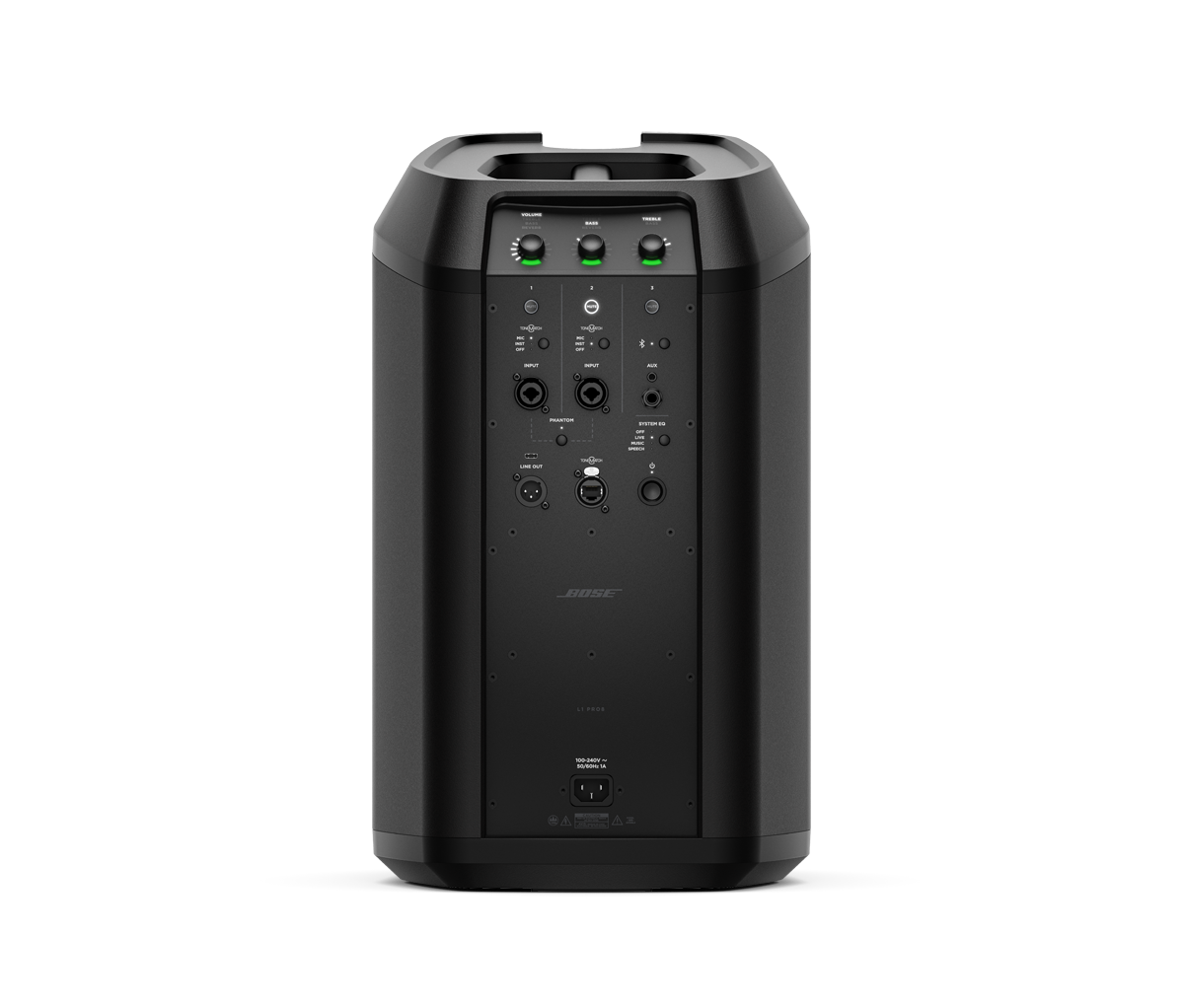

Connect various audio sources easilyvia built-in mixer with two combo XLR-1/4-inch phantom-powered inputs, 1/4-inch and 1/8-inch (3.5 mm) aux input, plus Bluetooth ® streaming — and access system EQ and ToneMatch presets, volume, tone, and reverb via illuminated controls
Add in even more instruments and other audio sourcesvia dedicated ToneMatch port; one cable provides both power and digital audio between the system and a Bose T4S or T8S mixer (optional)
Take wireless control with the Bose Music appon your smartphone to adjust settings instantly from your phone, roam the room and fine-tune, and access the ToneMatch library of custom EQ presets
Stream high-quality Bluetooth ® audiofrom compatible devices

Applications

Designed for a wide range of applications, including:

Houses of worship
Schools and universities
Resorts and hospitality venues
Live music performances
Business presentations
Mobile DJs

Specifications

32 specifications

AMPLIFICATION

Number of Channels: 2
Power Class: Class D

AUDIO INPUTS, ANALOG

Input Channels: 3
Connectors: (1) XLR-1/4-in TRS combo, (1) 1/4-in TRS, (1) 1/8-in TRS, Bluetooth audio streaming
Sensitivity Options: -100 dB to +75 dB, XLR / -115 dB to +60 dB, TRS, input to driver / -105 dB to +50 dB, 3.5 mm / -115 dB to +40 dB, TRS, input to driver
Phantom Power: 48 VDC, Channels 1 & 2

ELECTRICAL

AC Power Connector: IEC
AC Power Input: 100–240 VAC (±15%, 50/60 Hz)
Current Draw, Inrush: 15.8 A at 120 VAC, 60 Hz / 30.1 A at 230 VAC, 50 Hz

GENERAL

Software Applications: Bose Music (Android, iOS)
Computer Interface Connection: USB Type-C

INDICATORS AND CONTROLS

Controls, Rear Panel: 3 digital rotary encoders
LED Status Indicators: (1) standby LED, (3) channel parameter LED rings, (3) signal/clip LEDs, (3) mute LEDs, (1) phantom power LED, (2) ToneMatch LEDs, (1) Bluetooth LED, (4) system EQ LEDs

INTEGRATED DSP

DSP-Enabled: Yes
Presets: ToneMatch presets
Processing Functions: System EQ, reverb

PHYSICAL

Colors: Black
Enclosure Material: Power stand: High-impact polypropylene / Extension & Array: High-impact ABS
Grille: Perforated steel, powder-coated finish
Cooling System: Convection cooling
Product Dimensions (H×W×D): 78.7 in × 12.5 in × 17.9 in (2000 mm × 317 mm × 456 mm)
Net Weight: 38.2 lb (17.4 kg)
Shipping Dimensions (H×W×D): 37.4 in × 15.8 in × 24.8 in (950 mm × 400 mm × 630 mm)
Shipping Weight: 47.2 lb (21.4 kg)

PERFORMANCE

Frequency Range (-10 dB): 33 Hz – 18 kHz
Coverage, Horizontal: 180°
Calculated Maximum SPL @ 1 m: 112 dB
Power Handling, Peak: 240 W
Coverage, Vertical: 40°

TRANSDUCERS

Crossover: 200 Hz
High-Frequency: 8 × 2 in (51 mm) drivers
Low-Frequency: 1 × RaceTrack low-frequency 7 × 13 in (178 × 330 mm) driver

Order Codes

Order Code	Description	Availability
840919-1100	L1 PRO8 PORTABLE LINE ARRAY,120V,US	Buy Now
840919-2100	L1 PRO8 PORTABLE LINE ARRAY,230V,EU	Get Price
840919-3100	L1 PRO8 PORTABLE LINE ARRAY,100V,JP	Get Price
840919-4100	L1 PRO8 PORTABLE LINE ARRAY,230V,UK	Get Price
840919-5100	L1 PRO8 PORTABLE LINE ARRAY,230V,AU	Get Price
840919-5130	L1 PRO8 PORTABLE LINE ARRAY,230V,INDIA	Get Price
