EdgeMax EM180-LP loudspeaker

EM180-LP’s 180° horizontal coverage angle makes it ideal for placement along the ceiling edge. A wide, consistent sound pattern optimized for near-field applications

Order Code

891454-0200
EdgeMax EM90-LP Loudspeaker (EDGEMAX EM180-LP IN CEILING LDSPKR WHT)
Get Price

Request a Full System Quote

Authorized productFull manufacturer warranty
Ships from A5 ITCrystal Lake, Illinois
Design supportSpecify the whole system

Features

Patented PhaseGuide technologyevenly distributes sound throughout the space to ensure all listeners enjoy the same experience regardless of their location

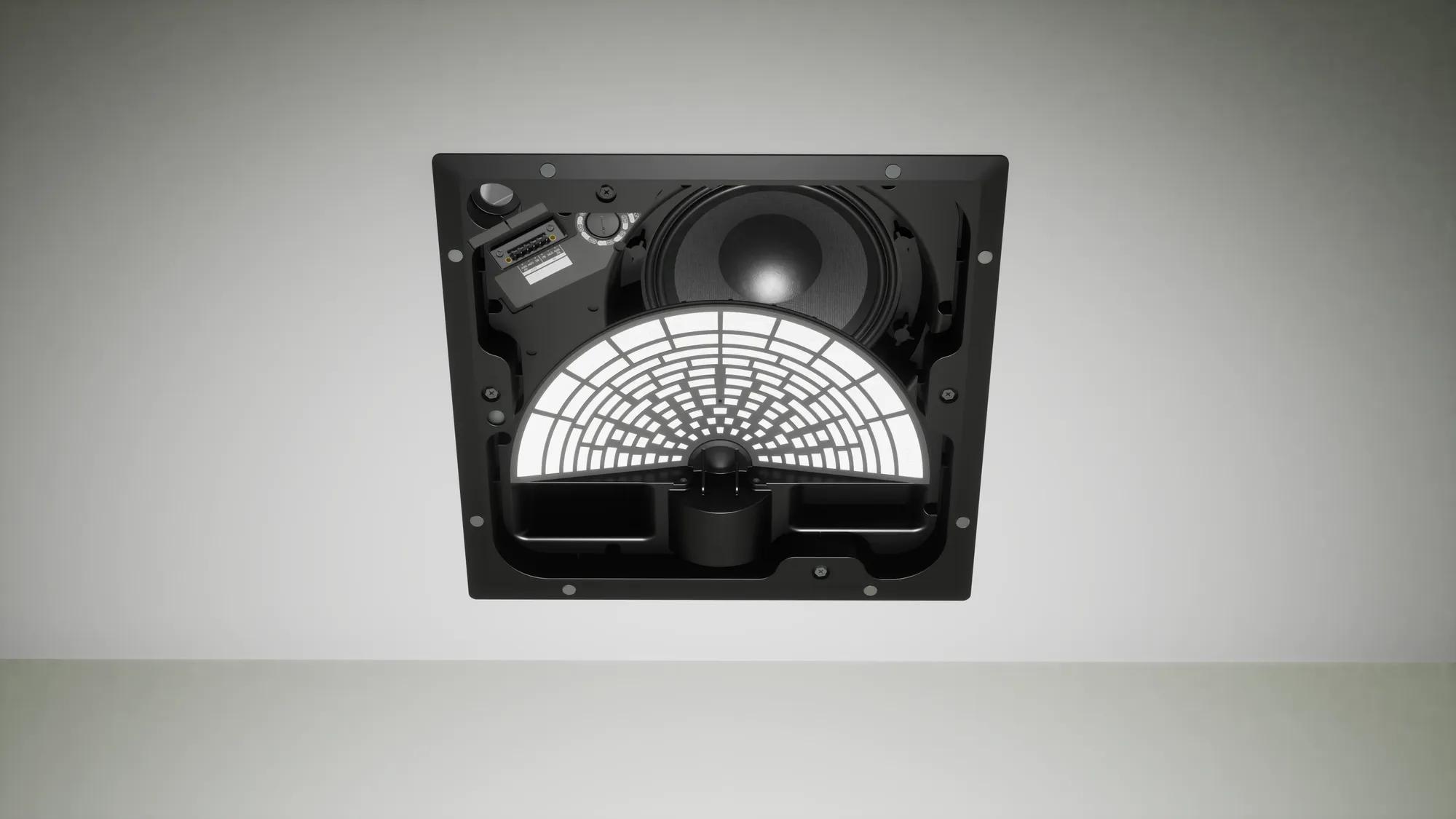

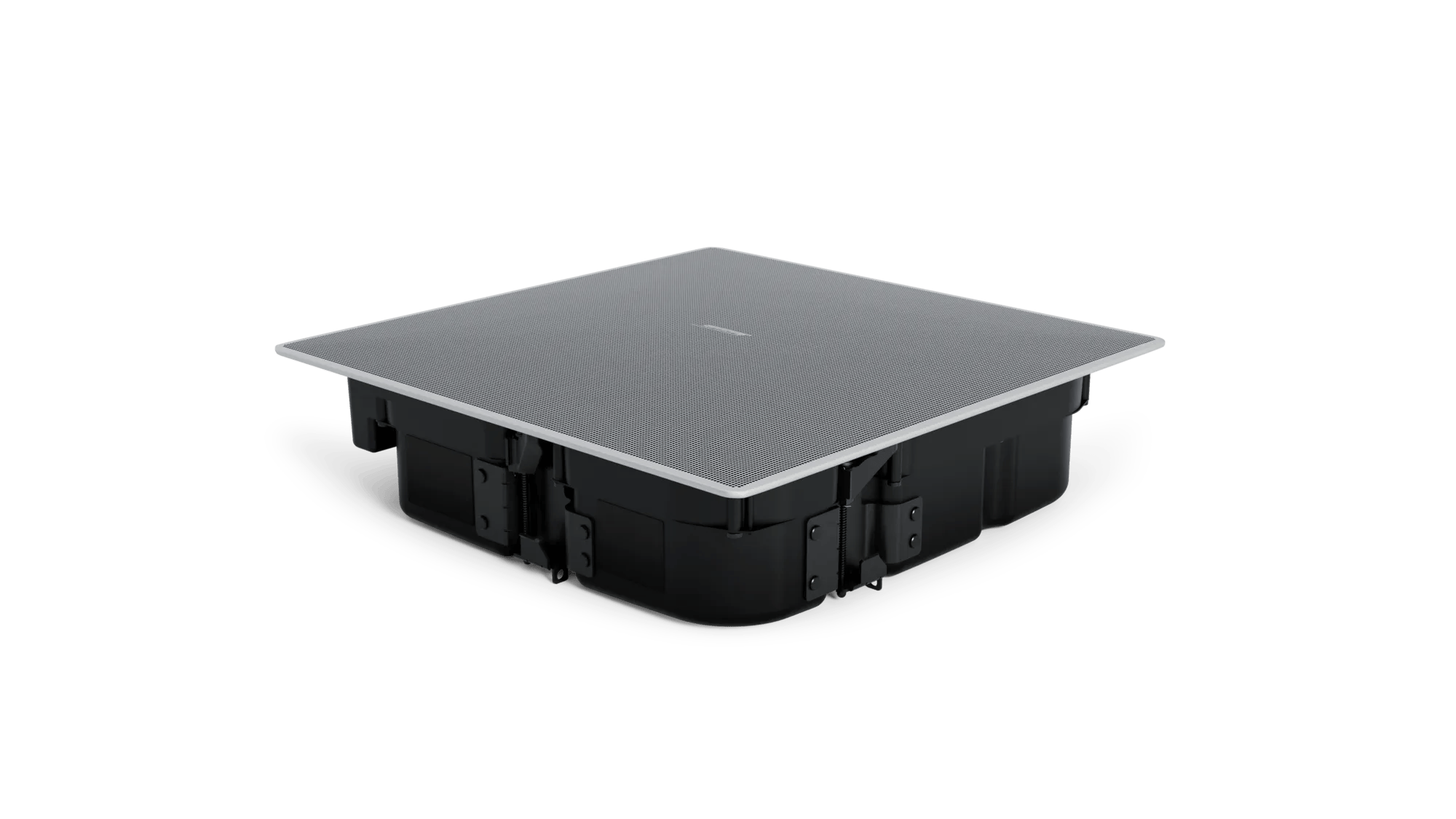

In-ceiling installation for minimum visual impact,with fewer units required to deliver uniform sound

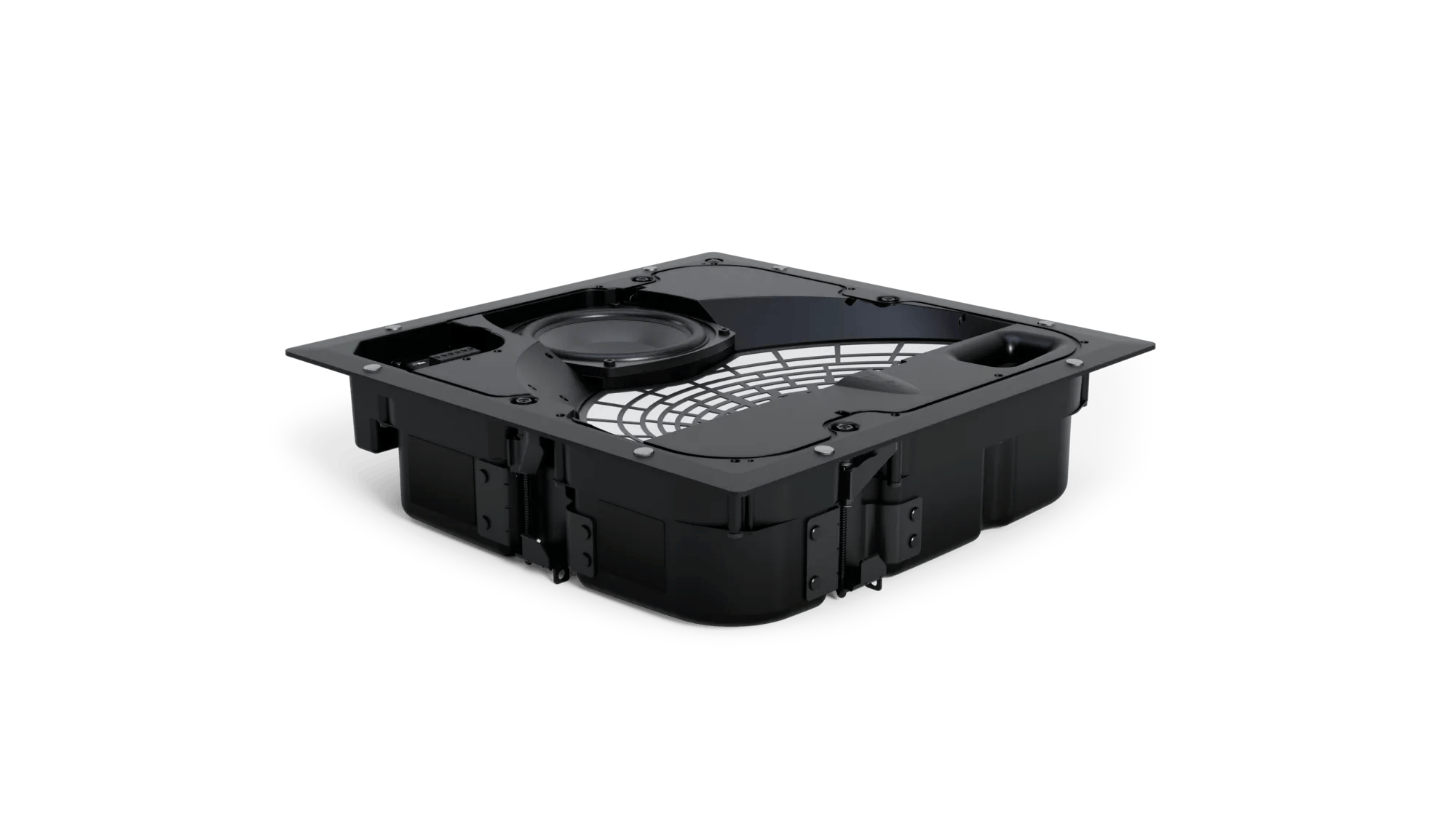

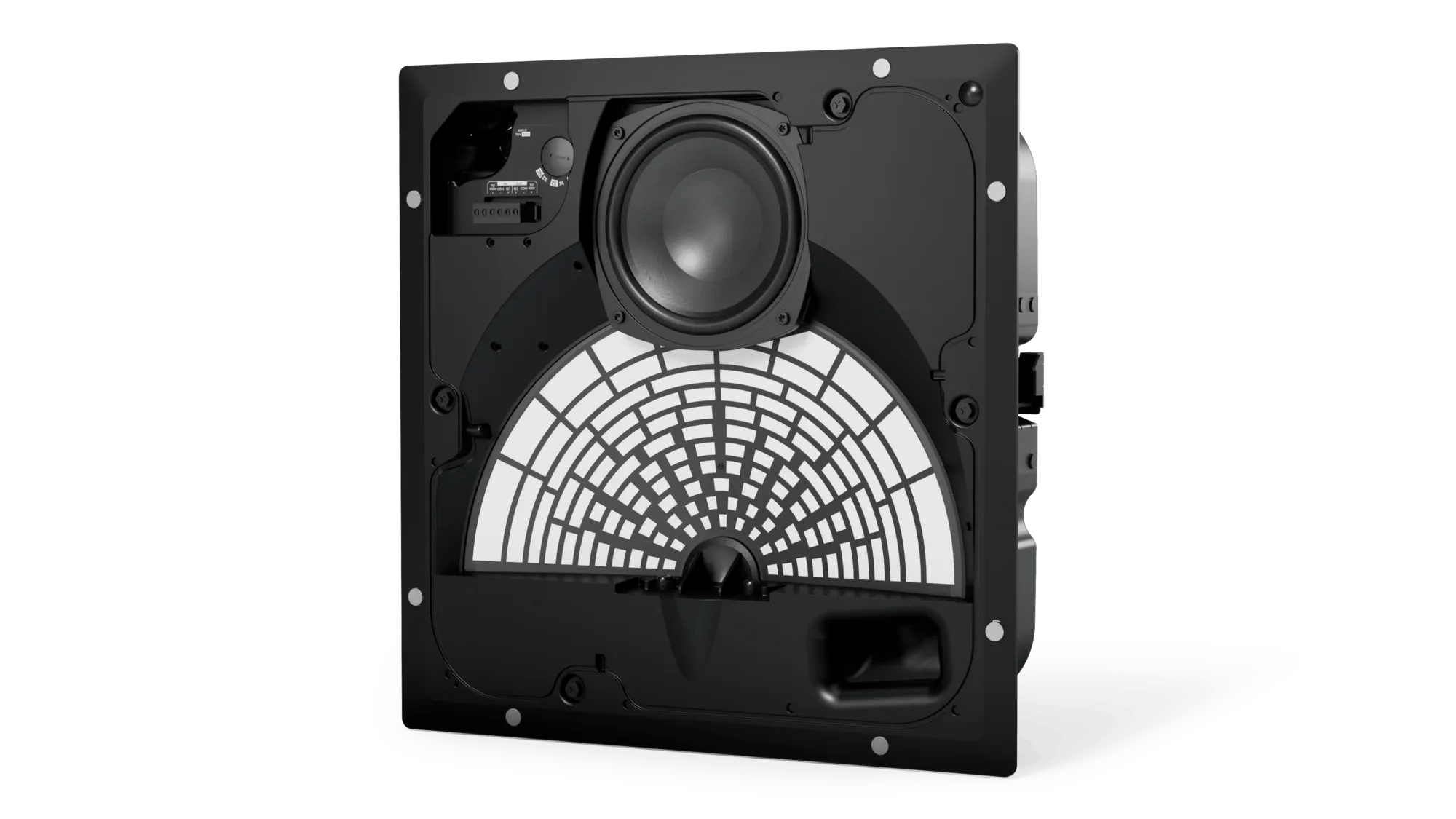

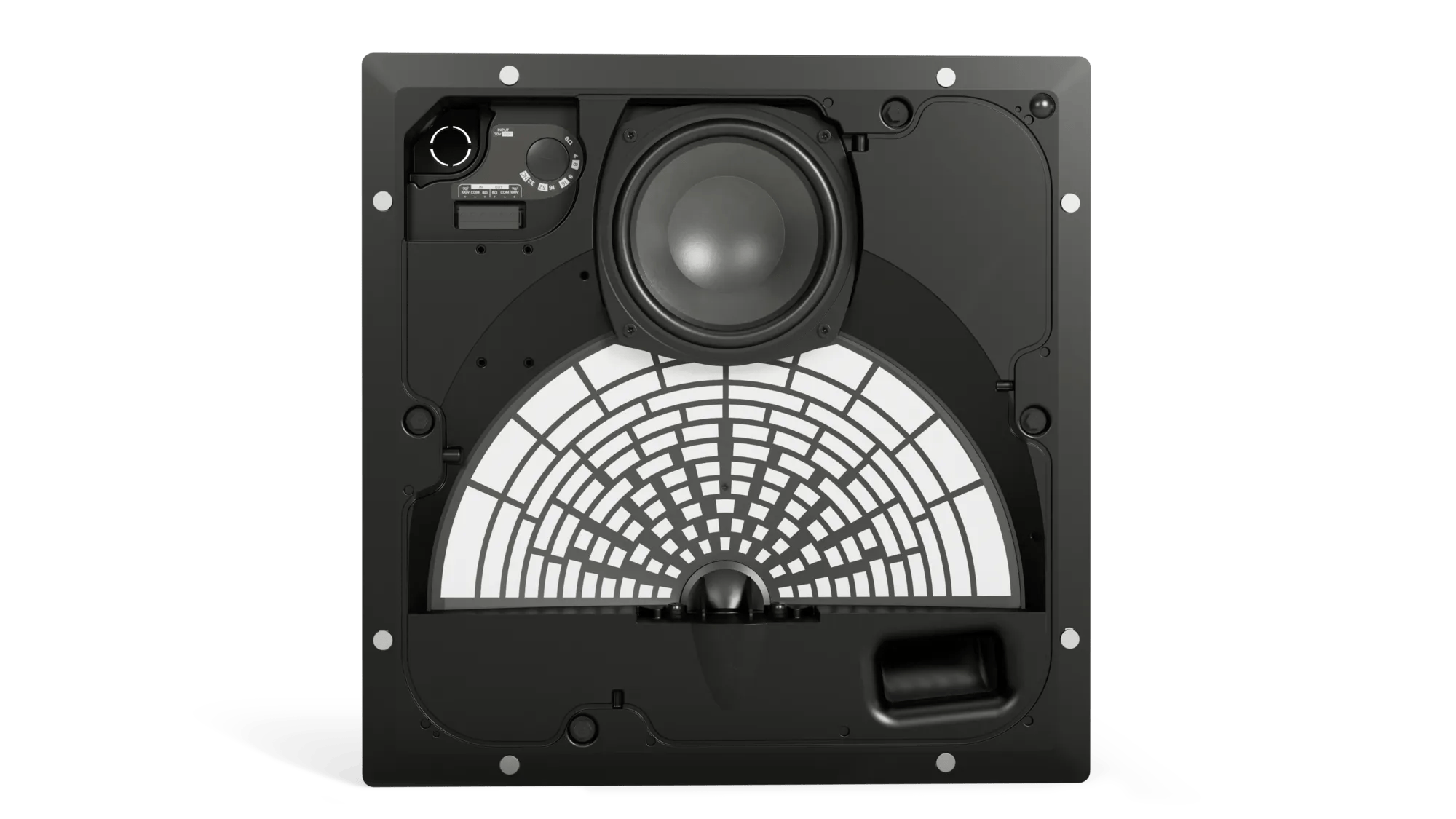

High-frequency compression driver and high-excursion wooferfor exceptional audio quality and power
In-ceiling mounting along room edges and corners; purpose-built for specific horizontal coverage—90 degrees for corner placement or a wider 180 degrees—ideal for near-field and wide coverage
Wall-boundary loadingfor greater bass response and performance
2-way passive crossoverwith bypassable 70/100V transformer
Consistent voicingacross the EdgeMax family
QuickHoldspring-loaded mounting system for easy installs

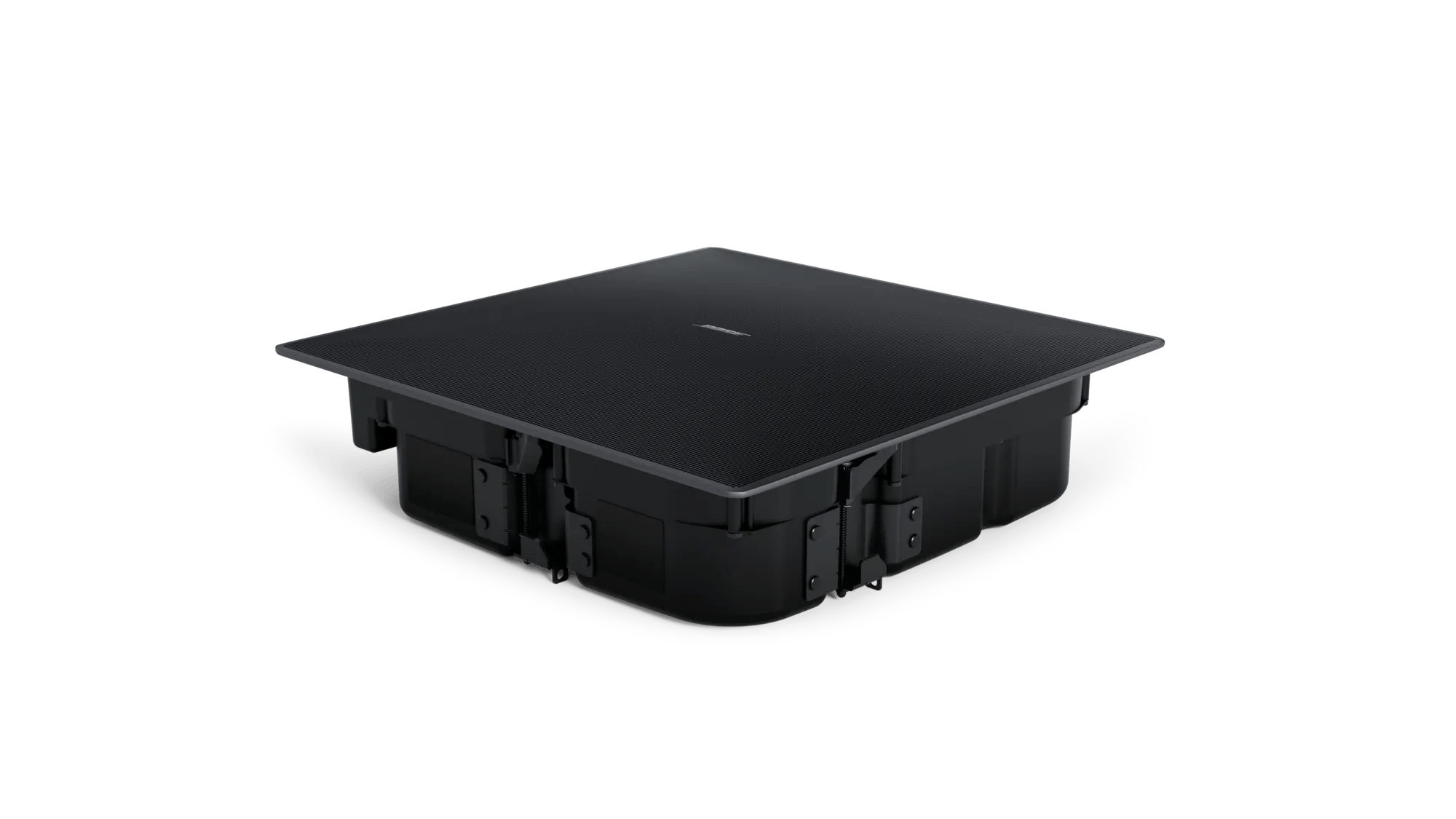

Magnetically attached grillefor quick access to wiring and tap settings

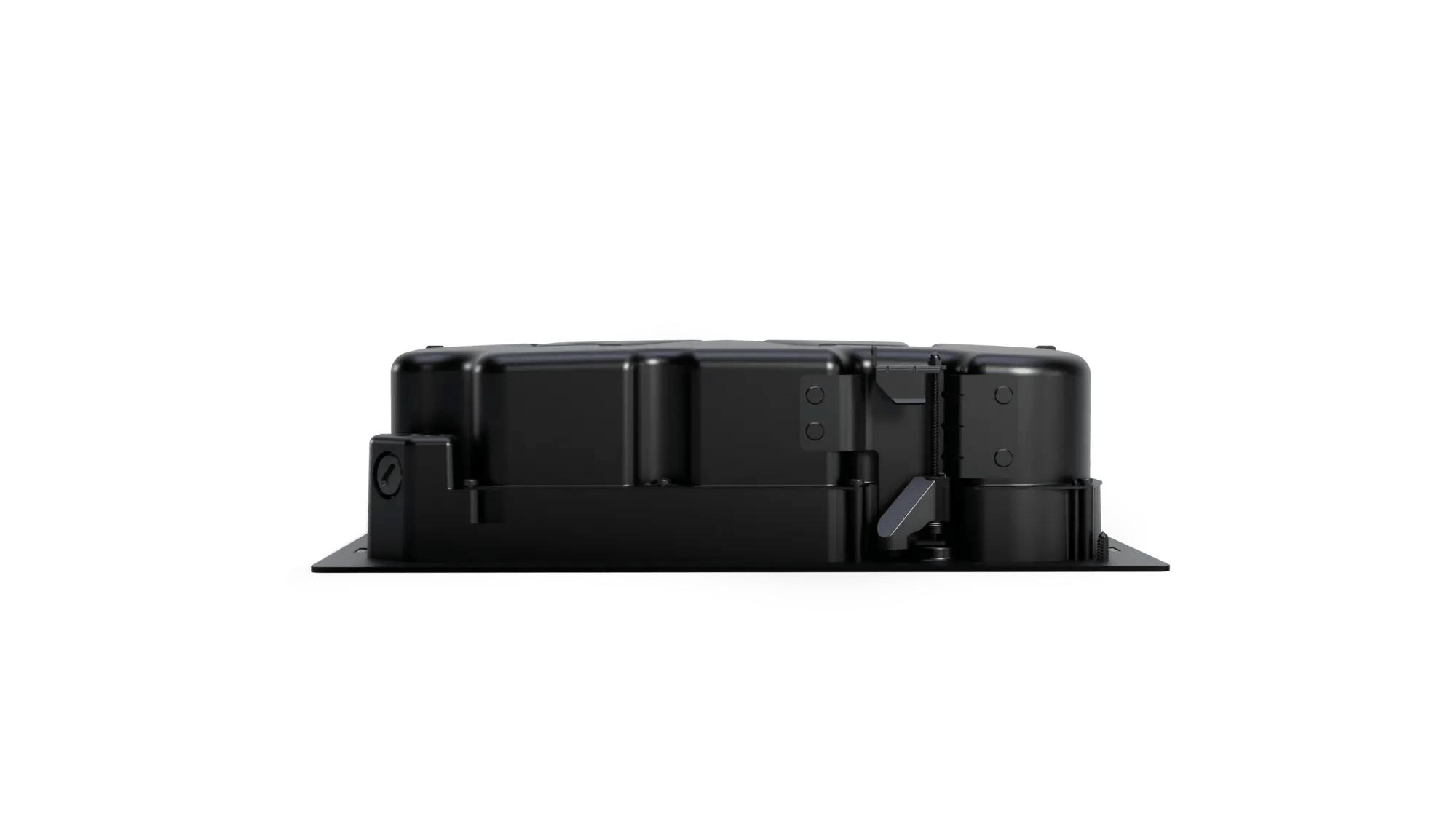

Shallow 4-inch (10 cm) backcan heightfor rooms with above-ceiling limitations and tighter clearances
80-degree vertical coverage anglefor use in rooms with lower ceilings
UL 1480A and UL 2043safety standard compliance

Applications

Designed for a wide range of applications, including:

Conference rooms, halls, atriums & cafeterias
Hospitality spaces with low ceiling clearance
Restaurants
Retail
Retrofits with unknown ceiling clearance

Specifications

25 specifications

COMPLIANCE

Safety Agency Ratings: UL 1480A, UL 2043

PHYSICAL

Colors: White (similar to RAL 9003), paintable

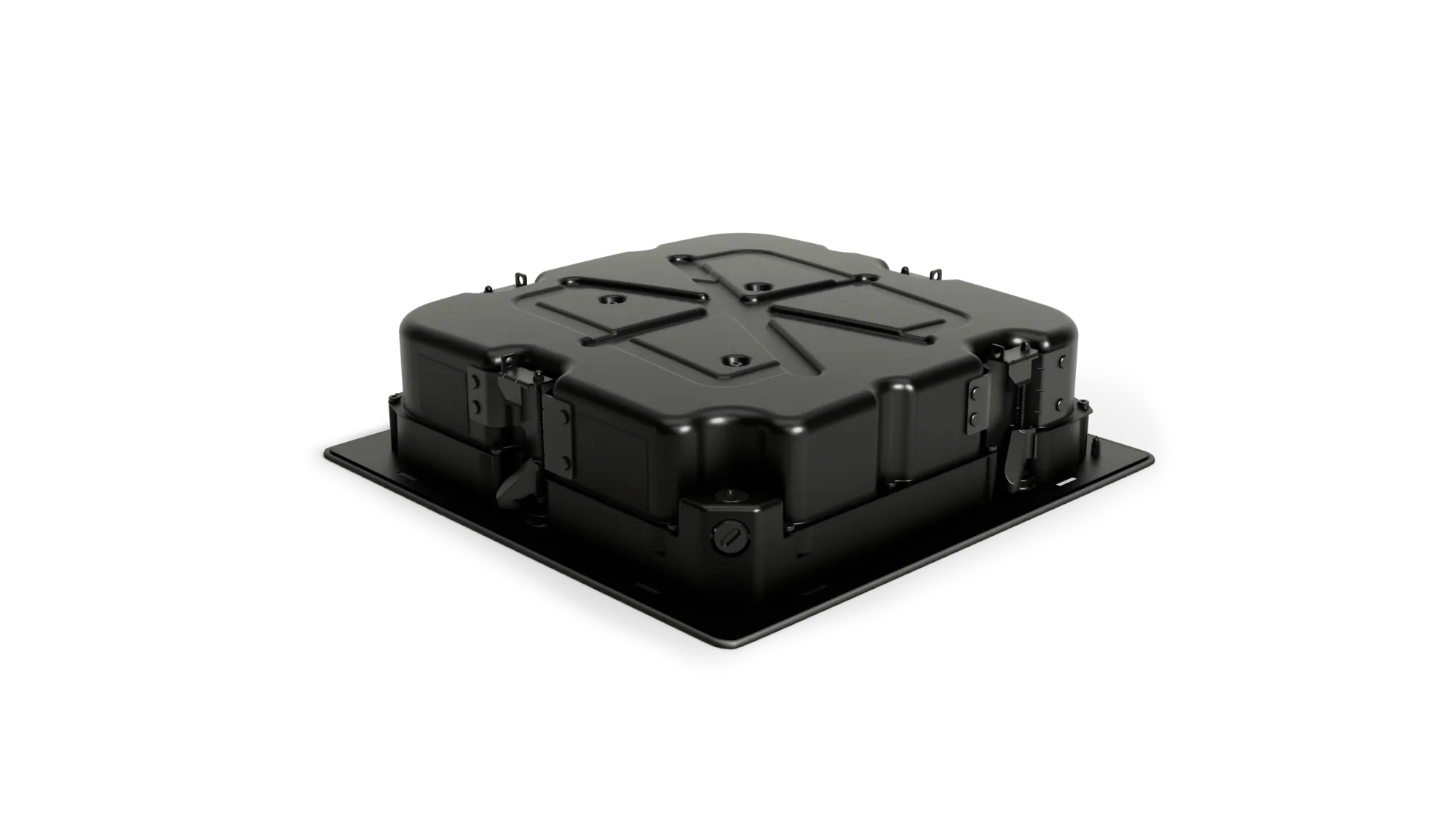

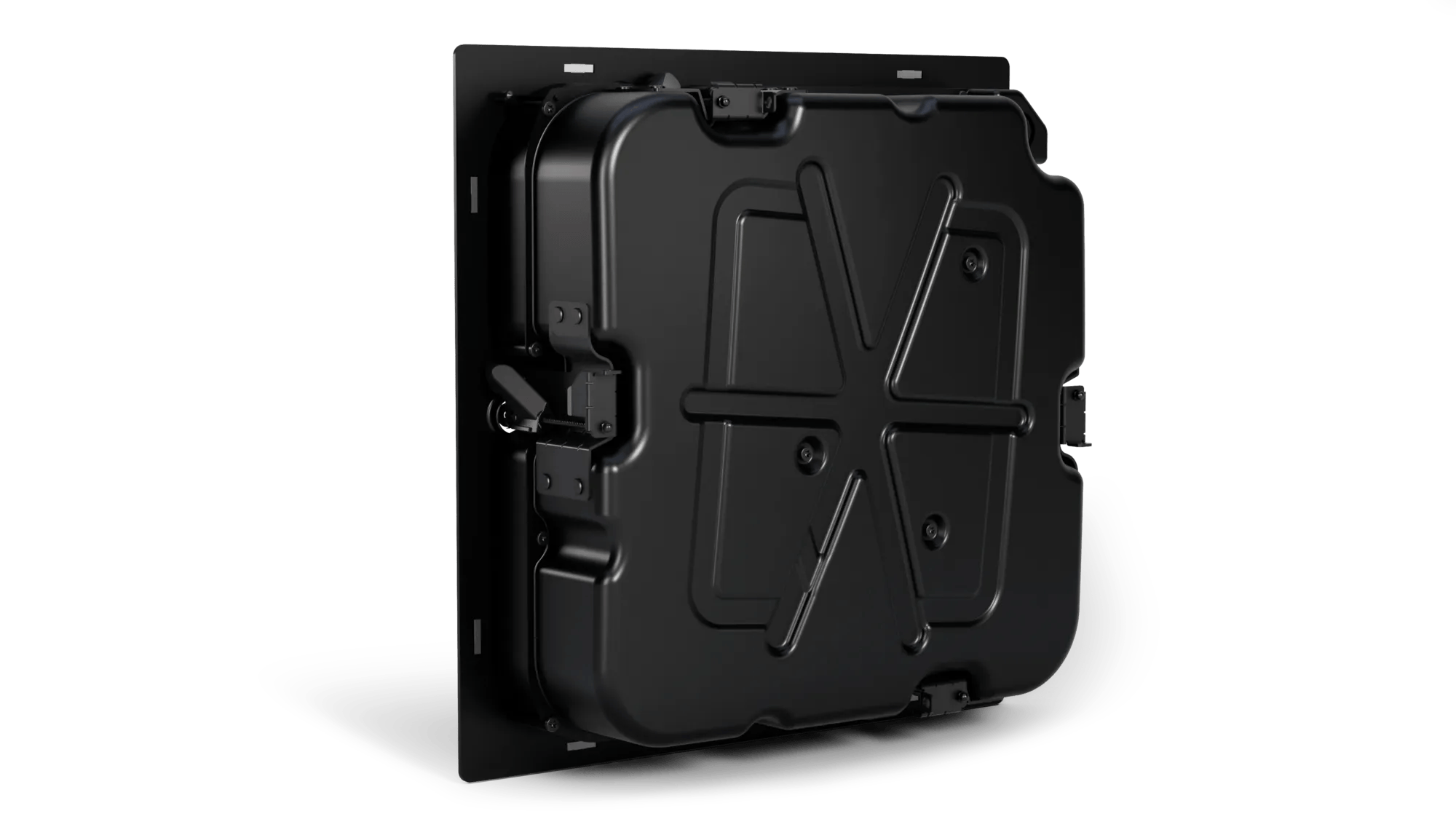

Enclosure Material: Engineered-plastics front baffle with integrated steel-formed enclosure
Environmental: Indoor only

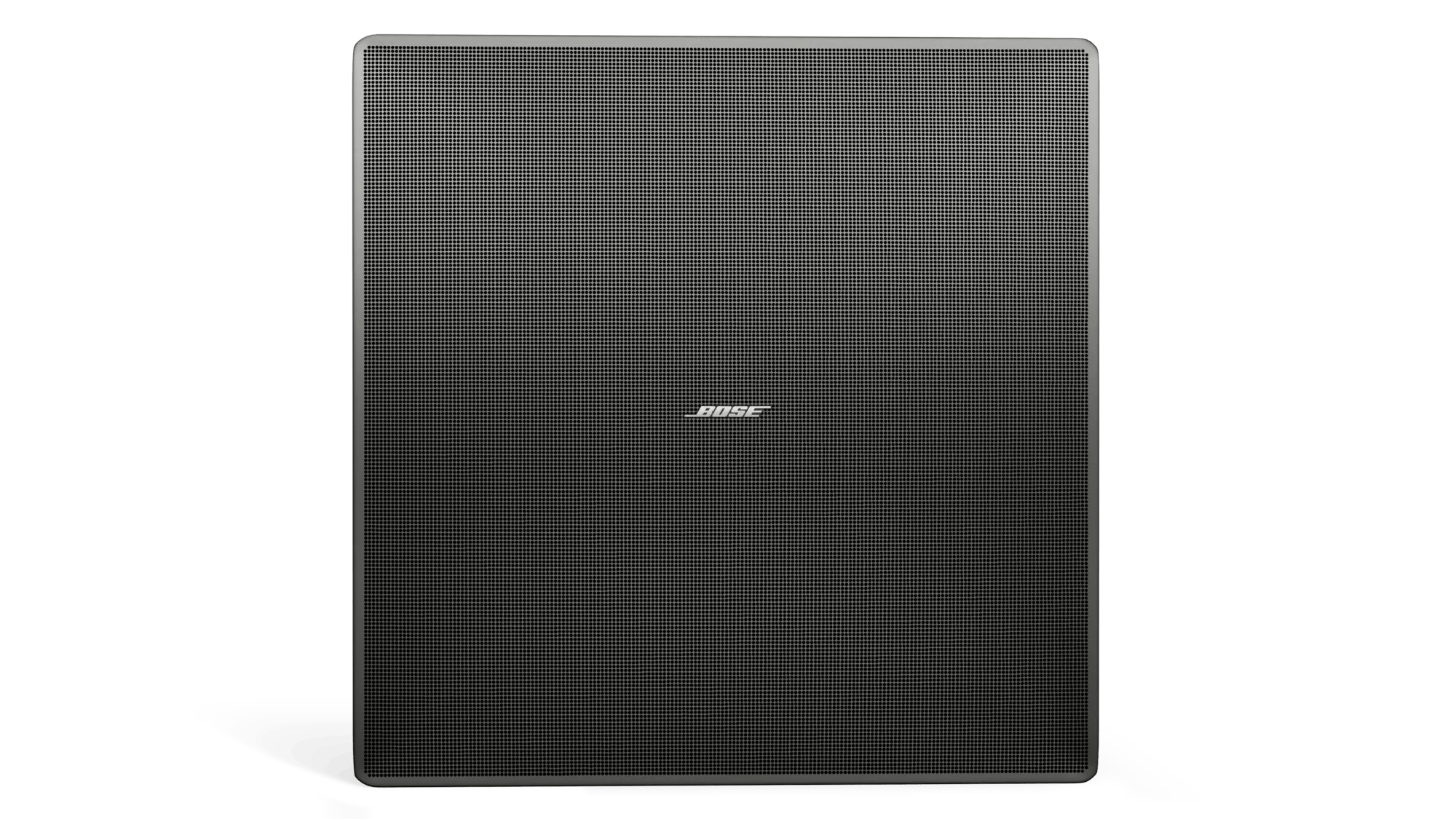

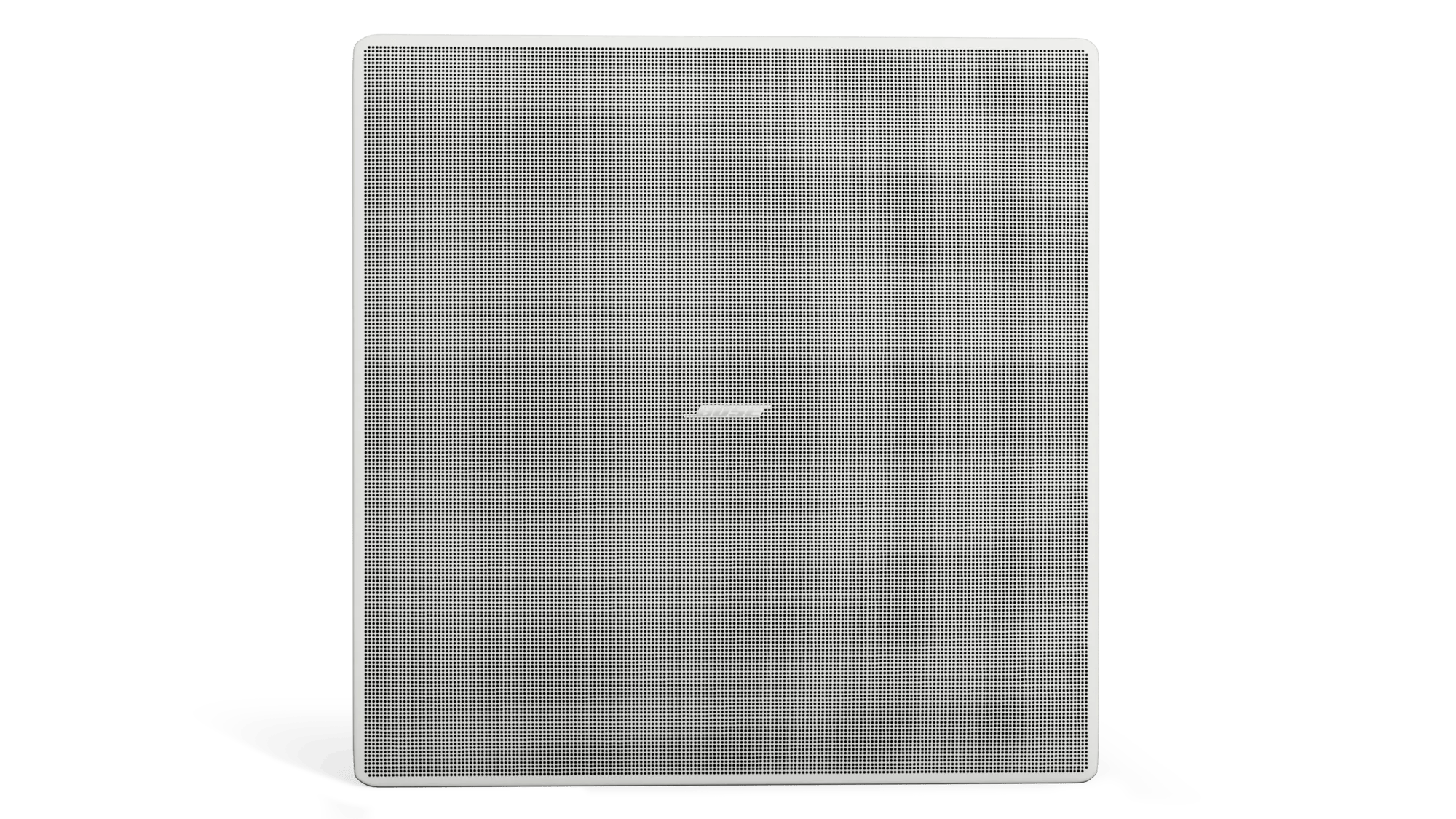

Grille: Microperforated steel, powder-coated finish, paintable
Ceiling Cutout: 345 mm × 345 mm × 100 mm (13.6 in × 13.6 in × 3.9 in), length × width × mounting depth
Suspension/Mounting: (4) Quickhold spring-loaded mounting arms, (4) safety cable attachment points

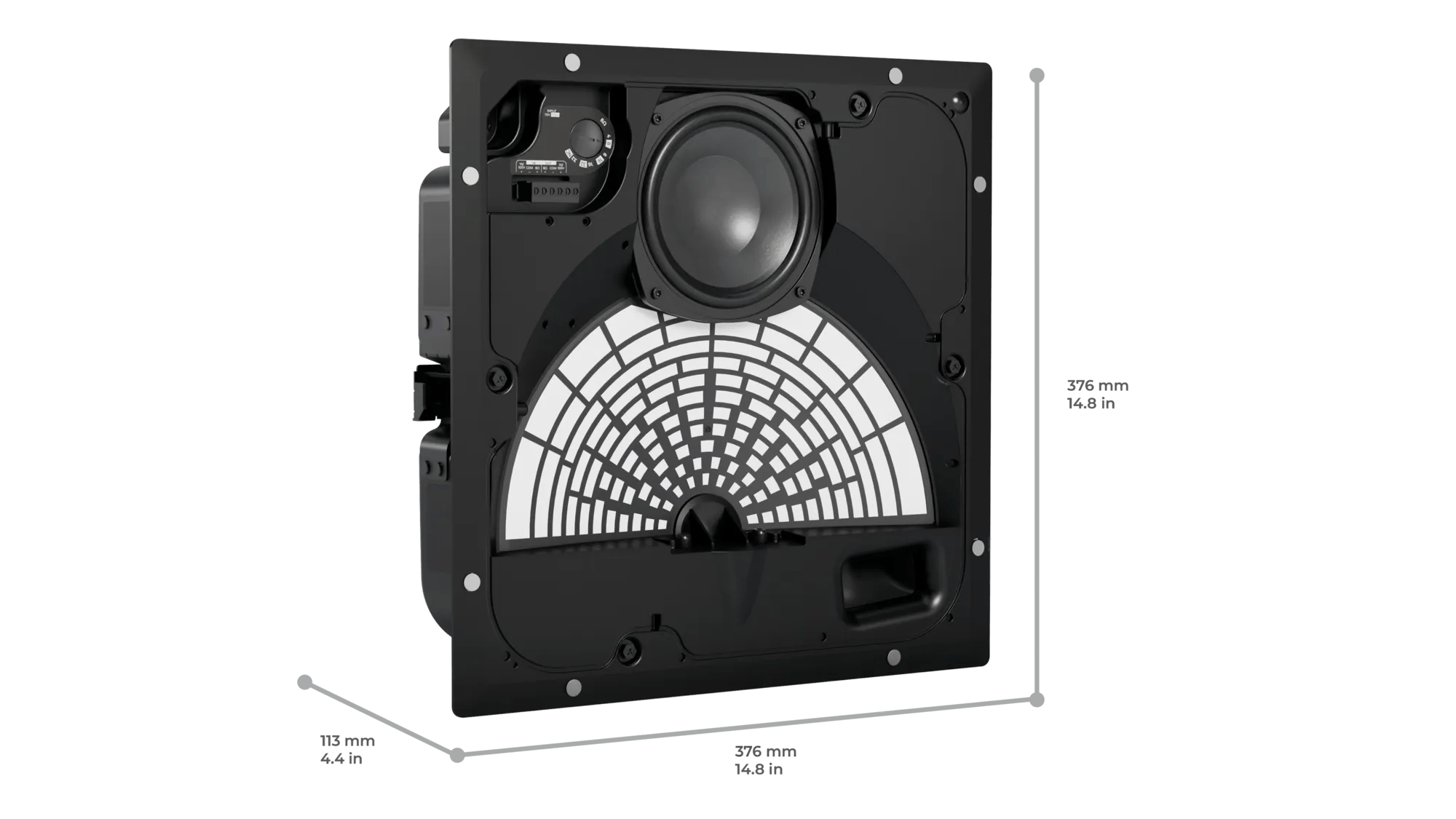

Product Dimensions (H×W×D): 339 mm × 339 mm × 100 mm (13.4 in × 13.4 in × 3.9 in) enclosure / 390 mm × 390 mm × 13 mm (15.4 in × 15.4 in × 0.5 in) grille flange
Net Weight: 7.6 kg (16.7 lb), loudspeaker with grille (single)
Shipping Weight: 11.1 kg (24.5 lb)

PERFORMANCE

Frequency Range (-10 dB): 45 Hz – 19,000 Hz
Coverage, Horizontal: 180°
Calculated Maximum SPL @ 1 m: 106 dB continuous, 112 dB peak
Nominal Impedance: 8 Ω (transformer bypassed)
Power Handling, long-term continuous: 32W
Power Handling, Peak: 128W
Recommended Signal Processing: Recommended but not required
Sensitivity (SPL/1 W at 1 m): 91 dB
Transformer Taps, 100V: 8 W, 16 W, 32 W, bypass
Transformer Taps, 70V: 4 W, 8 W, 16 W, 32 W, bypass
Coverage, Vertical: 80°

TRANSDUCERS

Crossover: 1 kHz, passive 2-way crossover with integrated 70/100V transformer
Driver Protection: Recommended high-pass protection 55 Hz with minimum 24-dB/octave filter
High-Frequency: 1 × compression driver, 1.3 in (33 mm) voice coil
Low-Frequency: 1 × 5.25-in (133 mm) woofer, 1.5-in (38 mm) voice coil

In the Box

(1) ceiling hole template
(1) installation guide
(1) paint shield
(1) tile bridge
