DesignMax DM10S-SUB subwoofer
Loudspeakers

DesignMax DM10S-SUB subwoofer

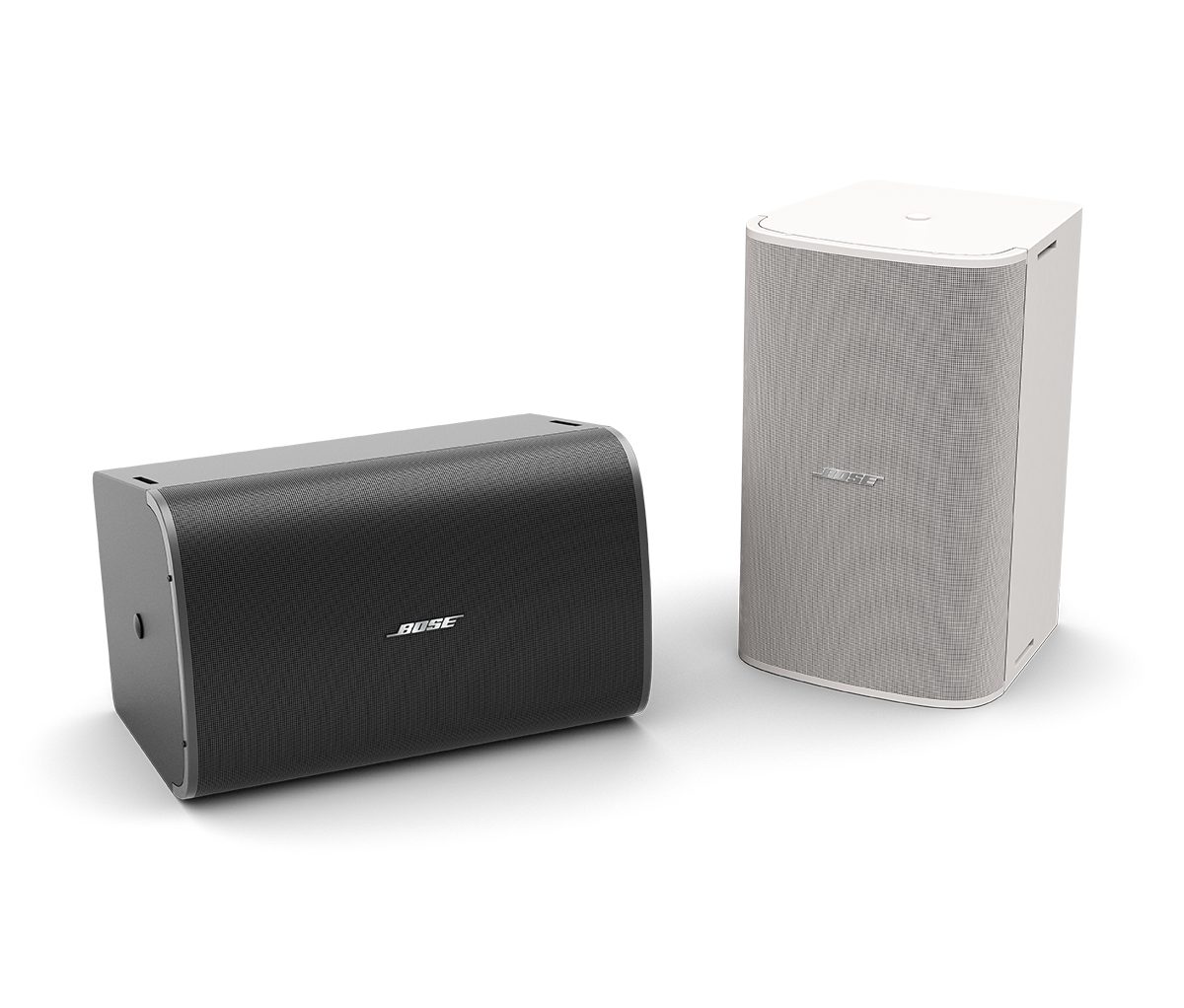

Delivering rich low-end performance, 300-watt Bose Professional DM10S-SUB subwoofer brings instantly impressive bass to any commercial sound installation. The surface-mounted DM10S-SUB has a 10-inch woofer, 35 Hz – 125 Hz frequency range, and locks onto a hidden QuickHold U-bracket. DesignMax subwoofers complement and enhance any DesignMax installation.

Order Codes · 2

  • 831856-0110

    DESIGNMAX DM10S-SUB SINGLE BLK

    Get Price

  • 831856-0210

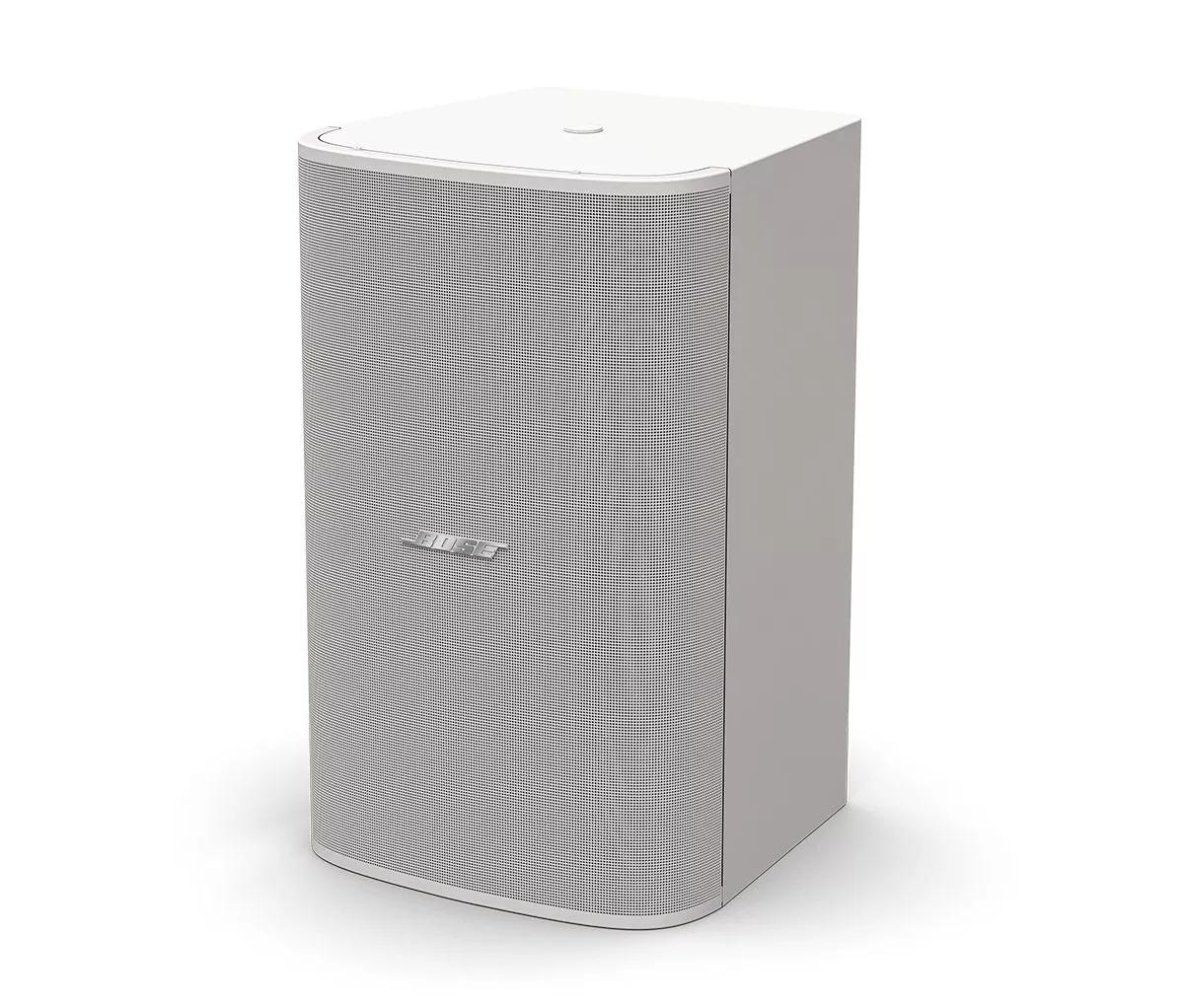

    DESIGNMAX DM10S-SUB SINGLE WHT

    Get Price
Request a Full System Quote
  • Authorized productFull manufacturer warranty
  • Ships from A5 ITCrystal Lake, Illinois
  • Design supportSpecify the whole system

Features

  • Combine DesignMax models to complete any design, big or small12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

  • Deliver rich bass performancewith custom Bose Professional drivers; for optimal performance use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

  • Blend with any room designwith elegant form factors, minimum-bezel grilles available in black or white, and removable logos

  • Reduce installation timewith the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

  • Install easily with industry-standard accessoriesall models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

Applications

Designed for a wide range of applications, including:

  • Performing arts venues
  • Places of worship
  • Conference centers
  • Retail stores
  • Restaurants and bars
  • Hospitality venues

Specifications

25 specifications

COMPLIANCE

Safety Agency Ratings
UL-1480A, S5591/ UL Listed, NFPA70, CE compliant

PHYSICAL

Colors
Black (RAL 9005), white (similar to RAL 9003), paintable
Enclosure Material
High-density wood composite with solid color laminate, UV fade-resistant
Environmental
Indoor only
Grille
Perforated steel, powder-coated finish, paintable, tamper-resistant design
Logo
Rotatable, removable
Suspension/Mounting
QuickHold mounting system with included U-Bracket, (1) M8 safety cable attachment insert
Operating Temperature Range
0 °C to 50 °C (32 °F to 122 °F)
Product Dimensions (H×W×D)
19.8 in × 12.5 in × 12.7 in (502 mm × 316 mm × 323 mm), loudspeaker / 19.8 in × 12.5 in × 13.6 in (502 mm × 316 mm × 346 mm), loudspeaker with bracket
Net Weight
35.5 lb (16.1 kg), loudspeaker with grille & bracket
Shipping Weight
41.5 lb (18.8 kg)

PERFORMANCE

Frequency Range (-10 dB)
35 Hz – 125 Hz
Coverage, Horizontal
Omnidirectional below 200 Hz
Calculated Maximum SPL @ 1 m
115 dB
Nominal Impedance
8 Ω (transformer bypass)
Power Handling, long-term continuous
300 W
Power Handling, Peak
1200 W
Recommended Signal Processing
Not required, Bose Professional EQ voicing and SmartBass processing available
Sensitivity (SPL/1 W at 1 m)
90 dB
Transformer Taps, 100V
40, 80, 150 W, bypass
Transformer Taps, 70V
20 W, 40 W, 80 W, 150 W, bypass
Coverage, Vertical
Omnidirectional below 200 Hz

TRANSDUCERS

Crossover
80 Hz – 200 Hz via active crossover in DSP
Driver Protection
Recommended high-pass protection 40 Hz with recommended 18 dB/octave filter
Low-Frequency
1 × 10 in (254 mm) woofer

In the Box

  • (1) U-bracket
  • (1) DesignMax DM10S-SUB subwoofer
  • (1) installation guide
  • (2) rubber caps
  • (2) M8 screws

Downloads

9 documents

Technical Information

User Documentation

Design Tools

Mechanical Files

Compliance Documents
