Bose Professional
FreeSpace 3 flush-mount satellites (1 pair)
Loudspeakers

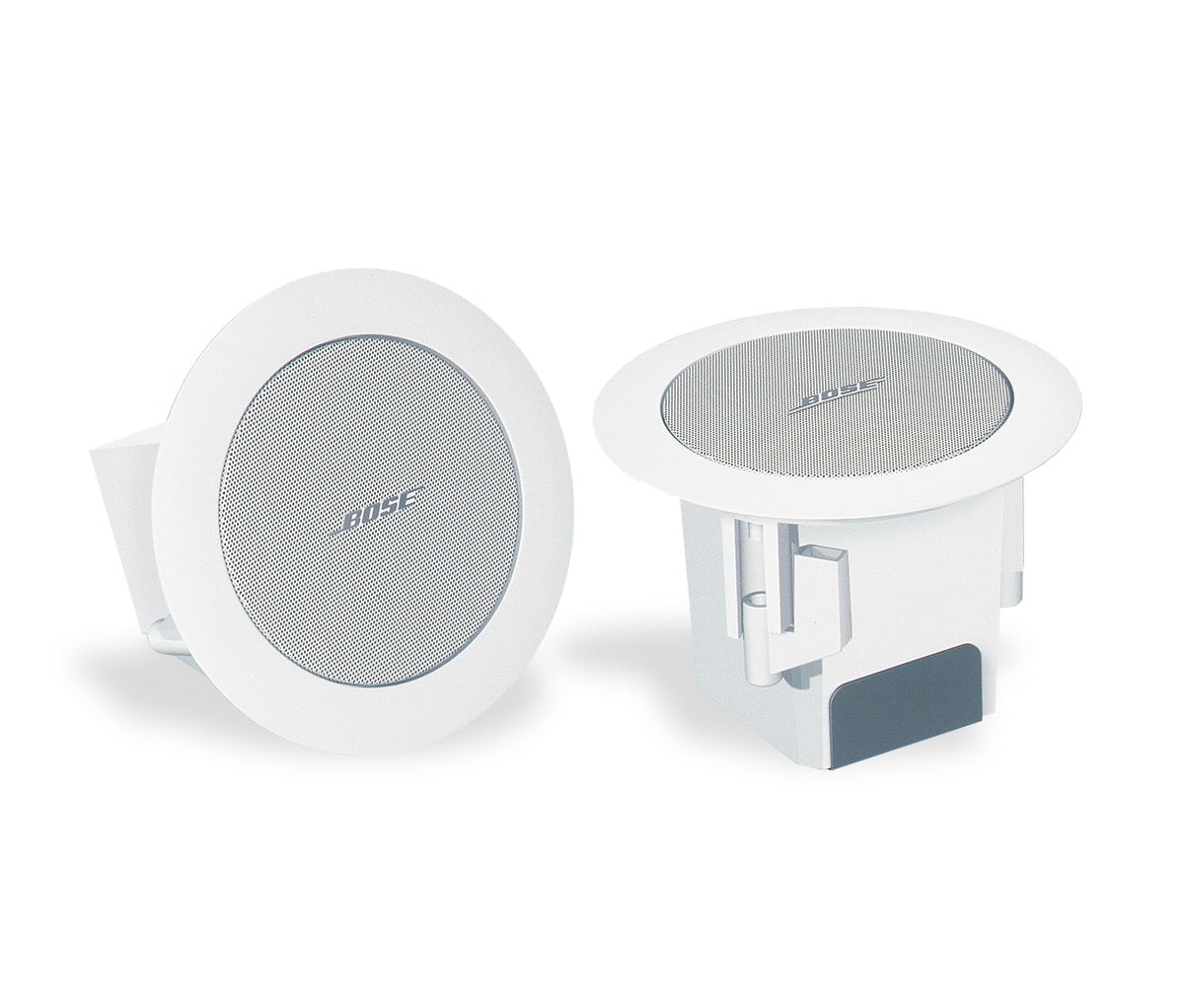

FreeSpace 3 flush-mount satellites (1 pair)

The Bose Professional FreeSpace 3 flush-mount satellites are high-performance, extended-range loudspeakers designed for small to medium-sized installed applications requiring high fidelity and extended bandwidth reproduction of voice and music. For indoor applications only.

Order Codes · 2

Request a Full System Quote
  • Authorized productFull manufacturer warranty
  • Ships from A5 ITCrystal Lake, Illinois
  • Design supportSpecify the whole system

Features

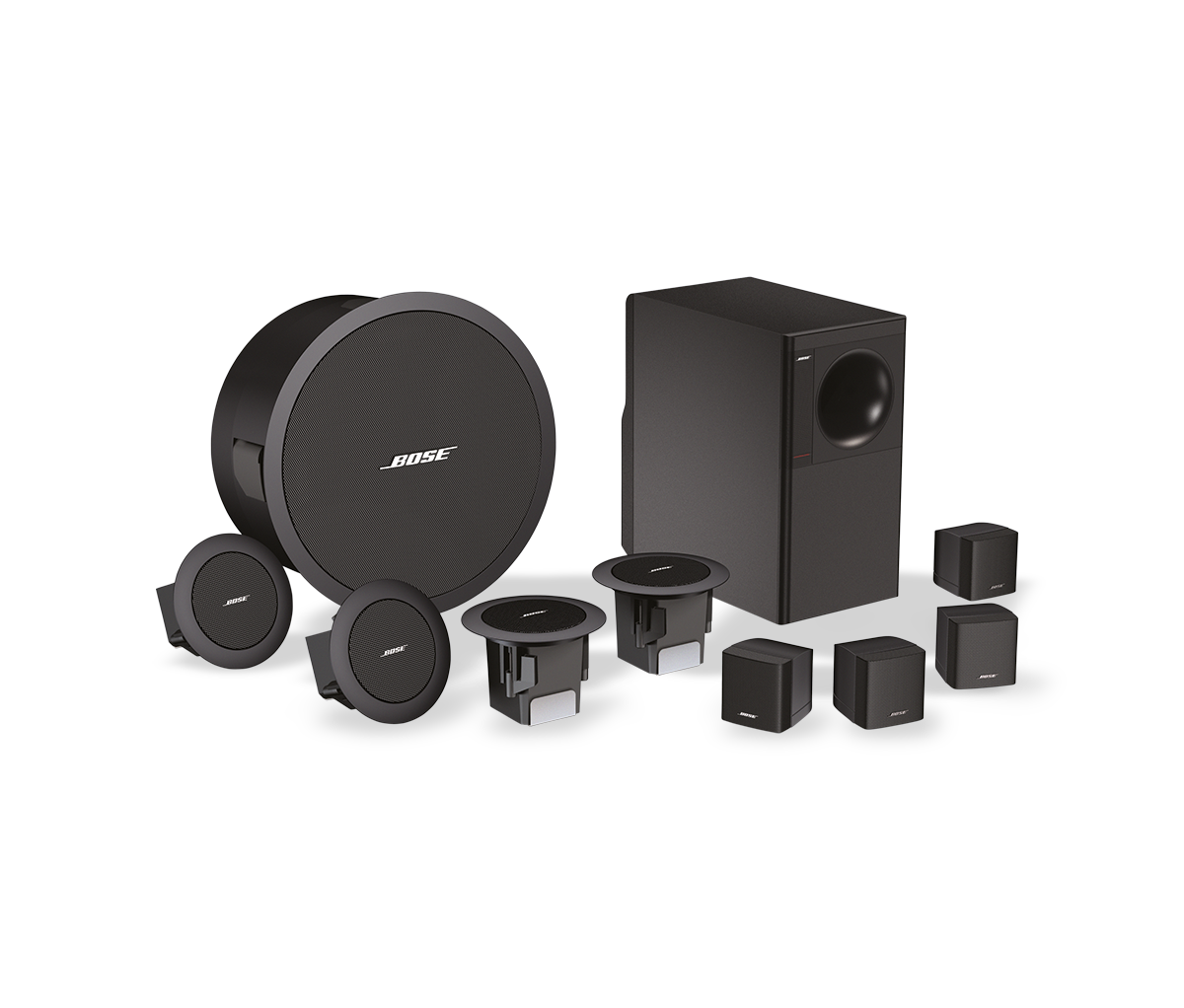

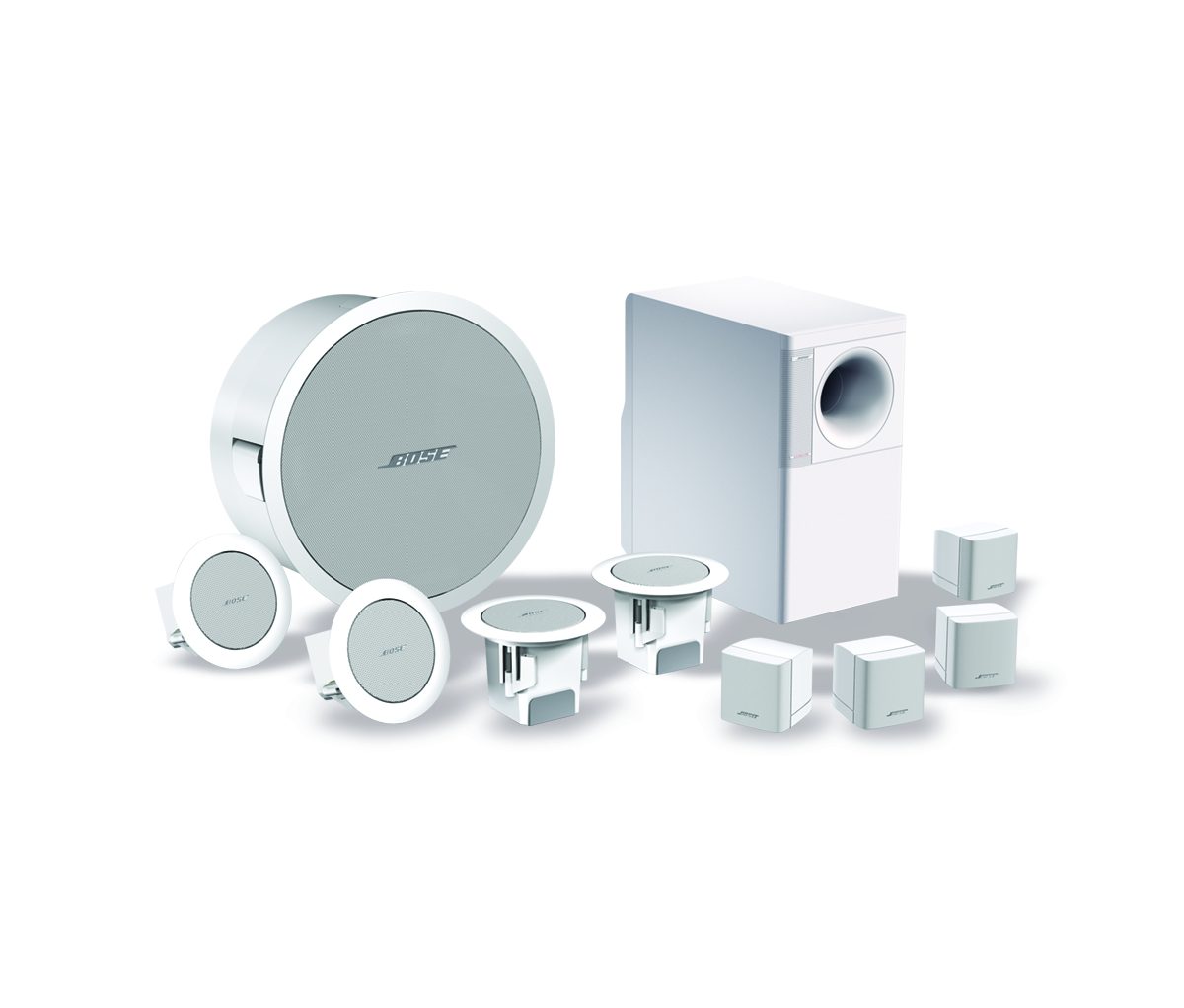

  • Subwoofer/satellitesystems that deliver high fidelity and extended-bandwidth reproduction of voice and music for a wide range of installed applications, including retail, restaurant and hospitality operations

  • Modular designsupports the flexibility for use of 2 or 4 satellites per Acoustimass bass module, and parallel connection of bass modules

  • Mix and matchsurface-mount and flush-mount components to work with different room decors and layouts for a variety of applications

  • Flush-mountcomponents are plenum rated when used with the optional plenum cover

  • Selectable 70/100Vor low impedance with transformer tap adjustment on Acoustimass bass module

  • Can be configuredfor stereo or mono operation

Applications

Designed for a wide range of applications, including:

  • Retail stores
  • Restaurants and bars
  • Lobbies and conference rooms

Specifications

20 specifications

PHYSICAL

Colors
Black, white
Enclosure Material
PC/ABS
Environmental
Indoor only
Grille
Expanded metal
Suspension/Mounting
(3) mounting arms, (1) seismic chain/safety cable attachment point
Product Dimensions (H×W×D)
6.2 in × 4.8 in (157 mm × 123 mm), loudspeaker diameter × depth / 5.0 in (127 mm), ceiling hole diameter
Net Weight
1.9 lb (0.9 kg)
Shipping Weight
5.0 lb (2.3 kg)

PERFORMANCE

Frequency Range (-10 dB)
170 Hz – 20,000 Hz
Coverage, Horizontal
170° conical
Calculated Maximum SPL @ 1 m
Pink noise: 95 dB continuous, 101 dB peak / IEC noise: 92 dB continuous, 108 dB peak
Nominal Impedance
6 Ω
Power Handling, long-term continuous
12 W
Power Handling, Peak
48 W
Recommended Signal Processing
Recommended
Sensitivity (SPL/1 W at 1 m)
84 dB
Transformer Taps, 100V
N/A
Transformer Taps, 70V
N/A
Coverage, Vertical
170° conical

TRANSDUCERS

Low-Frequency
1 × 2.5 in (64 mm) full-range driver per satellite

Downloads

8 documents

Technical Information

User Documentation

Design Tools

Mechanical Files

Compliance Documents
