DesignMax DM6C loudspeakers (1 pair)
Loudspeakers

DesignMax DM6C loudspeakers (1 pair)

IMPORTANT: To more easily stock and supply our DesignMax loudspeakers, our in-ceiling models will be sold only in white with the option to purchase black grilles as accessories if needed. This affects the following models: DM2C-LP, DM3C, DM5C, DM6C, DM8C, and DM8C-SUB.

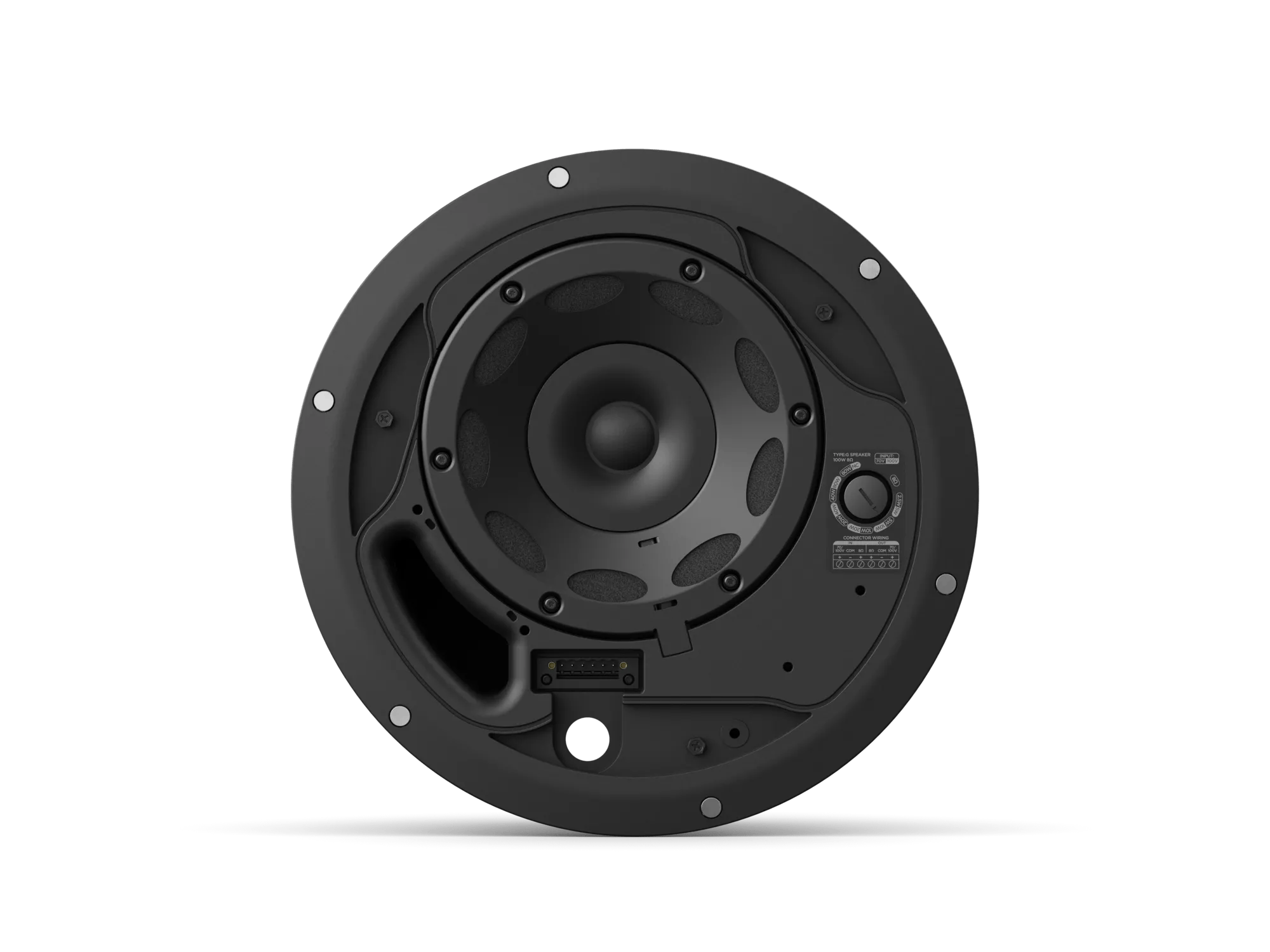

With coaxial two-way drivers, the 125-watt Bose Professional DesignMax DM6C loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. The DM6C features a 6.5-inch woofer and a 1.25-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 59 Hz – 20 kHz. The in-ceiling DM6C is installed easily via QuickHold mounting arms.

Order Code

  • 829679-0220

    DESIGNMAX DM6C PAIR WHT

    Buy Now
Request a Full System Quote
  • Authorized productFull manufacturer warranty
  • Ships from A5 ITCrystal Lake, Illinois
  • Design supportSpecify the whole system

Features

  • Combine DesignMax models to complete any design, big or small12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

  • Deliver rich lows and clear, intelligible highs with coaxial two-way driversno DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

  • Ensure a consistent listening experiencethroughout the room with the Dispersion Alignment system, which matches the acoustic pattern of the woofer to the pattern of the tweeter

  • Blend with any room designwith elegant form factors, minimum-bezel grilles available in black or white, and removable logos

  • Reduce installation timewith the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

  • Install easily with industry-standard accessoriesall models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

Applications

Designed for a wide range of applications, including:

  • Performing arts venues
  • Places of worship
  • Conference centers
  • Retail stores
  • Restaurants and bars
  • Hospitality venues

Specifications

27 specifications

COMPLIANCE

Safety Agency Ratings
UL 1480A, in compliance with UL 2043 for plenum-space installation, NFPA 70 & NFPA 90A, CE-compliant

PHYSICAL

Colors

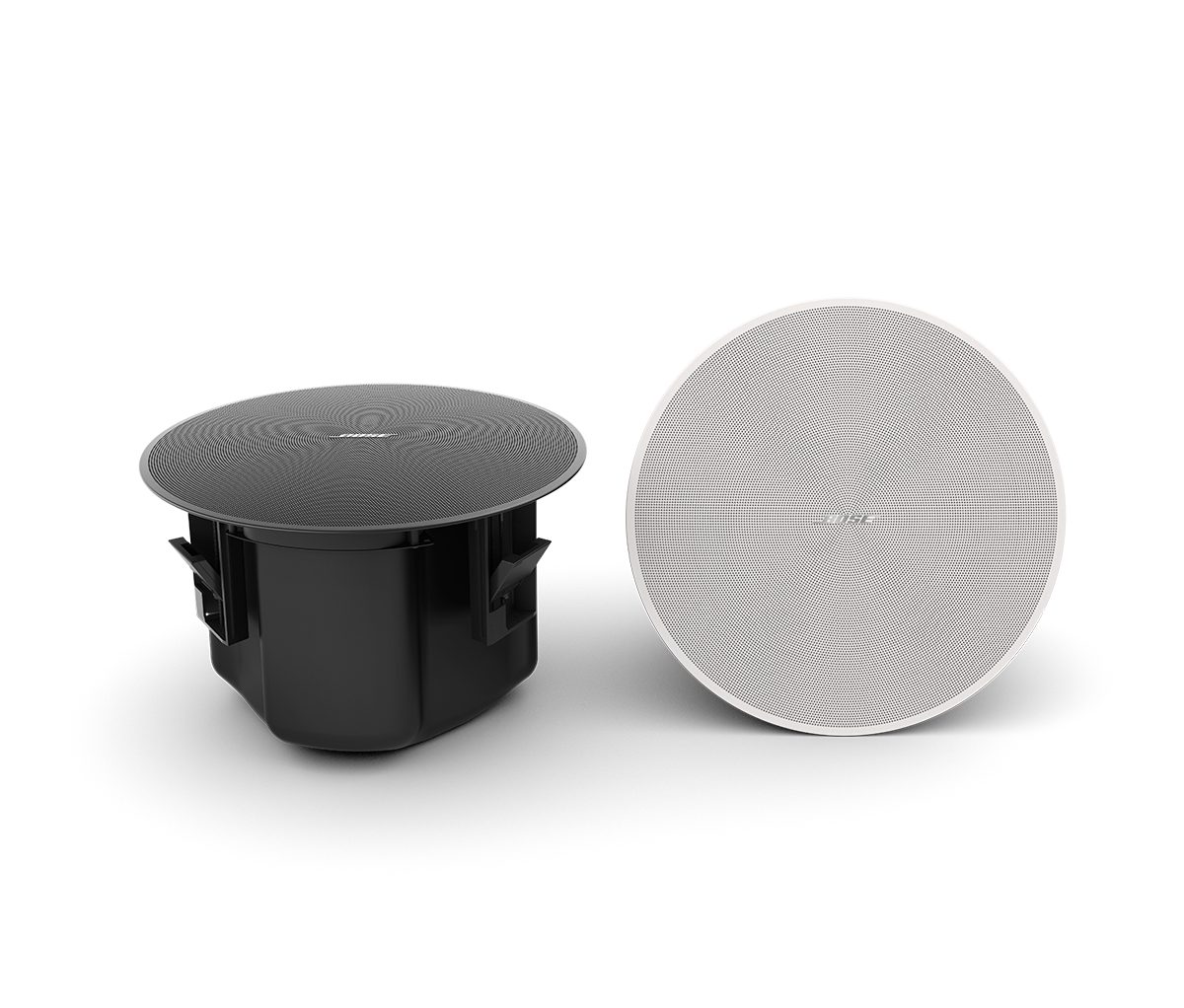

White grille (similar to RAL 9003), black grille (similar to RAL 9005), paintable
Enclosure Material

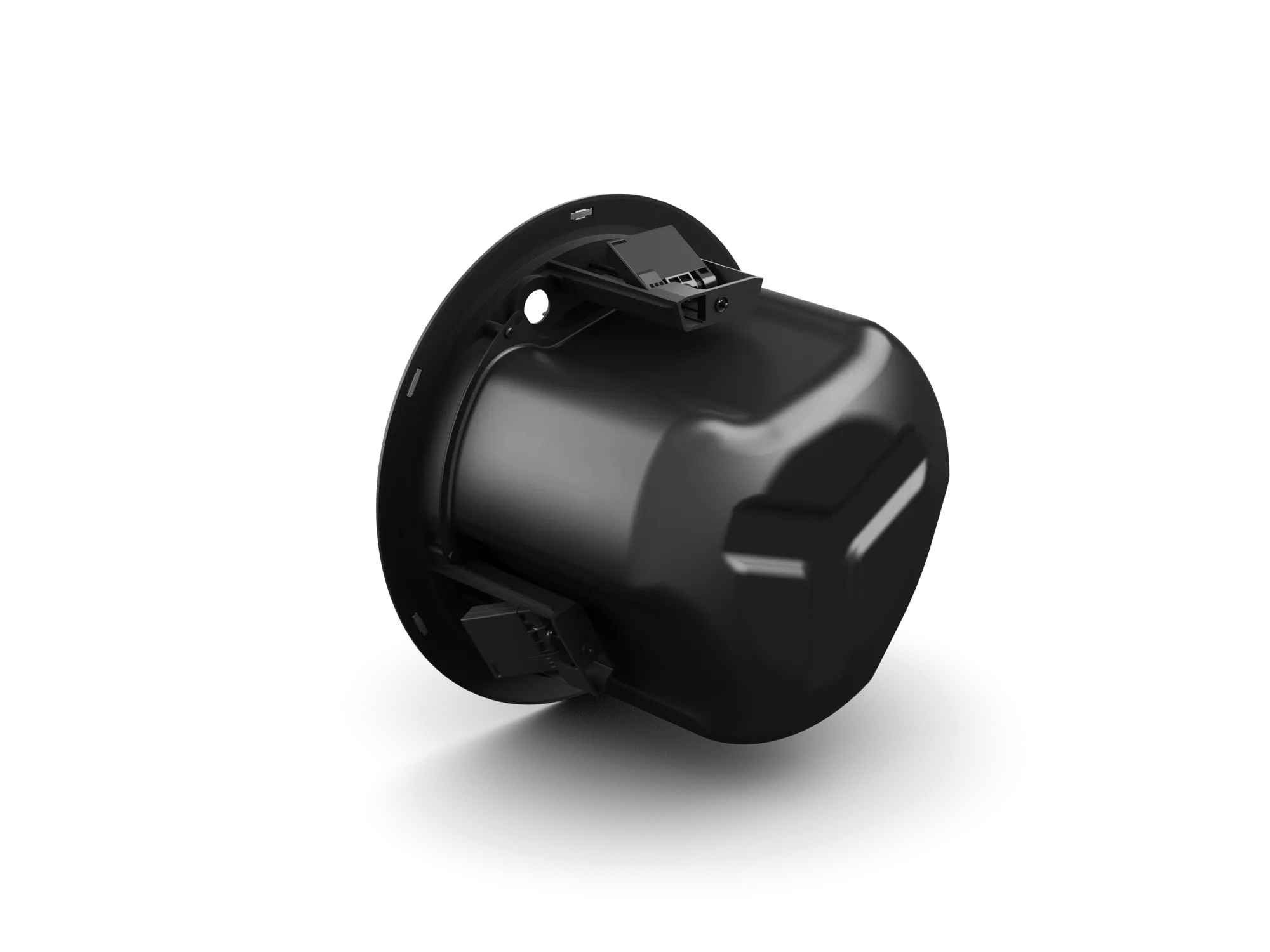

Engineered-plastics front baffle with integrated steel-formed backcan
Environmental
Indoor only
Grille
Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether
Ceiling Cutout
11.5 in (292 mm)
Logo
Rotatable, removable
Suspension/Mounting
(3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points
Operating Temperature Range
0 °C to 50 °C (32 °F to 122 °F)
Product Dimensions (H×W×D)
14.0 in × 9.4 in (356 mm × 239 mm), loudspeaker diameter × depth / 11.3 in × 8.8 in (287 mm × 223 mm), backcan diameter × depth
Net Weight
14.3 lb (6.5 kg), loudspeaker with grille (single) / 1.8 lb (0.8 kg), tile bridge (single)
Shipping Weight
39.1 lb (17.7 kg), pair

PERFORMANCE

Frequency Range (-10 dB)
59 Hz – 20,000 Hz
Coverage, Horizontal
120° conical
Calculated Maximum SPL @ 1 m
109 dB
Nominal Impedance
8 Ω (transformer bypass)
Power Handling, long-term continuous
125 W
Power Handling, Peak
500 W
Recommended Signal Processing
Not required, Bose Professional EQ voicing and SmartBass processing available
Sensitivity (SPL/1 W at 1 m)
88 dB
Transformer Taps, 100V
5, 10, 20, 40, 80 W, bypass
Transformer Taps, 70V
2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass
Coverage, Vertical
120° conical

TRANSDUCERS

Crossover
1.7 kHz, passive 2-way crossover
Driver Protection
Recommended high-pass protection 60 Hz with recommended 24 dB/octave filter
High-Frequency
1 × 1.25 in (32 mm) neodymium dome tweeter, coaxially mounted
Low-Frequency
1 × 6.5 in (165 mm) woofer

In the Box

  • 5 years
  • (1) cutout template
  • (2) DesignMax DM6C loudspeakers
  • (2) grilles
  • (2) tile bridges
  • (1) installation guide
