DesignMax DM2C-LP loudspeakers (1 pair)

IMPORTANT: To more easily stock and supply our DesignMax loudspeakers, our in-ceiling models will be sold only in white with the option to purchase black grilles as accessories if needed. This affects the following models: DM2C-LP, DM3C, DM5C, DM6C, DM8C, and DM8C-SUB.

A complete loudspeaker assortment to enhance any space, DesignMax loudspeakers offer rich lows, and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. The 20-watt Bose Professional DesignMax DM2C-LP loudspeaker makes it easy to bring great sound to tight spaces. Ideal for background music, the DM2C-LP loudspeaker features a 2.25-inch transducer and 85 Hz – 19 kHz frequency range. The in-ceiling DM2C-LP has a low-profile backcan and is installed easily via QuickHold mounting arms.

Order Code

  • 815011-0210

    DESIGNMAX DM2C-LP PAIR WHT

    Buy Now
Request a Full System Quote
  • Authorized productFull manufacturer warranty
  • Ships from A5 ITCrystal Lake, Illinois
  • Design supportSpecify the whole system

Features

  • Combine DesignMax models to complete any design, big or small12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

  • Deliver instantly impressive sound with custom Bose Professional driversno DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level.

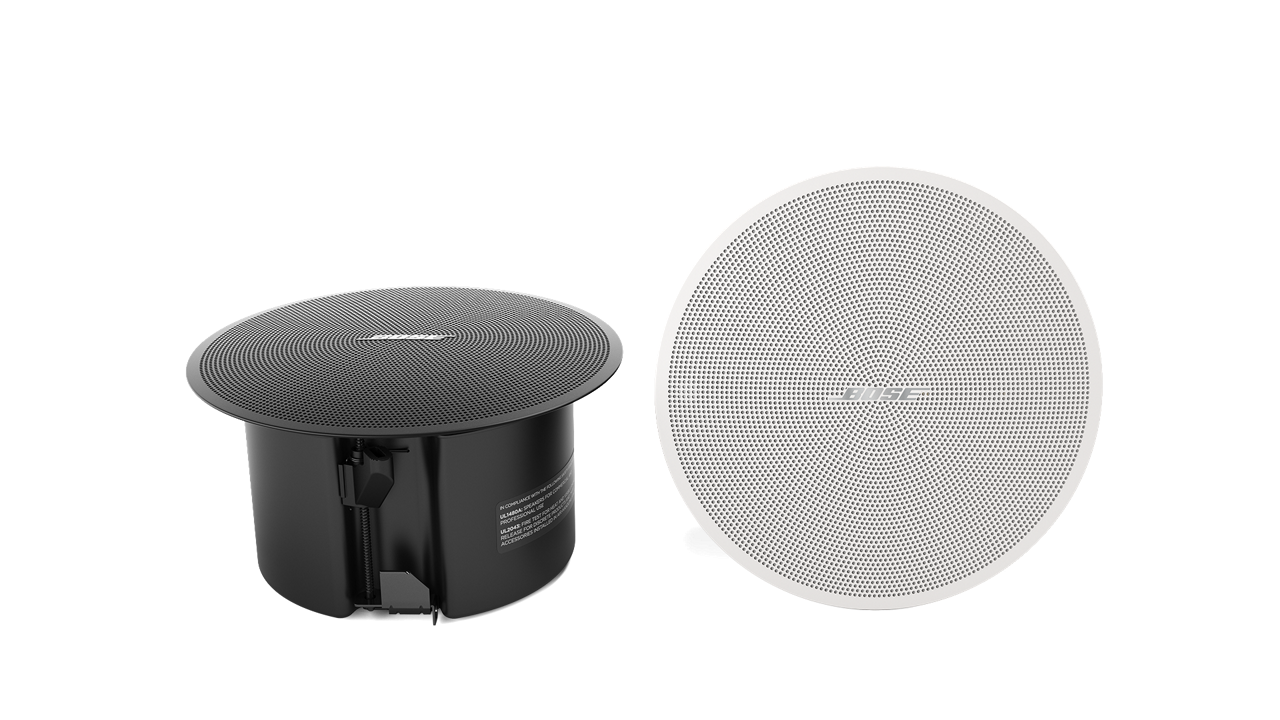

  • Blend with any room designwith elegant form factors, minimum-bezel grilles available in black or white, and removable logos

  • Reduce installation timewith the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

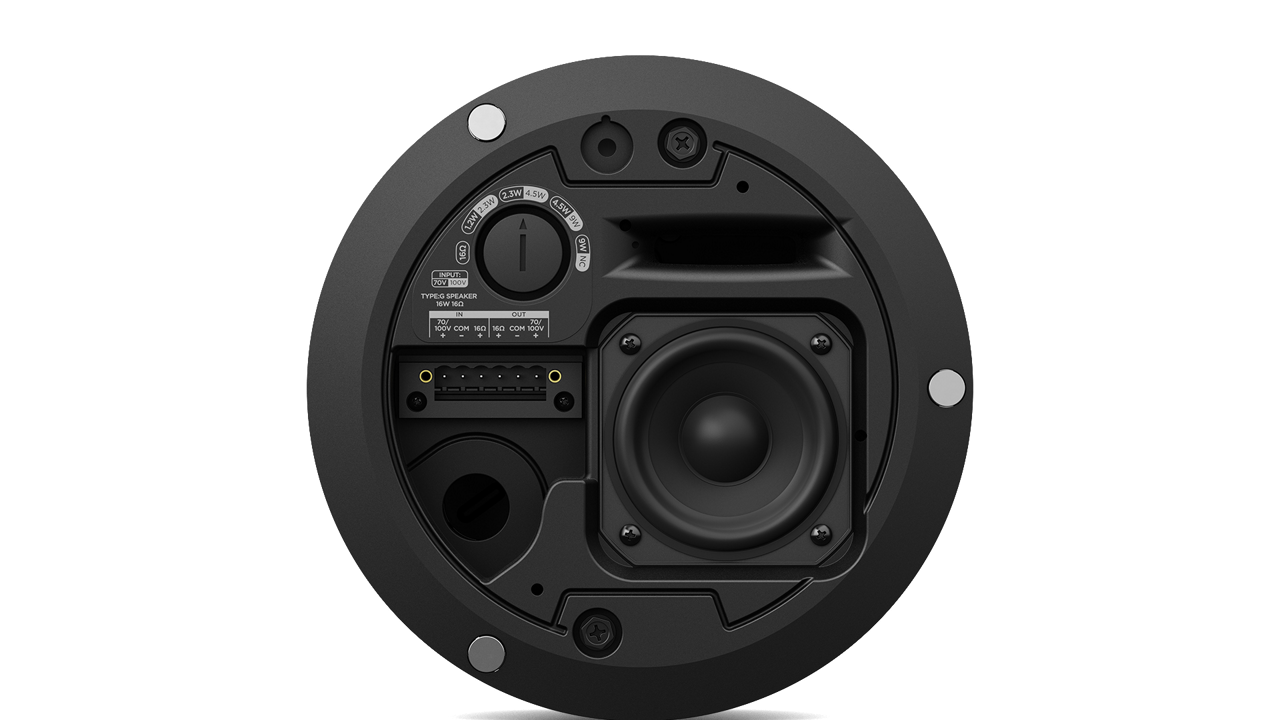

  • Install easily with industry-standard accessoriesall models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

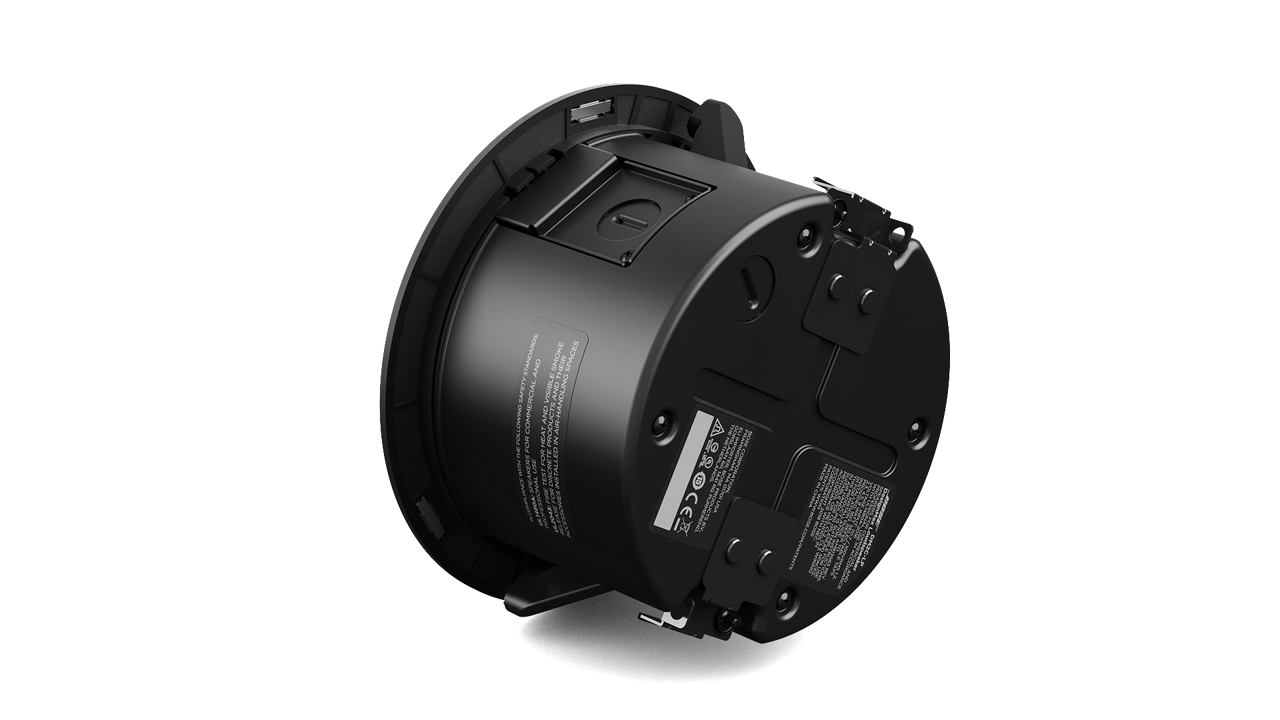

  • Install in confined ceiling spaceswith low-profile backcan measuring just 10 centimeters (3.9 inches) high

Applications

Designed for a wide range of applications, including:

  • Performing arts venues
  • Places of worship
  • Conference centers
  • Retail stores
  • Restaurants and bars
  • Hospitality venues

Specifications

24 specifications

COMPLIANCE

Safety Agency Ratings
UL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 & NFPA90-A, CE compliant

PHYSICAL

Colors
White grille (similar to RAL 9003), black grille (similar to RAL 9005), paintable
Enclosure Material
Engineered-plastics front baffle with integrated steel-formed backcan
Environmental
Indoor only
Grille
Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether
Ceiling Cutout
6.5 in (165 mm)
Logo
Rotatable, removable
Suspension/Mounting
(2) QuickHold spring-loaded mounting arms, (2) safety cable attachment points
Operating Temperature Range
0 °C to 50 °C (32 °F to 122 °F)
Product Dimensions (H×W×D)
7.8 in × 4.3 in (198 mm × 110 mm), loudspeaker diameter × depth / 6.1 in × 3.9 in (155 mm × 99 mm), backcan diameter × depth
Net Weight
3.6 lb (1.6 kg), loudspeaker with grille (single) / 0.7 kg (1.6 lb), tile bridge (single)
Shipping Weight
13.2 lb (5.9 kg), pair

PERFORMANCE

Frequency Range (-10 dB)
85 Hz – 19,000 Hz
Coverage, Horizontal
150° conical
Calculated Maximum SPL @ 1 m
97 dB
Nominal Impedance
16 Ω (transformer bypass)
Power Handling, long-term continuous
20 W
Power Handling, Peak
80 W
Recommended Signal Processing
Not required, Bose Professional EQ voicing and SmartBass processing available
Sensitivity (SPL/1 W at 1 m)
84 dB
Transformer Taps, 100V
2.3, 4.5, 9 W, bypass
Transformer Taps, 70V
1.2W, 2.3 W, 4.5 W, 9 W, bypass

TRANSDUCERS

Driver Protection
Recommended high-pass protection 85 Hz with recommended 24 dB/octave filter
Low-Frequency
1 × 2.25 in (57 mm) woofer

In the Box

  • (1) cutout template
  • (2) DesignMax DM2C-LP loudspeakers
  • (2) tile bridges
  • (1) installation guide
  • (2) white grilles
