ShowMatch SM5 DeltaQ array loudspeaker

Bose Professional ShowMatch DeltaQ SM5 full-range array modules provide 5° nominal vertical coverage with included field-changeable waveguides offering choice of 70° or 100° horizontal coverage with optional accessory 55° waveguides. Replace single waveguide panel to form horizontal asymmetrical patterns. The 2-way module requires external power amplifiers (2- channels) and DSP to provide full-range response from 59 – 18,000 Hz with peak array output of up to 145 dB.

Order Code

730999-5540
ShowMatch SM5
Buy Now

Request a Full System Quote

Authorized productFull manufacturer warranty
Ships from A5 ITCrystal Lake, Illinois
Design supportSpecify the whole system

Features

DeltaQ technologyis the next-generation array design that allows “Q” (directivity) to vary with each module in the array for more consistent coverage over wide frequency range, reduced array weight and cost, and outstanding vocal clarity. Arrays can cover large vertical angles with fewer boxes.

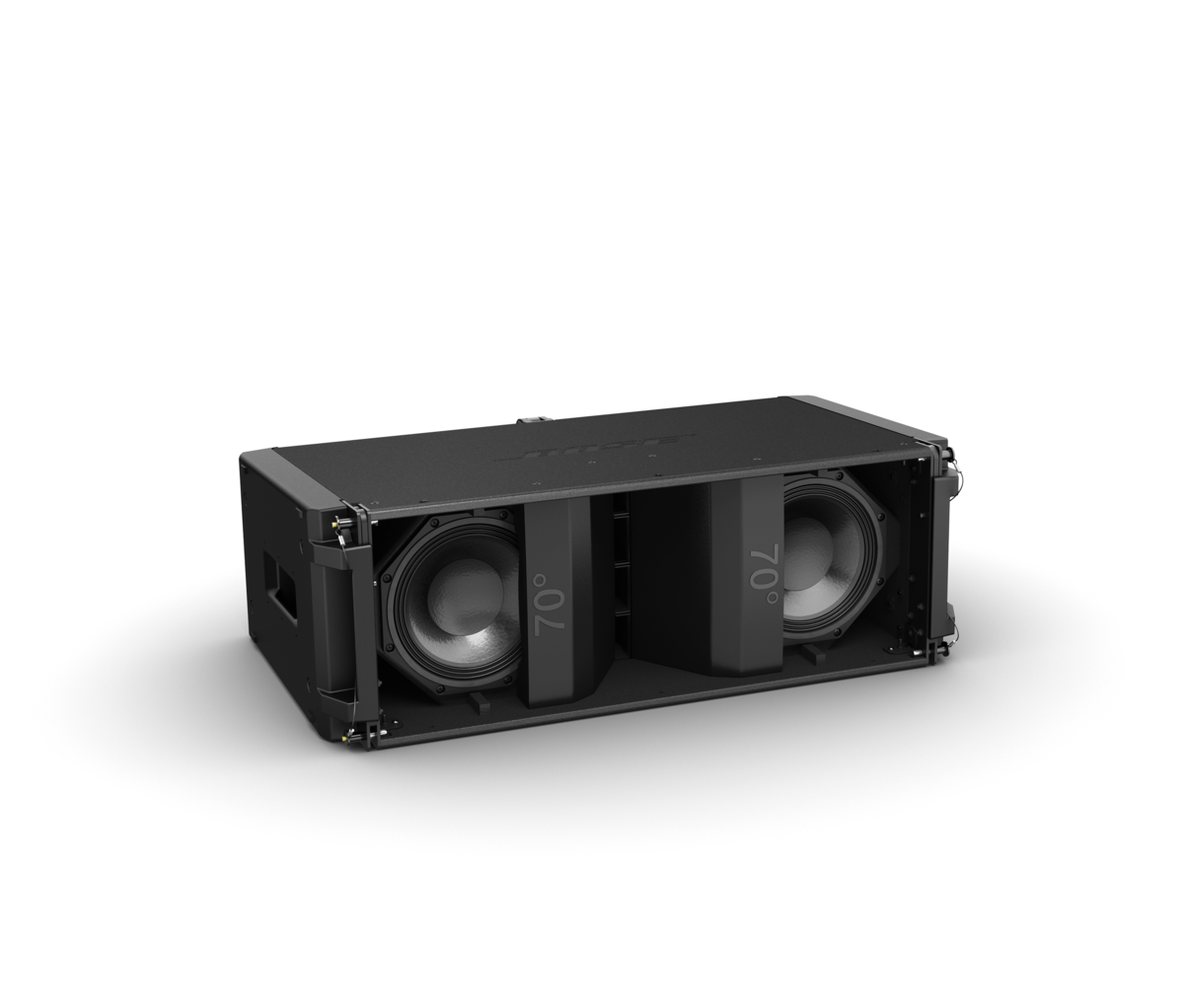

Changeable waveguidesincludes both 70° and 100° waveguides to adjust horizontal coverage. Largest-in-class size provides superior coverage control and vocal clarity. Change single panel for asymmetrical patterns. Optional 55° waveguides for SM5.
Compact, portable enclosureVersatile design allows both fixed install and portable applications, from small clubs and houses of worship to the largest performing arts centers and AV productions.
Tour-sound output level4 × Bose Professional EMB2S compression drivers, improved with more high-frequency output, and 2 × 8-inch neodymium high-power woofers allow array output up to 145 dB SPL.
3-point “quick pin” riggingFast, easy setup with up to 24 full-range modules and 10:1 safety factor.

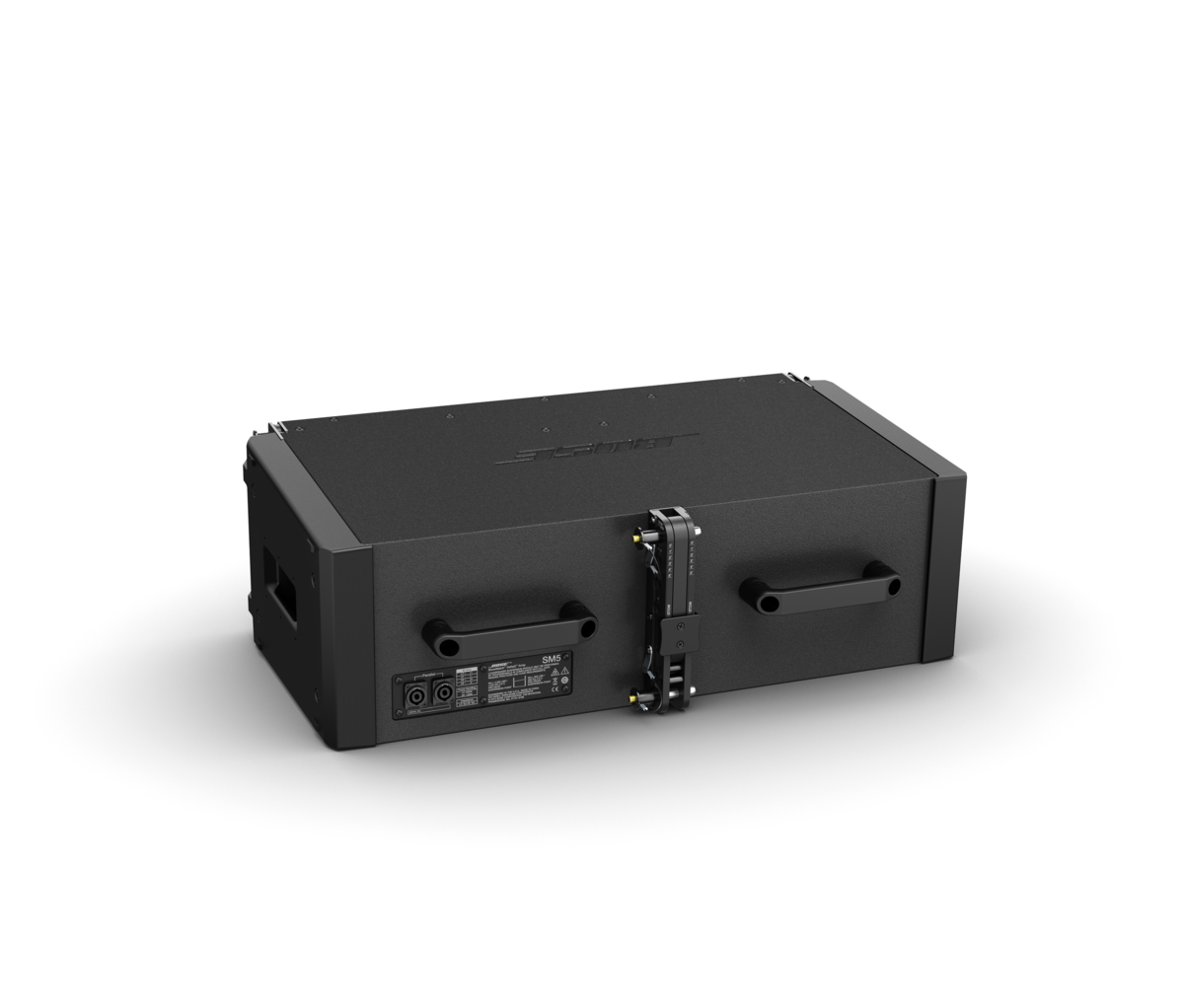

Removable side rigging-guard/handlesprovides rigging guard and hand holds for portable applications. Easily removed for permanent installs for reduced width and cleaner visual appearance.
Rigging overlap angle adjustmentonly on SM5 modules, coverage overlap or “splay” can be adjusted from 0° to 5°, in 1° increments, to provide long throw distance and high SPL.

Applications

Designed for a wide range of applications, including:

Theaters
Houses of worship
Auditoriums
Performing arts venues
Arenas

Specifications

18 specifications

COMPLIANCE

EN 54-24 Certified: No

PHYSICAL

Colors: Black
Enclosure Material: Baltic birch plywood
Grille: 16-gauge (1.5 mm) perforated steel, powder-coated finish
Suspension/Mounting: 3-point quick-pin rigging
Product Dimensions (H×W×D): 10.6 in × 31.2 in × 18.4 in (270 mm × 793 mm × 467 mm)
Net Weight: 67.5 lb (30.6 kg)

PERFORMANCE

Frequency Range (-10 dB): 59 Hz – 18,000 Hz
Coverage, Horizontal: 70°
Calculated Maximum SPL @ 1 m: 121 dB (low frequency), 127 dB (high frequency) continuous / 127 dB (low frequency), 133 dB (high frequency) peak
Nominal Impedance: 8 Ω (low frequency) + 6 Ω (high frequency)
Power Handling, long-term continuous: 450 W (low frequency), 100 W (high frequency)
Power Handling, Peak: 1800 W (low frequency), 400 W (high frequency)
Sensitivity (SPL/1 W at 1 m): 94 dB (low frequency), 107 dB (high frequency)
Coverage, Vertical: 5°

TRANSDUCERS

Crossover: 750 Hz, acoustic, requires active 2-way crossover in DSP
High-Frequency: 4 × Bose Professional EMB2S extended-high frequency neodymium compression driver, 2 in (51 mm) voice coil
Low-Frequency: 2 × Bose Professional SM8 neodymium 8 in (203 mm) woofers, 3 in (76 mm) voice coil
