ControlCenter CC-16 zone controller
Controllers

ControlCenter CC-16 zone controller

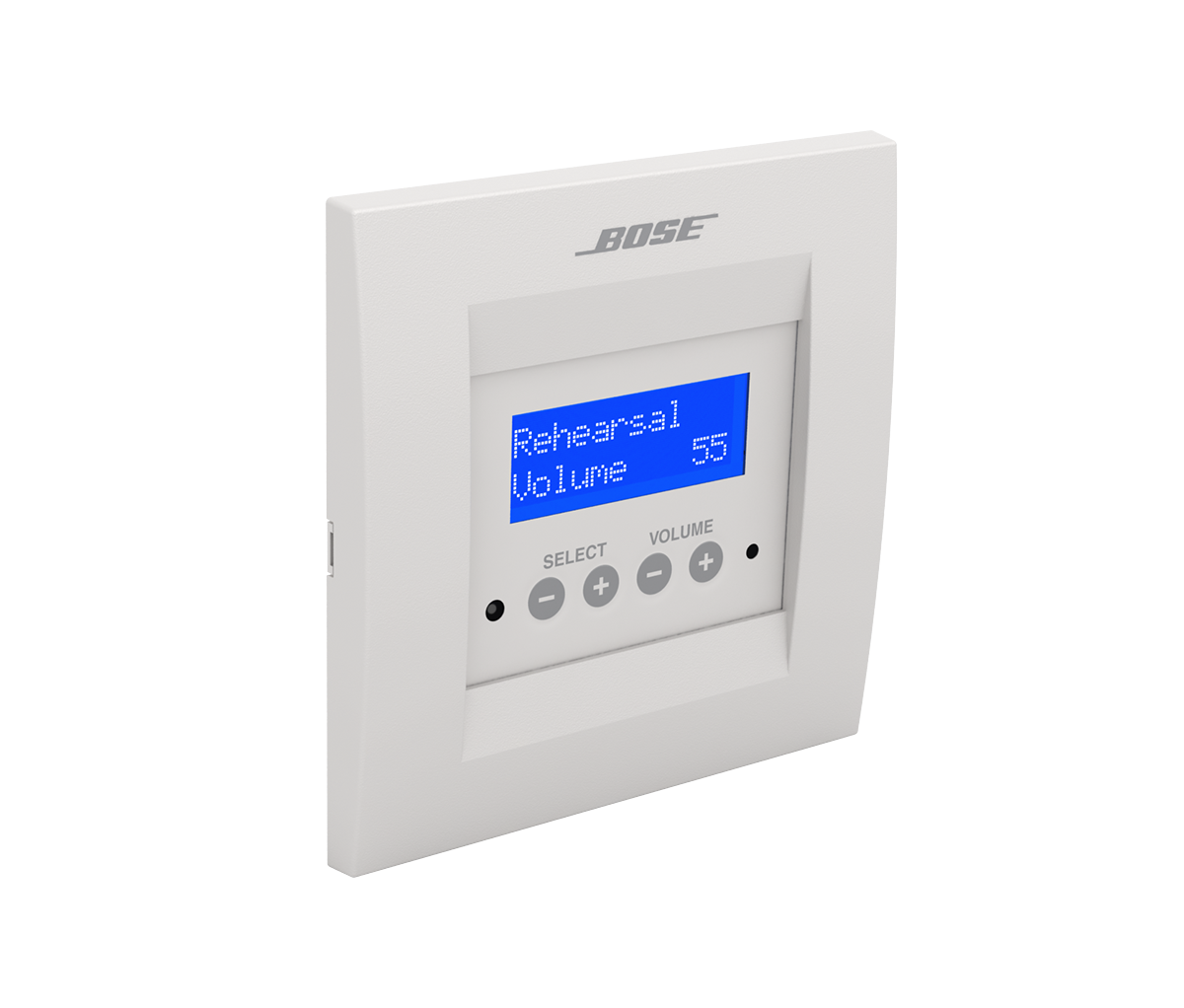

The Bose Professional ControlSpace CC-16 zone controller is an elegant wall-mounted device designed to provide end-user control of ControlSpace systems. Custom programming allows the CC-16 to control a variety of system elements, from switching remote audio sources to selecting "scenes" or system configurations. The CC-16 features a bitmap LCD and four buttons for displaying and controlling the system settings.

Order Code

Request a Full System Quote
  • Authorized productFull manufacturer warranty
  • Ships from A5 ITCrystal Lake, Illinois
  • Design supportSpecify the whole system

Features

  • Elegant stylingwith intuitive controls for end user operation

  • 122 × 32 pixel backlitblue LCD

  • Sealed volume +/- and select +/- pushbuttons

  • Simplified drag-and-drop setupusing ControlSpace Designer

  • DIP switch addressingon back of unit

  • Programmable controlof system elements (switching of audio sources, system configurations)

  • Supports programming of easy-to-select scenesallowing multiple room usage scenarios to be recalled from the CC-16 by end users

  • Customizable on-screen wordingprovides easier system operation

  • Programmable software lock-out

  • Fits into a standard 2-gangelectrical wall box

Specifications

12 specifications

COMPLIANCE

EMC
ICES-003 Class B, EN55103-1, EN55103-2, FCC Part 15 Class B

ELECTRICAL

Cable Requirements
Cat 5 (24–18 AWG), unshielded twisted-pair (UTP)
Maximum Controller Quantity
15 per ControlSpace ESP processor
Maximum Cable Length
2000 ft (609 m)
Connectors
(1) Euroblock, 6 pins
Power Range
8–18 VDC, 100 mA

GENERAL

Compatible with
ControlSpace ESP-880A, ControlSpace EX-1280, ControlSpace EX-1280C, DS4 Ceiling Audio Solution

INDICATORS AND CONTROLS

Controls, Front Panel
(2) volume buttons (+, –), (2) select buttons (+, –)
Display
122 × 32 pixel LCD, backlit blue

PHYSICAL

Colors
White
Suspension/Mounting
2-gang electrical box (North America, Japan)
Product Dimensions (H×W×D)
4.8 in × 4.7 in × 1.5 in (121 mm × 118 mm × 37 mm)

In the Box

  • (1) ControlSpace CC-16
  • (1) installation guide

Downloads

4 documents

User Documentation

Mechanical Files

Compliance Documents
