ControlCenter CC-2 zone controller
Controllers

ControlCenter CC-2 zone controller

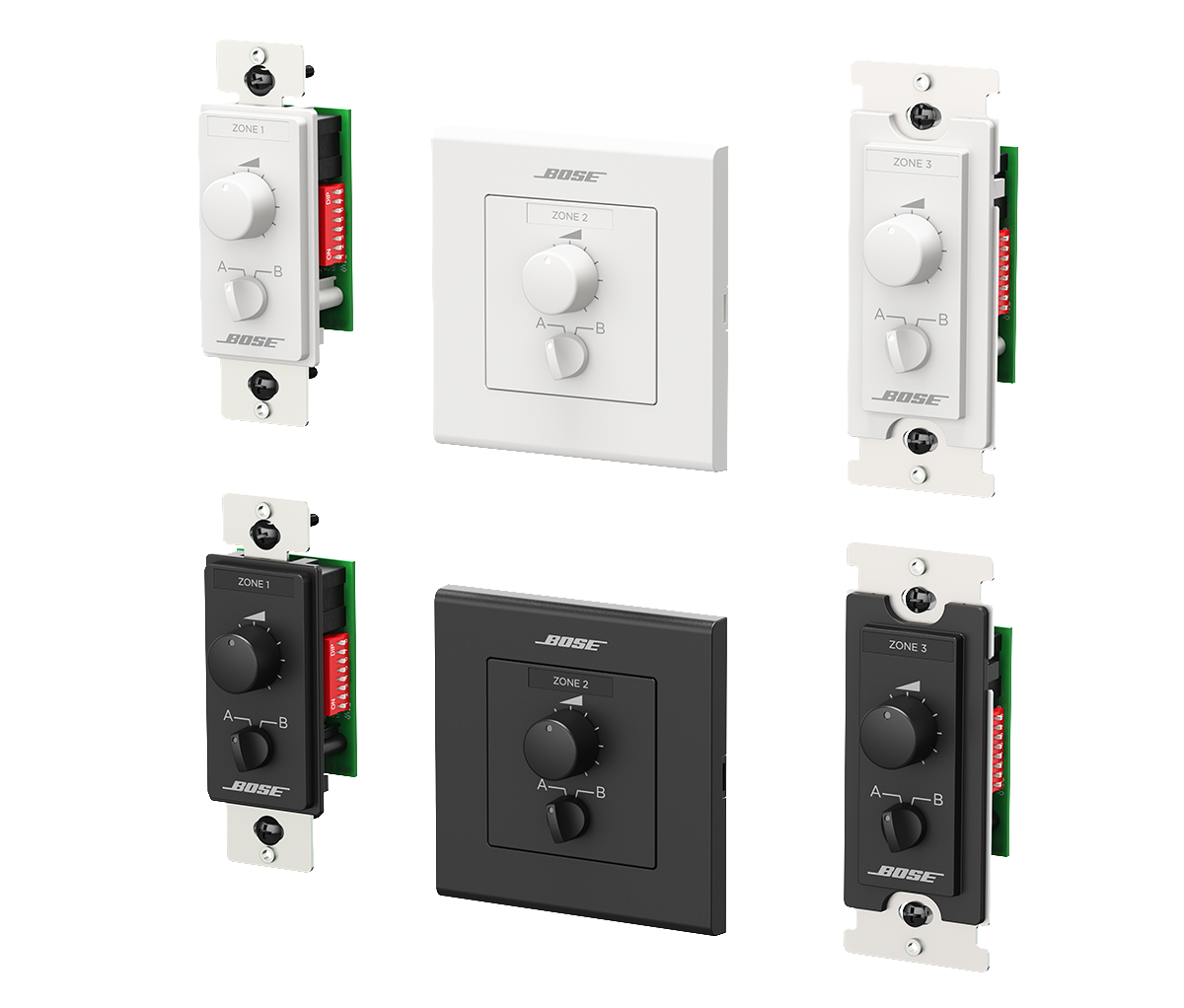

Bose Professional ControlCenter CC-2 zone controllers provide volume and A/B source selection for FreeSpace and ControlSpace products. Three models are available in either black or white and fit 1-gang electrical boxes in North America, Europe, and Japan.

Order Codes · 6

See all →

  • 768938-0110

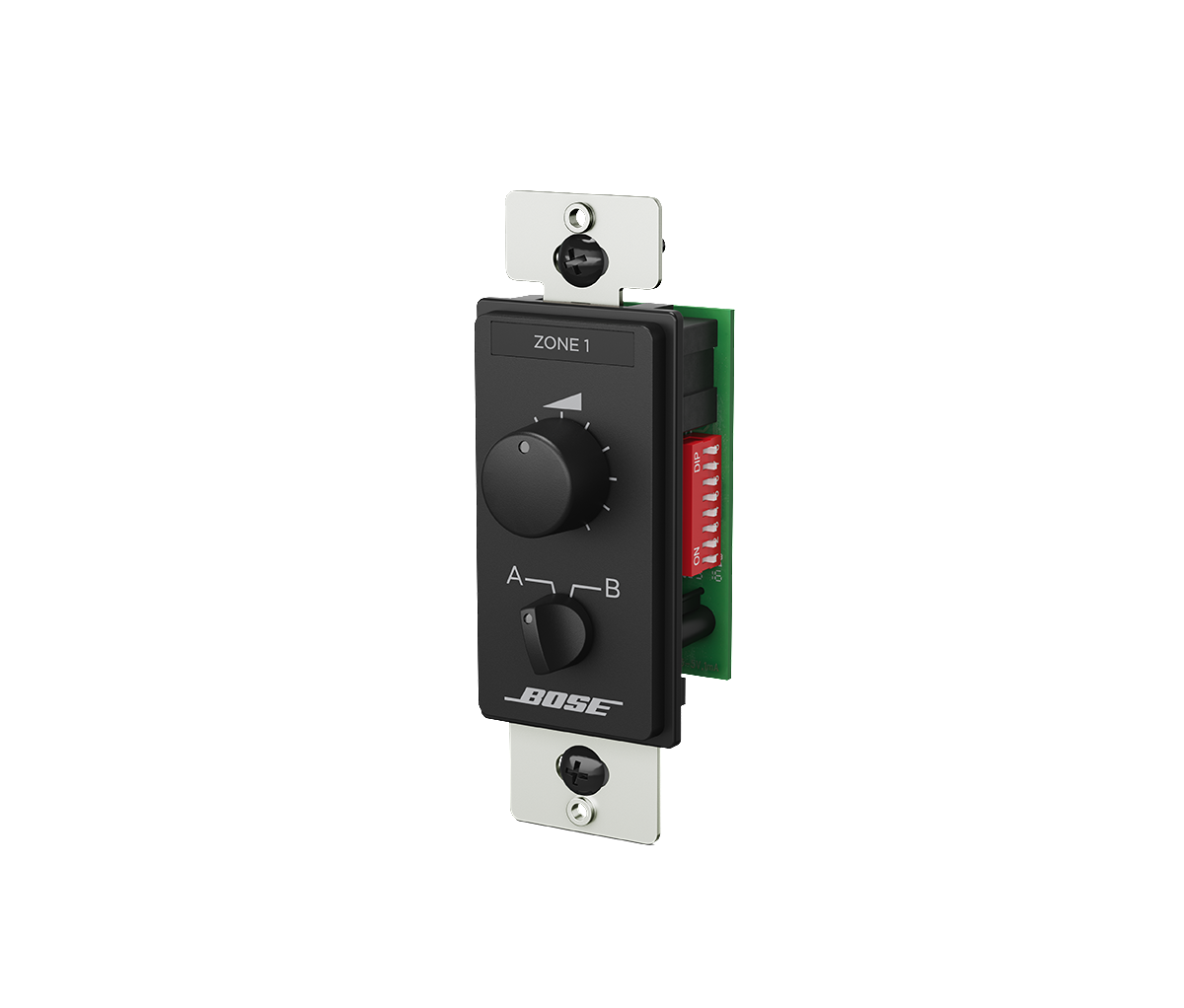

    ControlCenter CC‑2, black, 120V, North America

    Buy Now

  • 768938-0210

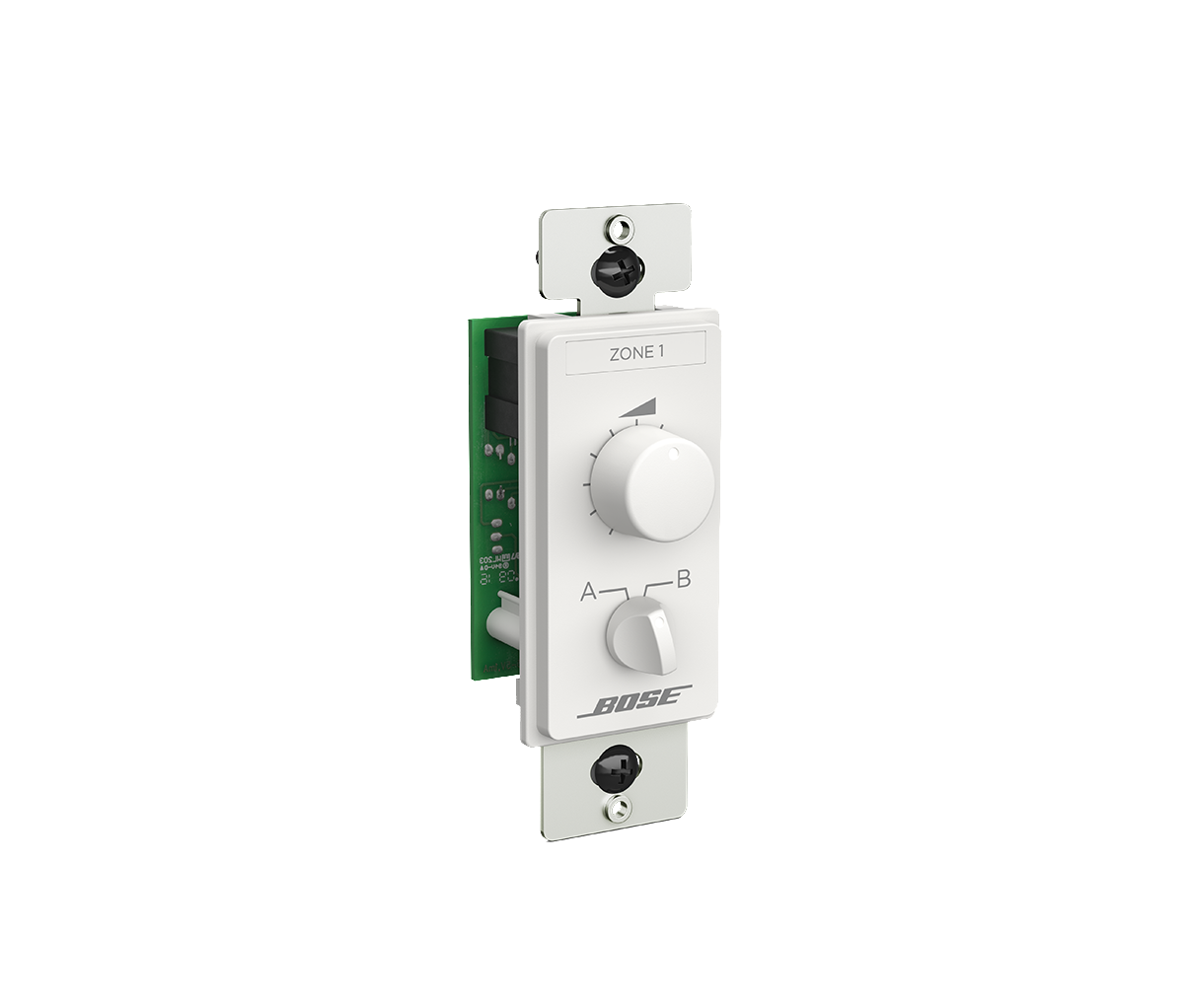

    ControlCenter CC‑2, white, 120V, North America

    Buy Now

  • 768938-2110

    ControlCenter CC‑2, black, 230V, Europe

    Get Price
Request a Full System Quote
  • Authorized productFull manufacturer warranty
  • Ships from A5 ITCrystal Lake, Illinois
  • Design supportSpecify the whole system

Features

  • ControlCenter series:The ControlCenter series is a set of remote controls for use with Bose Professional FreeSpace amplifiers, PowerShare amplifiers, and ControlSpace processors. The three models offer volume control (CC-1), volume plus A/B source selection (CC-2), and volume plus A/B/C/D source selection (CC-3).

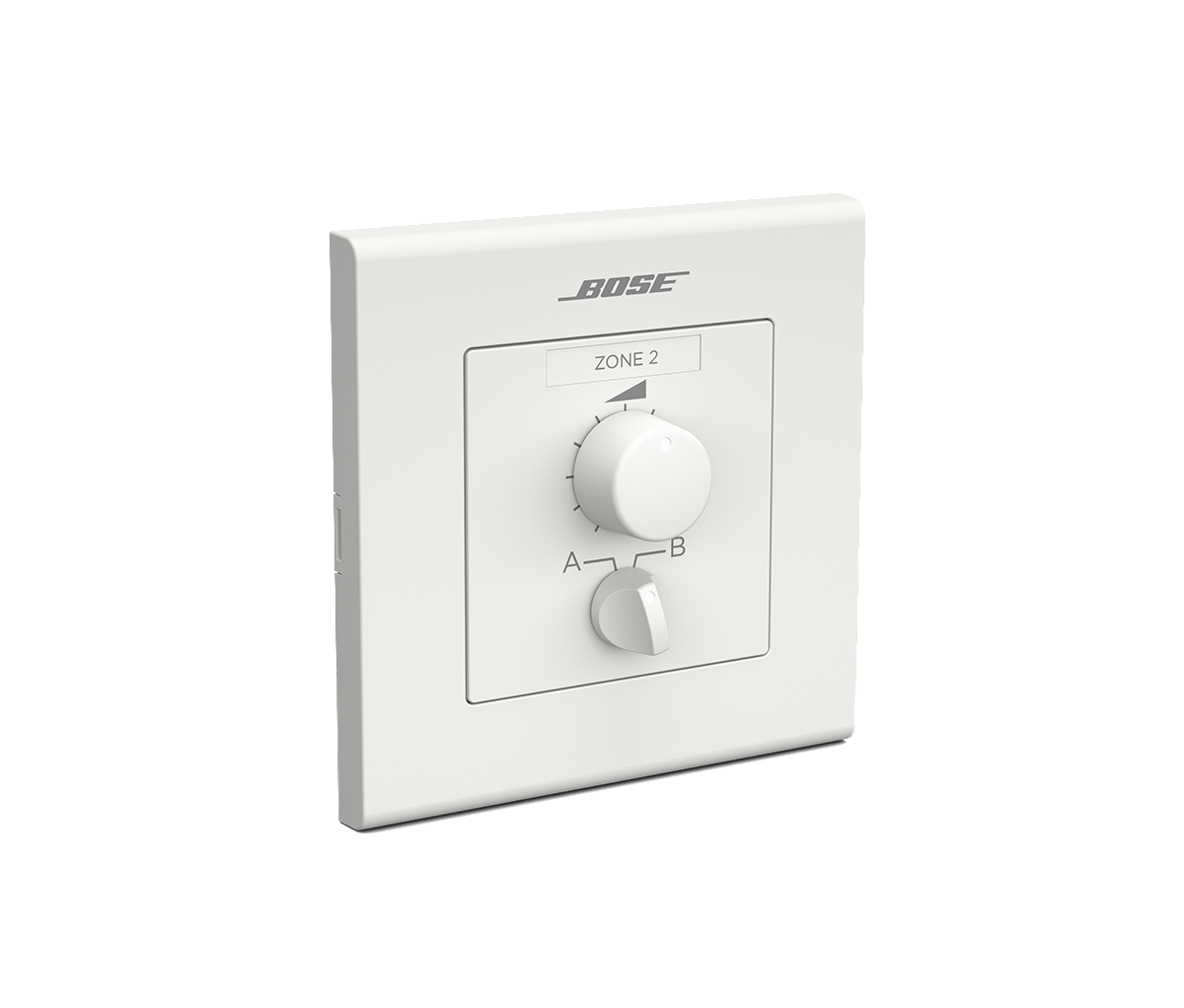

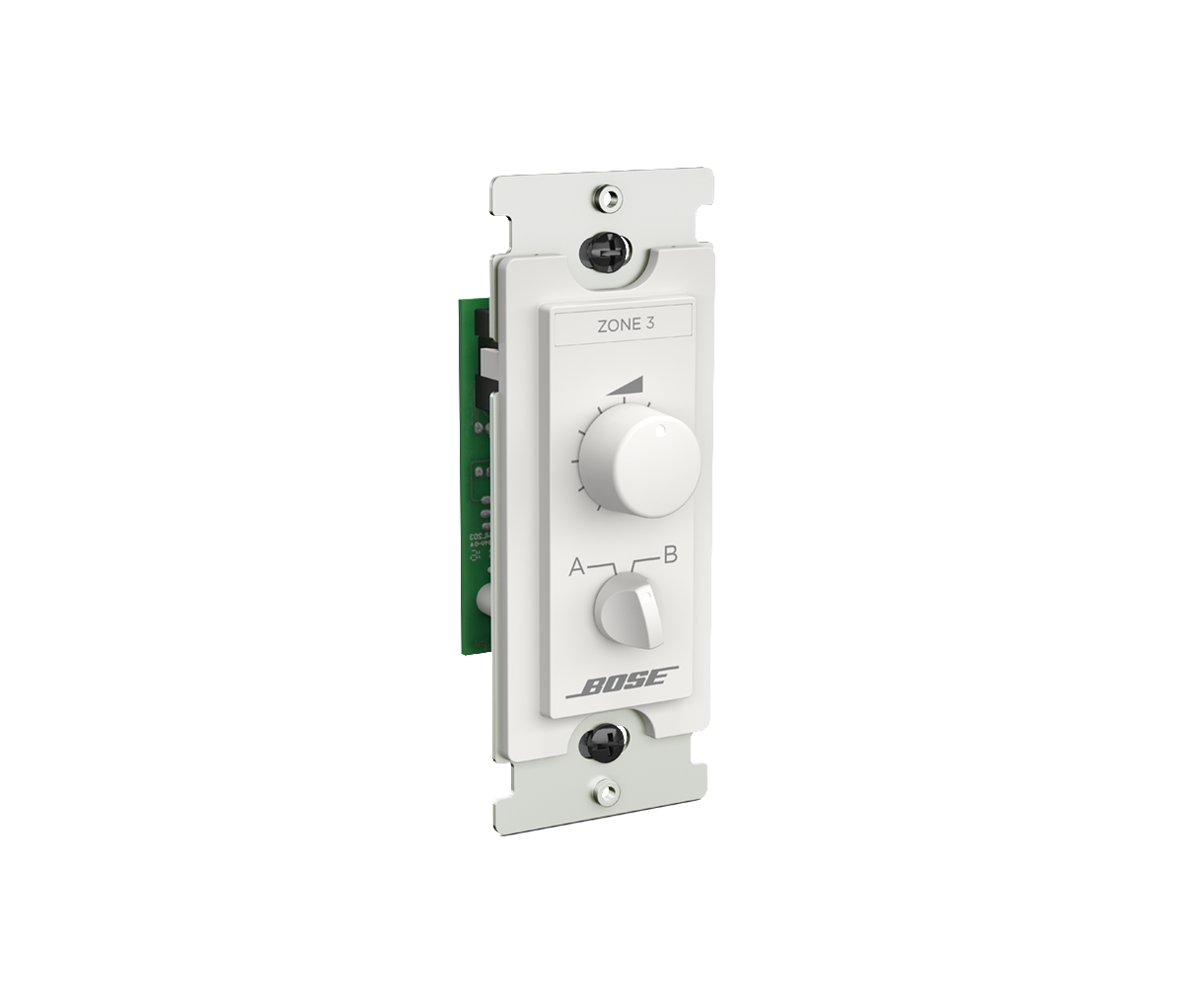

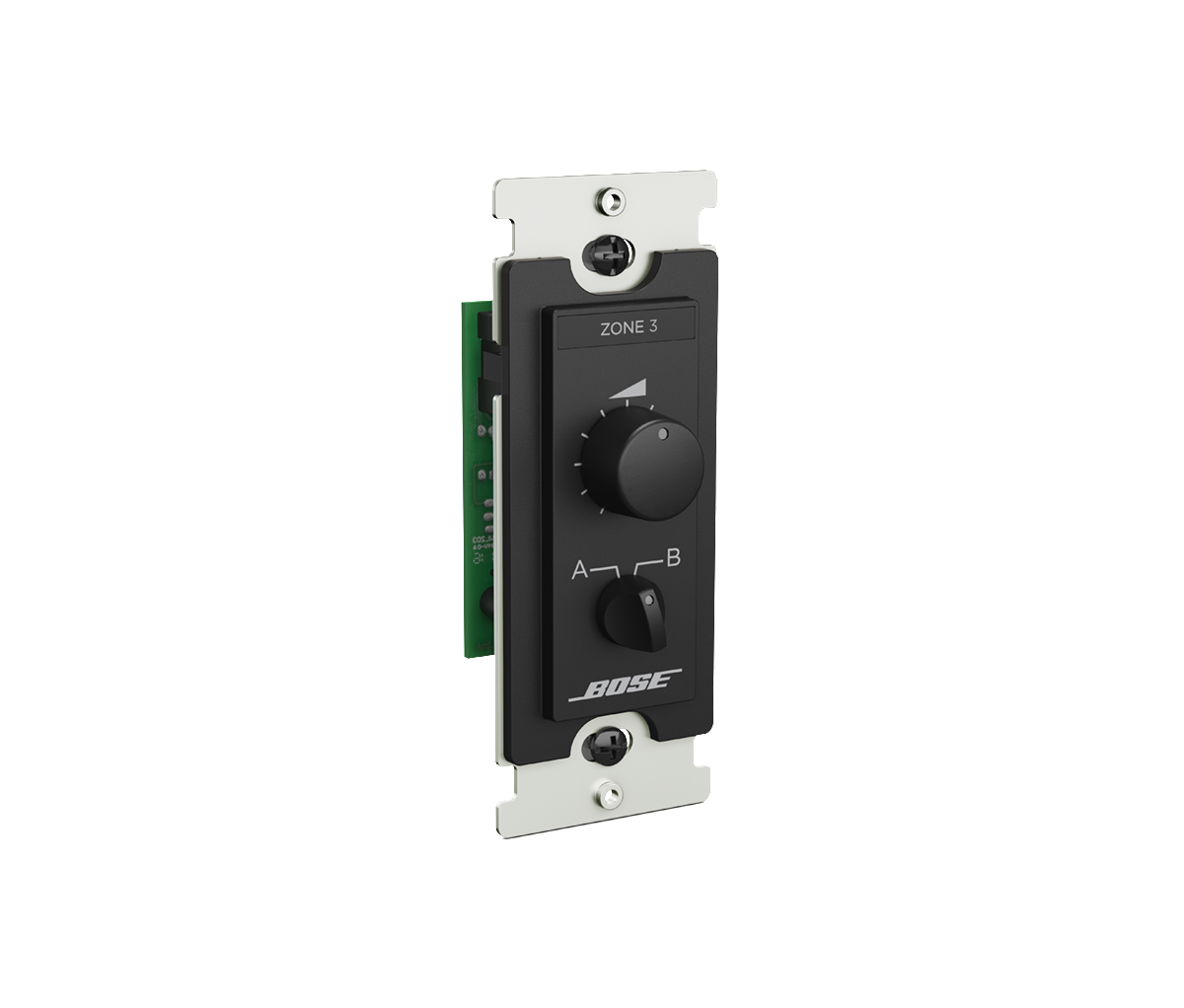

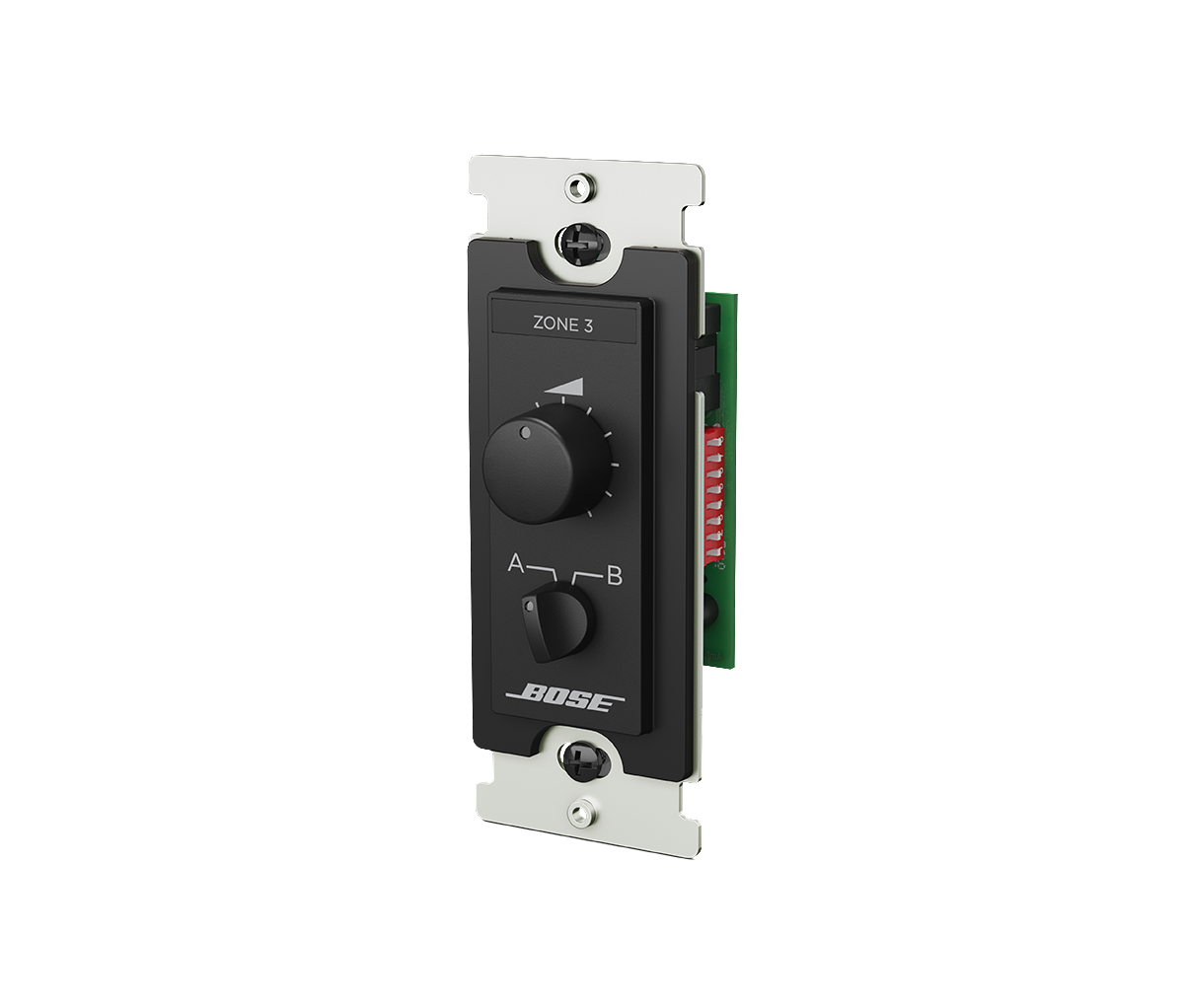

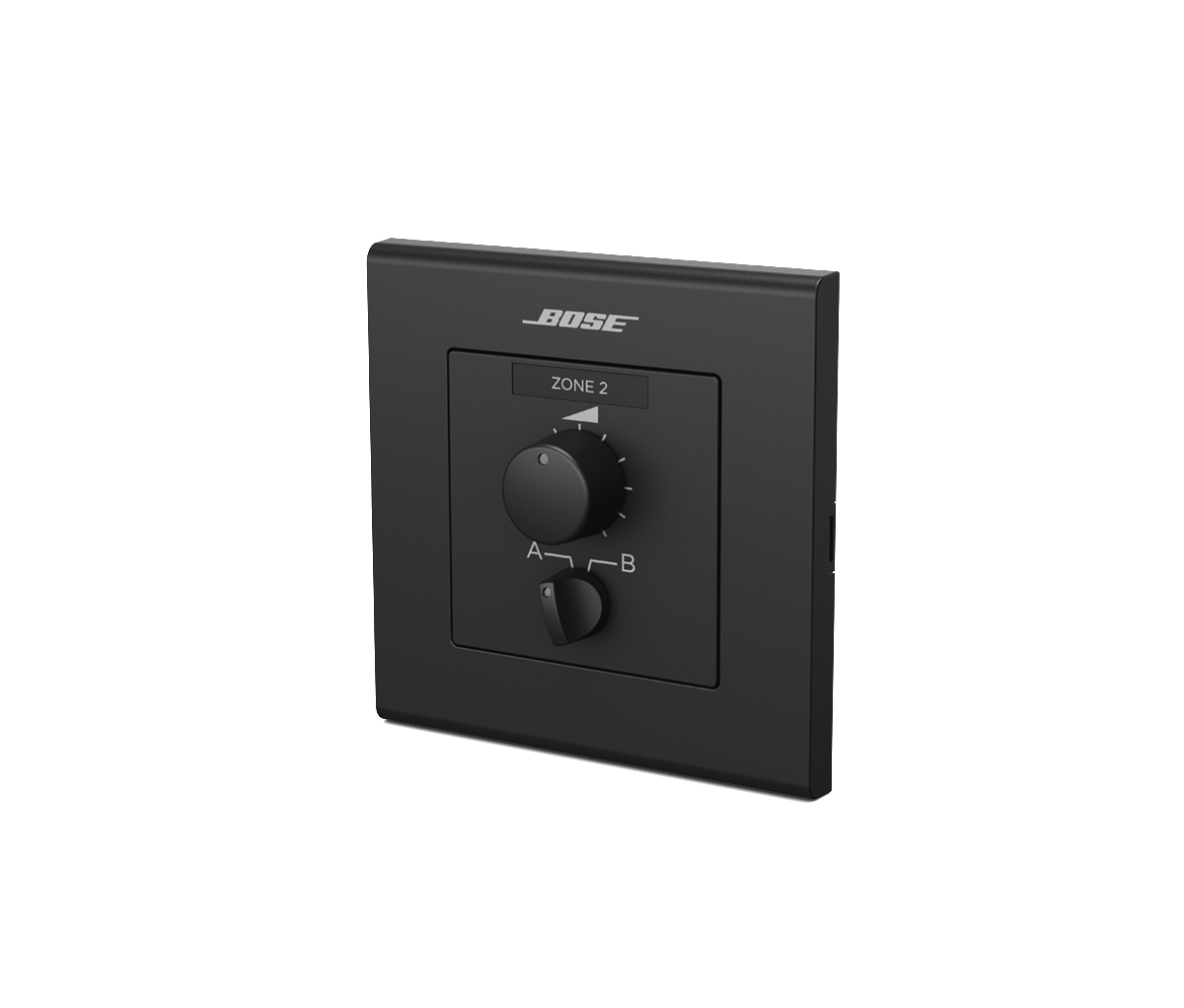

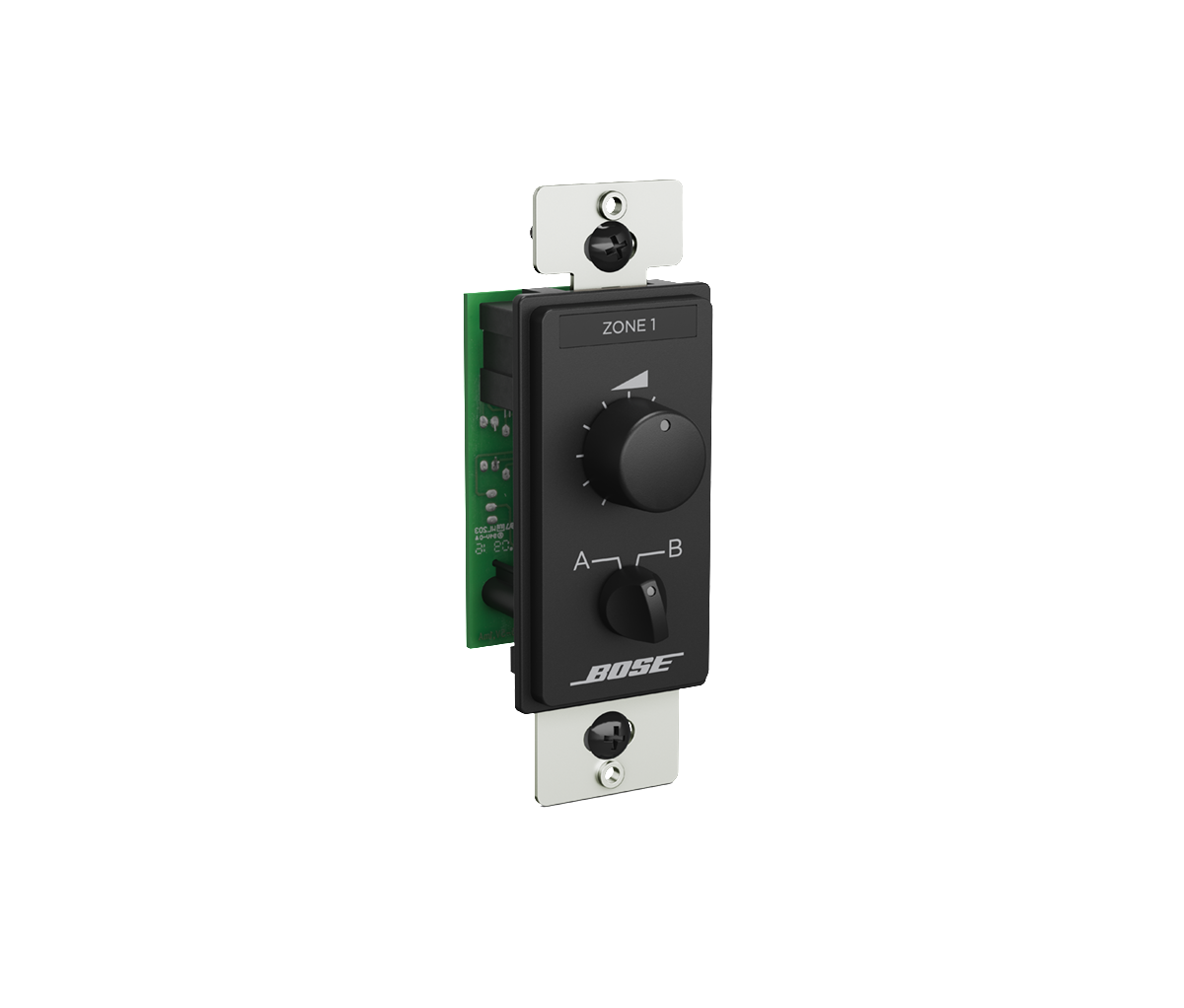

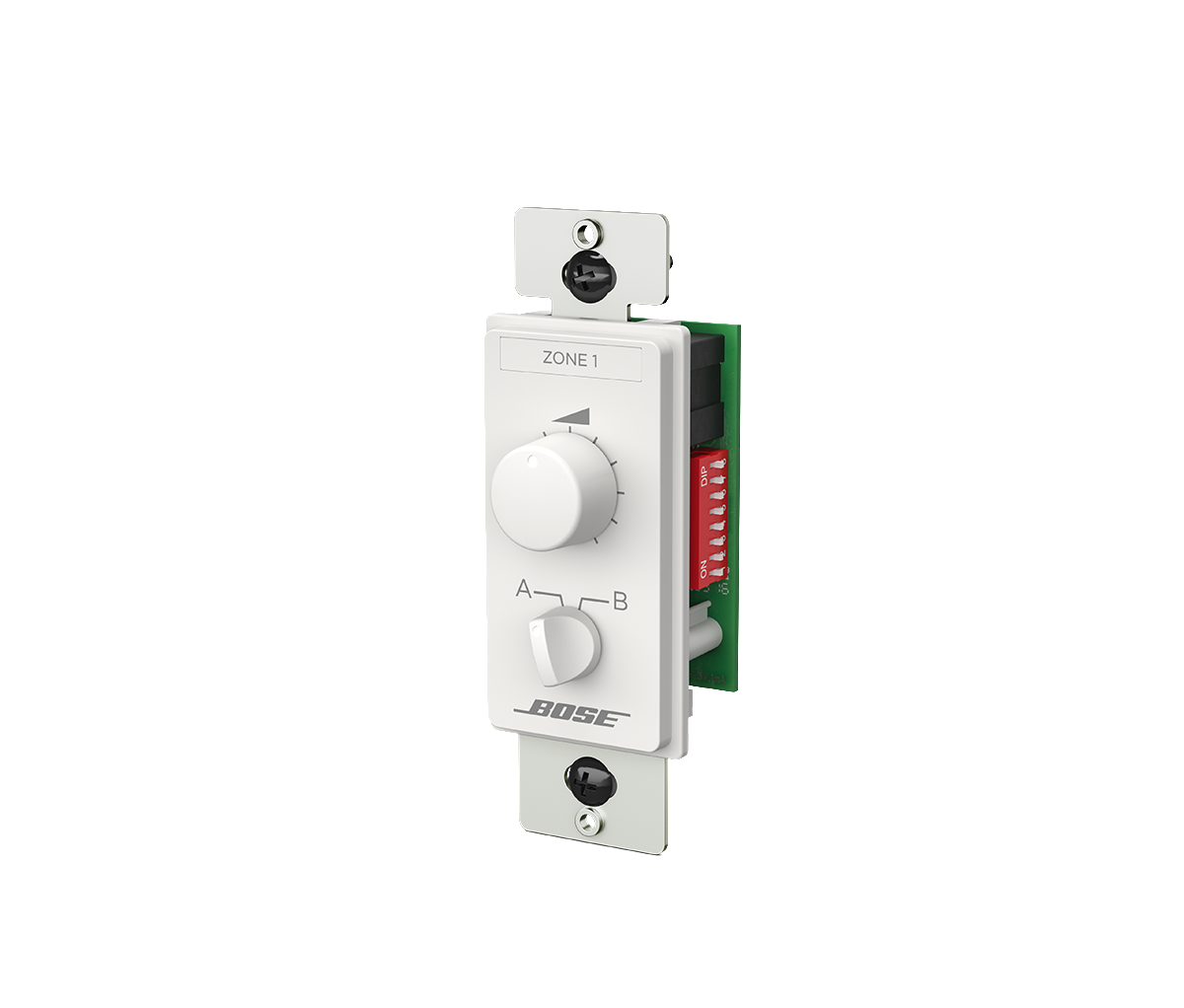

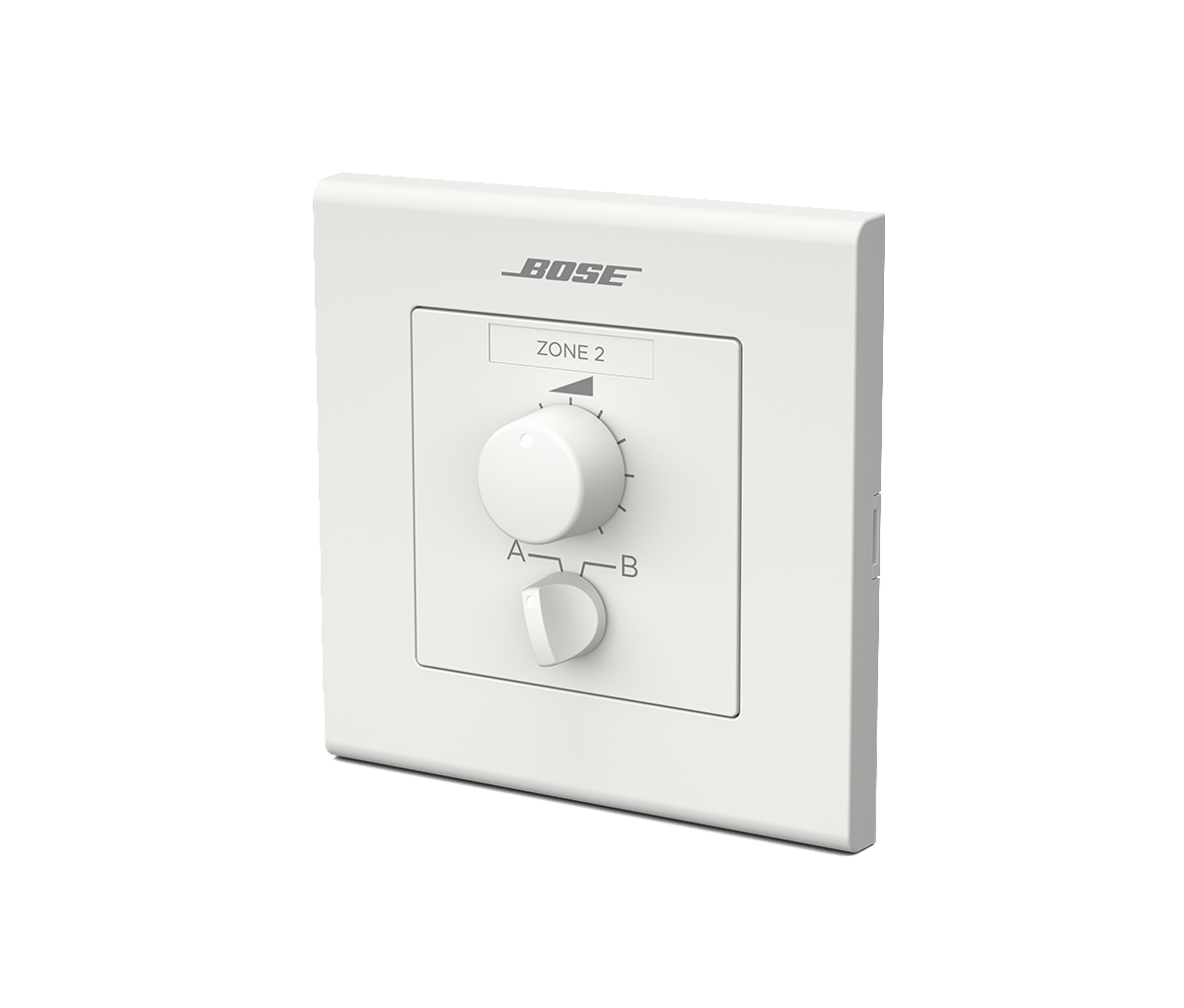

  • ControlCenter models:North American and Japanese models are designed for use with Decora-style wall plate covers (not included). The 86 × 86 mm European model is supplied as a finished wall plate.

  • Custom labels:Each zone controller includes a sheet of pre-printed labels, with two blanks for custom labeling.

Applications

Designed for a wide range of applications, including:

  • Retail stores
  • Restaurants and bars
  • Hospitality venues
  • Religious and worship facilities
  • Auxiliary zones

Specifications

9 specifications

ELECTRICAL

Cable Requirements
Cat 5
Maximum Controller Quantity
2 per ControlSpace processor
Maximum Cable Length
2000 ft (609 m) to FreeSpace amplifiers / 500 ft (152 m) shielded, 100 ft (30 m) unshielded to ControlSpace processors
Connectors
(2) RJ-45, TIA/EIA 568B wiring standard

GENERAL

Compatible with
ControlSpace ESP-880A, FreeSpace IZA 190-HZ, FreeSpace IZA 250-LZ, FreeSpace IZA 2120-HZ, FreeSpace IZA 2120-LZ

INDICATORS AND CONTROLS

Controls, Front Panel
(1) volume knob, (1) source selection knob

PHYSICAL

Colors
Black, white
Suspension/Mounting
1-gang electrical box (North America, Europe, Japan)
Product Dimensions (H×W×D)
4.1 in × 1.5 in × 1.5 in (105 mm × 38 mm × 38 mm), North America / 3.4 in × 3.4 in × 1.5 in (86 mm × 86 mm × 38 mm), Europe / 4.3 in × 1.7 in × 1.5 in (110 mm × 42 mm × 39 mm), Japan

Order Codes

Order CodeDescriptionAvailability
768938-0110ControlCenter CC‑2, black, 120V, North AmericaBuy Now
768938-0210ControlCenter CC‑2, white, 120V, North AmericaBuy Now
768938-2110ControlCenter CC‑2, black, 230V, EuropeGet Price
768938-2210ControlCenter CC‑2, white, 230V, EuropeGet Price
768938-3110ControlCenter CC‑2, black, 100V, JapanGet Price

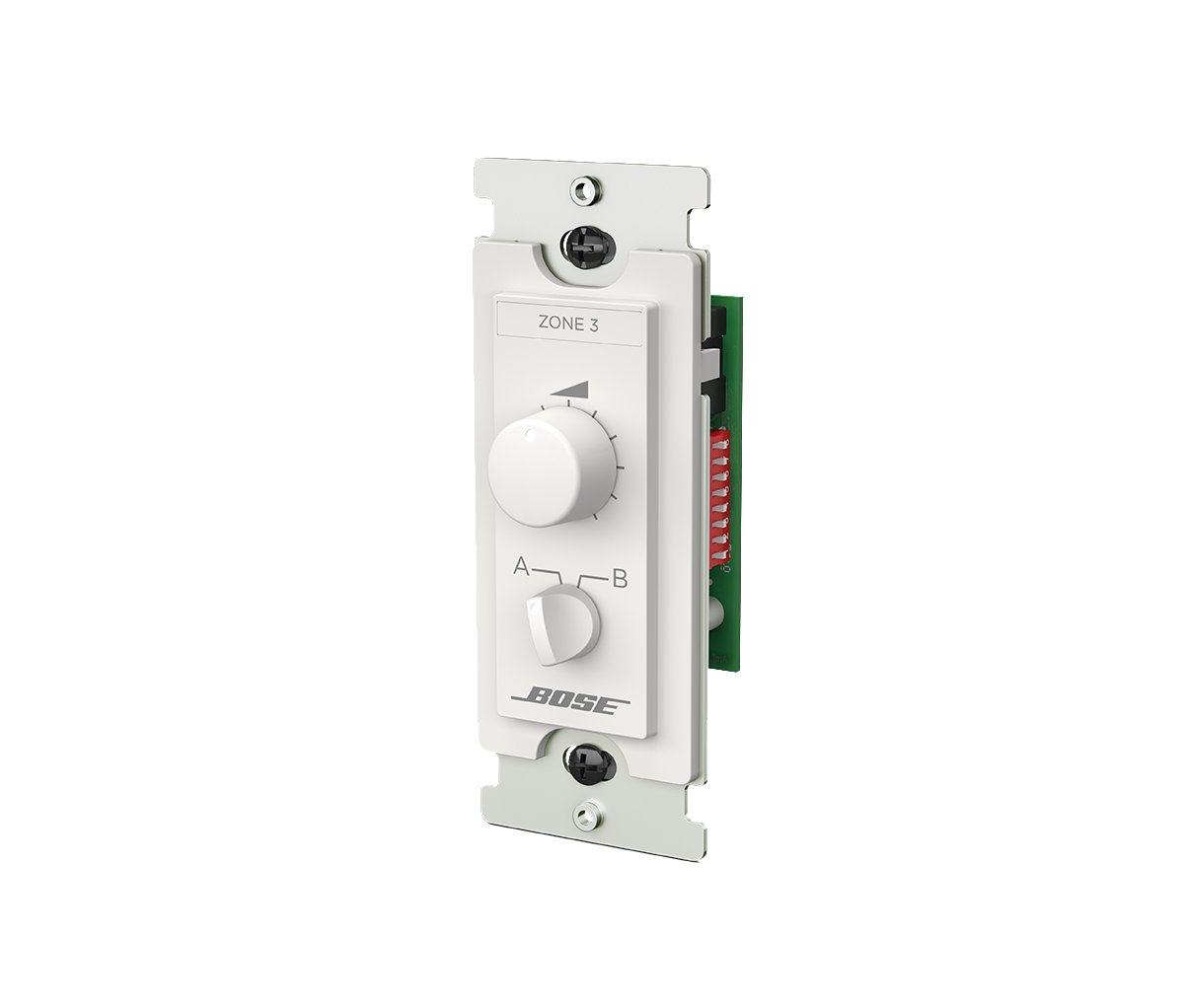

768938-3210ControlCenter CC‑2, white, 100V, JapanGet Price

In the Box

  • (1) ControlCenter CC-2
